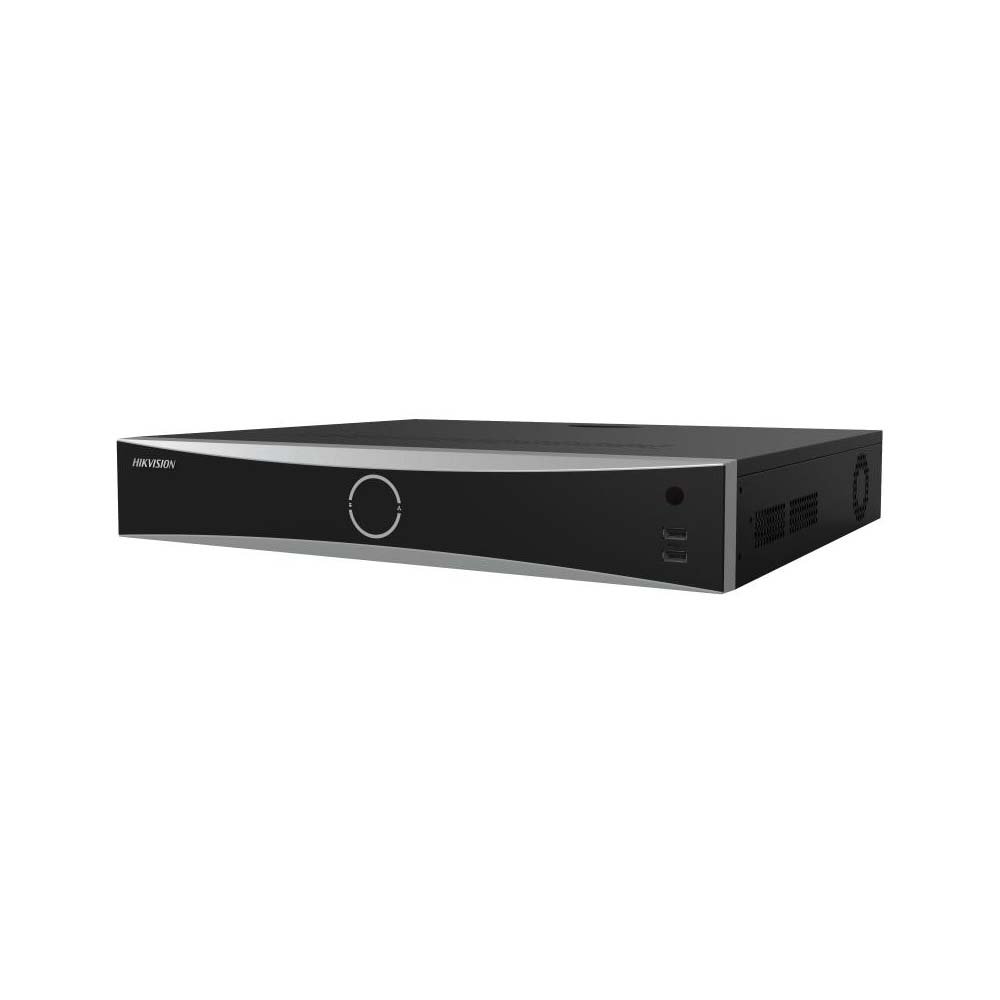

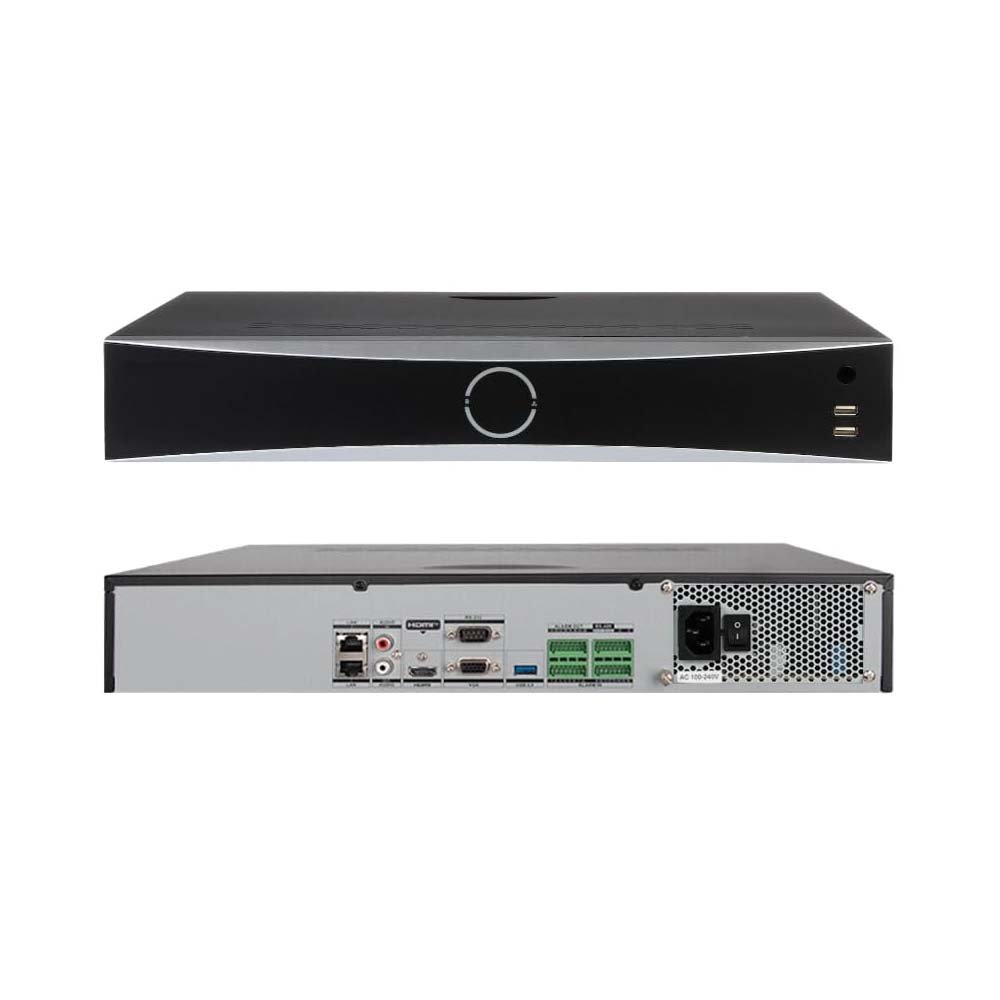

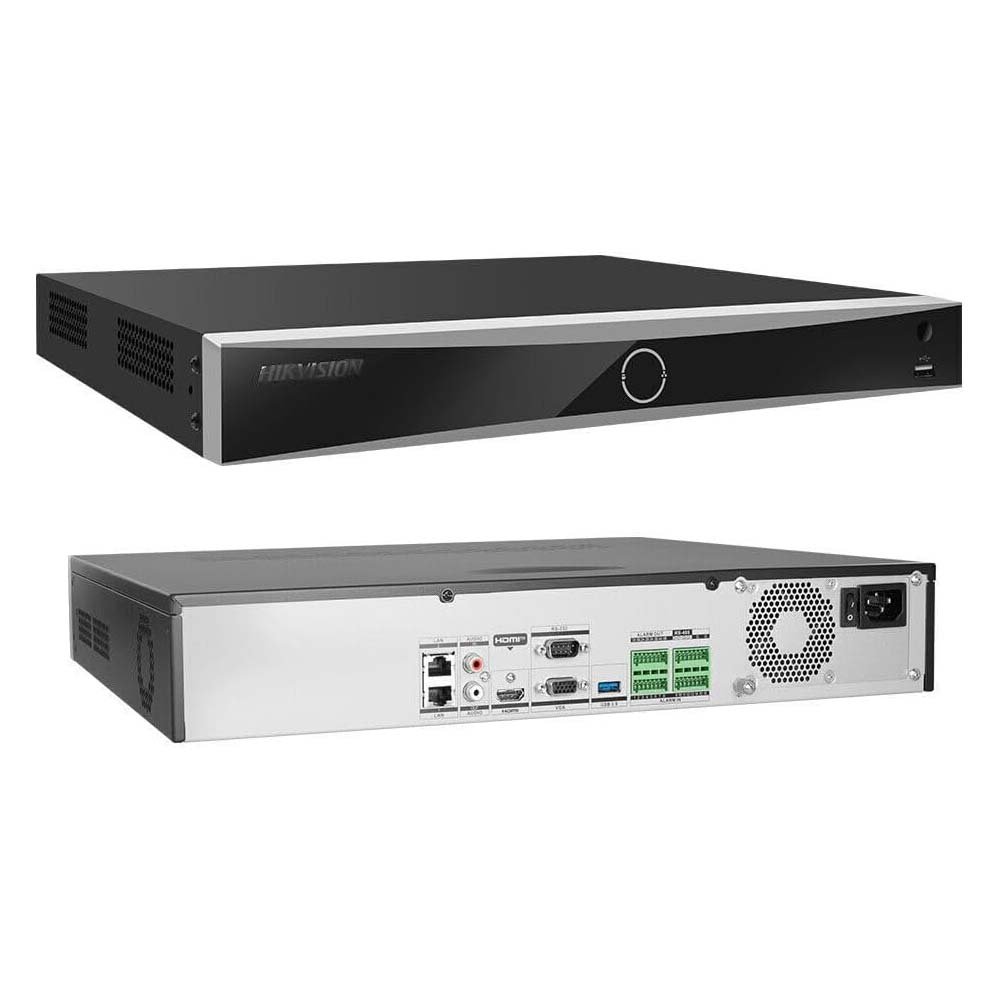

32 Channel 4K ACU-Sense Up to 12MP Recording NVR(No PoE)

32 Channel 4K ACU-Sense Up to 12MP Recording NVR(No PoE)

Up to 32-ch IP camera inputsH.265+/H.265/H.264+/H.264 video formatsUp to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacityUp to 256 Mbps incoming bandwidthAdopt Hikvision Acusense technology to minimize manual effort and security costsAdd to Favorites

DS-7732NXI-K4

SEND INQUIRY NOW

DS-7732NXI-K4

Motion Detection 2.0

By DeviceAll channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm

By CameraAll channels

Perimeter Protection

By Device2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

By CameraAll channels

Video And Audio

IP Video Input32-ch

Incoming Bandwidth256 Mbps

Outgoing Bandwidth160 Mbps

HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output ModeHDMI/VGA independent output

CVBS OutputN/A

Audio Output1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )

Decoding

Decoding FormatH.265/H.265+/H.264+/H.264

Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback16-ch

Decoding Capability

AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)

Stream TypeVideo, Video & Audio

Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC

Network

Remote Connection128

APIONVIF (profile S/G); SDK; ISAPI

Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

Auxiliary Interface

SATA4 SATA interfaces

CapacityUp to 10 TB capacity for each HDD

Serial Interface2 RS-485 (half-duplex), 1 RS-232

Alarm In/Out16/4 (16/9 is optional)

USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Ctrl 12VN/A (optional to support)

DC 12VN/A (optional to support)

General

GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian

Power Supply100 to 240 VAC, 50 to 60Hz

Consumption≤ 20 W (without HDD)

Working Temperature-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity10 to 90 %

Dimension (W × D × H)445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")

Weight≤ 5 kg (without HDD, 11 lb.)

Certification

FCCPart 15 Subpart B, ANSI C63.4-2014

CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
