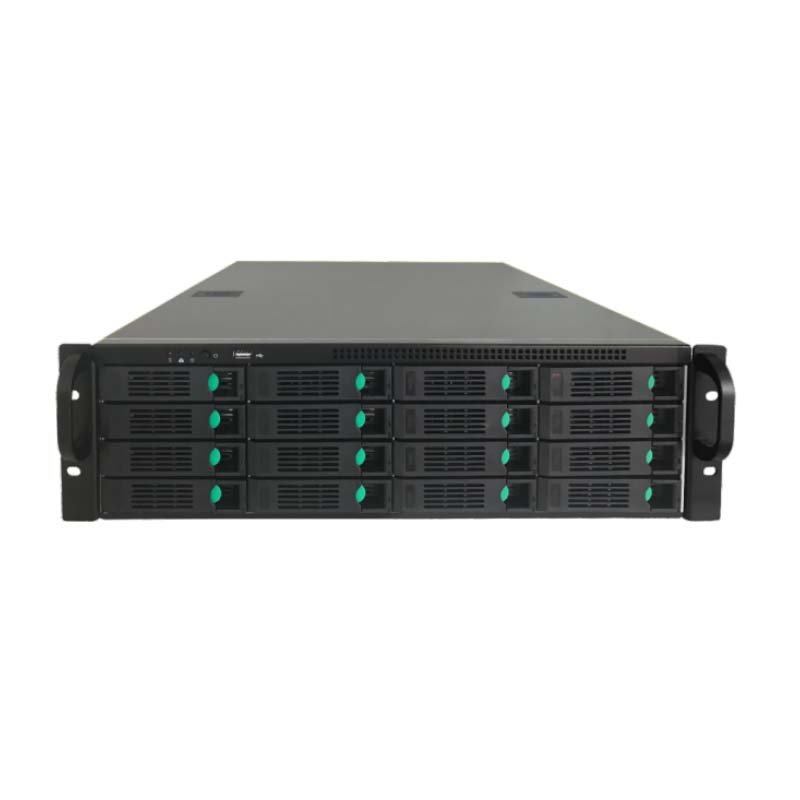

Features：
● Support 196 CH IPC input
● Mode 1：1 pcs HDMI output:（12MP/D1+128 CH Preview+16CH playback）
● Mode 2：2 pcs HDMI output:（12MP/D1+2 pcs 100+100CH preview+16CH playback）
● Mode3：4 pcs HDMI output:（8MP/D1+4 pcs 49+49+49+49 CH preview+16CH playback）
● Support H265,H264,Smart 265 compression format
● Support single screen to display 8K output
● Support 2 pcs monitors HDMI to display output (1*8K+1*4K)

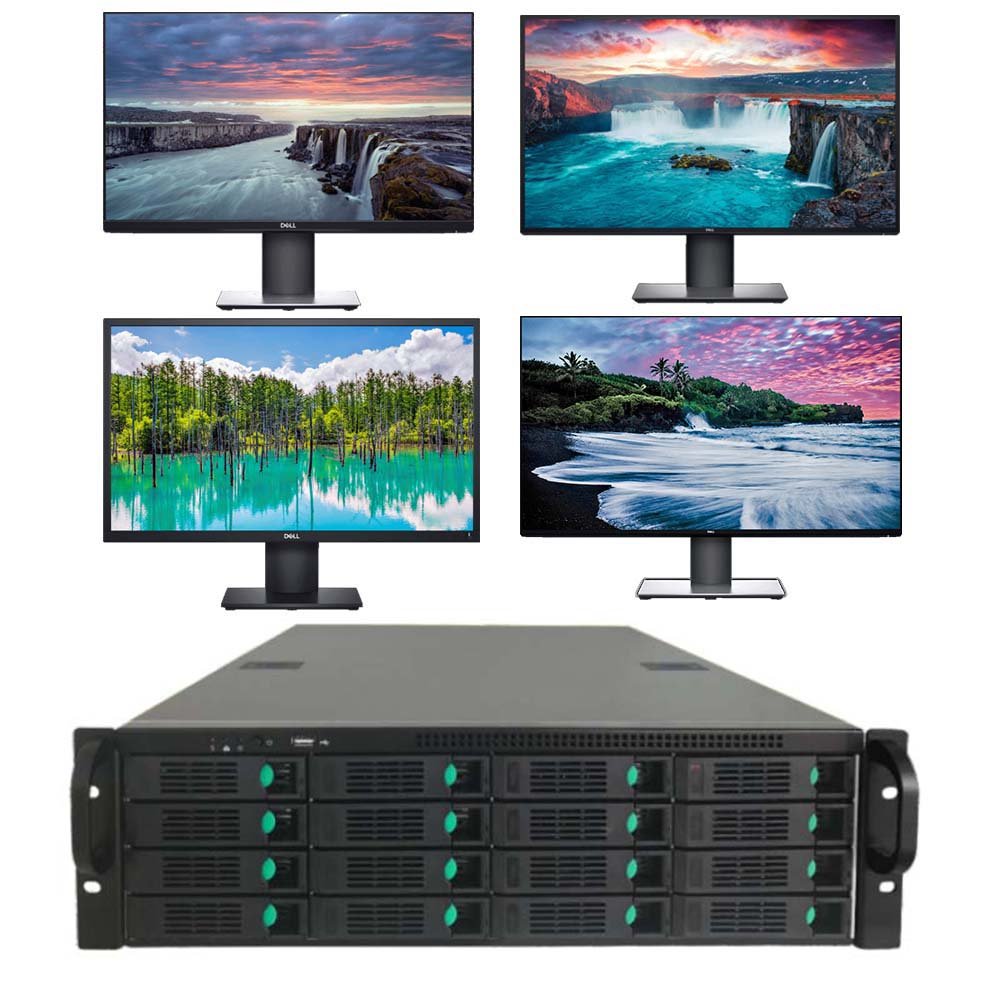

● Support 4 pcs monitors HDMI to display output (3*4K+1*1080P)
● Support synchronized recording,remote view,backup recording in MP4 format, mobile view
● Support VGA/HDMI
● Support preview image and playback image electronic amplification
● Support RTSP,GB28181,ONVIF protocol
● Support RTMP push● Support alarm capture,send alarm information by email
● Support DDNS,UPNP,NTP,P2P...etc
● Support WEB, mobile view,IMS surveillance
● Support IPC smart analysis: area intrusion, line-crossing. absent detection, loitering, retrograde detection, vehicle illegal parking
● Support channel tour round grouping
●Support network inspection-network traffic monitor, ether-detect packet,network diagnosis..etc
● Support max 4CH 4K playback and 16CH D1 playback
● Support HTML5 remote login operation
● Support to add IPC manually or automatically in LAN
● Support to upgrade IPC online and by memory
● Support to maintain IPC under private protocol, including restore, restart, enable or disable all network function
● Support disconnected network supplement function, optimize bandwidth incoming up to 800M
● Support RAID,IPSAN,NAS storage
● Support max 128CH display on single screen ( need to turn page for 196CH display)
