Product Description
Model No. | NST-IPC7102-4G | |
| Image Sensor | 1/2.8" SONY IMX307 CMOS Sensor | |
| Pixel | 2.0 Megapixels | |
| Lens | 2.8-12mm | |
| 3G/4G | 3G/4G network standard | 4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE |
| Â | Bands | B1/B3/B7/B20/B38/B39/B40/B41/B26 |
| Â | Transmission Speed | LTE FDD/TDD (Cat. 4) download 150 Mbps . Upload 50 Mbps 3G HSPA+ download 21 Mbps,Upload 5.76 Mbps 3G TD-SCDMA download 2.8 Mbps,Upload 2.2 Mbps |
| Â | 3G/4G Video Transmission channel | LTE B1/B3/B8/B38/B39/B40/B41 (CA not support) TD-SCDMA B34/B39 WCDMA 2100/900MHz GSM/GPRS/EDGE 900/1800MHz |
| Â | Signal Strength Detection | Support |
| Â | SMS | Support SMS sending |

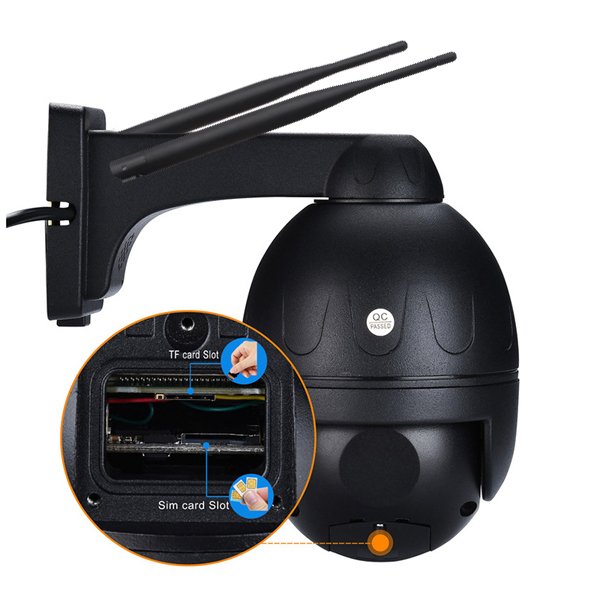

| Â | SIM card slot | Support. Standard USIM card. |
| Â | SIM card lock | Support |
| Alarm | SMS Alarm | Support |
| 3G Video Call Alarm | Support | |
| Motion Detection Alarm | Support. 3 sensitivity levels: low, standard, high | |
| Alarm Platform | Support iPhone push alarm | |
| Alarm Video Recording | Support | |
| Alarm recording | Support. The video will be recorded 5 seconds before the alarm triggered time. | |
| Alarm Zone | Alarm Zone | |
| Alarm Level | Alarm Level | |
| Record | Record File Format | AVI file format |
| Record Storage | Internal TF Storage. FAT file system. Maximum 32GB | |
| Recording mechanism | The least recently used file will be deleted when the available storage is less than 10%. | |
| Manual recording | Support. User can start and stop the recording using the client application | |
| Record searching | Support. Search by record time and type. | |
| Record management | Support User can download, batch delete and one-click delete the record. | |
| 24 hours recording or scheduled recording | Support. Scheduled by week day and time. Each record can be 10, 15, 30, 60 minutes long. | |
| Online Record Watching | Support. User can watch the whole video or preview the key frame of the video. | |
| Auto | Auto Exposure | Support |
| Auto White Balance | Support | |
| Electronic shutter | Auto Exposure | |
| Wi-Fi | Wi-Fi | WiFi 802.11g/n |
| WiFi Mode | AP mode. (OPTION STA Mode +5$,Switching comes into effect in 5 seconds ) | |
| General | Day and night function | Yes |
| Clock | RTC real time clock. Support NTP and remote setting. | |
| Voltage | 12V DC | |
| Power | Maximum power consumption12W minimum power consumption 5W | |
| Working Environment | Working Temperature -10℃~+50℃,Working humidity 10%~90% | |
