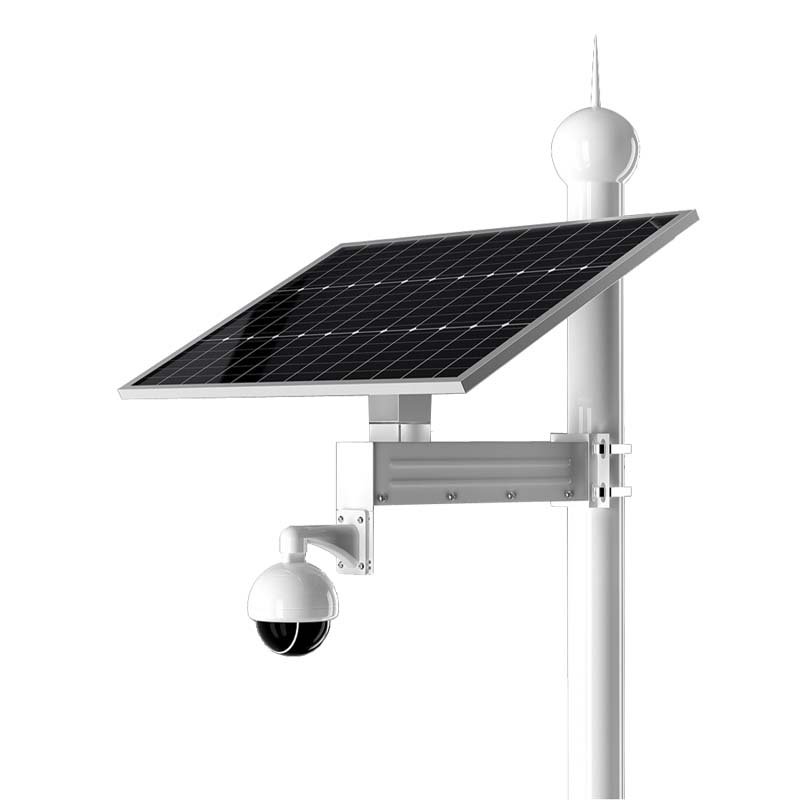

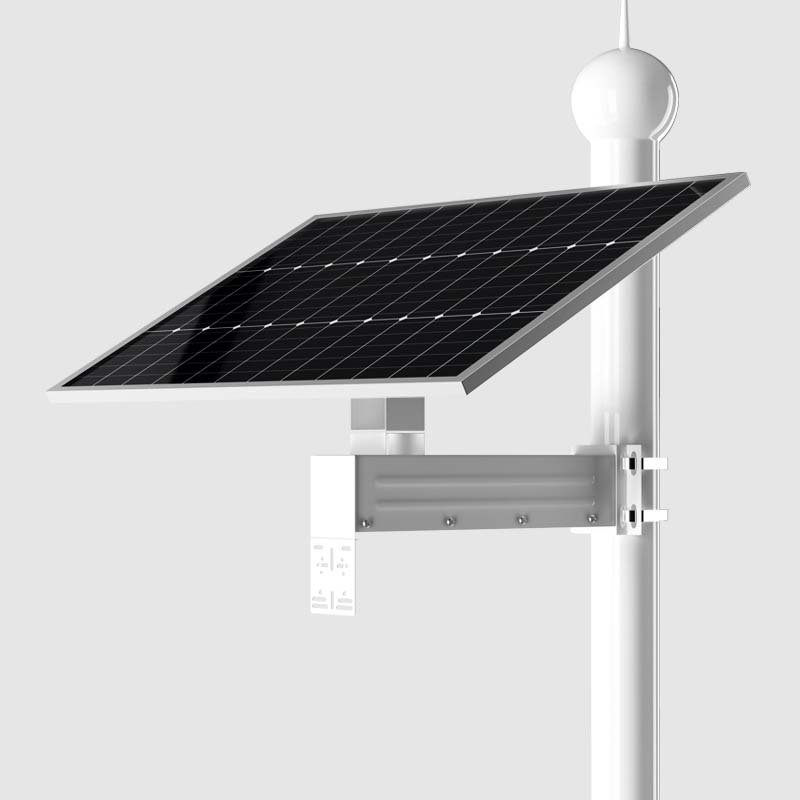

60W Solar Panel DC 12V 40AH Solar Power Supply System of Security Camera
18V 60W Monocrystal Solar Energy Panel*1PC
MPPT Solar Controller *1PC
DC 9.7—12.6V Output

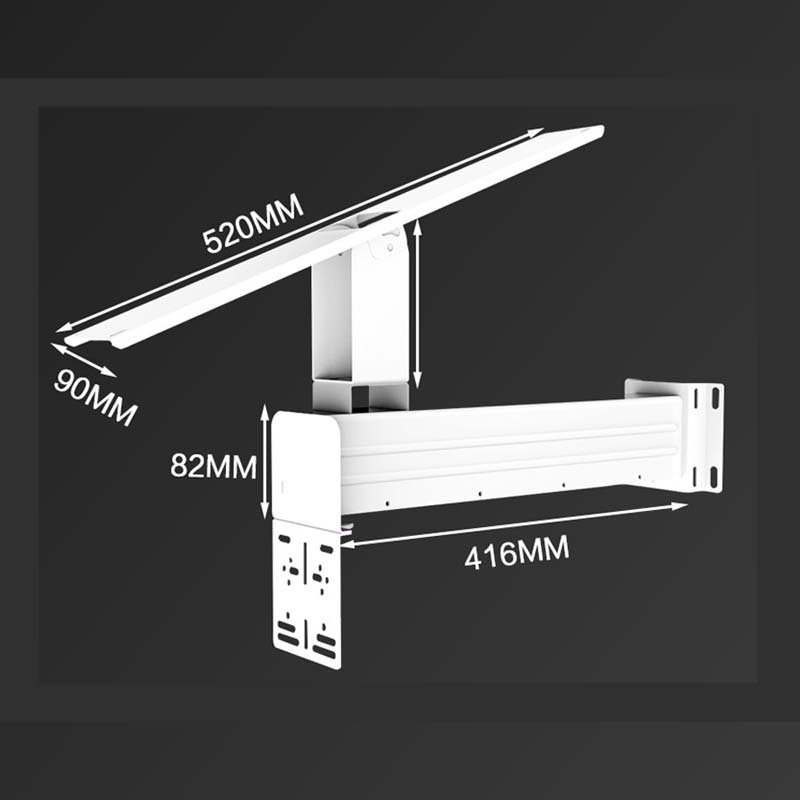

Metal Wall Mount Bracket * 1PC
Blade type battery management system
Max 3.7V 18650 lithium battery*48PCS
Original A product 18650 ternary lithium battery.
Placing a multiple of 3 batteries can generate a battery capacity of 20AH/30AH/ 40AH
Alloy stampine bracket, high strength, high toughness, light weight, high-grade plastic spray, built-in battery compartment in the bracket IP66 waterproof.
The quotation indludes photovoltaic panels, lithium batteries, brackets,Controller and hoop..etc
Solar Panel Specification
Model No. | NST-SPM60W |
Cell Material | High Efficiency Monocrystalline |
| Maximum Power(Pmax) | 60W |
| Maximum Power Voltage(Vmp) | 18V |
| Maximum Power Current(lmp) | 1.67A |
| Open Circuit Voltage(Voc) | 21.9V |
| Short Circuit Current(lsc) | 1.77A |
| Conversion efficiency | 22% |
| Power Tolerance | ±3% |
| Maximum System Voltage | 1000VDC |
| Frame | PC Complex Material |
| Temperature Range | -40℃to +80℃ |
| Dimensions(mm) | 550*510*20mm |
