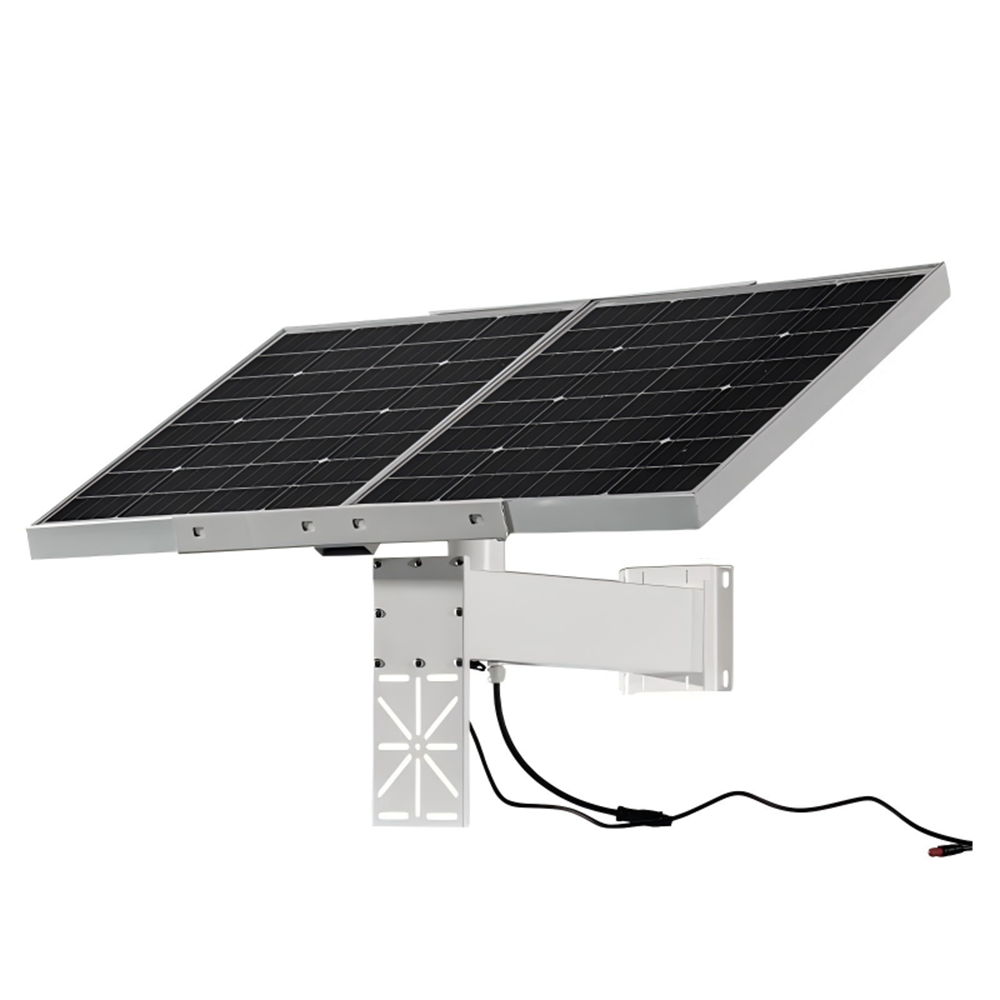

80W Fast Recharge Solar Panel System 40AH Ternary Lithium Battery DC12V CCTV Camera Power Supply Outdoor Monitoring Systems

Product Description: NST-SL8040AH Solar Power Supply System

Model Number: NST-SL8040AH

Product Type: Integrated Solar Power Supply System
Key Applications: Security Cameras, 4G Base Stations, IoT Sensors, Traffic Monitoring

Overview

The NST-SL8040AH is a high-performance, integrated solar power supply system engineered for reliable off-grid operation. Designed for durability and efficiency, this system combines an 80W high-efficiency solar array with a robust 422Wh lithium battery pack. Built with an IP65-rated enclosure and industrial-grade components, it ensures seamless power delivery for surveillance and outdoor electronics in all weather conditions.

Key Features

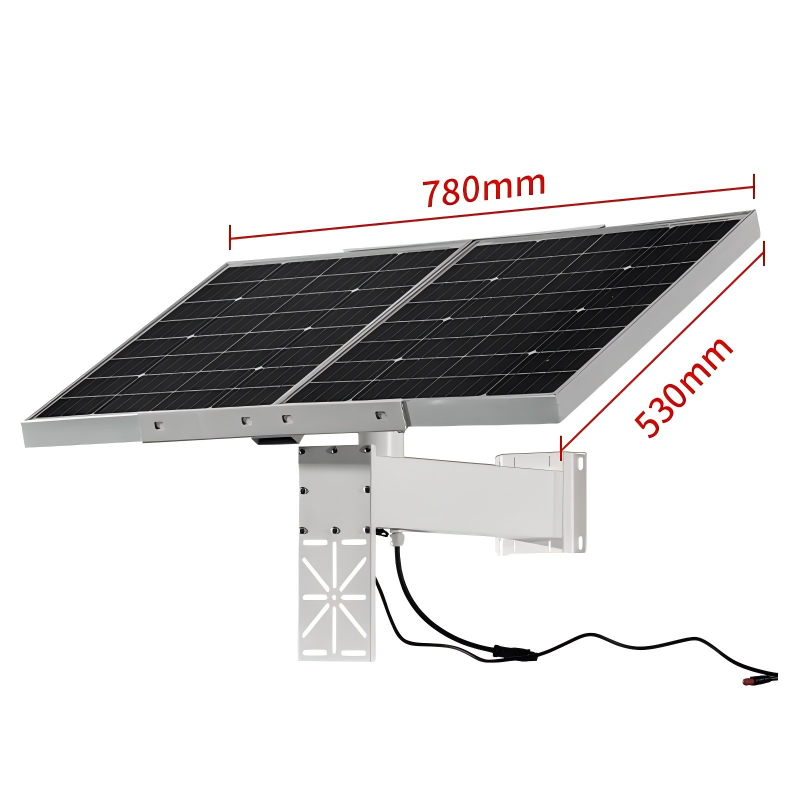

High-Efficiency Dual Panels: Equipped with two 40W (total 80W) monocrystalline silicon solar panels featuring 3.2mm low-iron tempered glass, ensuring high light transmittance and resistance to hail impacts (up to 25mm diameter at 23m/s).

Large Capacity & Long Life: Features a 422Wh (11.1V 38Ah) NMC Lithium Battery with a cycle life of over 2000 times (maintaining ≥80% capacity) and a design life of up to 25 years for the solar modules.

Smart Hybrid Management: Utilizes advanced PWM control technology with multiple protection mechanisms (over-charge, over-discharge, short-circuit). It supports seamless switching between solar-direct supply, mixed supply, and optional city power backup (<50ms switch time).

Industrial Durability: Encased in cold-rolled steel with outdoor-grade bright white baking paint, the system achieves an IP65 protection rating, offering excellent resistance against wind pressure (2400Pa) and snow load (5400Pa).

Tool-Free Installation: Includes a comprehensive mounting kit with an "I-Beam" bracket, round tube支架, stainless steel clamps, and camera mounting plate, allowing for quick and secure installation on poles or walls.

Technical Specifications

Parameter

Specification

Model    NST-SL8040AH

Solar Panel    2 x 40W (Total 80W), Monocrystalline Silicon

Battery Capacity    422Wh (11.1V 38Ah) / 3S NMC Lithium

System Voltage    12V DC (Nominal)

Controller Type    PWM (Protection: Over-charge/Over-discharge/Short Circuit)

Output Ports    DC5521 (9V~12.6V Adjustable)

Protection Level    IP65 (Entire System)

Operating Temp    -20°C to +60°C (Charging: 0°C to +45°C)

Dimensions (Box)    565 × 200 × 470 mm

Weight    10.9 kg

Package Includes

80W Solar Panel x 2

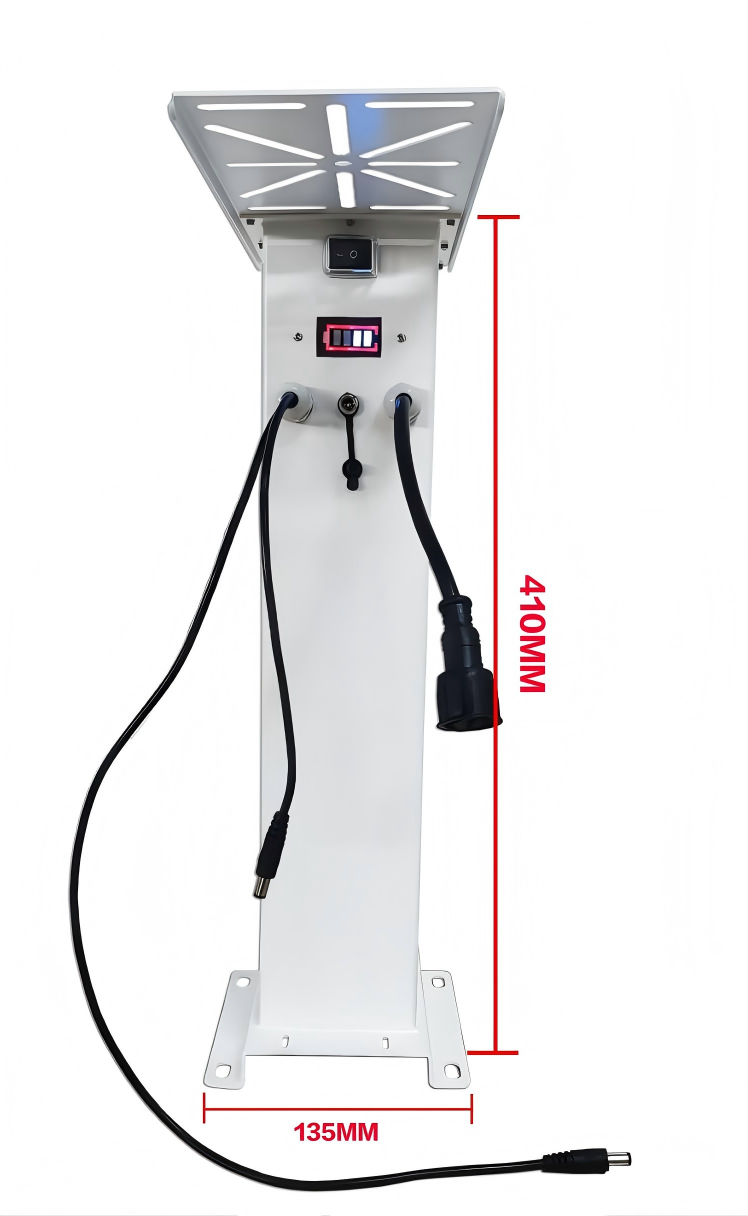

Integrated Battery Box (NST-SL8040AH) x 1

I-Beam Mounting Bracket x 1

Round Tube Mounting Bracket x 1

Camera Mounting Plate x 1

Stainless Steel Screws & Clamps Kit

User Manual & Certificate of Quality
