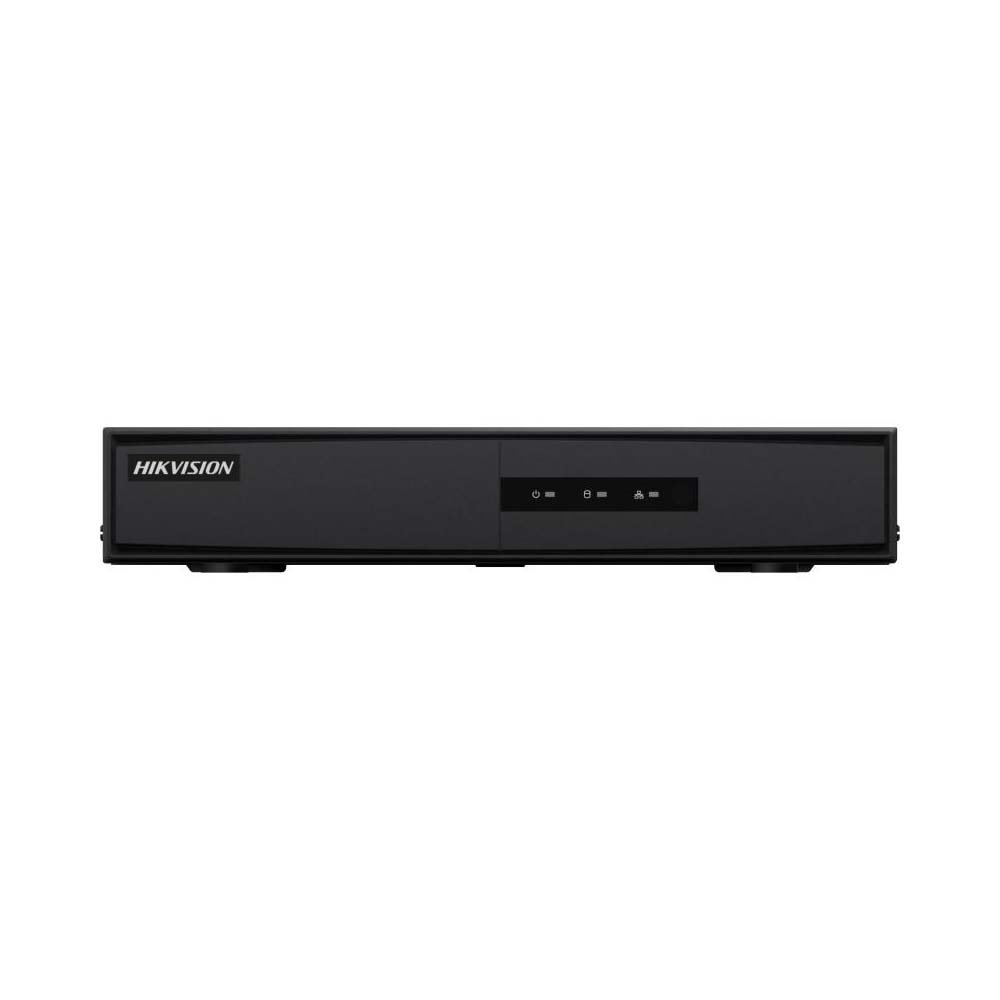

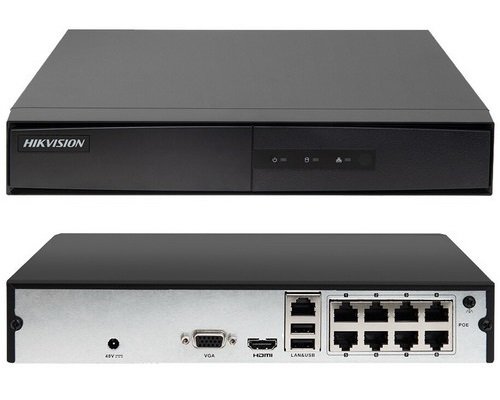

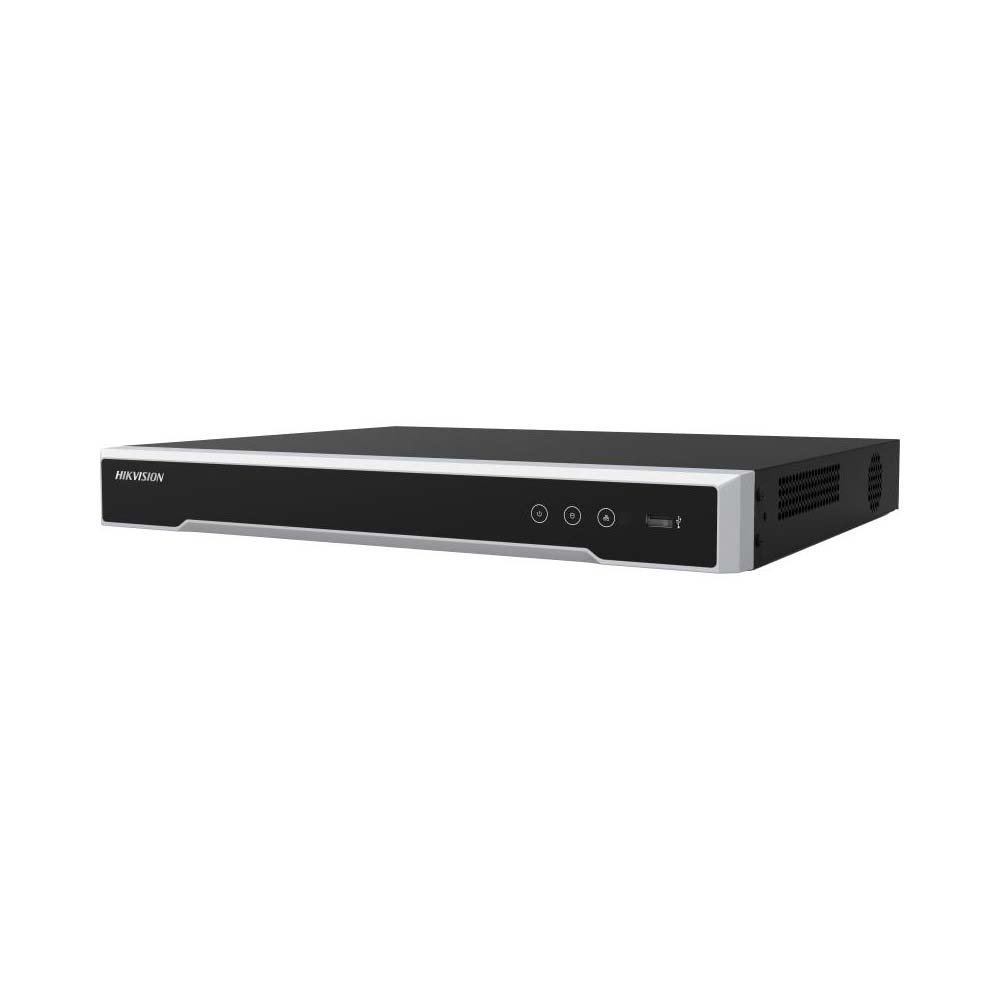

DS-7108N1-Q1/8p/M

Video And Audio

IP Video Input

8-ch

Up to 6 MP resolution

Incoming Bandwidth60 Mbps

Outgoing Bandwidth60 Mbps

HDMI Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output ModeHDMI/VGA simultaneous output

Decoding

Decoding FormatH.265+/H.265/ H.264+/H.264

Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Synchronous Playback4-ch

Decoding Capability4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)

Stream TypeVideo, Video & Audio

Network

Remote Connection16

Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnPâ„¢

Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE

Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power≤ 75 W

StandardIEEE 802.3 af/at

Auxiliary Interface

SATA1 SATA interface

CapacityUp to 6TB capacity for each disk

Alarm In/OutN/A

USB InterfaceRear panel: 2 × USB 2.0

General

Power Supply48 VDC, 1.8 A

Consumption≤ 10 W

Working Temperature-10 to +55º C (+14 to +131º F)

Working Humidity10% to 90%

Dimension (W × D × H)265 × 223 × 48 mm (10.4" × 8.8" × 1.9")

Weight≤ 1 kg (2.2 lb)

Certification

CEEN50130-4, EN 61000-3-2,EN 61000-3-3
