DC 12V Solar Power Supply System for 4G Security Camera

Construction and installation are convenient and convenient, saving time and effort; With photovoltaic panel angle mark, it is convenient to confirm the installation angle and greatly improve the charging efficiency; ABS+PC+anti-UV+flame retardant, private mold integrated molding, stable operation in the environment of -45℃~135℃, the material is better than the front and rear protective bars of the car, and the service life is more than 8 years; The aviation head wiring prevents misconnection, has good waterproof performance, and is quick and trouble-free to install. A new generation of N-type 10-inch wafer photovoltaic cells The maximum output is 3 amps, with short-circuit protection to avoid burning the equipment circuit due to incorrect connection of the output positive and negative during construction. After it is fully charged, recharge it after it drops to a certain level to avoid shortening the battery life due to repeated charging at high voltage. Before the battery is depleted, the output is shut down protectively, and the output is turned on only after charging reaches a safe voltage. This prevents the camera from being drained of battery power after recharging after a loss of power, causing repeated restarts and affecting the life of the battery and camera. System watchdog function, automatically restarts within 30 seconds of crash;

Photovoltaic modules:

30W22.5AH Solar panel

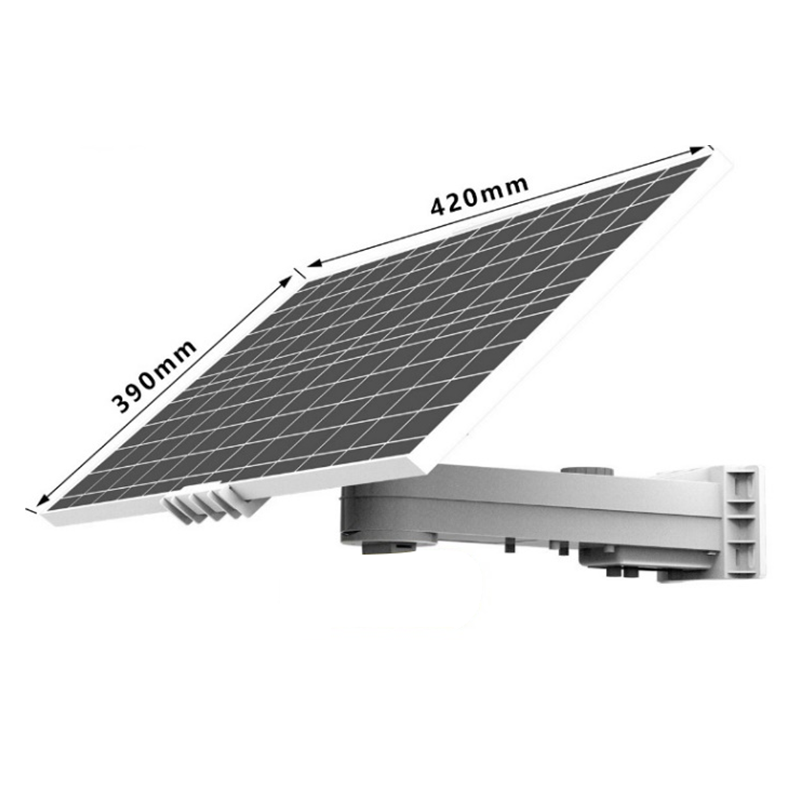

 size: 420*390*17

Rated power: 30W N-type A+ grade monocrystalline silicon, M10 high-efficiency chip

Conversion efficiency: 21%

Material: Obtained glass 3mm tempered glass

Protection level: IP66

Operating temperature: -30°C to 85°C

Maximum working current: 3A

Open circuit voltage: 16.5V

Maximum working voltage: 15V

Surface pressure: The maximum pressure that the solar panel surface can withstand: 60m/s (200kg/sq.m)

Calculated at 80% in northern winter, the sun is full in 4 hours

Solar battery pack

Battery type: ternary lithium battery

Rated voltage: DC9-12.6V

Battery capacity: 2500MAH*9 pieces,

total 22.5AH

Nominal voltage: 11.1v

Charging temperature: -30°C to 85°C

 Discharge temperature: -30°C to 85°C

Battery specifications: 18650 battery pack

Number of cycles: After 1,000 cycles, the remaining battery capacity is greater than 80%. Taking T84-2 as an example, one cycle takes about 2.6 days, and 1000 cycles equals about 7.12 years.

Charging protection board: high temperature protection, low temperature compensation, battery balance protection, overcharge and overdischarge protection

Solar Controller

Maximum charging current: 5A Maximum

output current: 5A

Reverse connection protection: yes

Controller self-consumption: Controller self-consumption

 Operating temperature: -30°C to 85°C
