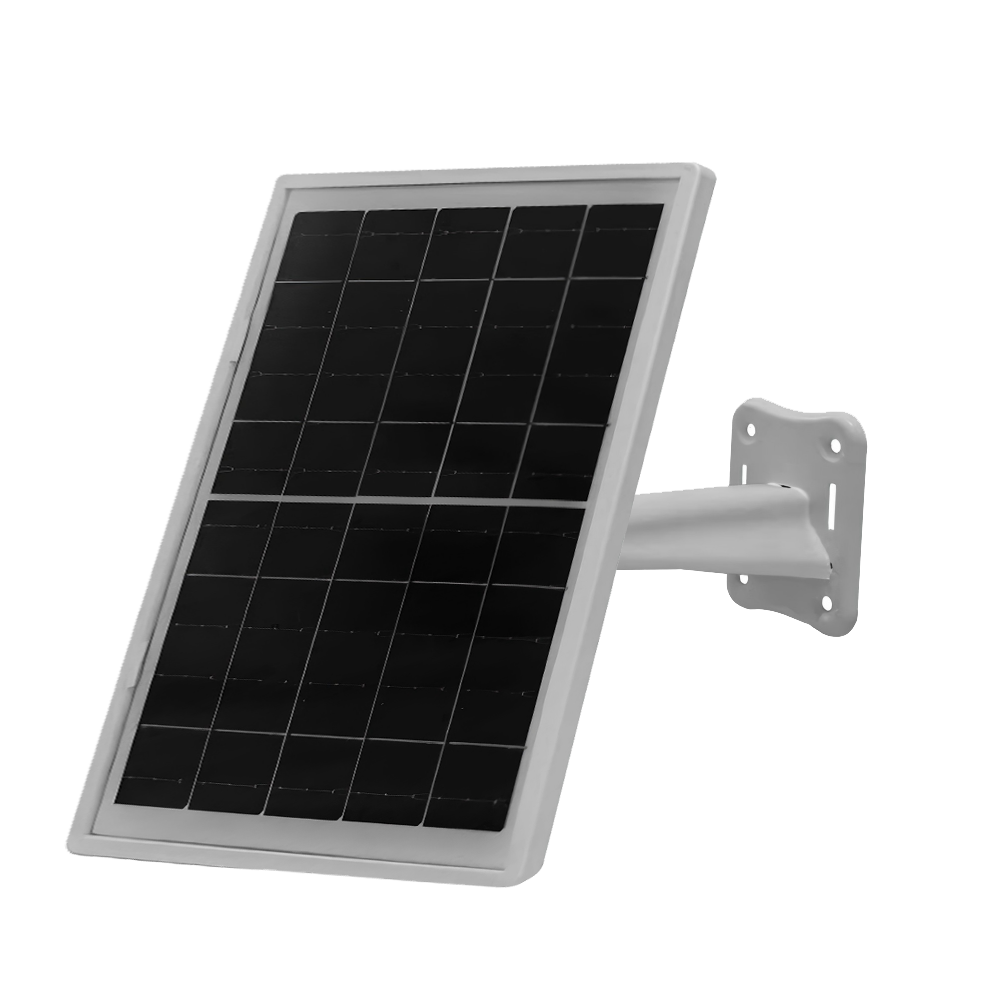

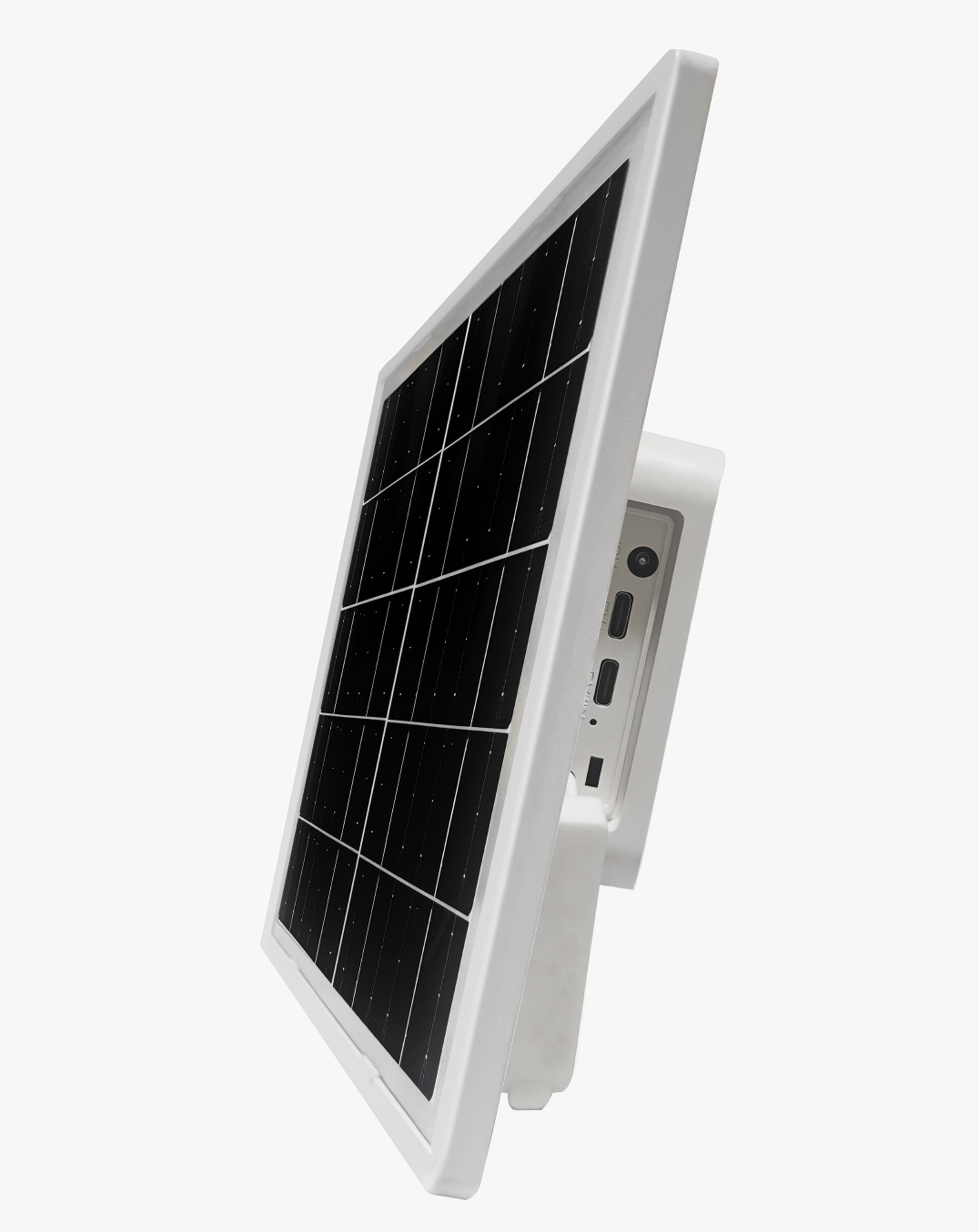

Solar Power Supply System for CCTV Camera

Output: DC 12V, DC 5V

Solar Panel Power: 8W

Application: CCTV camera, security camera, outdoor monitoring equipment

Features: Solar charging, built-in battery, stable output, no external power required.

Product Description: Integrated Solar Panel & Dual Output Battery System

Product Name: Integrated Solar Panel & Battery Power Station
Model Number: NST-SL0812AH

Overview
The NST-SL0812AH is a robust, all-in-one power solution designed for remote surveillance and outdoor electronics. This integrated system combines a high-efficiency 8W solar panel with a large-capacity 12AH lithium battery, providing reliable, off-grid power for security cameras and IoT devices.

Key Features

Integrated Design: A compact, weatherproof unit combining an 8W solar panel and a 12AH/44.4WH lithium battery.

Dual Voltage Output: Supports both 5V and 12V outputs, making it compatible with a wide range of surveillance cameras and outdoor electronic equipment.

Smart Charging Indicator: Features intuitive LED indicators—Green light signals charging status, while a Yellow light indicates a fully charged battery.

Comprehensive Protection: Equipped with multiple safety features including over-charge protection (6.5V), over-discharge protection, short-circuit protection (3A), and charging/discharge current protection.

Flexible Connectivity: Includes a 1.5m Type-C to Type-C cable and a 1.5m DC5521 male-to-male tail cord. Also supports external charging via 5V/2A.

Rapid Recharge: Under optimal sunny conditions, the battery can be fully recharged in approximately 2 days.

Technical Specifications

Parameter

Specification

Solar Panel    8W Max (5.7V / 1.6A)

Battery Capacity    12AH / 44.4WH

Charging Voltage    4-6.5V (Max 2.5A Protection)

Discharge Current    0-2A (Max 2A Protection)

Output Voltage    5V / 12V (Dual Output)

Dimensions (Solar)    245 * 192 * 37mm

Dimensions (Unit)    363 * 219 * 61mm

Weight    1.15KG

Package Includes

1 x Integrated Solar Panel & Battery Unit

1 x Installation Bracket

1 x User Manual

1 x 1.5m Type-C to Type-C Cable

1 x 1.5m DC5521 to DC5521 Cable
