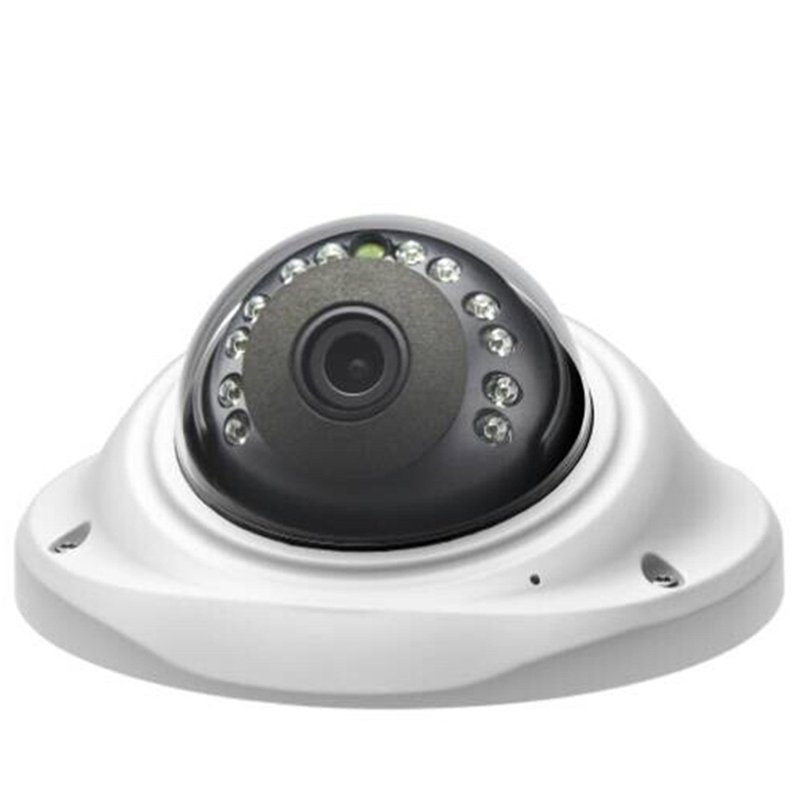

1080P 2Megapixel 1/2.7" CMOS Sensor Indoor Security Camera 3.6mm Lens with IR Cut Indoor Mini Dome Camera 12PCS Infrared LEDs

1) Embedded Linux System 2) H.264 Video Compression,JPEG Capture,Audio G.711 3) Resolution: 1920*1080,Real-time image 4) 1/2.8" CMOS Sensor,Board Lens:3.6mm 5) 12 pieces IR-LED,Illuminate Distance 10m 6) Image Frame Rate:Max
NTSC 30fps (1920*1080),PAL 25fps(1920*1080) 7) Max resolution can reach 2.0M(1920×1080), HD 1080P output 8) Low illumination,0.1Lux @ (F1.2,AGC ON),0 LUX with IR 9) Support IR-CUT filter switch to achieve day and night monitoring Optional Model NST-IPH3534 4.0MP NST-IPH3532 2.0MP NST-IPH35313 1.3MP

NST-IPH3532

SEND INQUIRY NOW

Product Description

Model No.		NST-IPH3534	NST-IPH3532	NST-IPH35313
Camera Type		Vandalproof Metal Dome camera
System		Embedded RTOS design
Camera	Effective Pixels	4.0 Mega Pixels	2.0 Megapixels	1.3 Mega Pixels
		Main stream:2592*1520;	Main stream:19201080;1280720	Main stream:1280*960;
		Sub stream:704*576	Sub stream:704*576	Sub stream:704*576
	Frames Rates	PAL:25fps(2592*1520)	PAL:25fps(19201080)/(1280720)	PAL:25fps(1280*960)
		NTSC:30fps(2592*1520)	NTSC:30fps(19201080)/(1280720)	NTSC:30fps(1280*960)
	Image Sensor	1/3" OV4689 CMOS Sensor	1/2.8" SONY IMX322 CMOS Sensor	1/3" APTINA 0130 CMOS Sensor
		4 megapixel resolution (2688H*1520V)	2.13 megapixel resolution (1945H*1097V)	1.3 megapixel resolution (1305H*977V)
	DSP	Dual core 32-bit DSP	Dual core 32-bit DSP	Dual core 32-bit DSP
		(HI3516D)	(Hi3516C)	(Hi3518C)
	Min. Illumination	Color 0.001Lux@F1.2	Color 0.01Lux@F1.2	Color 0.01Lux@F1.2
		B/W 0.0001 Lux@F1.2	B/W 0.001 Lux@F1.2	B/W 0.01 Lux@F1.2
	Adjust Parameters	DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.
Video	Compression	H.265 Main profile	H.264 Main profile	H.264 Main profile
	Stream	support dual stream,AVI format	support dual stream,AVI format	support dual stream,AVI format
	Bit Rate	support 0.1M ~8Mpbs bit rate adjustable	support 0.1M ~8Mpbs bit rate adjustable	support 0.1M ~8Mpbs bit rate adjustable
	Frame Rates	support 1~30fps adjust	support 1~30fps adjust	support 1~30fps adjust
Audio	Input and output	1ch input( micphone),1ch output( Speaker&micphone) Optional
	Compression	G.711 compression,support two-way audio intercom,support audio and video synchronized output
Alarm	Types	Motion Detection, Video Blind , Video Loss
Network	WEB Browser	Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.)
	Smart Phone	mobile remote Monitoring (iPhone,Android,....)
	CMS Software	Uniform CMS Software(multiple devices management system)
	Cloud P2P	www.enster.com,MYEYE platform and other program,Offer SDK
	Network	1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
	ONVIF	Support (ONVIF 2.4)
	POE	Support(optional)
	WIFI	N/A
General	Language	20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish
	IR Cut Filter	Set of double light switch IR-CUT filter
	Lens Mount	Board Lens 3.6mm
	Infrared Luminary	12pcs IR LED
	Infrared Wavelength	850nm
	Illuminate Distance	10m
	Waterproof Criterion	IP 66
	I/O Connector	1DC Connector ,1 RJ45(10/100M Network)
	Supplied Voltage	DC12V/PoE(802.3af/820.3at)
	Power Consumption	IR On: 600mA max., IR Off: Less than 200mA
	Working Environment	-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
	Weight	0.3kg
