Product Description
Model No. | NST-IPH3285-FE | NST-IPH3282-FE | |

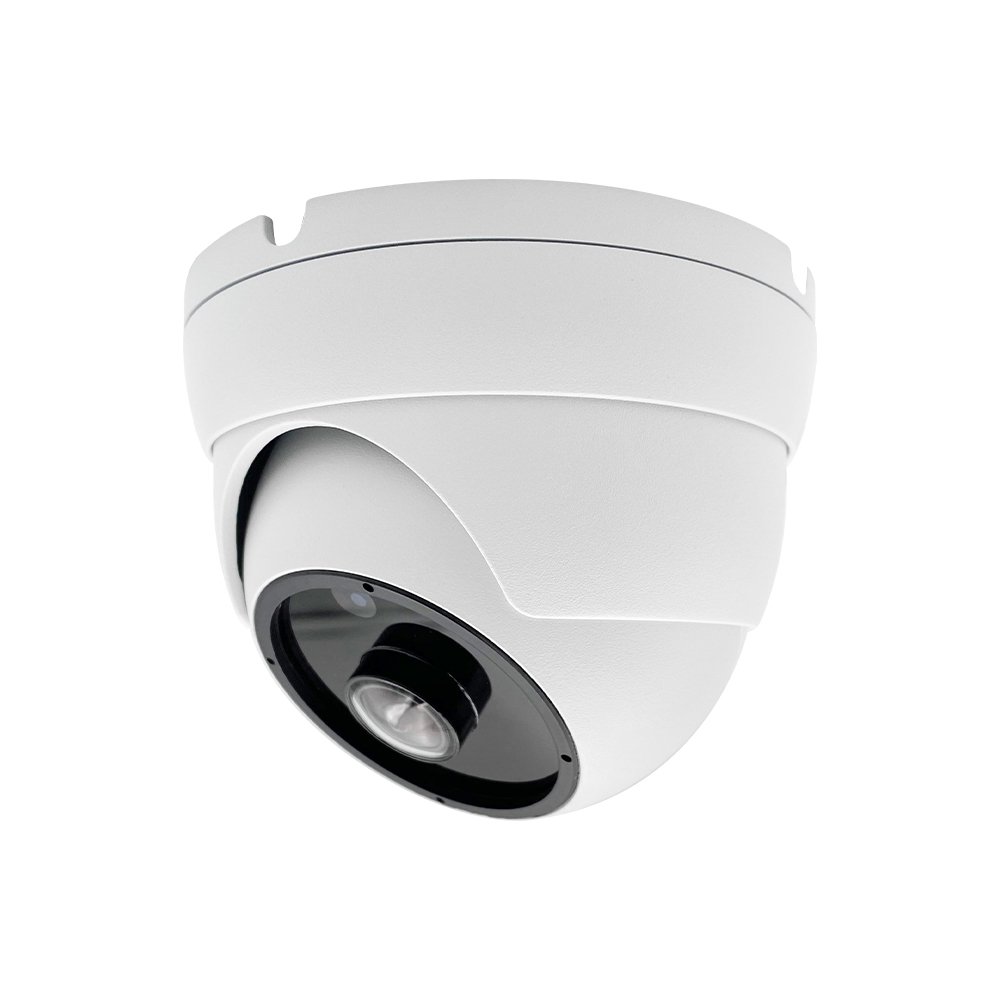

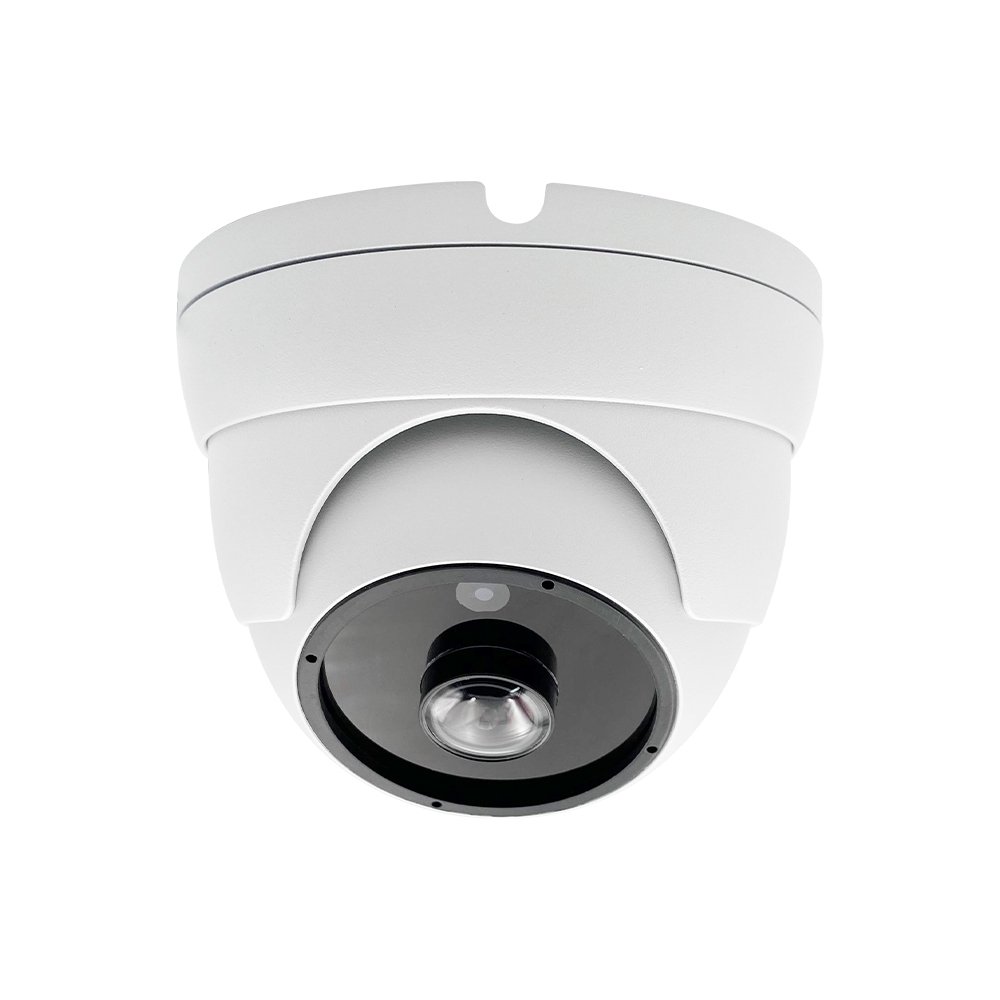

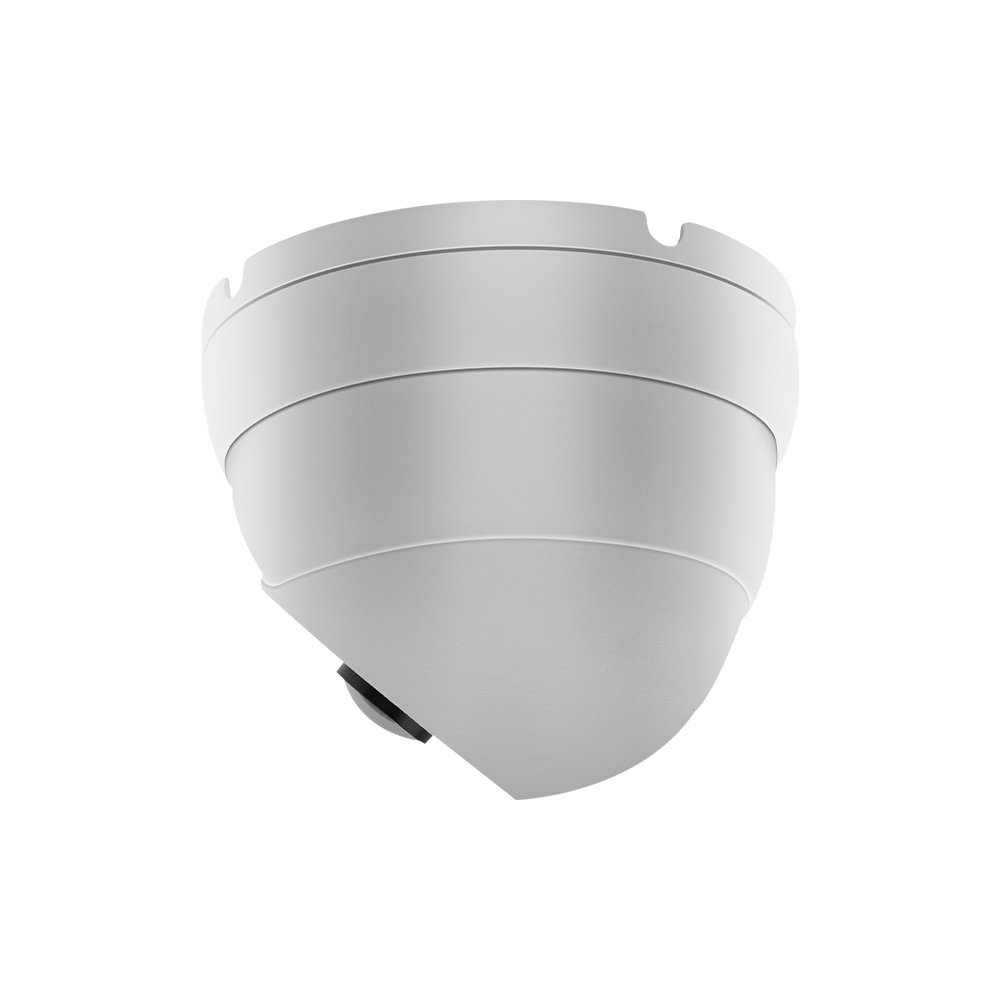

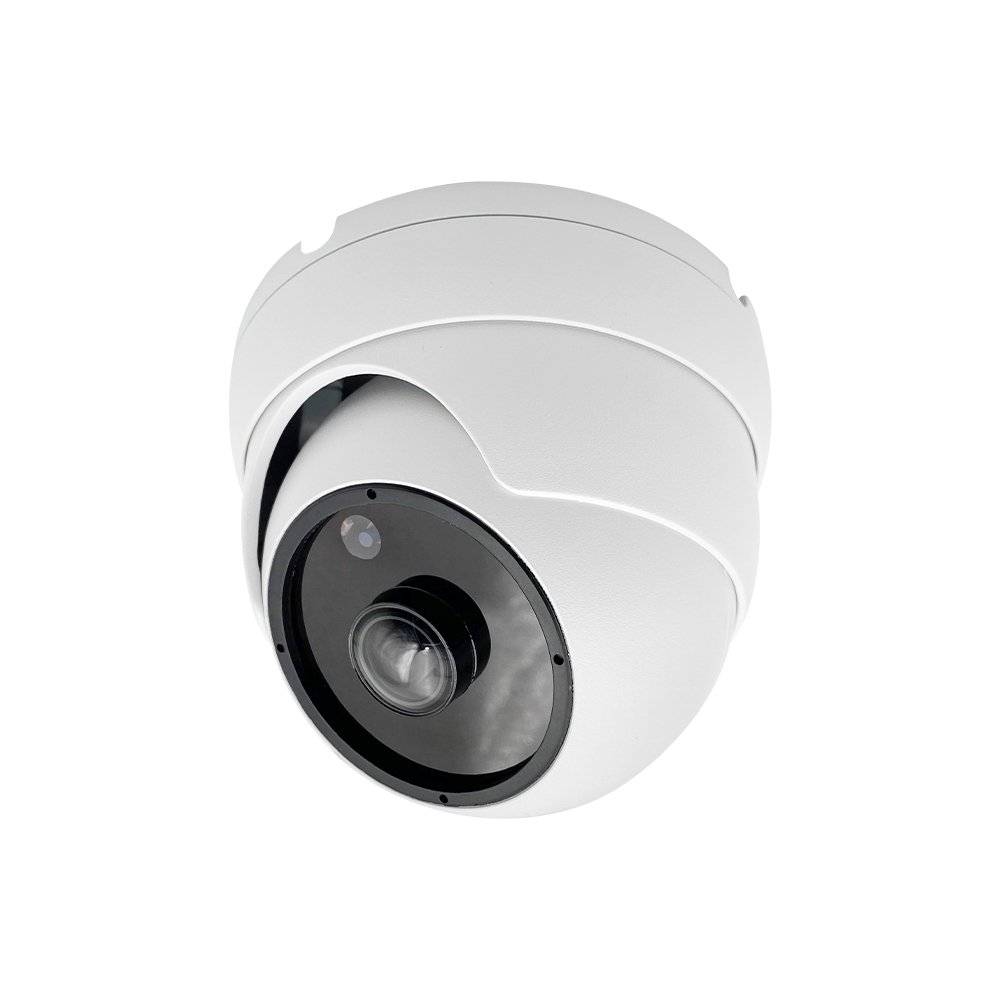

Camera Type | Metal Dome IP Camera | ||
System | Embedded RTOS design | ||
Camera | Effective Pixels | 5.0 Megapixels | 2.0 Mega Pixels |
Main stream:2592*1944; 4MP;3MP | Main stream:1920*1080P; | ||
Sub stream:704*576 | |||
Frames Rates | PAL:15fps(2592*1944) | PAL:20fps(1920*1080) | |
NTSC:15fps(2592*1944) | NSTC:PAL:20fps(1920*1080) | ||
Image Sensor | 1/2.8" SONY Exmor IMX335 CMOS Sensor | 1/2.9" SONY STAVIS IMX307 CMOS Sensor | |
DSP | Dual core 32-bit DSP | ||
3516EV300 | 3516E | ||
Min. Illumination | Color 0.01Lux@F1.2 | ||
B/W 0.001 Lux@F1.2 | B/W 0.01 Lux@F1.2 | ||
Adjust Parameters | DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc. | ||
Video | Compression | H.265/H.264 Main profile | |
Stream | support dual stream,AVI format | ||
Bit Rate | support 0.1M ~8Mpbs bit rate adjustable | ||
Frame Rates | support 1~30fps adjust | ||
Alarm | Types | Motion Detection, Video Blind , Video Loss | |
Network | WEB Browser | Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.) | |
Smart Phone | mobile remote Monitoring (iPhone,Android,....) | ||
CMS Software | Uniform CMS Software(multiple devices management system) | ||
Cloud P2P | www.enster.com,MYEYE platform and other program,Offer SDK | ||
Network | 1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP | ||
ONVIF | Support (ONVIF 2.4) | ||
POE | N/A | ||
WIFI | N/A | ||
General | Language | 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish | |
Lens Mount | Fisheye Lens 1.8mm | ||
Infrared Luminary | 3pcs Mini Array IR LED | ||
Infrared Wavelength | 850nm | ||
Illuminate Distance | 25m | ||
Waterproof Criterion | IP 66 | ||
Supplied Voltage | DC12V | ||
Working Environment | -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° ) | ||
Weight | 0.3kg | ||
