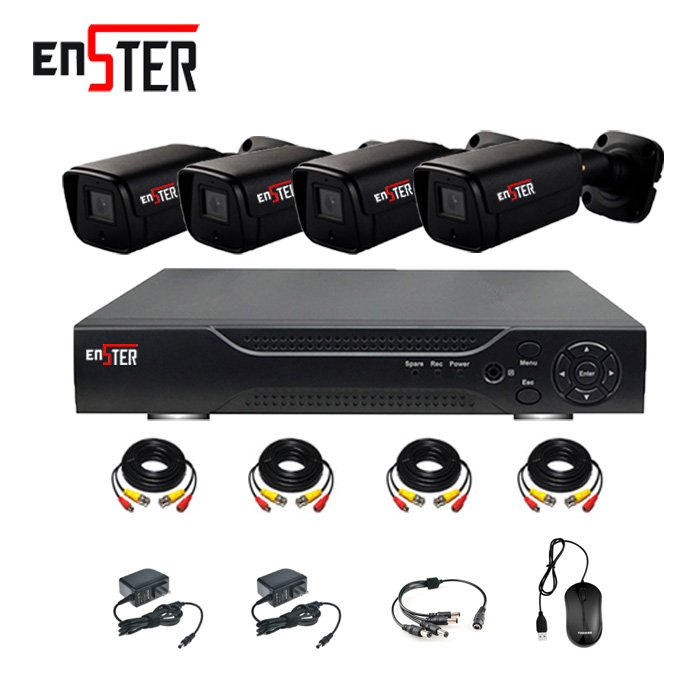

Product Description
DVR Specification
|
Model No. |
AHD-6104MH |
AHD-6108MH
|
|
| System | Main processor |
XM8520 |
联咏N98321
|
| Interface | Preview |
1/4 |
1/4/8/9
|
| Video | Codec |
H.264
|
H.264
|
| Monitor quality |
VGA,HDMI:HD
|
VGA,HDMI:HD
|
|
| Preview ability |
4*1080P
|
8*1080P
|
|
| Encode ability |
4*1080N/4*1080P@15fps
|
8*1080N/8*1080P@12fps
|
|
| Decode ability |
4*1080N/4*1080P@15fps
|
8*1080N/4*1080P@12fps
|
|
| Multi-mode input | analog:4*1080P; hybrid:4*1080N(analog)+4*960P(network); Network only:16*1080P;9*1080P;16*960P;4*5M; |
8*1080N/4*1080P@12fps
|
|
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)
|
|
| Audio | Audio compression |
G.711A
|
G.711A
|
| Intercom |
support
|
support
|
|
| Record & playback | Record mode |
manual>alarm>motion detection>timing
|
manual>alarm>motion detection>timing
|
| Local Playback |
4ch(local input mode)
|
8ch(local input mode)
|
|
| Search mode |
Search by time, calendar, event, channel
|
Search by time, calendar, event, channel
|
|
| Storage & backup | Video storage |
HDD, network
|
HDD, network
|
| Backup mode |
Network, USB hard disk, USB burner, SATA burner
|
Network, USB hard disk, USB burner, SATA burner
|
|

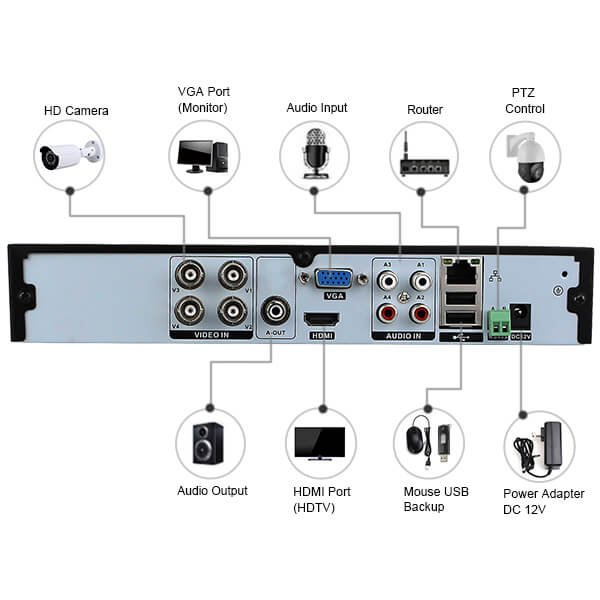

| External Interface | Video input |
4ch BNC
|
8ch BNC
|
| Video output |
1ch VGA, 1ch HDMI
|
1ch VGA, 1ch HDMI
|
|
| Loop Vout |
N/A
|
N/A
|
|
| Audio I/O |
4/1
|
4(Can be extended to 8ch)/1
|
|
| Alarm I/O | 0(Can be extended to 4ch)/0(Can be extended to 1ch) |
0(Can be extended to 4ch)/0(Can be extended to 1ch)
|
|
| Network interface |
N/A
|
N/A
|
|
| PTZ control |
1*RS485, Support kinds of PTZ protocols
|
1*RS485, Support kinds of PTZ protocols
|
|
| USB |
1 USB 2.0
|
1 USB 2.0
|
|
| HDD |
1 SATA ports (Max 8TB/per)
|
2*SATA ports (Max 8TB/per)
|
|
| Recording |
Manual,time,motion detection,alarm
|
3Manual,time,motion detection,alarm
|
|
| General | Power supply |
DC12V
|
DC12V
|
| Power Consumption |
<5W (without HDD)
|
<5W (without HDD)
|
|
| Working environment | Temperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—106kpa |
Temperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—106kpa
|
|
| Dimension |
L255*W230*H45MM
|
L255*W230*H45MM
|
|
| Weight |
135g
|
196g
|
|

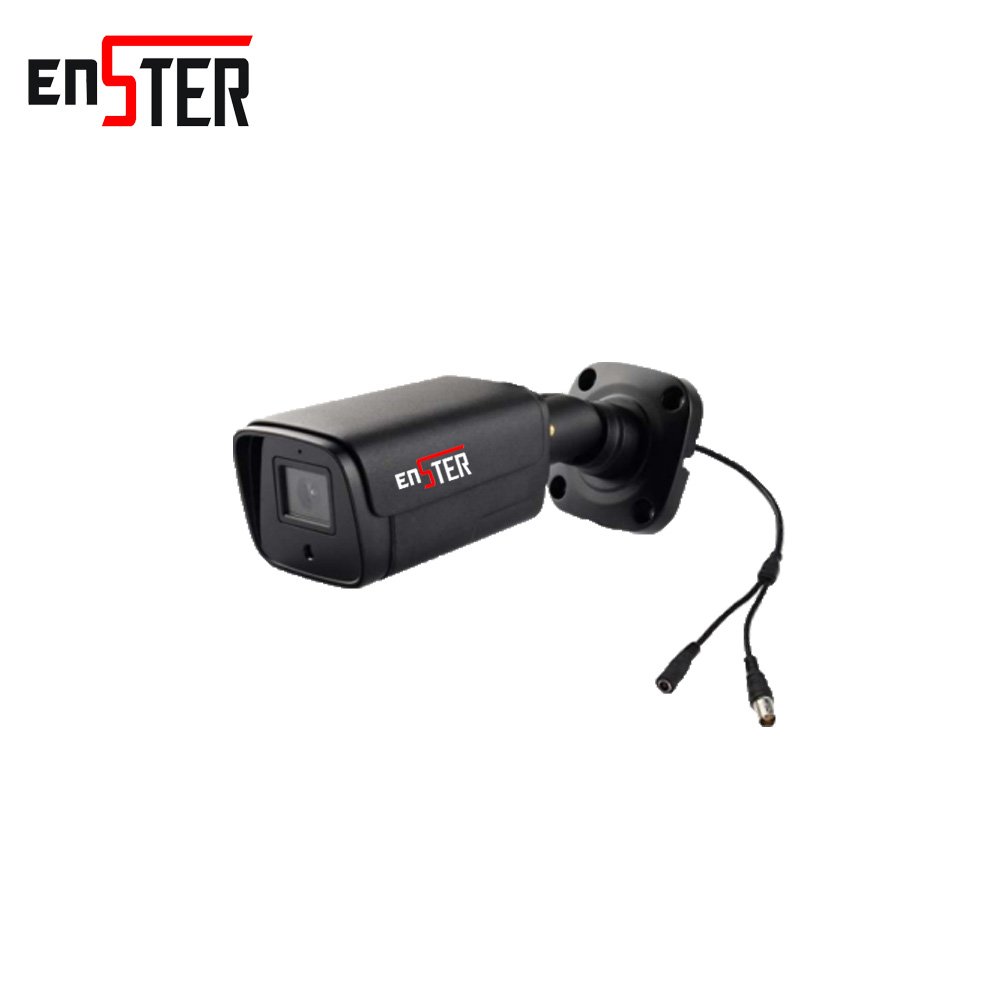

Camera Specification
|
Model No. |
NST-ATC6855E |
NST-ATC6852S |
NST-ATC6852E |
|
Camera Type |
AHD (Analog High Definition)Camera |
||
| Effective Pixels | 5.0 Mega Pixels | 2.0 Mega Pixels | 2.0Mega Pixels |
| Image Sensor | 1/2.7" CMOS Sensor,UTC,ICR | 1/2.7" CMOS Sensor,UTC,ICR | 1/2.7" CMOS Sensor,UTC,ICR |
| DSP | Nextchip 2475H | Nextchip 2441H | Nextchip 2441H |
| Min. Illumination | Color 0.001Lux@F1.2 | Color 0.01Lux@F1.2 | Color 0.01Lux@F1.2 |
| B/W 0.0001 Lux@F1.2 | B/W 0.001 Lux@F1.2 | B/W 0.01 Lux@F1.2 | |
| On Screen Display | Yes | Yes | Yes |
| OSD Function |
Manual/DC Lens,Shutter/AGC/WB,Pict Adjust,Mirror,Day/Night,DNR,BLC/HLC,Motion Detect,Privacy Zone
|
||
| IR Cut Filter |
IR LED synchronous switching double filter
|
||
| Lens Mount |
Board Lens 3.6mm
|
||
| Infrared Luminary |
2pcs IR LED
|
||
| Infrared Wavelength |
850 nm
|
||
| Illuminate Distance |
30 M
|
||
| Waterproof Criterion |
IP66
|
||
| I/O Connector |
1*DC Power Connector ,1* BNC Video Connector
|
||
| Supplied Voltage |
DC12V
|
||
| Power Consumption |
IR On: 600mA max., IR Off: Less than 200mA
|
||
| Working Enviroment |
-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
|
||
| Weight |
1.0 kg
|
||
