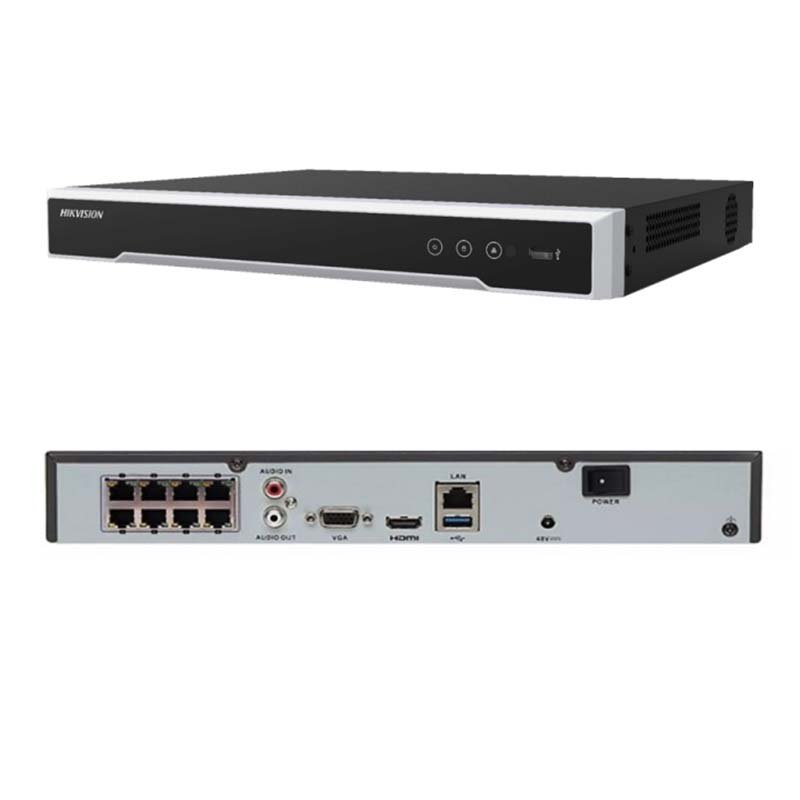

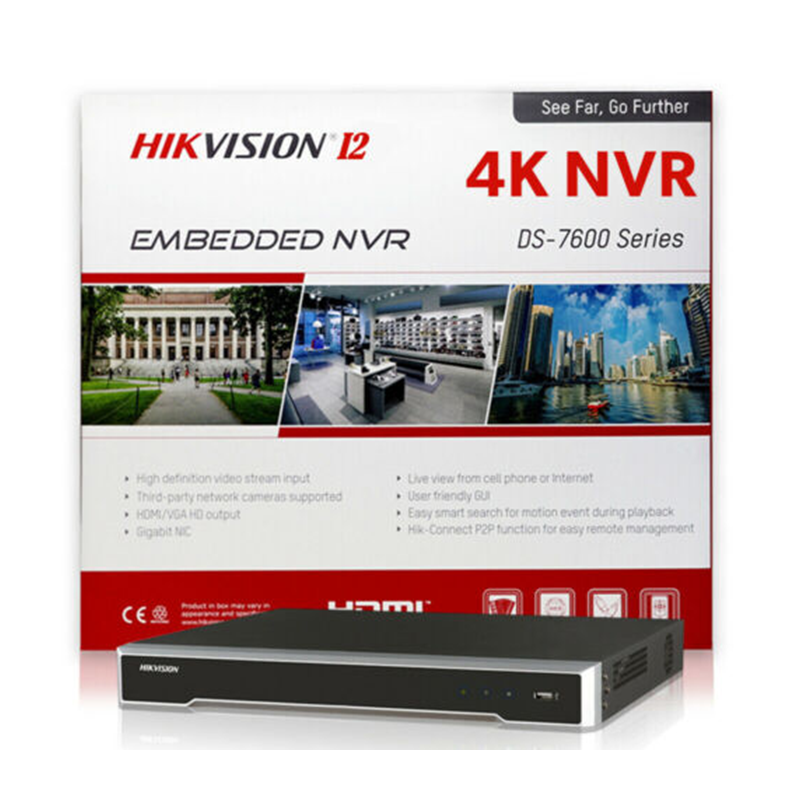

DS-7608NI-Q2/8P

Video And Audio

IP Video Input8-ch

HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz

VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output ModeHDMI/VGA simultaneous output

Incoming Bandwidth80 Mbps

Outgoing Bandwidth80 Mbps

Audio Output1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding FormatH.265+,H.265,H.264+,H.264

Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)

Synchronous Playback8-ch

Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network

Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE

Interface8-ch;8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power≤ 80W

StandardIEEE 802.3 af/at

Auxiliary Interface

SATA2;2 SATA interfaces

CapacityUp to 8TB capacity for each disk

USB Interface2 × USB 2.0

General

Power Supply48V| ,2.5A MAX

Consumption≤ 15W

Working Temperature-10 to +55º C (+14 to +131º F)

Working Humidity10 to 90 %

Chassis1U chassis

Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")

Weight≤ 2.6 kg (5.7 lb)
