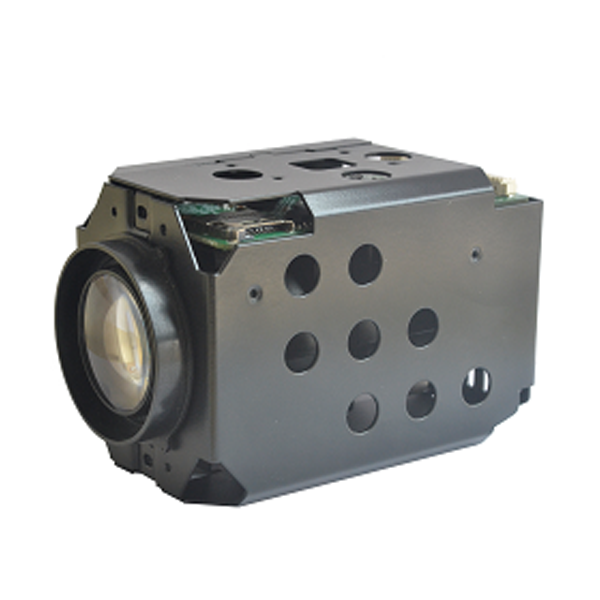

Product Description
| Model No. |
NST-IPZ2020
|
| Sensor |
1/2.8 " SONY CMOS |
|
Video Standard |
PAL/NTSC |
|
FPS |
50Hz:25fps(1920*1080) 60Hz:30fps(1920*1080) |
| Min. Illumination |
Color: 0.0001Lux@F1.60.0001Lux@F1.6 |
|
Electronic Shutter |
1/1 ~ 1/30000s |
|
Day/Night |
Support IR-CUT |
|
Scan System |
Row by row |
|
Synchronous |
Internal synchronous |
|
Video Output |
Digital signal (Y/Cb/Cr 4:2:2 via LVDS) |
|
S/N Ratio |
>50dB |
|
Iris Control |
Auto |
|
Backlight compensation |
Open/Close |
|
White Balance |
Auto |
|
Slow Shutter |
Support |
|
Slow Exposal |
Auto |
|
Exposal Mode |
Auto
|
|
Privacy Masking |
Support |
|
WDR |
Support
|
|
Gain Setting |
Support |
|
Menu |
Flip / Mirror |
|
Gain Control |
Auto |
|
Sharpness Adjustment |
Support |
|
Focusing |
Auto/Manual/One-time auto-focus |
|
Noise Reduction Level |
0/1/2/3/4/5 |
|
Zoom Speed |
4S |
|
Focus Control |
Manual/Auto |
|
Lens Initialization |
Built-in |
|
Optical Zoom |
20X, 4.7 to 94mm ( F1.6 to F2.7 ) |
|
Min.Focus distance |
100mm ~1000mm (Close focus ~ Far focus) |
|
Digital Zoom |
12x (Max 240x) |
|
Horizontal Angle of View |
Level: 55.4~2.90 |
|
Network |
1*RJ45, 10/100M, support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc... |
|
Function |
Support WEB config, OSD, real-time video transfer, record and pop up by motion detect and alarm I/O, download/playback, JPEG snapshot, CMS, MYEYE and SDK for second development |
|
Storage Environment |
( -20°C ~+70°C/20 ﹪ to 95 ﹪ RH ) |
|
Working Environment |
( -10°C ~ +60°C/20 ﹪ to 80 ﹪ RH ) |
|
Power Supply |
DC 9V-12V(suggest 12V) |
|
Power Consumption |
MAX:6W |
|
Dimension(mm) |
87.5mm x 50mm x 60mm |
|
Weight |
286g |
