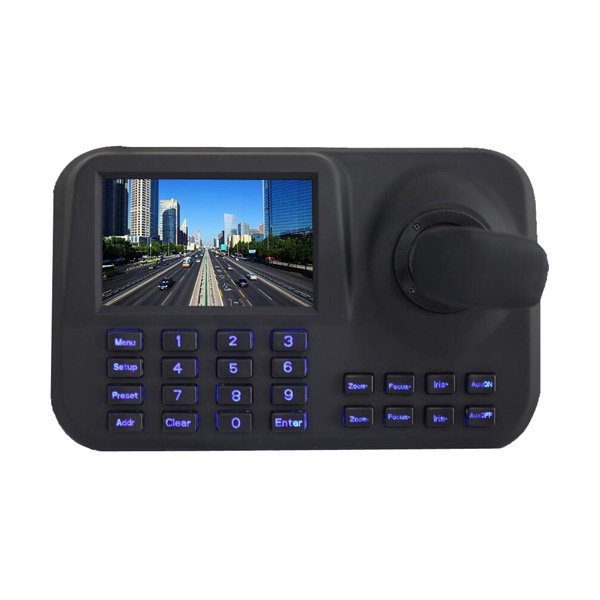

3D IP PTZ Camera CCTV Joystick Keyboard Controller For Onvif IP PTZ Cameras

3D IP PTZ Camera CCTV Joystick Keyboard Controller For Onvif IP PTZ Cameras

Supports Tour,360 Scan and A-B Scan and so on function
To support ONVIF2.4,not limit for back-end PTZ, easy to realize PTZ tour, A-B scan, pattern, play and plug, without any set, automatically add and allocate IP address by keyboard
Standard equipped with dimensional control, 1-64 grade speed limit, precise position, control sensitively
Chinese and English switch
To support USB,HDMI interface output, can be realize main screen picture any switch on control board
To support 5.0”HD LED , real display image on control device

NST-IPKB05

SEND INQUIRY NOW

Product Description

Technical Specification

Model Name	Network keyboard controller
Model	NST-IPKB05
Control Mode	Network
Controllable Device	Network High Speed Dome, High Speed Dome
Screen display	5.0" HD LED Display
Interface	1 RJ45, 2 RS485( reserved ), 1 DC12V, 1HDMI output, 1 USB port
Ambient Temp.	-20°~55°
Power Supply	DC12V/2A
ONVIF	ONVIF2.4
Joystick	Three-dimensional joystick
Language	Chinese/English
Access Device No.	No upper limit(display by single picture)
Image Switch Mode	Serial number or mouse
Product Size	260mm160mm48mm
Weight	Gross: 1.52KG / Net:1.0KG
Carton Size	300mm210mm160mm
