Camera Type

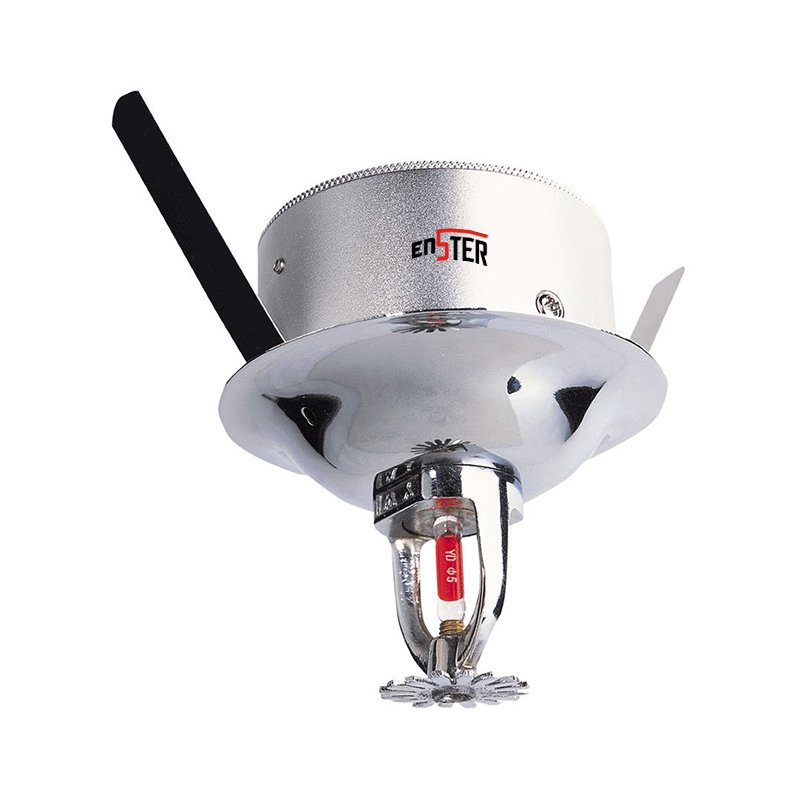

Pinhole Lens Hidden IP Camera

System

Embedded RTOS design

Camera

Effective Pixels

2.0 MegaPixels

Main stream:1920*1080@25fps

Sub stream:640*360@25fps

Image Sensor

1/2.9" SC2053 CMOS Sensor

Fullhan FH8626

Min. Illumination

Color 0.01Lux/F1.2

B/W 0.01 Lux/F1.2

Adjust Parameters

DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.

Video

Compression

H.264 Main profile

Stream

support dual stream,AVI format

Bit Rate

support 0.1M ~8Mpbs bit rate adjustable

Frame Rates

support 1~30fps adjustable

Audio

Input and output

1ch input( micphone),1ch output( Speaker) Optional

Compression

G.711 compression,support two-way audio intercom,support audio and video synchronized output

Alarm

Types

Motion Detection, Video Blind , Video Loss

Network

WEB Browser

Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.)

Smart Phone

mobile remote Monitoring (iPhone,Android,....)

CMS Software

Uniform CMS Software(multiple devices management system)

Cloud P2P

www.enster.com,MYEYE platform and other program,Offer SDK

Network

10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP

ONVIF

Support (ONVIF 2.4)

POE

Support(optional)

General

Language

20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish

IR Cut Filter

Set of double light switch IR-CUT filter

Lens Mount

Pinhole Lens 3.7 mm

Infrared Luminary

N/A

Infrared Wavelength

N/A

Illuminate Distance

N/A

Waterproof Criterion

IP 55

I/O Connector

1*DC Connector ,1* RJ45(10/100M Network)

Supplied Voltage

DC12V/PoE(802.3af/820.3at)

Power Consumption

IR On: 600mA max., IR Off: Less than 200mA

Working Environment

-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )

Weight

0.3kg
