4MP Novatek Chipset NDAA IP Camera Module

4MP Novatek Chipset NDAA IP Camera Module

Novatek Chipset NDAA IP Camera Module We develop network camera motherboards based on Novatek chipset solutions with modular software functions.Fully customizable to your needs
allowing you to define the ideal network camera for your specific scenarios.NT98562 2MP IP CameraNT98566 4MP IP CameraNT98560 6MP IP CameraNT98529 8MP IP CameraNT98530 12MP IP Camera

NST-IPN6604C

SEND INQUIRY NOW

Novatek Chipset NDAA IP Camera Module

NT98562 2MP IP Camera

NT98566 4MP IP Camera

NT98560 6MP IP Camera

NT98560 8MP IP Camera

We develop network camera motherboards based on Novatek chipset solutions with modular software functions.Fully customizable to your needs, allowing you to define the ideal network camera for your specific scenarios.

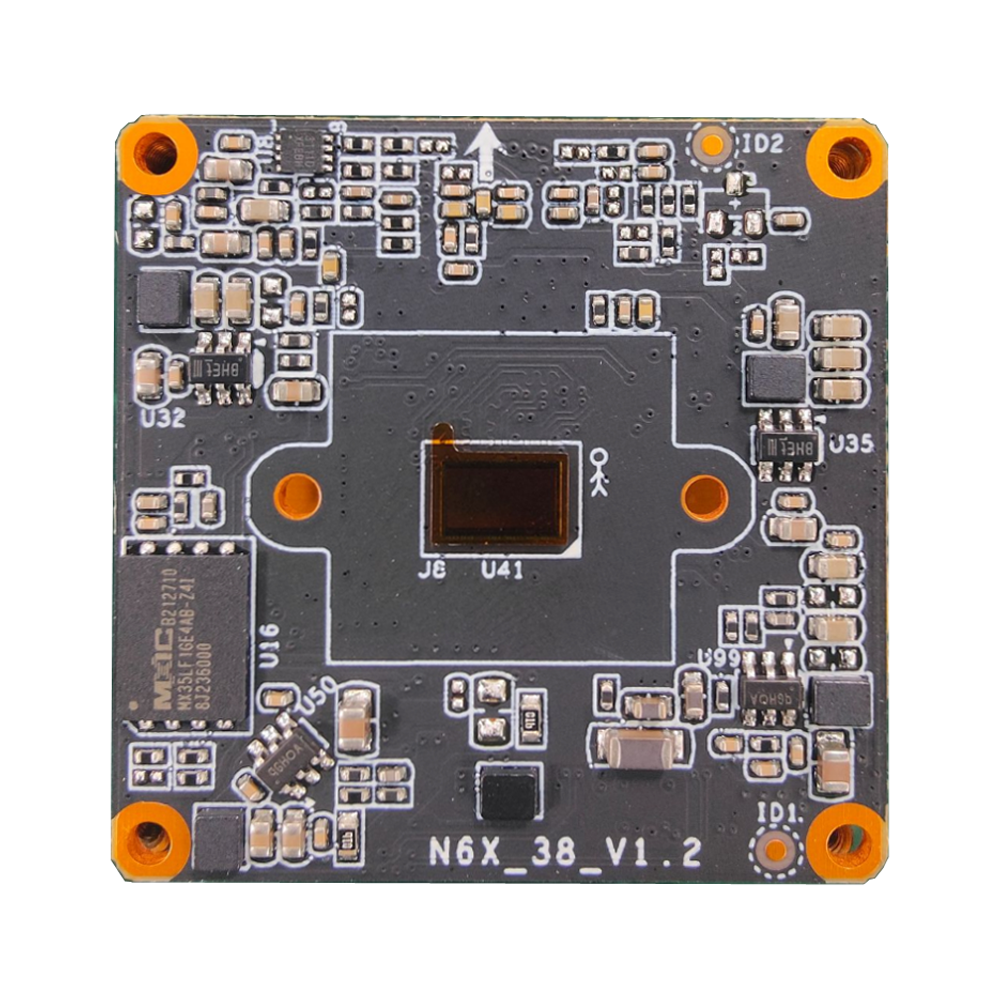

Sensor :SC4336P,OV08C10,SONY IMX415,SONY IMX577,SONY IMX 678

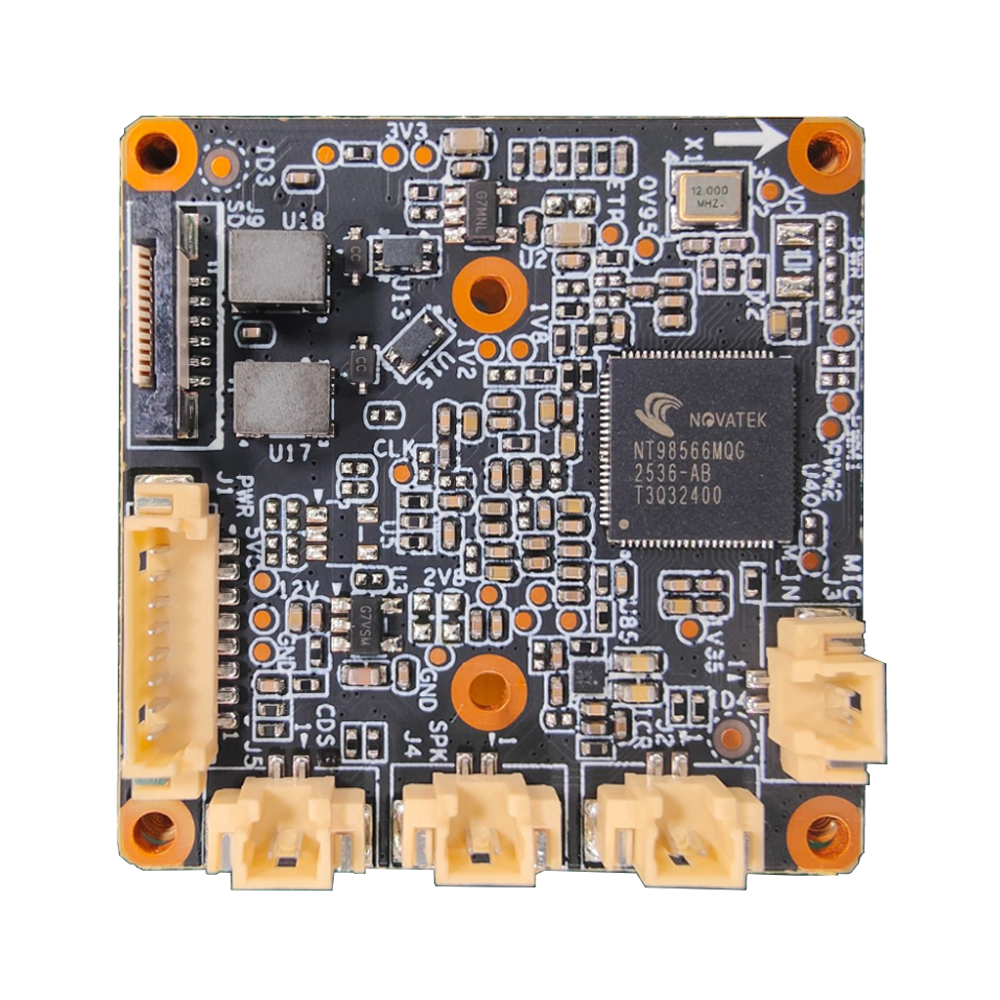

4MP IP Camera Module

H.265+ /H.265 /H.264+ /H.264/MJPEG coding

Max. resolution:4MP ( 2688 × 1520)

3D DNR, HWDR, HLC, BLC, etc.

ROI coding

Support smart supplement light

20~30m white light view distance; 20~30m IR view distance

DC12V/PoE power supply

IP 67 ingress protection

Support three streams

Support remote monitoring by smart phones& tablet PCs with iOS and Android OS

Support NAT function

Support Smart Motion Detection

Support line crossing detection, region intrusion detection

Dual system backup

Product Description

Model No.		NST-IPN6604C
Camera Type		Smart Dual Light IP Camera
System		Embedded RTOS design
Camera	Image Sensor	1 / 2.7"CMOS
	Image Size	2688 × 1520
	Electronic Shutter	1/3s ~ 1 / 100000s
	Iris Type	Fixed Iris
	Min. Illumination	0.01 lux @F1.6, AGC ON; 0 lux with illumination on
	Lens	2.8mm@F1.6, Horizontal FoV: 106.5°;Vertical FoV:58.5°;Diagonal FoV:124° 3.6mm@F1.6, Horizontal FoV:85.5°;Vertical FoV:47.5°;Diagonal FoV:98.5°
	Focus	Fixed
	Lens Mount	M12
	Wide Dynamic Range	120dB
	BLC	Yes
	HLC	Yes
	Digital NR	Yes
	Defog	No
	S/N Ratio	≥50dB
	Angle Adjustment	Pan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360°
Image	Video Compression	Main stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Sub /Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
	H.265 Compression Standard	Main Profile@Leve4.1 High Tier
	Resolution	4MP(2688×1520), 2K(2560×1440), 1080P (1920×1080), 720P(1280×720), D1, VGA (640×480), 640×360, 480×240, CIF
	Main Stream	4MP/2K/1080P (60Hz: 1~30fps; 50Hz: 1~25fps)
	Sub Stream	720P/D1/VGA/640× 360 /480× 240/CIF (60Hz: 1~20fps; 50Hz: 1~20fps)
	Third stream	720P/D1/VGA/640× 360 /480× 240/CIF (60Hz: 1~20fps; 50Hz: 1~20fps)
	Bit Rate	64Kbps ~ 10 Mbps
	Bit Rate Type	VBR / CBR
	Image Settings	ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
	Audio Compression	G711A/U
	ROI	8 regions; each ROI to be configured separately
Interfaces	Network	RJ 45 (10/100 Base-T)
	Audio	1CH audio input; 1CH built-in MIC
	Storage	Built-in micro SD card slot, up to 256GB
Functions	Remote Monitoring	Web browser /NVR/NVMS/Mobile APP
	Web Browser	Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+
	Online Connection	Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission
	Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP,RTMP, DDNS, 802.1x, NAT, HTTP, QoS, HTTP POST/GET
	Interface Protocol	Support ONVIF Profile T / S / G
	API&SDK	Yes
	Storage	Network remote storage; micro SD card storage
	Alarm	Motion detection, SD card error, SD card full, IP address conflict, network disconnection, white light alarm triggered by smart events
	Motion Detection	Support smart motion detection; filtering motion alarm triggered by other target types except humans/motor vehicles.
	Smart Event	Region intrusion/line crossing detection (human/motor vehicle/non-motor vehicle classification)
	General Function	Watermark, IP address filtering, video mask, heartbeat, ANR, smart supplement light, disarming, cloud upgrade
	PoE	Yes (IEEE802.3af)
	Supplement Light Range	IR range: 20 ~ 30 m; white light range:20 ~ 30 m
	Ingress Protection	IP67
	Security	Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP/API
General	Power Supply	DC12V/PoE
	Power Consumption	DC12V: max. 5.4W; PoE: max. 6.9W
	Storage Conditions	- 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)
	Operating Conditions	- 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing)
	Weight ( net )	Approx. 0.416KG
	Material	Aluminum alloy body
	Installation	Ceiling mounting; wall mounting
