Product Description
| Model No. |

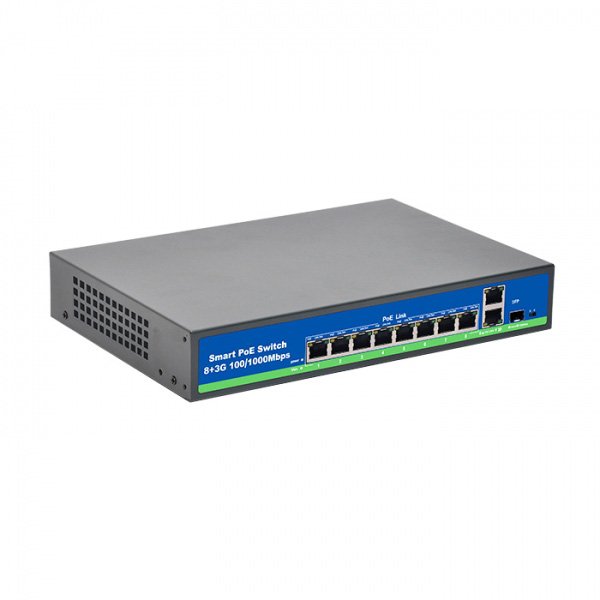

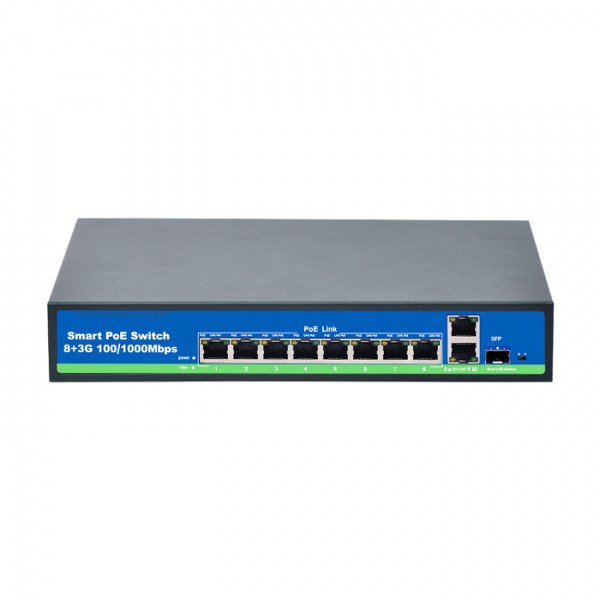

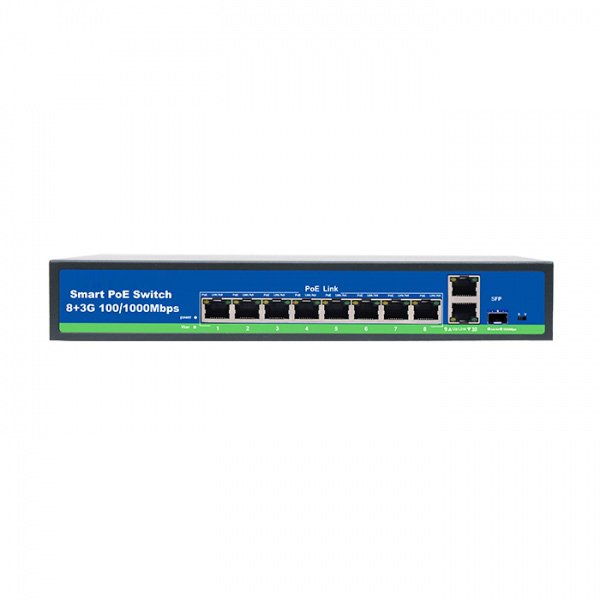

NST-POE821GS
|
| Type |
8+2+1 Port full giga POE Switch (Built-in)
|
| POE Port |
1 to 8 support IEEE802.3AF/AT Standard
|
| Output Power |
15.4W/30W IEEE802.3af/at
|
| Power Pin |
Both 1/2+、3/6- and 4/5+7/8-
|
| Whole Power |
≤120W (52V 2.3A)
|
| POE Protocol |
IEEE 802.3af/IEEE 802.3at
|
| POE Type |
End-span
|
| Power Distance |
≤200m
|
| Network Standard |
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
|
| Network Medium |
100/1000BASE-TX: 5 class and above non shielded twisted pair
|
| Data Distance |
≤100m
|
| Switch Capability |
22Gbps
|
| Forwarding Mode |
Store and forward
|
| Forwarding Rate |
100Mbps:14880pps 1000Mbps:14800pps
|
| MAC Address |
MAC address table 2K
|
| Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
|
| LED Indicator |
Each port occupied 1 LINK/ACT.100Mbps, POE Status Indicator, Whole power indicator
|
| Working Environment |
Working temperature:-10°-- 55°C
|
| Input power |
AC100-240V 50/60HZ
|
| Weight |
1.8kg
|
| Size |
270mm*180mm*44mm(L*W*H)
|
