Product Description
Features:
  Support Ultra 265/H.265/H.264 video formats
       64-channel input
       Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
       VGA and HDMI independent output (NVR508-64B simultaneous output by default , independent output configurable)
       Up to 12 Megapixels resolution recording
       8 SATA HDD, up to 12TB for each HDD
       Support N+1 Hot spare
       ANR technology to enhance the storage reliability when the network is disconnected
       Support cloud upgrade
Specifications:

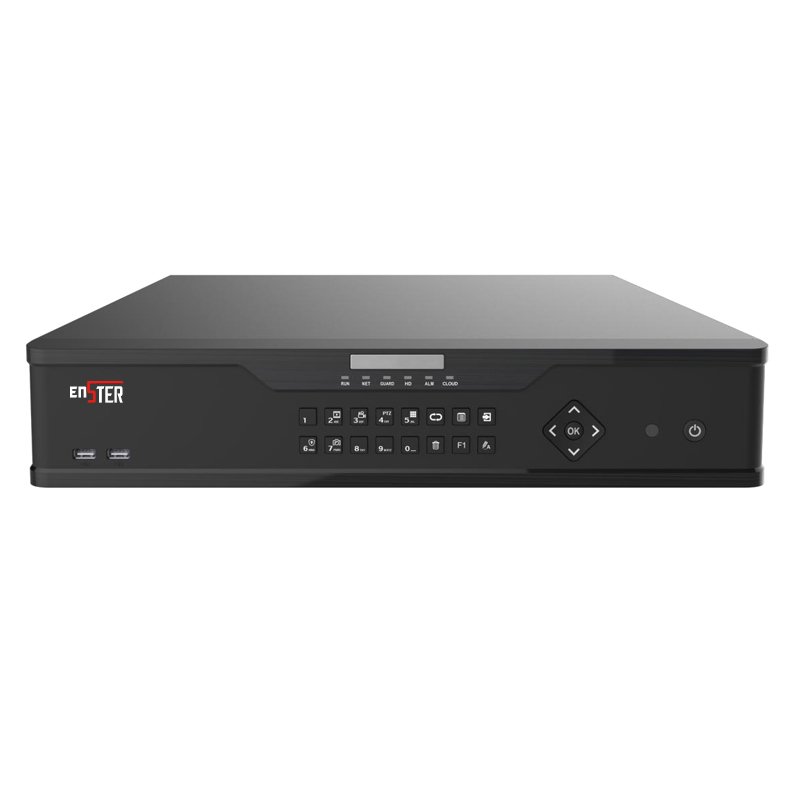

Model No. | NVR-6864-K | |
Video/Audio Input | IP Video Input | 64-ch |
Audio Input | 1-ch,RCA | |
Network | Incoming bandwidth | 320Mbps |
Outgoing bandwidth | 160Mbps | |
Remote Users | 128 | |
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP | |
Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge( version 79 and above ) for Windows | |
Video/Audio Output | HDMI/VGA Output | HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 |
Recording Resolution | 12 MP/ 8MP /6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Audio Output | 1-ch,RCA | |
Two-way Audio | 1-ch , RCA(Using the audio input and output) | |
Audio Compression | G.711A , G.711U | |
Synchronous Playback | 16-ch | |
Live View Display | Simultaneous Output : VGA: 1/4/6/8/9/16/25/3 6 /64 HDMI: 1/4/6/8/9/16/25/3 6 /64 Independent O utput: VGA: 1/4/6/8/9/16/25/3 2 HDMI: 1/4/6/8/9/16/25/3 2 | |
Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 | |
Snapshot | FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
Decoding | Decoding Format | Ultra 265/H.265/H.264 |
Live View/Playback | 12MP/ 8MP /6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Capability | Ultra 265/H.265: 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080p@30, 32 x 960p@25, 36 x 720p@30, 64 x D1 H.264: 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080p@30, 28 x 960p@25, 30 x 720p@30, 64 x D1 | |
Hard Disk | SATA | 8 SATA interfaces |
Capacity | Up to 12 TB for each disk | |
Disk Group | Support | |
Smart | VCA Detection by Camera | I ntrusion D etection, C ross L ine Detection, E nter Area, L eave Area, D efocus Detection, S cene Change Detection , Object L eft B ehind , Object R emoved , A uto Tra c king, UMD ( Ultra Motion Detection) |
VCA Search | Be havior Search , People Counting Report, Vehicle Search | |
People Counting | People Flow Counting, Crowd Density Monitoring | |
Smart Intrusion Prevention (SIP), Vehicle Detection , UMD by Camera | Total8 -ch | |
General Alarm | General Alarm | Motion , Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abno r mal | |

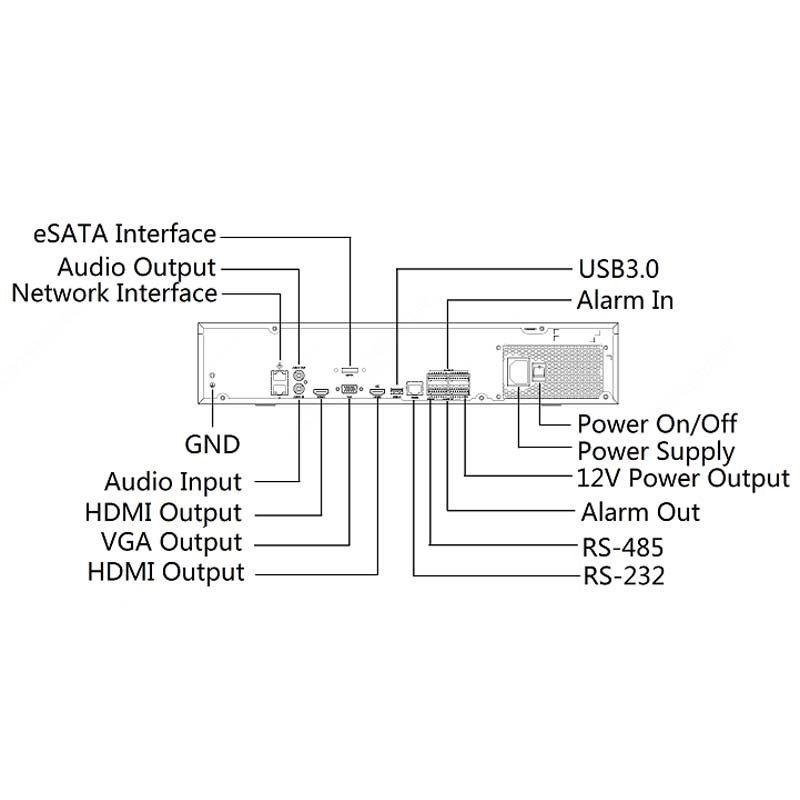

External Interface | Network Interface | 2RJ - 45 10M/100M /1000M self- adaptive Ethernet Interface |
USB Interface | Front:2 x USB2.0 , Rear panel:1 x USB3.0 | |
RS232 | NA | |
RS485 | 1 | |
Alarm In | 16-ch | |
Alarm Out | 4-ch | |
Ge neral | Power Supply | 100~240V AC Power Consumption : ≤ 32W (without HDD) |
Working Environment | -10°C~+ 55°C (+ 14°F~ + 131°F ), Humidity ≤ 9 0 % RH (non-condensing) | |

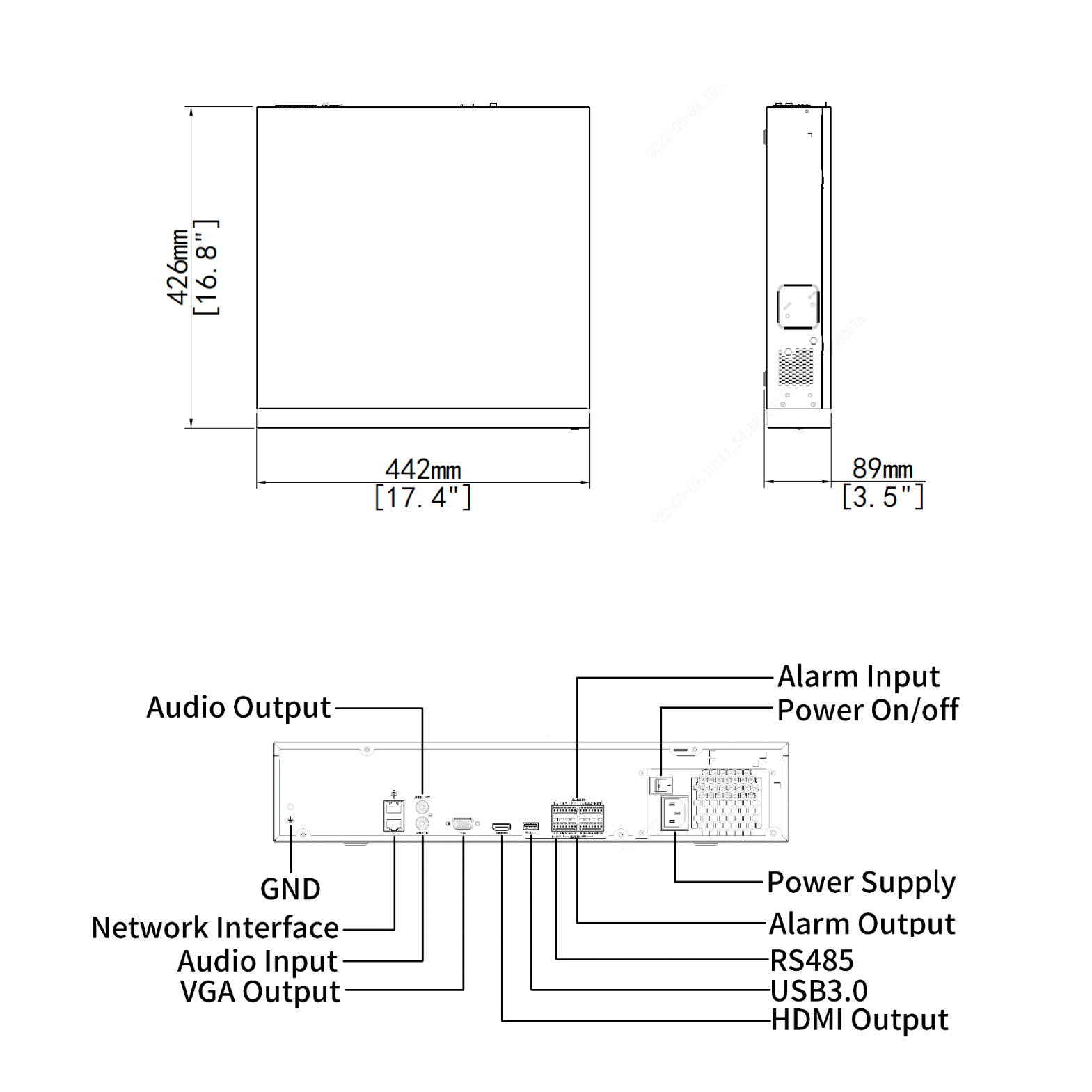

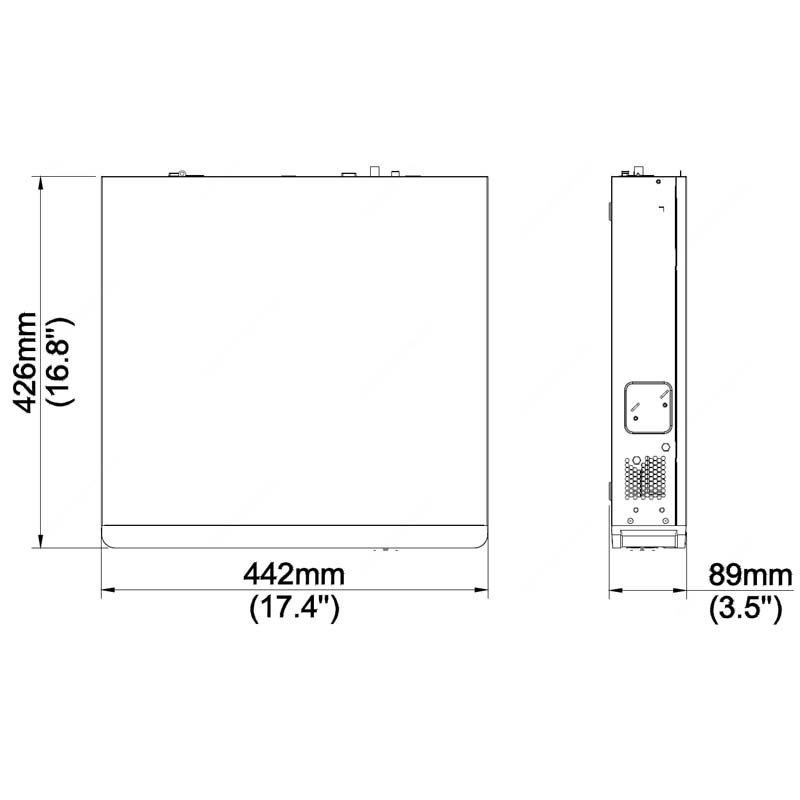

Dimensions (W×D×H) | 442mm×426mm×89mm (17.4"×16.8"×3.5") | |
Weight (without HDD) | ≤4Kg (8.80lb) | |
Certification | Certification | CE,FCC,UL,RoHS,WEEE |
CE | EN 55032 , EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |
FCC | Part15 Subpart B | |
