Features：
● The LINUX operating system, the H.265 Compression mode,the same memory device can save longer video
● Support for multinational languages;
● Support 5-way HD audio and video input, can access AHD, CVI, TVI, XVI, D1,IPC camera,video resolution 1080P /720P/960H/D1 optional, frame rate quality adjustable.
● I0 interface output supporits 4-way alarm input 1-way alarm output, trigger reversing full screen, support R S 485 and RS232 expansion, can be connected to fuel consumption sensor
TTS voice, overspeed alarm voice, temperature and humiditysensor, card reader, equipped with aviation head intercom connector, support two-way voice intercom;
● Support XVI coaxial control operation front-end camera paraneter modification
● HD VGA, CVBS video output.
● Use all copper industrial aviation head audio and video connector,sound recording is stable and reliable, use 5P industrial aviation head power input interface, stable power supply, avoid bad contact.
● Local dual SD card storage, automatic cycle coverage,maximum support of 2*256GB, support cloud storage:
● Wide voltage design,working voltage DC 9V-DC 36V, short conmection, back cormection,overvoltage protection circuit design, effectively protect the product reliability.
● Built-in super farad capacitor, power off protection and time-lapse recording.
● Support for GPS /BD positioning,G-SENSOR speed detection, and time synchronization.
● Graphical menu operation interface (OSD menu):
● Video display: two pictures / three pictures / four pictures/ five pictures, front and back, left and right single picture:
● Can set the reverse scale line, the camera output mode can be set: mirror image,positive image, left image, right image:
● Supports mouse operaticn, shake controller operation, USB backup and upgrade

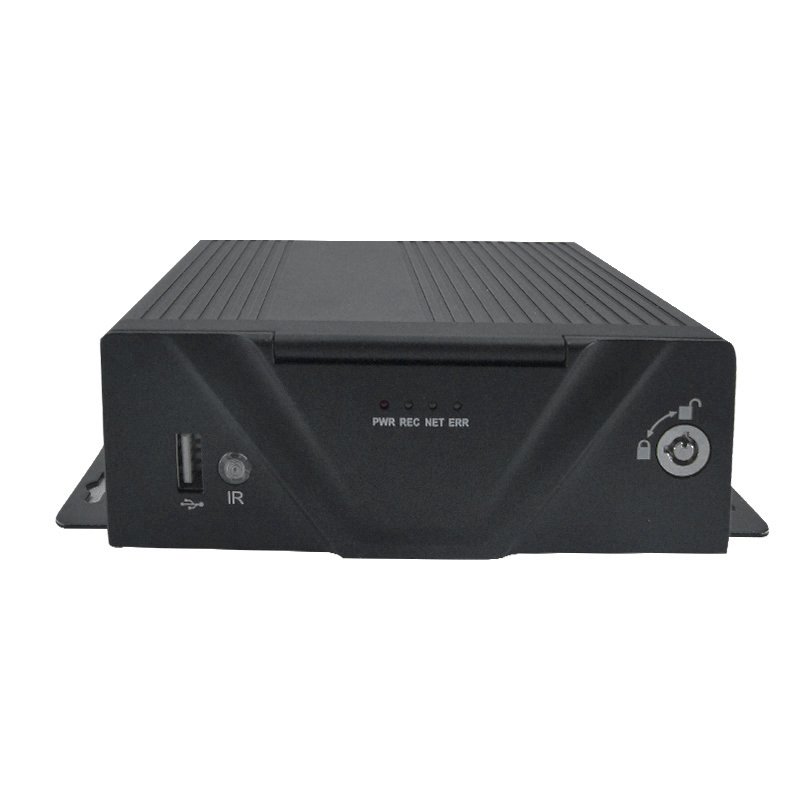

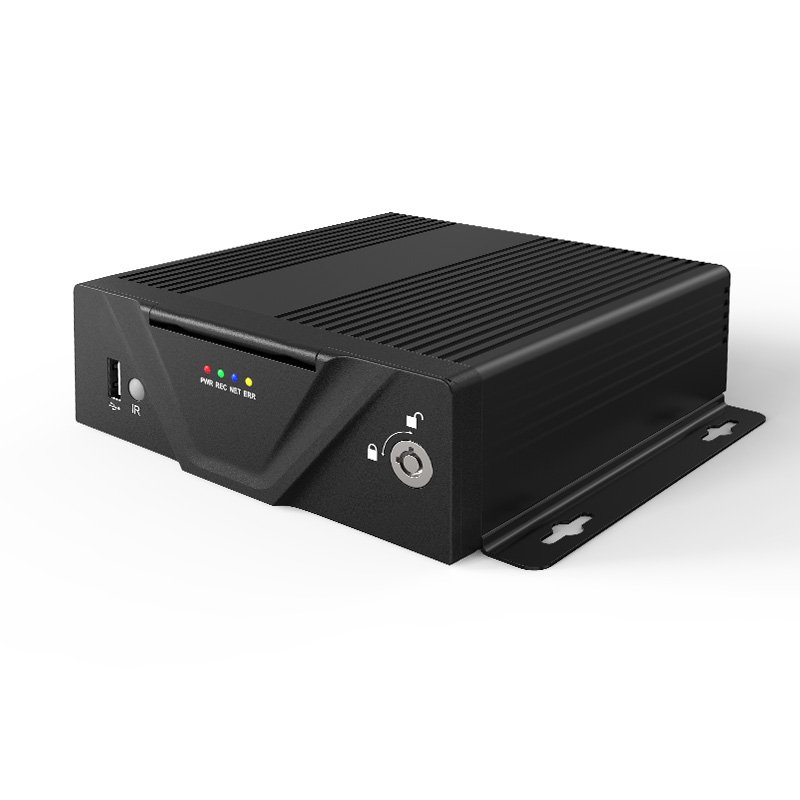

Model No. NST-MDVR8305G | ||
System | Master processor | Industrial-grade embedded chip NT98321 + NVP6168C |
Operating 1anguage | Multiple languages are available | |
interface | The picture shows | Graphical menu operation interface (OSD menu) |
Host video | Image codec | H.265 |
Monitoring quality | VGA HD/CVBS standard definition | |
Preview ability | 4*5M-N@ 20 fps (6 in 1) /4*4M-N@30 fps (6 in 1)/4 * 1080 P @ 30 fps (6 in 1) default 5M-N | |
code capacity | 4*5M-N@20 fps (6 in 1)/4* 4M-N@30 fps (NTSC) (6 in 1)/4*1080P @30 fps (6 in 1) default 5M-N | |
Decoding ability | 2* 5M-N @ 20 fps (6 in 1)/2*4M-N@30 fps (6 in 1)/2 *1080 P @ 30 fps (6 in 1) default 5M-N | |
Multi-mode input | Coaxia1 4 CH*5 MN+ network I PC 1CH* 1080P | |
video display | Single/two/three/four/five | |
Video standard | The PAL/ NTSC system | |
Video and playback | Video method | Manual/normal/detection / alarm |
Local playback | Local HDD | |
Image storage and backup | Video preservation | 2*SD card storage |
Backup method | USB back-up | |

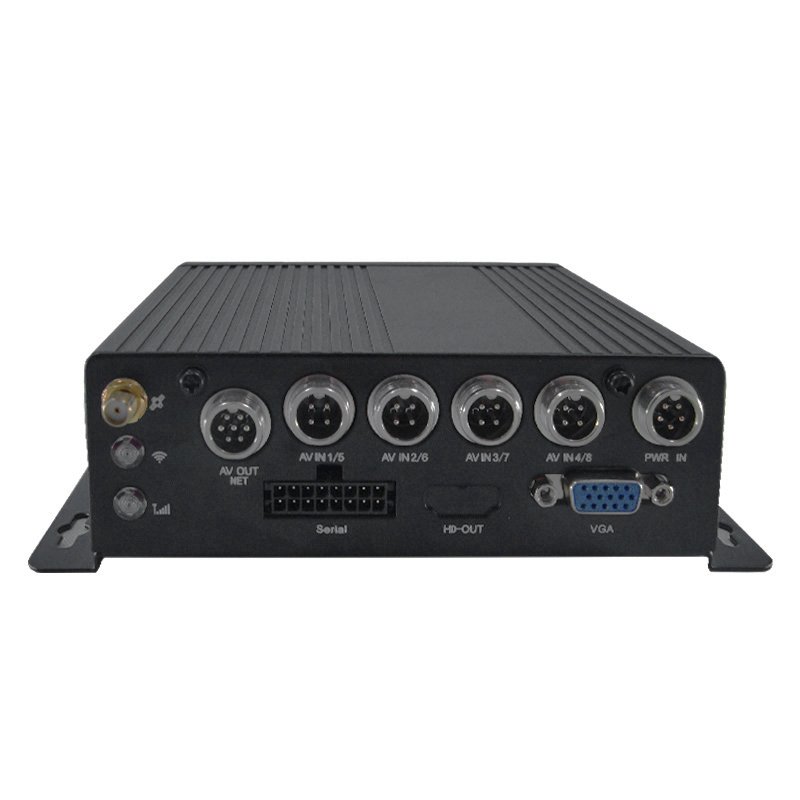

function | video in | Air connector 4 way AHD + 1 way IPC |
video monitor 525 vidicon video out | 1 VGA: 1 CVBS | |
Alarm input / output | 4 Into 1 out | |
485 Interface | 2 pcs USB2.0, 1 pcs USB3.0 have | |
The RS232 interface | have | |
USB joggle | 2 CH 1 with a USB2.0 interface | |
Voice intercom | support | |
GPS/BD | have | |
G-SENSOR | have | |
The RJ 45 interface | Have (Air Head) | |
Electronic lock interface | have | |
telecontroller | support | |
4G/WIFI | not have | |
State of the car | left-hand drive | Left view single picture |
Turn right | Right view single picture | |
Hang inverted gear | Rear view single picture | |
other | Source | Operating voltage DC 9-36V, no-load power consumption 8W, built-in super Farcapacitor,support power off protection and time-lapse recording |
tNo load power consunption | About 9W | |
work environment | ≦160W weightTemperature-25℃-+75℃, humidity 10% -90%, Atmospheric pressure of 86 kpa--106 kpa Atmospheric pressure of 86 kpa- -106 kp Atmospheric pressure of 86 kpa- -106 kpa | |
Dimension software upgrading | Support through the U-disk or the remote upgrade | |
Size:length X, width, X,height | Net weight: 9Kg, Gross weight:9.8Kg (without HDD) Bare machine(length)166mmX(width)145mmX(height)52mm finished product:185*160*100mm | |
Outside Carton | 2 pcs/ctn, 570*570*490mm, weight:20.2KG | |
