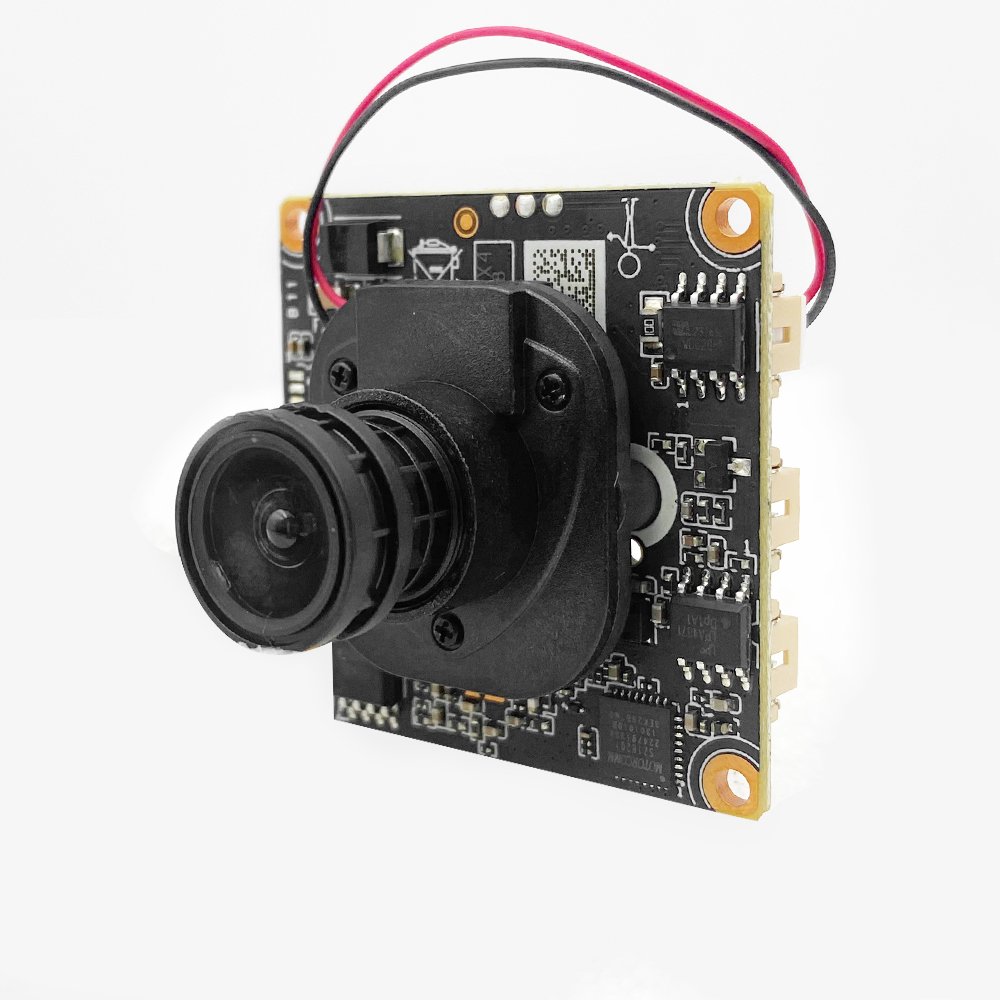

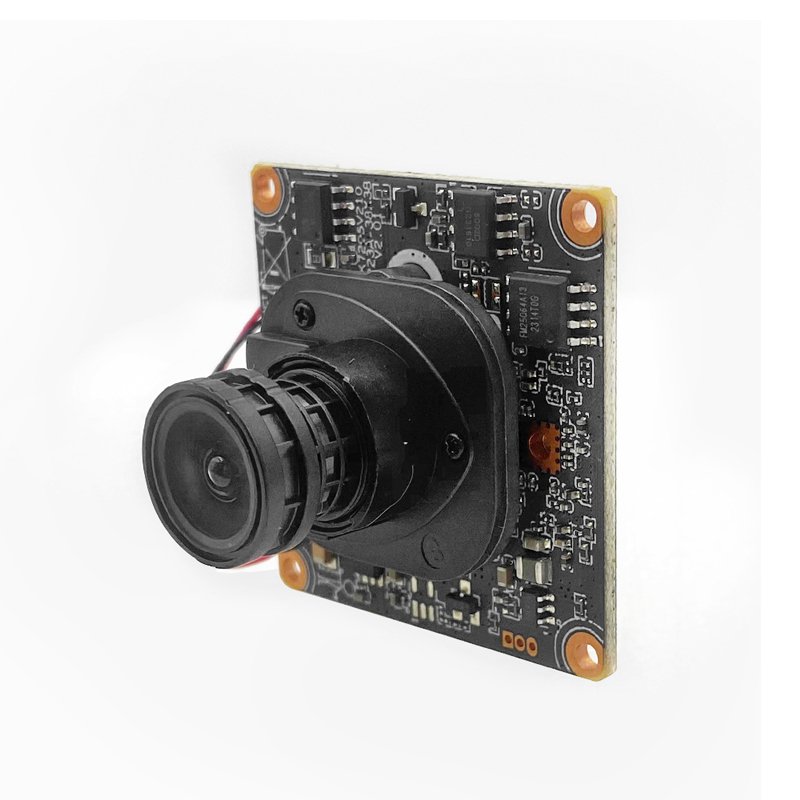

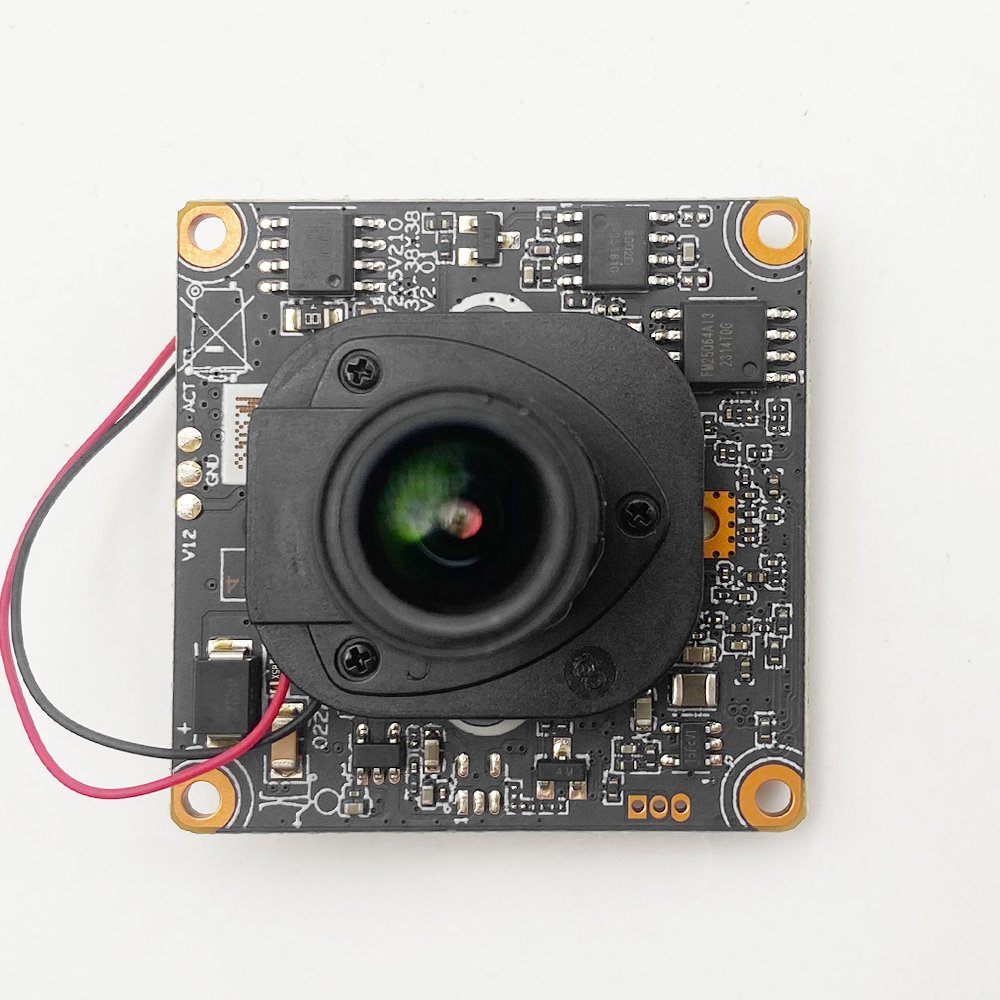

4.0M Low illumination H.265 AI IP Camera Module

4.0M Low illumination H.265 AI IP Camera Module

Supporting human detection, face detection, and support to customize other intelligent functions4.0MP HD Low illumination resolution,clear and fine images
Support 2D/3D noise reduction,digital wide dynamic
Advanced H.265+ (Compatible with H.265/H.264) video compression,Super low rate,high definition quality of image
Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。Support ONVIF
access third party
Support various mobile monitoring(iPhone,Android)
Provide web、CMS、center platform management software MYEYE,provide SDK developmentSupport cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed

NST-IPX-GK4S

SEND INQUIRY NOW

Model No. NST-IPX-GK4S
System structure	Embedded RTOS,dual-core 32bit DSP( GK7205V210 ),pure hard compression ,watch dog

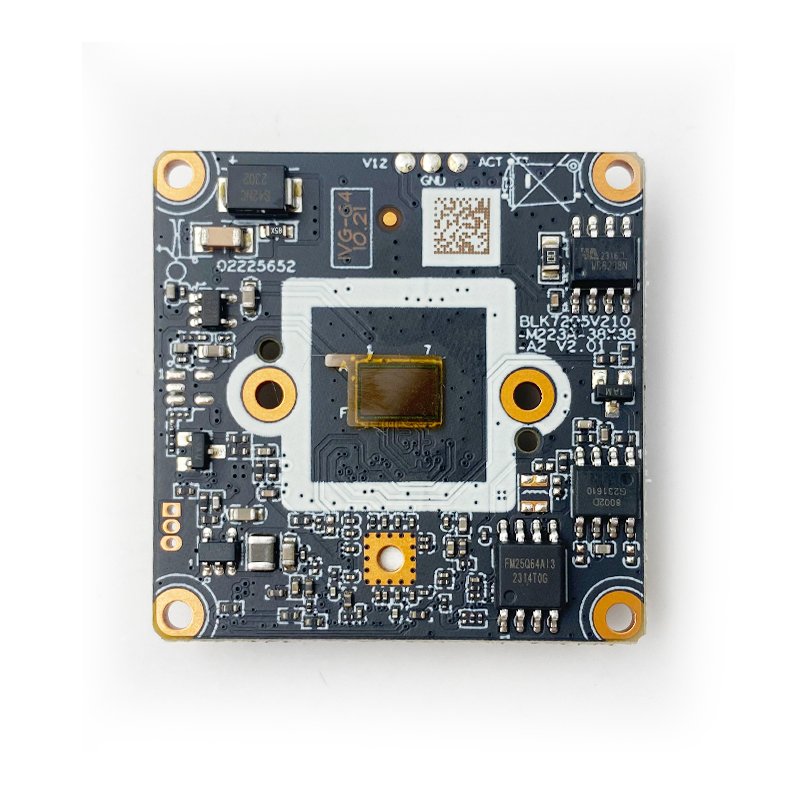

Sensor	4 .0M 1/2.8"SC 5239S Low illumination CMOS sensor, color 0. 0 1Lux@F1.2,black/white 0. 0 01Lux@F1.2
Video compressio	H.265 + (Compatible with H.265/ H.264) support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
Image output	Main stream: 25601440@18fps, 23041296@20fps,19201080@25fps ; sub-stream: 800448@25fps
Shutter	1/50(1/60)s to 1/10,000s
Lens	N/A
Day and night	Support IR-CUT ,IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V
Noise reduction	Support 2D/3D
Wide dynamic	Support digital Wide dynamic
Auto iris	N/A
Audio compression	G.711,support bidrectional talk,audio&video synchronization
Audio interface	1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
Network interface	1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc
Extension interface	Support external audio power amplifier, white light signal control, UART to expand other functions
Singal interface	One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
PTZ	N/A
Motor interface	N/A
Alarm I/O	N/A
WIFI interface	N/A
Reset interface	N/A
SD Card	N/A
Reliability	Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Intelligence analysis	Supporting human detection , face detection, and s upport to customize other intelligent functions
Other function	Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture ； united remote client monitoring sofaware 、 MYEYE;perfect SDK;
ONVIF	Support
Mobile monitoring	Support multiple mobile monitoring （ iOS ， Android ）
Power	DC12V/2A input, power consumption:≤3W,
Dimension	38mm*38mm
Other	Support POE power supply, not support any custom ,The drive voltage of the light board is at 3.3V

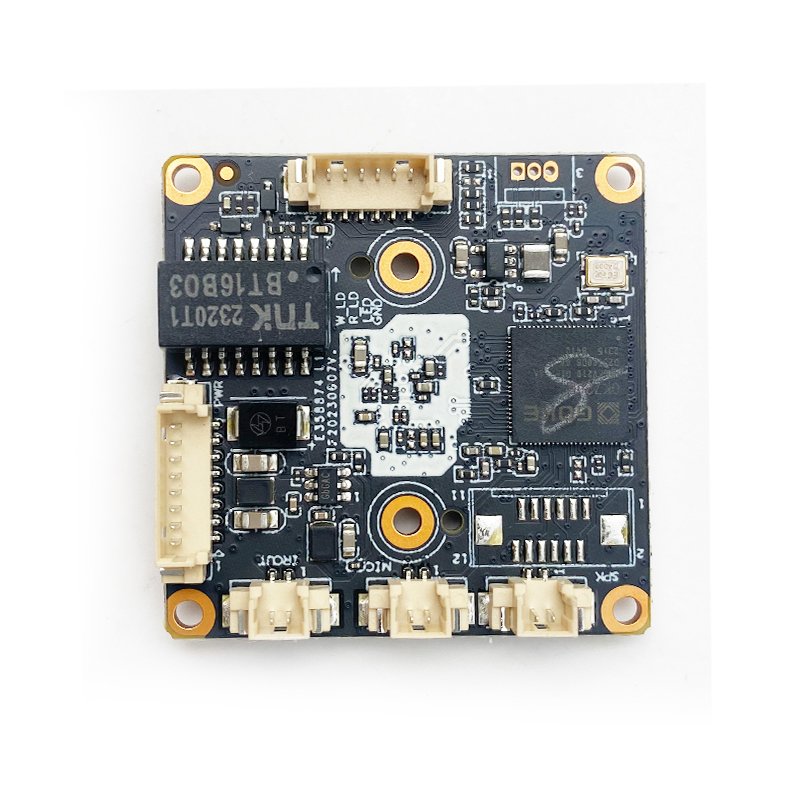

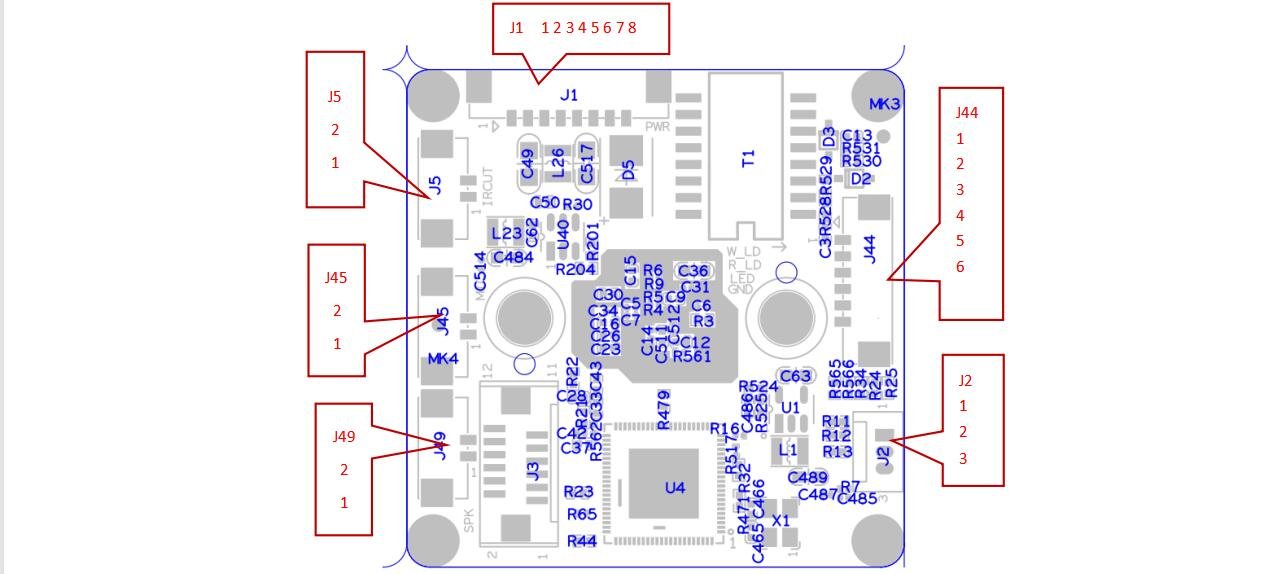

sign	Socket	Specific No	Interface Description
J5	1	IR-CUT	IR-CUT
J5	2	IR-CUT	IR-CUT
J2	1	UART0_RXD	Debug UART
	2	UART0_TXD	Debug UART
	3	GND	GND
J44	1	W_LED_GPIO0_4	W_LED_GPIO0_4
	2	R_LED_GPIO2_0	R_LED_GPIO2_0
	3	LED/GPIO6_5	LED control
	4	GND	GND
	5	IRIN_GPIO1_7	IRIN_GPIO1_7
	6	IO_GPIO6_4	G P IO/KEY
J1	1	ETH_LINK_ACT_LED	Indicator light
	2	ETH_LINK_ACA_LED	Indicator light
	3	ETHTX +	ETHTX +
	4	ETHTX-	ETHTX-
	5	ETHRX+	ETHRX +
	6	ETHRX-	ETHRX-
	7	GND	GND
	8	12V	12V input
J45	1	MICN	Audio input
J45	2	AC_IN	Audio input
J49	1	SPKN	Audio output
J49	2	SPKP	Audio output

port 2D/3D noise reduction,digital wide dynamic;Advanced H.265+ (Compatible with H.265/H.264) video compression,Super low rate,high definition quality of image;ProfessiSupporting human detection, face detection, and support to customize other intelligent functions;4.0MP HD Low illumination resolution,clear and fine images;Suponal anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。Support ONVIF;access third party;Support various mobile monitoring(iPhone,Android);Provide web、CMS、center platform management software MYEYE,provide SDK developmentSupport cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed

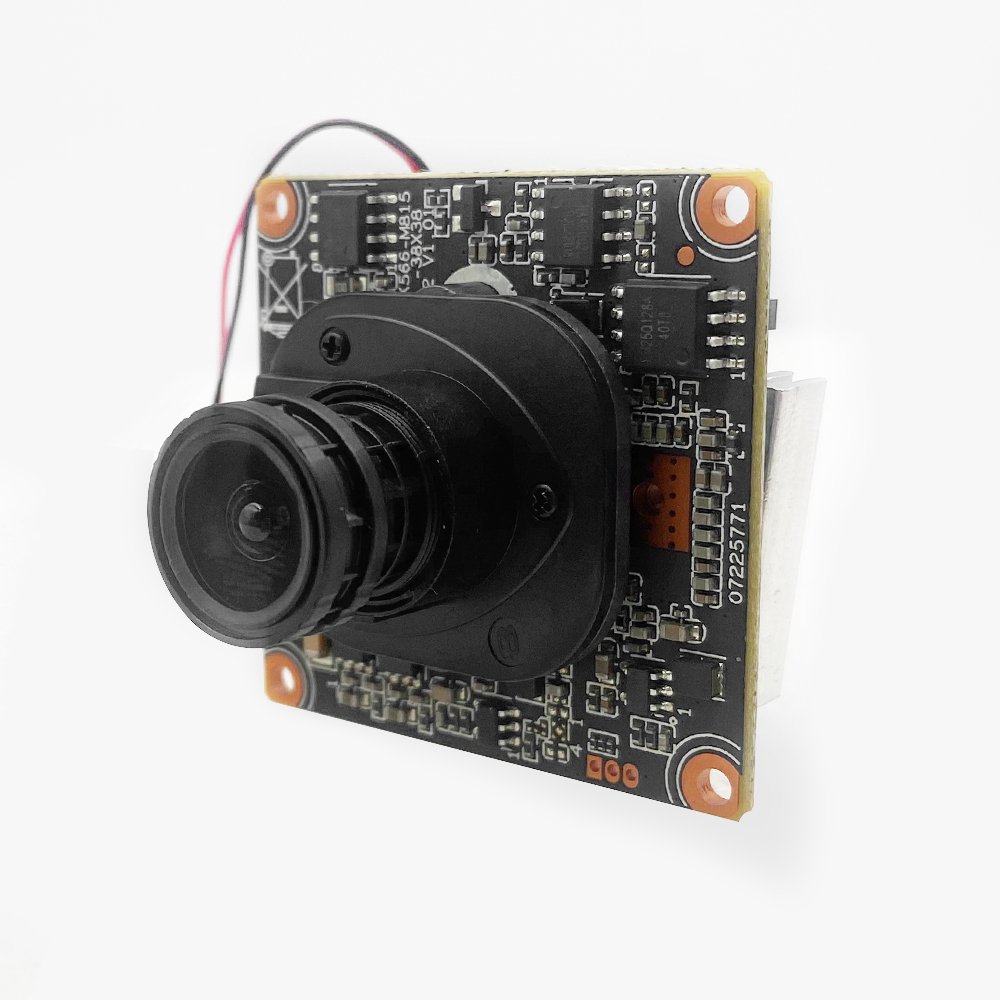

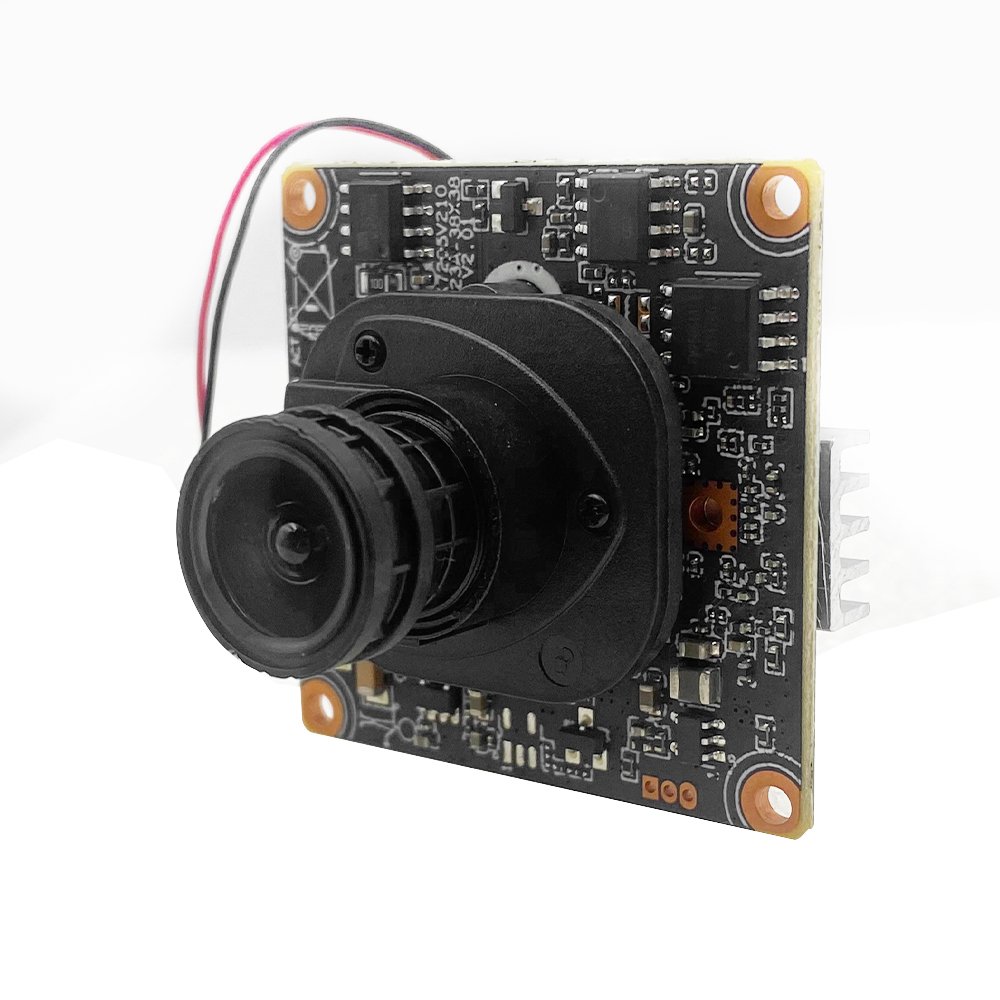

5.0M Low illumination H.265 AI IP Camera Module

Supporting human detection, face detection, and support to customize other intelligent functions5.0MP HD Low illumination resolution,clear and fine images;Support 2D/3D noise reduction,digital wide dynamic;Advanced H.265+ (Compatible with H.265/H.264) video compression,Super low rate,high definition quality of image;Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。Support ONVIF;access third party;Support various mobile monitoring(iPhone,Android);Provide web、CMS、center platform management software MYEYE,provide SDK developmentSupport cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed

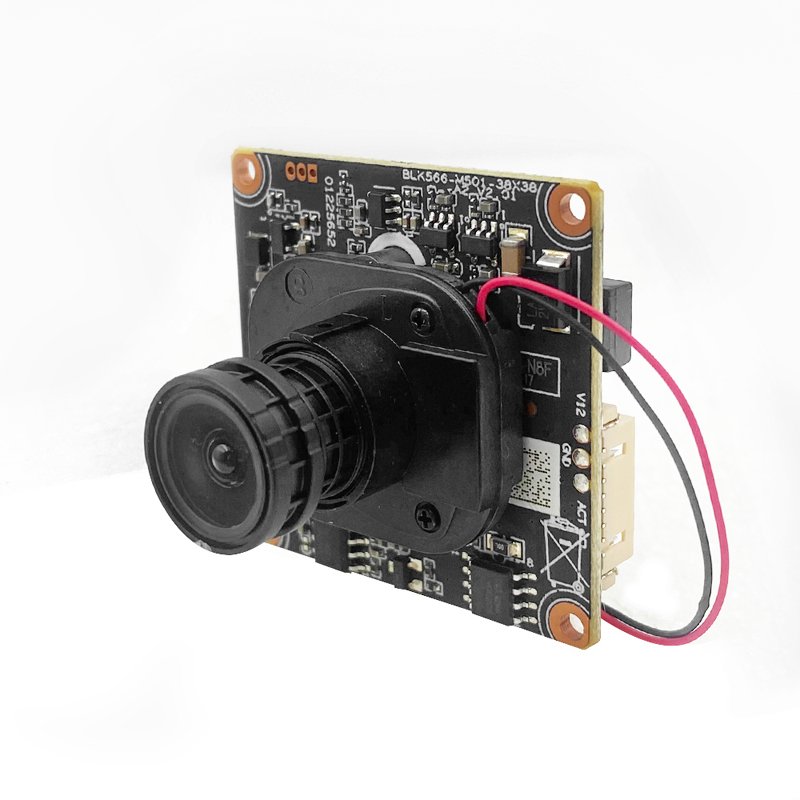

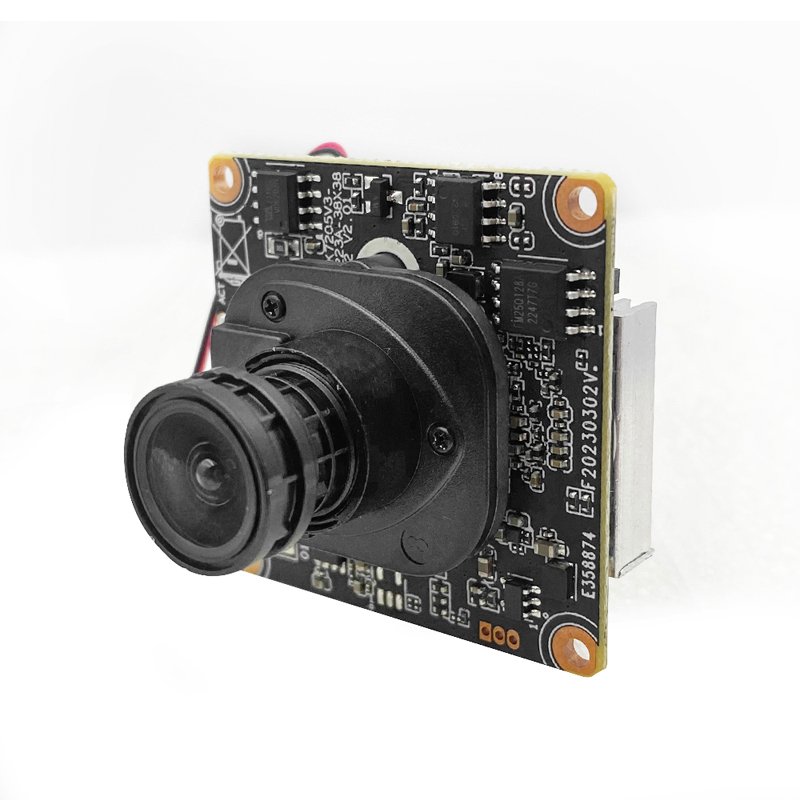

8.0M Black light illumination H.265 IP Camera Module
