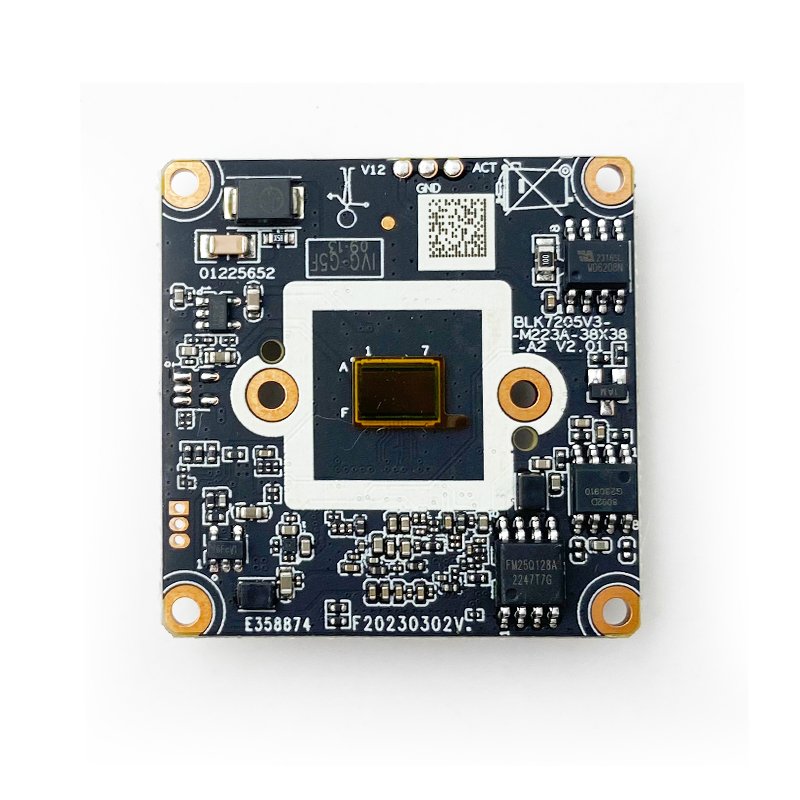

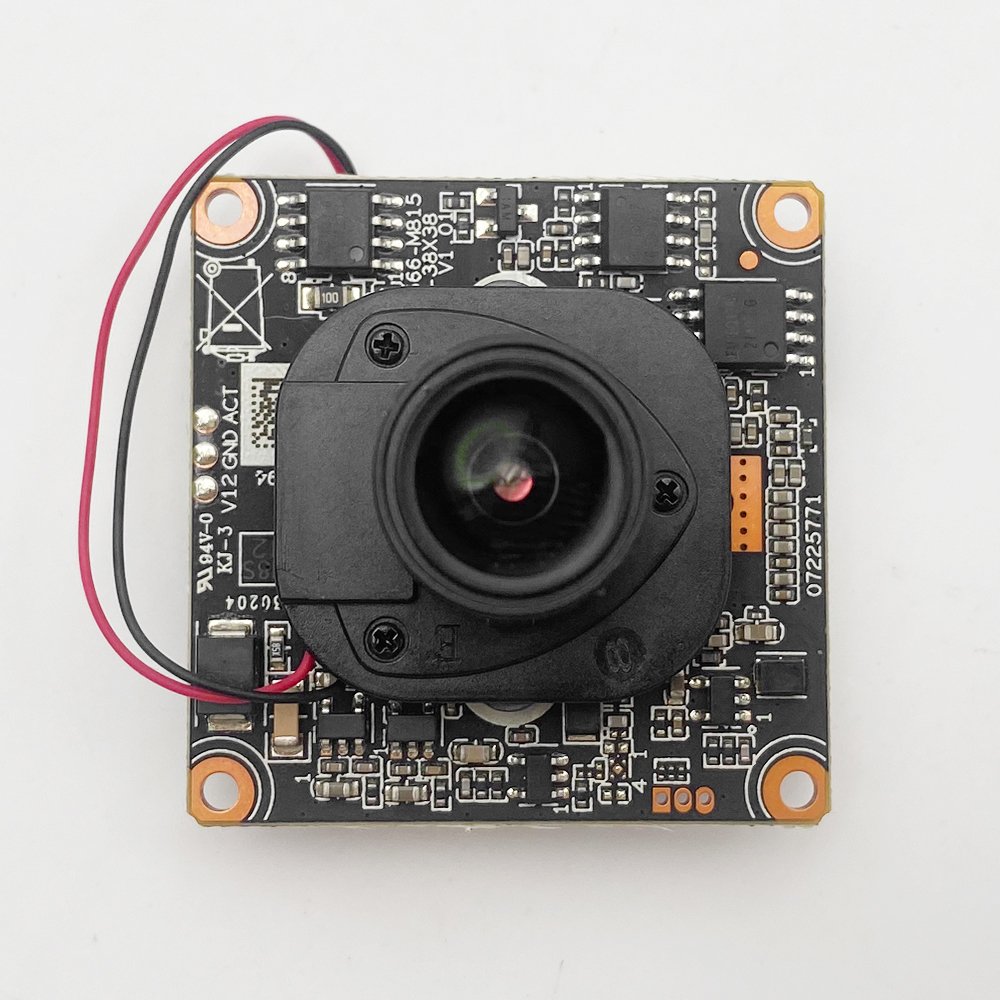

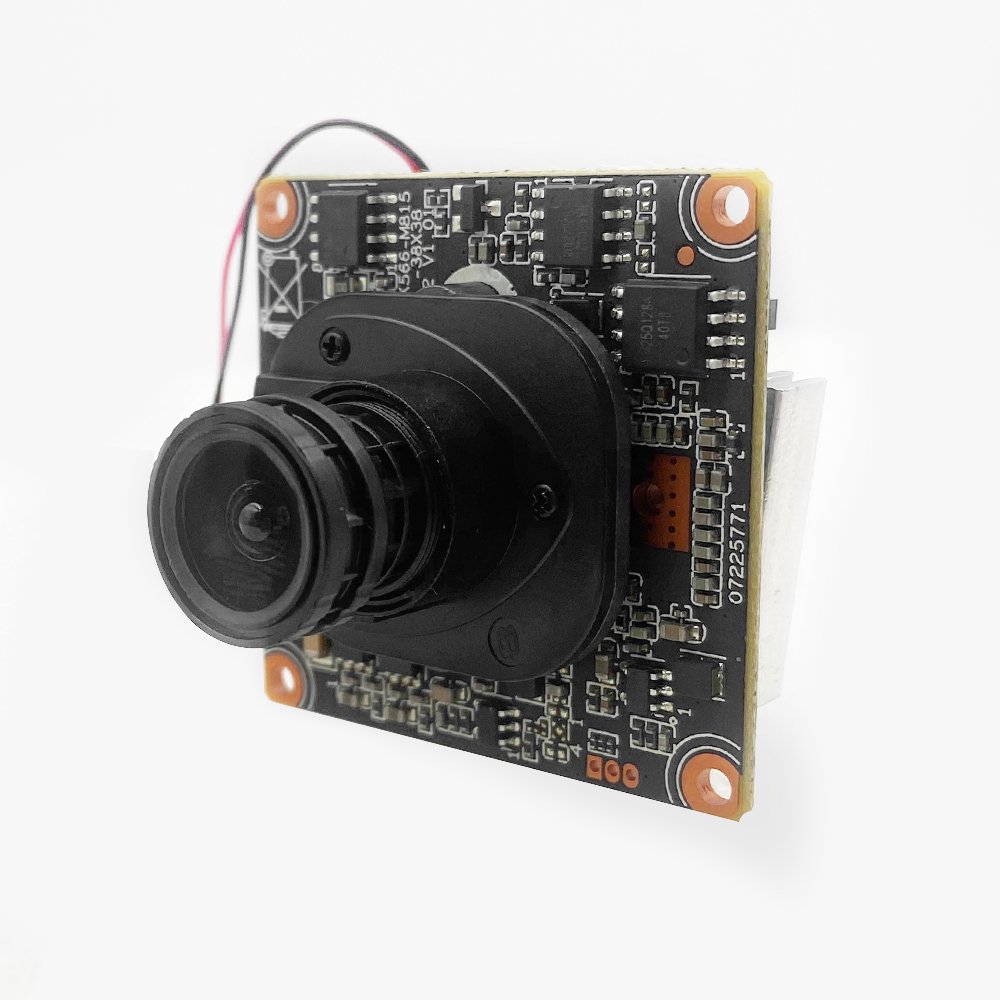

Model No. NST-IPX-GK5E | |
System structure | Embedded RTOS,dual-core 32bit DSP( GK7205V300 ),pure hard compression ,watch dog |
Sensor | 5 .0M 1/2.8"SC5339P Low illumination CMOS sensor, color 0. 0 1Lux@F1.2,black/white 0.001Lux@F1.2 |
Video compressio | H.265 + (Compatible with H.265/ H.264) support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable |
Image output | Main stream: 2880*1616@2 5 fps,2560*1440@25fps,2304*1296@25fps,1920*1080@25fps; sub-stream: 800*448@25fps |
Shutter | 1/50(1/60)s to 1/10,000s |
Lens | N/A |
Day and night | Support IR-CUT ,IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V |
Noise reduction | Support 2D/3D |
Wide dynamic | Support digital Wide dynamic |
Auto iris | N/A |
Audio compression | G.711,support bidrectional talk,audio&video synchronization |
Audio interface | 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone |
Network interface | 1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc |
Extension interface | Support extended SD card and WiFi |
Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
PTZ | N/A |
Motor interface | N/A |
Alarm I/O | N/A |
WIFI interface | N/A（ Extended support ） |
Reset interface | N/A |
SD Card | N/A（ Extended support ） |
Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing |
Intelligence analysis | Supporting human detection , face detection, and s upport to customize other intelligent functions |
Other function | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture ； united remote client monitoring sofaware 、 MYEYE;perfect SDK; |
ONVIF | Support |
Mobile monitoring | Support multiple mobile monitoring （ iOS ， Android ） |
Power | DC12V/2A input, power consumption:≤3W, |
Dimension | 38mm*38mm |
Other | Support POE power supply, not support any custom ,The drive voltage of the light board is at 3.3V |

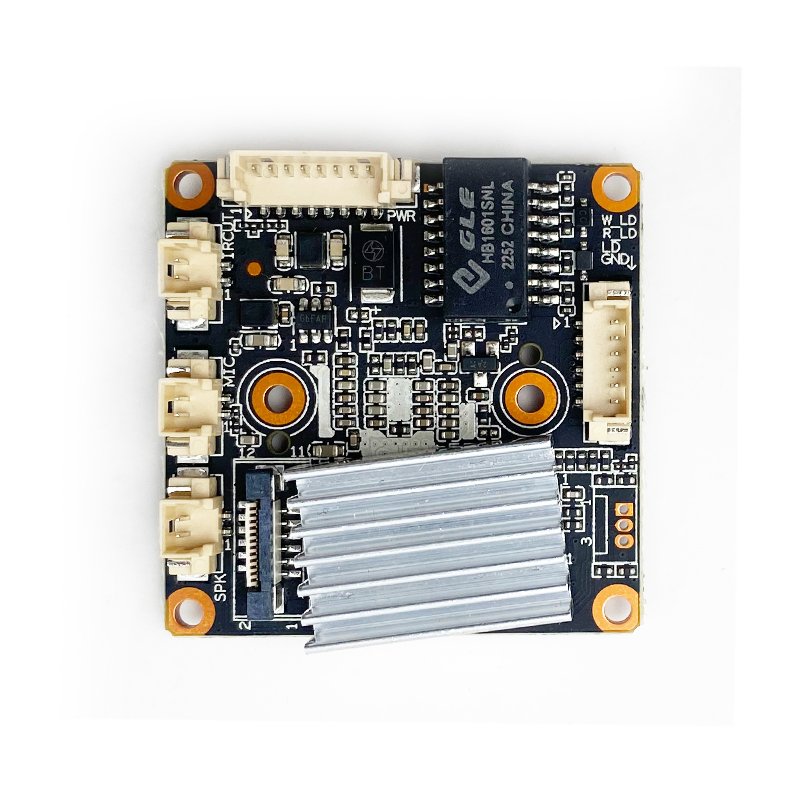

Specific No | Interface Description | Function | Socket |
J5 IRCUT | 1 | IR-CUT | IR-CUT Control line |
2 | IR-CUT | IR-CUT Control line | |
J2 Debug | 1 | UART0_RXD | Debug |
2 | UART0_RXD | Debug | |
3 | GND | GND | |
J 44 Infrared | 1 | W_LED_GPIO0_4 | W_LED_GPIO0_4 |
2 | R_LED_GPIO2_0 | R_LED_GPIO2_0 | |
3 | LED/GPIO6_5 | LED/GPIO6_5 | |
4 | GND | GND | |
5 | IO/GPIO6_4 | IO/GPIO6_4 | |
6 | IO/GPIO1_7 | IO/GPIO1_7 | |
J1 Power&Ethernet | 1 | ETH_LINK_ACT_LED | LED/PHY_AD0 |
2 | ETH_LINK_ACT_LED | LED/PHY_AD1 | |
3 | ETHTX + | Ethernet signal+ | |
4 | ETHTX- | Ethernet signal- | |
5 | ETHRX + | Ethernet signal+ | |
6 | ETHRX- | Ethernet signal- | |
7 | GND | GND | |
8 | 12V | 12V INPUT | |
J45 MIC | 1 | MICN |
MIC |
2 | AC_IN | ||
J49 SPK | 1 | SPKN | SPK |
2 | SPKP | ||
J3 Extension ports | 1 | SDIO0_CCLK_OUT | SDIO0_CCLK_OUT |
2 | SD_DATA0 | SD DATA0 | |
3 | SD_DATA1 | SD DATA1 | |
4 | SD_DATA2 | SD DATA2 | |
5 | SD_DATA3 | SD DATA3 | |
6 | SD_CMD | SD_CMD | |
7 | WIFI_PDN | WIFI_PDN | |
8 | GND | GND | |
9 | WIFI_DN | WIFI_DN | |
10 | GND | GND | |
11 | WIFI_DP | WIFI_DP | |
12 | 3V3 | 3V3 |
