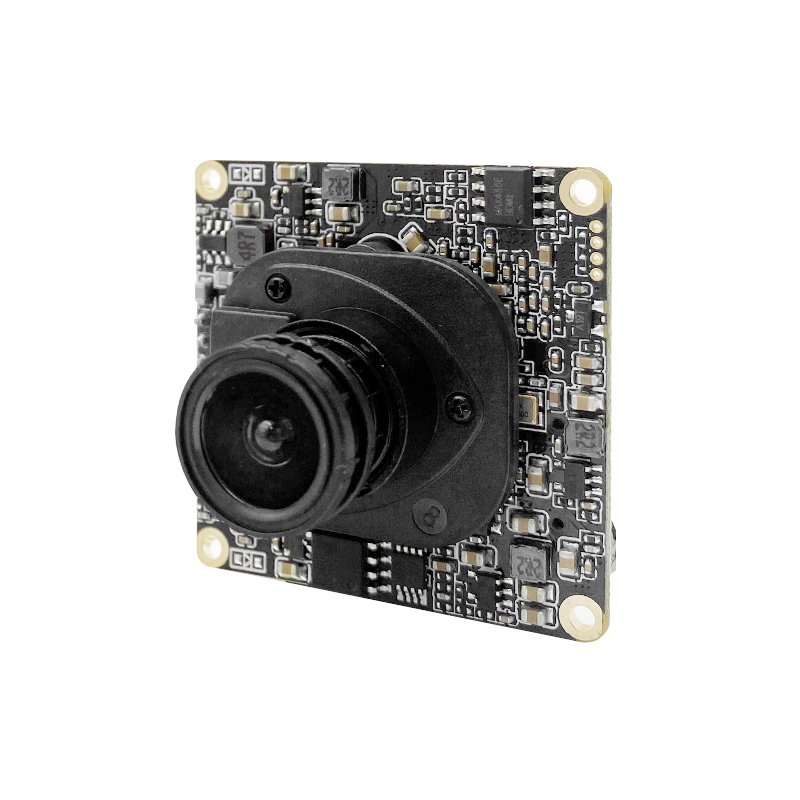

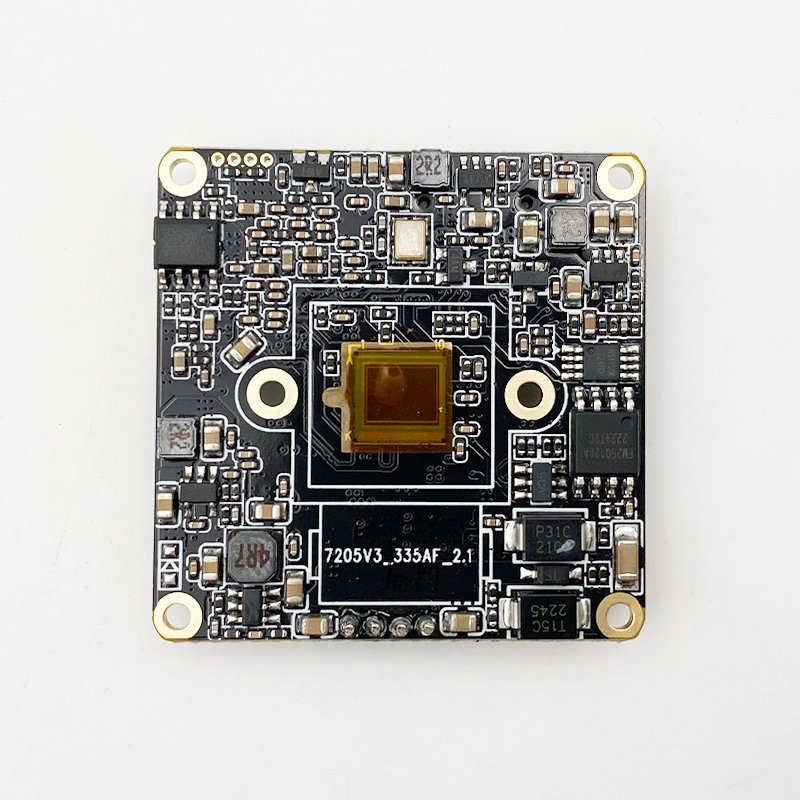

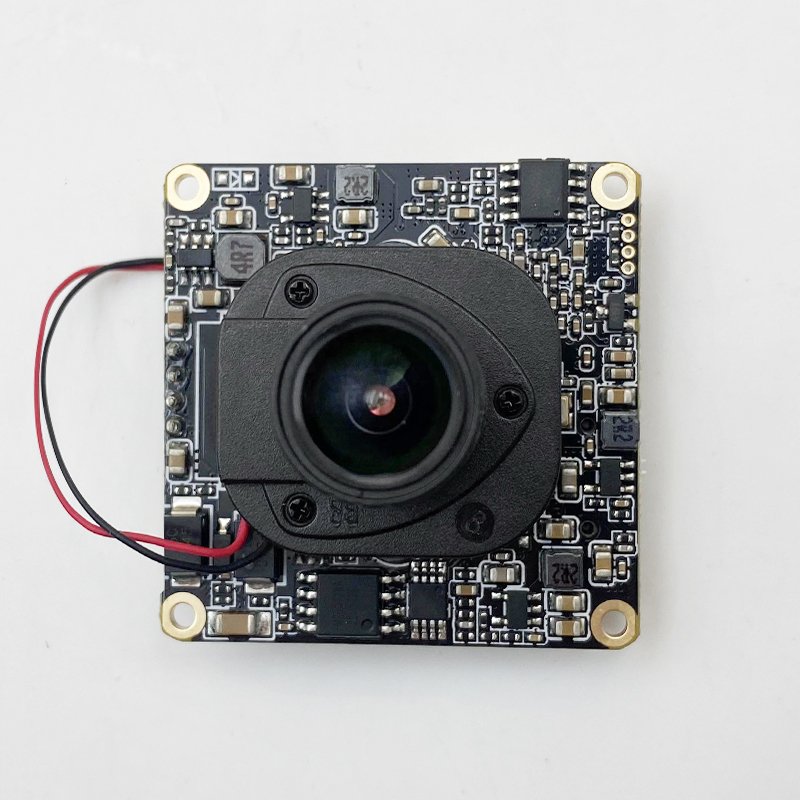

IMX335 SONY Sensor 5 MP Wifi Camera Module,Support ONVIF, Support Human Detection,Support 2 Way Audio

IMX335 SONY Sensor 5 MP Wifi Camera Module,Support ONVIF, Support Human Detection,Support 2 Way Audio

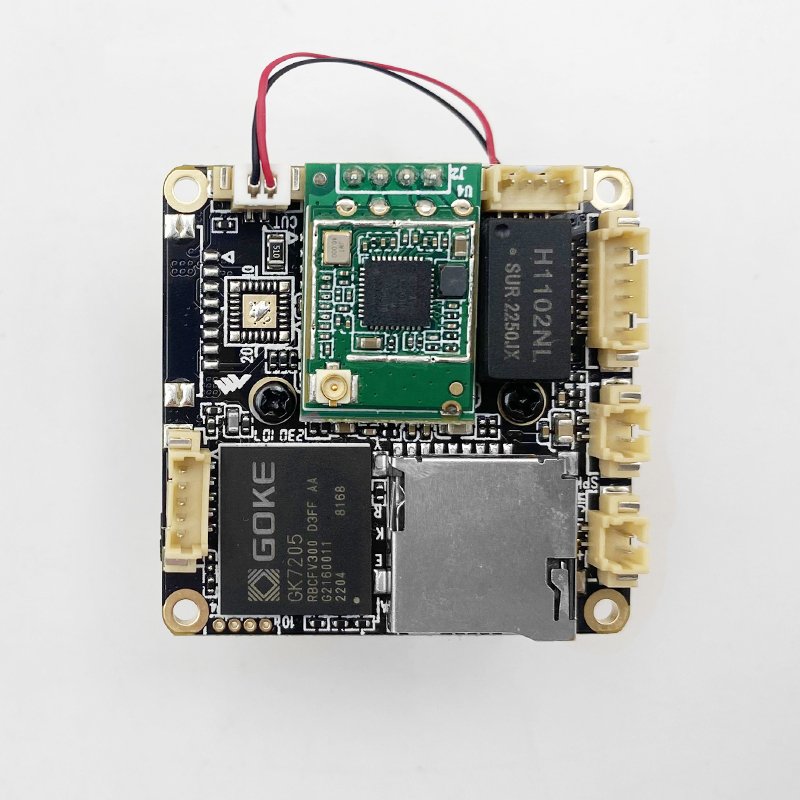

IMX335 SONY Sensor 5 MP Wifi Camera Module,Support ONVIF, Support Human Detection,Support 2 Way AudioHigh-sensitivity, high-signal-to-noise CMOS image sensorUsing GK7205V300 processing chip
The highest pixel can reach 500W, and the highest resolution can reach 5MP (2560x1920)H.265 compression algorithm, effectively reduce network bandwidth, support dual stream, support mobile phone monitoringSupport multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, DHCP, DNS, NTP, UPNP, RTSP, etc.Support ONVIF protocolSupport alarm pictures to send E-MailSupport alarm picture and alarm video upload to FTP serverSupport timing capture pictures to FTP serverSupport static IP, also supports dynamic IP (DHCP)Support P2P plug and playSupport IE, Google, Firefox browserA maximum of 6 users can be browsed at the same time (each code stream supports 3 users)Provide motion detection (region, sensitivity can be set) alarm functionSupport Humanoid DetectionSupport Micro SD card function, maximum support 128G Micro SD cardSupport mobile phone download and playback SD card video

SEND INQUIRY NOW

Model No.		NST-IPG5-W
Sensor	1/2.8” IMX335 CMOS sensor
Main chip	GK7205V300
Pixel	5MP
Lens	Standard M12, 4mm HD lens
Day/Night function	Auto IR-CUT
Video compression format	H.265
Dual stream	Support
Image Resolution	5MP(2560x1920), 720P
Video bitrate	32Kbps-6Mbps
Video frame rate	Support 15fps
Network protocol	TCP/IP, UDP/IP, HTTP, ICMP, FTP, EMAIL, TELNET
Motion Detection	Can set 0-100 sensitivity and detect 4 areas
ONVFI protocol	Support ONVIF2.4
IE application	Embedded Web Server, users can browse and control with the browser directly
Phone monitoring	Support iPhone, Android
DDNS	Support LAN and Internet
WIFI	Support 7601 WiFi module
Audio port	1CH Audio Input, 1CH Audio Output
TF card storage	Support 128G TF card (need additional connection board)
Other function	Support 485 interface, support connect battery to save the clock, support humanoid recognition
User Management	Allow multiple users to access the device at the same time
Network Interface	1 RJ45, 10/100M Ethernet interface
Module power consumption	DC 12V 2A, 2.2W
Working temperature, humidity	0 - 55℃, 10-95%
Size	383825mm

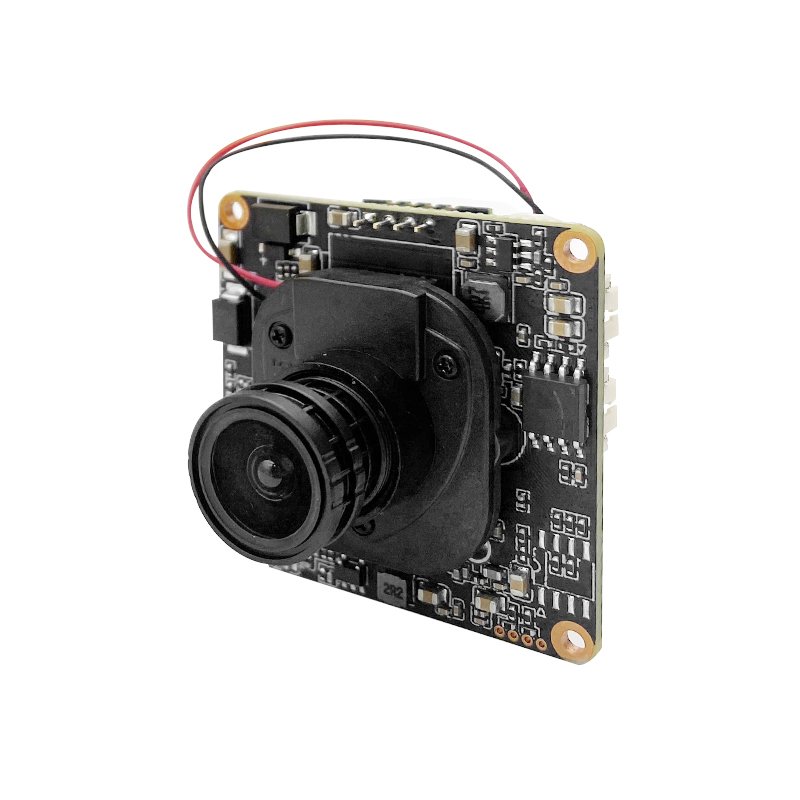

2 MP Wireless WIFI Camera Module,Support Smart Function,ONVIF,Microphone and SpeakerHigh sensitivity, high signal to noise CMOS image sensorIngenic T31L processing chip is used;The highest pixel can reach 200W, and the highest resolution can reach 1080P (1920x1080)H.265 compression algorithm, effectively reduce network bandwidth, support dual stream, support mobile phone monitoringSupport multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, DHCP, DNS, NTP, UPNP, RTSP, etc.Support alarm pictures sent to E-MailSupport ONVIF protocolSupport static IP, also supports dynamic IP (DHCP)Support P2P plug and playSupport humanoid detectionMaximum support for 6 users to browse at the same time (each code stream supports 3 users)Provide motion detection (area and sensitivity can be set) alarm functionSupport Micro SD card function, maximum support 128G Micro SD cardSupport mobile phone download and playback SD card video
