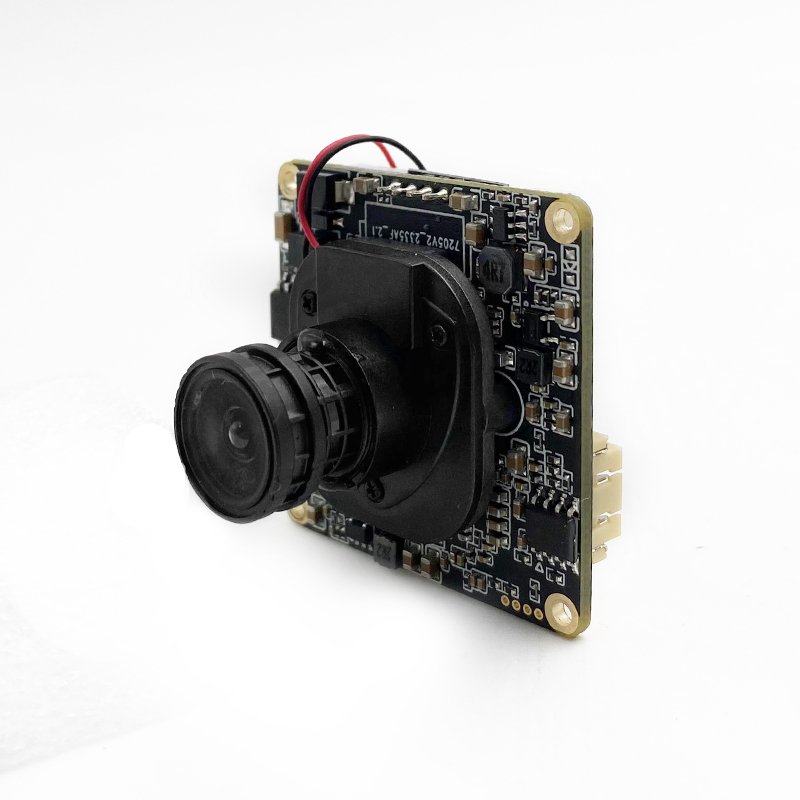

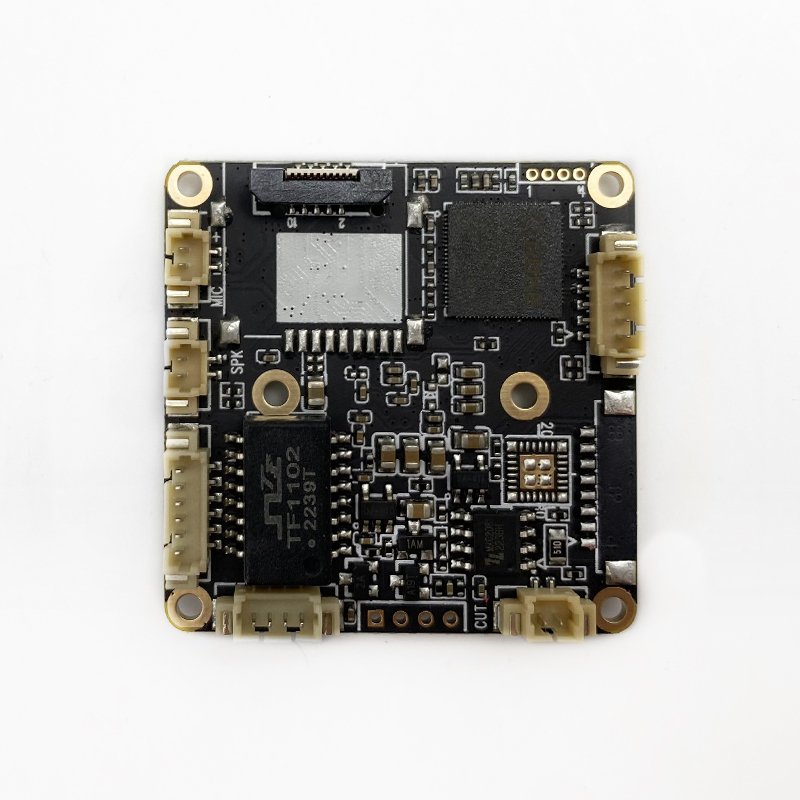

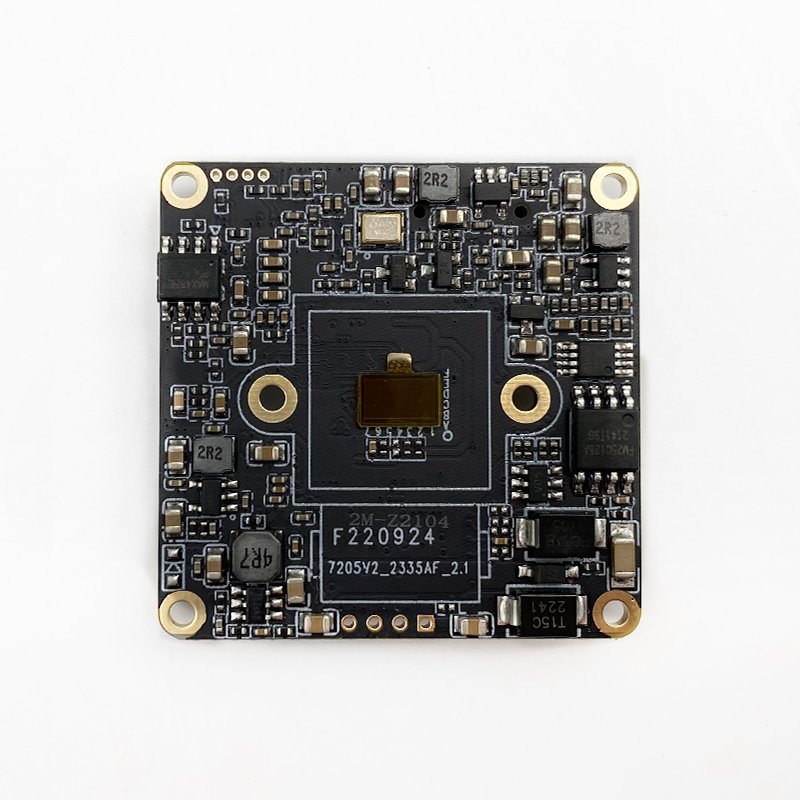

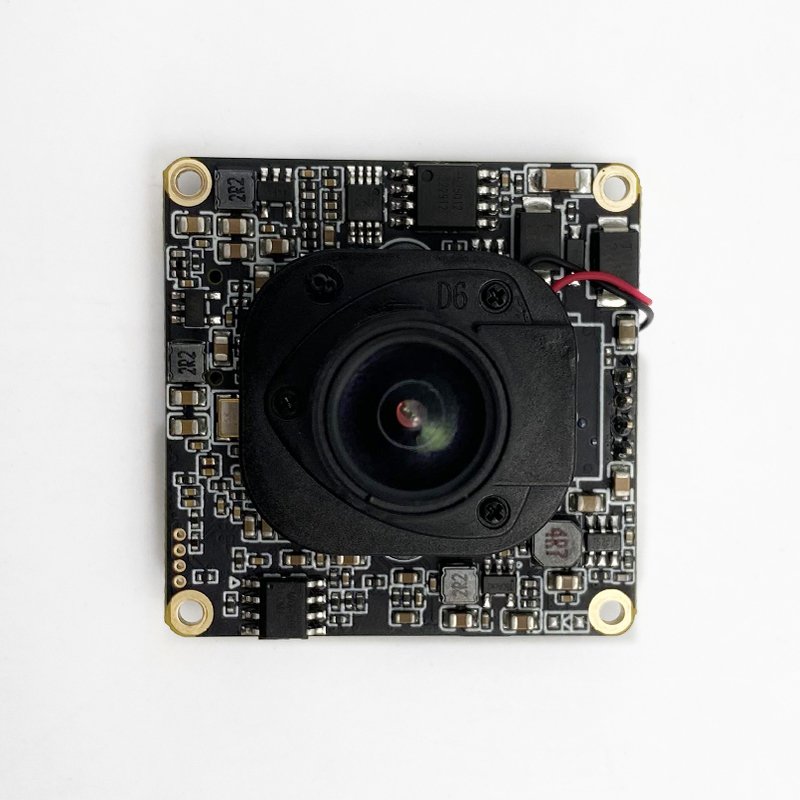

2mp 1/2.9" Sensor Wireless Wifi IP Camera Board

2mp 1/2.9" Sensor Wireless Wifi IP Camera Board

2mp 1/2.9" Sensor Wireless Wifi IP Camera BoardWith SD Card Slot,Max support 128GB 2 way Audio,Can connect Micphone and speakerH.265/H.264

NST-IPG2E-W

SEND INQUIRY NOW

Model No.		NST-IPG2E-W
Sensor	1/2.9" SC2083 CMOS
Soc	Goke GK7205V200
Effective Pixels	2.0 Megapixels
Day and night functions	Automatic IR-CUT
Double stream	Support
Image resolution	1080P,720P,VGA,QVGA
Video frame rate	25fps
Video bitrate	32Kbps~6Mbps
Network protocol	TCP/IP、UDP/IP、HTTP、ICMP、FTP、EMAIL、TELNET
Motion Detection	It can set sensitivity 0-100 and detect 4 areas
ONVFI protocol	Support ONVIF2.6 protocol
Web application	embedded web server, users can browse and control directly with browser
Mobile monitoring	Spport IOS and Android
Dynamic DNS	Support LAN and Internet
WIFI	Support
Audio port	Support 7601 WiFi module One channel audio input and one channel audio output
TF card storage	Spport 128G TF card
Other function	Support 485 interface, support battery to save clock
User Management	Multi user hierarchical rights management is provided to allow multiple users to access the device at the same time
Network Interface	1 RJ45, 10 / 100M Ethernet interface
Module power consumption	DC 12V 2A、1.8W
Working temperature, humidity	0 ~ 55 ℃、10 ~ 95%
Size	383825mm；Weight：21.8g

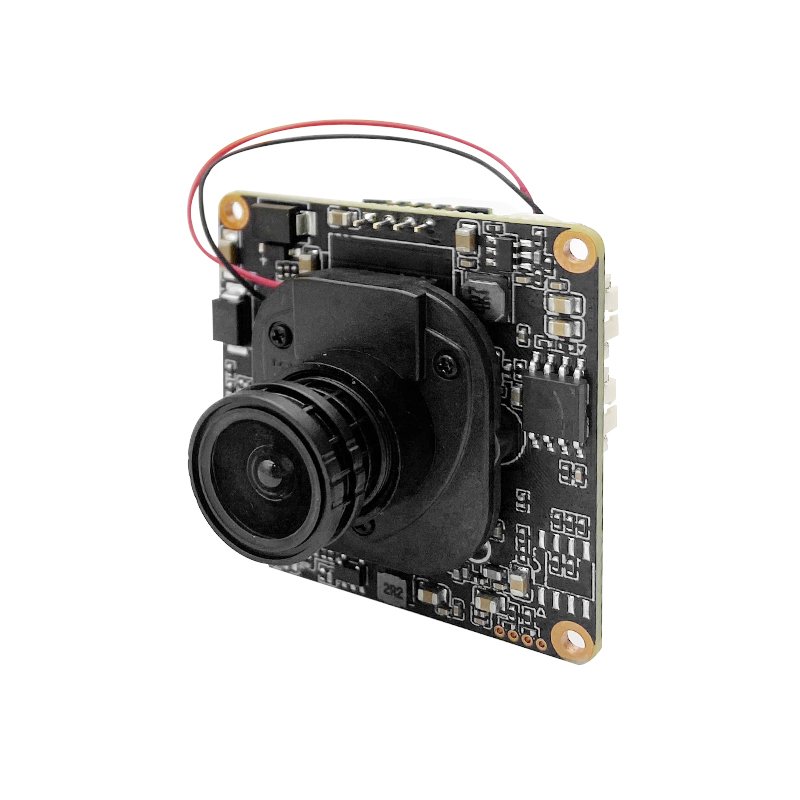

2 MP Wireless WIFI Camera Module,Support Smart Function,ONVIF,Microphone and SpeakerHigh sensitivity, high signal to noise CMOS image sensorIngenic T31L processing chip is used;The highest pixel can reach 200W, and the highest resolution can reach 1080P (1920x1080)H.265 compression algorithm, effectively reduce network bandwidth, support dual stream, support mobile phone monitoringSupport multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, DHCP, DNS, NTP, UPNP, RTSP, etc.Support alarm pictures sent to E-MailSupport ONVIF protocolSupport static IP, also supports dynamic IP (DHCP)Support P2P plug and playSupport humanoid detectionMaximum support for 6 users to browse at the same time (each code stream supports 3 users)Provide motion detection (area and sensitivity can be set) alarm functionSupport Micro SD card function, maximum support 128G Micro SD cardSupport mobile phone download and playback SD card video

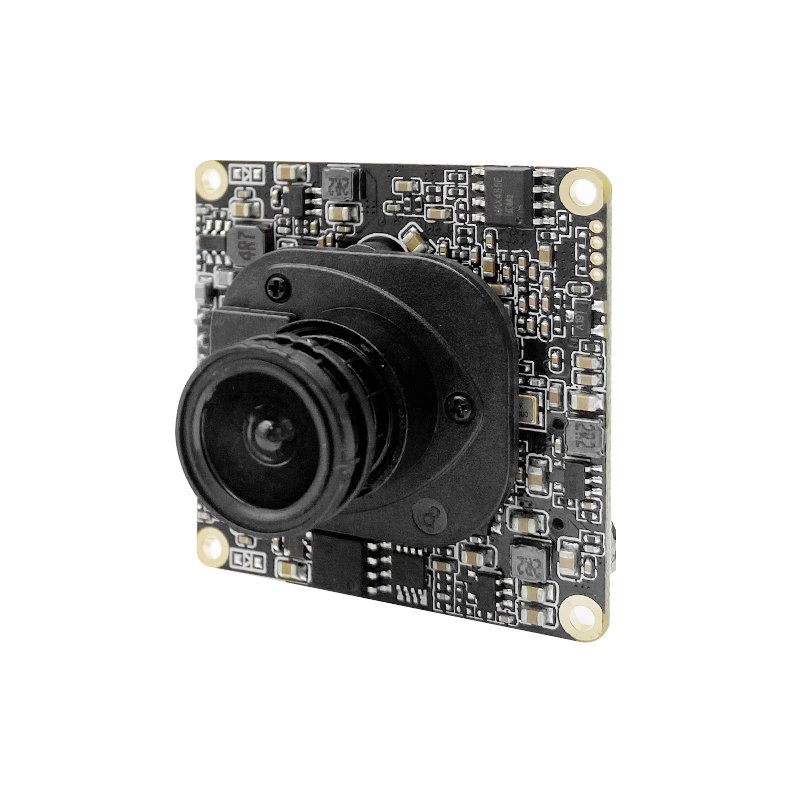

1/2.8" SONY IMX307 Sensor 2 MP HD Wireless WIFI Camera Module

1/2.8" SONY IMX307 Sensor 2 MP HD Wireless WIFI Camera ModuleHigh-sensitivity, high-signal-to-noise CMOS image sensorUsing GK7205V200 processing chip;The highest pixel can reach 200W, and the highest resolution can reach (1920x1080)H265 compression algorithm, effectively reduce network bandwidth, support dual stream, support mobile phone monitoringSupport multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, DHCP, DNS, NTP, UPNP, RTSP, etc.Support ONVIF protocolSupport alarm pictures to send E-MailSupport alarm picture and alarm video upload to FTP serverSupport timing capture pictures to FTP serverSupport static IP, also supports dynamic IP (DHCP)Support P2P plug and playSupport IE, Google, Firefox browserA maximum of 6 users can be browsed at the same time (each code stream supports 3 users)Provide motion detection (region, sensitivity can be set) alarm functionSupport Humanoid DetectionSupport Micro SD card function, maximum support 128G Micro SD cardSupport mobile phone download and playback SD card video
