10 channel 8MP input Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

Model: NVR-6110KSupport Ultra 265/H.265/H.264 video formats
10 channel 8MP input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Up to 8MP resolution recording
1 SATA HDDs, up to 8TB for each HDDSupport cloud upgrade
ANR technology to enhance the storage reliability when the network is disconnected

NVR-6110K

Support Ultra 265/H.265/H.264 video formats;

16 channel 8MP input;

Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T;

Up to 8MP resolution recording;

1 SATA HDDs, up to 10TB for each HDD

Support cloud upgrade ;

ANR technology to enhance the storage reliability when the network is disconnected


Spec.

IP Video Input:10-ch

Network

Incoming Bandwidth:64Mbps

Outgoing Bandwidth:32Mbps
Remote Users:128
Protocols:P2P, UPnP, DHCP

Video/Audio Output

HDMI/VGA Output

VGA:1024X768@60,1280X720@60,1280X1024@60,1600X1200@60,1920X1080@50, 1920X1080@60

HDMI:1024X768@60,1280X720@60,1280X1024@60,1600X1200@60,1920X1080@50, 1920X1080@60, 3840X2160@30

Recording Resolution:8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output:1-ch, 3.5mm

Synchronous Playback:10-ch

Corridor Mode Screen:3/4/5/7/9/10

 Decoding

 Decoding format:   H.265/H.264

 Liveview/Playback:8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

 Capability:1 x 8MP@30, 1 x 5MP@30, 2 x 4MP@30, 4*3MP@25, 4 x 1080p@30, 8 x 720p@30, 16 x D1@25

 Hard Disk

 SATA:   1 SATA interface

 Capacity:   up to 8TB for each disk

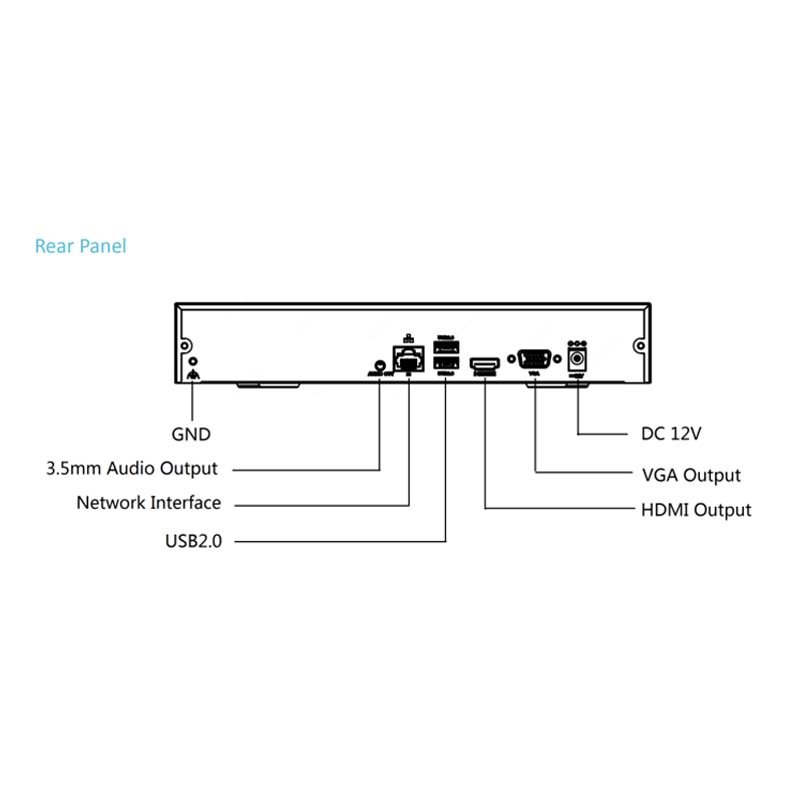

 External Interface

 Network Interface:   1 RJ45 10M/100M self-adaptive Ethernet Interface

 USB Interface:   Rear panel: 2 x USB2.0

 General

 Power Supply:   12V DC

 Power Consumption: ≤3.2 W (without HDD)

 Working Environment:   -10°C~+55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)

 Dimensions (W×D×H):   260mm × 243mm × 46mm (10.2" × 9.6" × 1.8")

 Weight (without HDD):   ≤1kg (2.2lb)
