Product Description
Model No. | NST-ATC5902-A10X | NST-ATC5902-M10 |
| Camera Type | IR 4X ZOOM Camera( Motorized Zoom Auto Focus Lens) | |
| Effective Pixels | 2.0 Mega Pixels 1080P(25/30fps) | |
| Image Sensor | 1/2.9" SONY CMOS,WDR,UTC/OSD | |
| DSP | Nextchip 2441 | |
| Min. Illumination | Color 0.01Lux@F1.2 | |
B/W 0.01 Lux@F1.2 | ||
| Signal System | AHD/TVI/CVI/CVBS or PAL/NTSC | |
| On Screen Display | Yes,UTC | |
| OSD Function | 1080P 30/25FPS,
WDR 3D-DNR,
Sens-up x2 x4 x8,
Digital Zoom 16x Manual/DC Lens,Shutter/AGC/WB,Pict Adjust,Mirror,Day/Night,DNR,BLC/HLC,Motion Detect,Privacy Zone | |
| IR Cut Filter | Set of double light switch IR-CUT filter | |

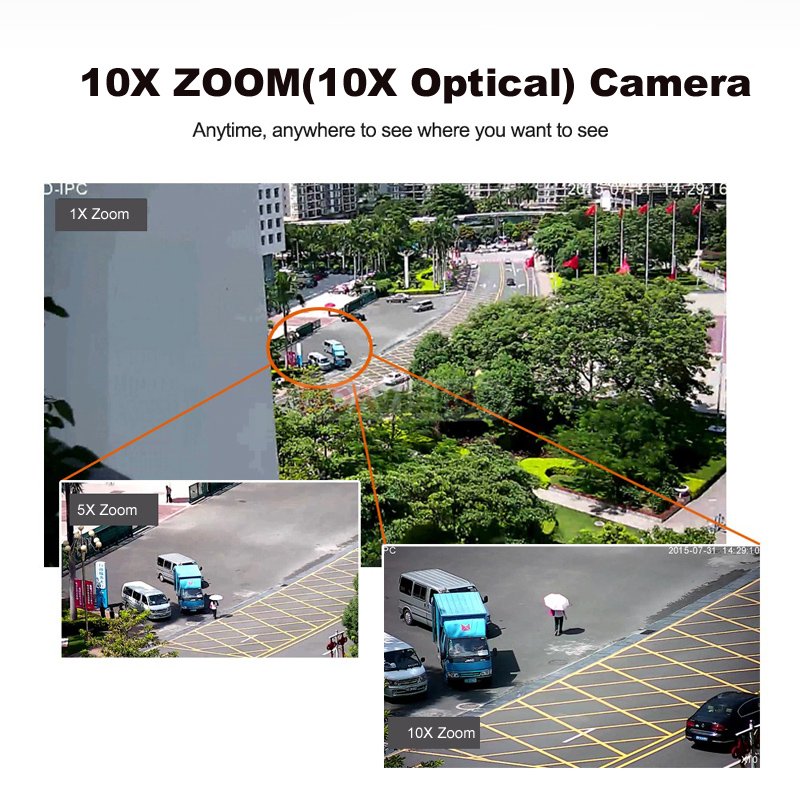

| Lens Mount | 10X Optical
Motorized
Zoom AutoFocus Lens 5-50mm | 10X Optical Zoom Manual Varicoal Lens 5-50mm |
| Infrared Luminary | 8pcs Mini Array IR LEDs | |
| Infrared Wavelength | 850 nm | |
| Illuminate Distance | 60m | |
| Waterproof Criterion | IP65 | |

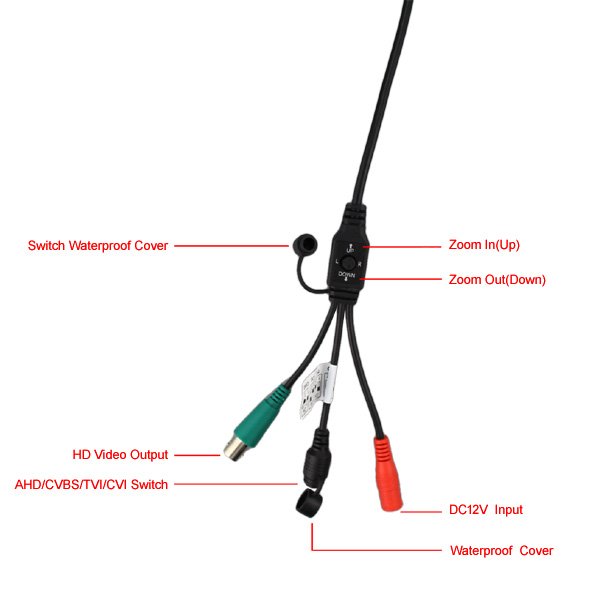

| I/O Connector | 1*DC Power Connector ,1* BNC Video Connector | |
| Supplied Voltage | DC12V | |
| Power Consumption | Less than 200mA | |
| Working Enviroment | -10C~+60C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20 ) | |
| Weight | 1.0KG | |
