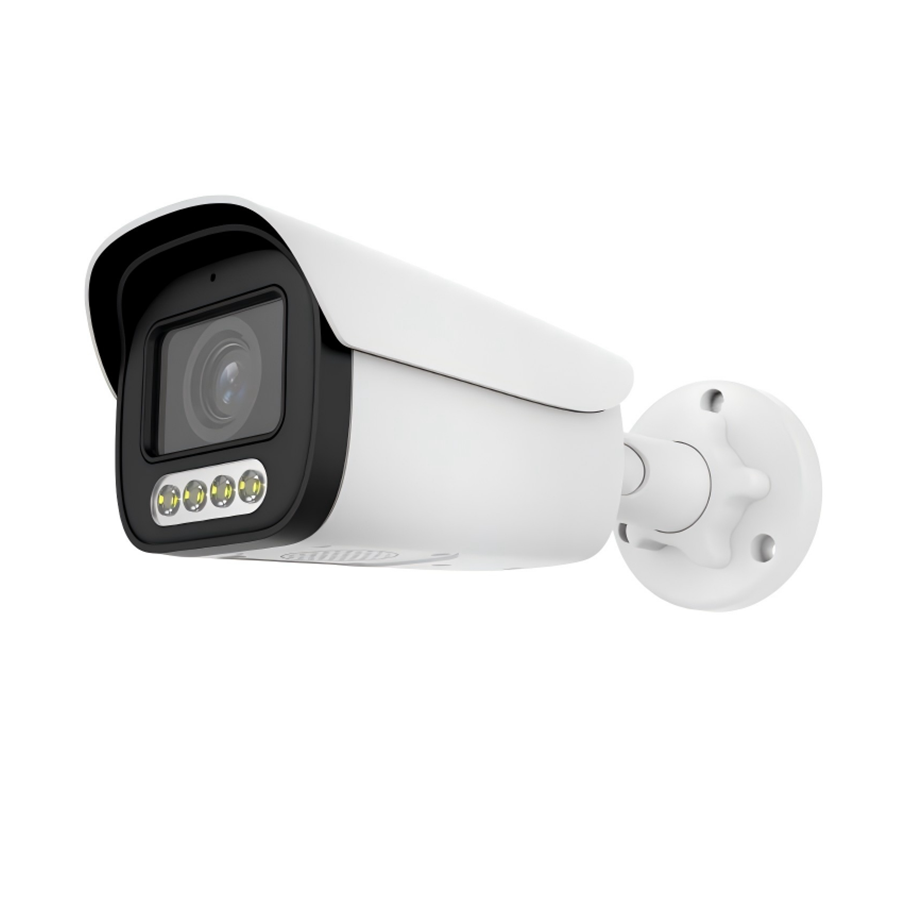

Varifocal Lens 8MP ColorVu 7*24 Full Color AI ISP Network Camera
1/1.8 Inch F1.2 Varifocal Lens 3.6-11mm
1/1.8 Inch Cmos Lens
AI Image Signal Processing
Product Description
Model No. | NST-IPM5148-BL-VF | NST-IPM5145-BL-VF | |
Camera Type | Full Color Night Vision Bullet AI ISP Camera | ||
System | Embedded RTOS design | ||
Camera | Image Sensor | 1/1.8" Cmos Sensor
| 1/1.8" Cmos Sensor
|
| Soc Chipset | Mstar SSC378DE
| Mstar SSC377
| |
Effective Pixels | 8.0 MegaPixels | 5.0 Megapixels | |
| Video Standard | 3840*2160@20 (default), 2880*1620@30, 2880*1620@25, | 2880*1620@25, 2560*1440@25, | |
| Resolution | Mainstream: 3840*2160 (default), 2880*1620, 2560*1440, 2304*1296, 1080P | Main stream: 2880*1620 (default), 2560*1440, 2304*1296, 1080P, 720P | |
Secondary stream: 720P, D1 (default), 640*360, 2CIF, CIF
| Secondary stream: 720P, D1 (default), 640*360, 2CIF, CIF
| ||
| Third stream: D1, 640*360, 2CIF, CIF (default) | Three streams: D1, 640*360, 2CIF, CIF (default)
| ||
Min. Illumination | Color 0.001Lux/F1.2;
B/W 0.0001 Lux/F1.2
| Color 0.001Lux/F1.2 ;
B/W 0.0001 Lux/F1.2
| |
Video | Smart Coding | Support basic mode and advanced mode to reduce storage usage | |
| Compression | H.264, H.265 video coding; Support three streams | ||
| OSD | Support time OSD , custom OSD , etc., up to 8 areas | ||
Privacy Mask | Support, up to 4 areas | ||
Area Enhancement | Support, up to 8 | ||
Wide Dynamic | Support multi-frame synthesis optical wide dynamic range | ||
| Noise reduction | Support 2D , 3D noise reduction | ||
| shutter | Support automatic/manual mode; Support low smear mode; Support indoor 50/60Hz shutter mode, suppress power frequency flicker; | ||
| scene mode | Support transparent (default), bright, standard three scene mode selection, adjust image style preference | ||
Audio | Audio Input | Support Micphone input | |
| Audio Output | Support 1-way Lineout audio output | ||
| Audio Output | Maximum support for 64kbps transmission | ||
| Audio processing | Support G.711u, G.711a codec standard; Support noise suppression; | ||
| Alarm | Types | With the expansion board, it can realize 1 in 1 out switch control; Can access or control sensors, access control switches and other equipment;
| |
Network | IP acquisition method | PPPoE, Netcom (default enabled), DHCP, static IP address | |
| Protocol | Support IPv4, IP v6, HTTPS , TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS , NTP, port mapping and other network protocols; | ||
| Compatibility | Support ONVIF standard protocol,ONVIF Profile-S,ONVIF Profile-T,realize the video preview and recording of docking mainstream brand NVR and PC client, etc. | ||
| Network Interface | 10/100M
| ||
| Client | Support mobile APP video preview (IOS, Android); Support local management of IPC by PC client, realize multi-channel IPC live broadcast, local hard disk storage, etc.; | ||
POE | Support(optional) | ||
General | IR Cut Filter | Set of double light switch IR-CUT filter
| |
| Lens Mount | Varifocal Lens 3.6-11mm/F1.2
| ||
| Aux Luminary | 4pcs Warm Light LED
| ||
| Light Wavelength | 580nm
| ||
| Illuminate Distance | 30-40m
| ||
| Waterproof Criterion | IP 66
| ||
| I/O Connector | 1*DC Connector ,1* RJ45(10/100M Network)
| ||
| Supplied Voltage | DC12V/PoE(802.3af/820.3at)
| ||
| Working Environment | -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
| ||
| Weight | 0.6kg
| ||
