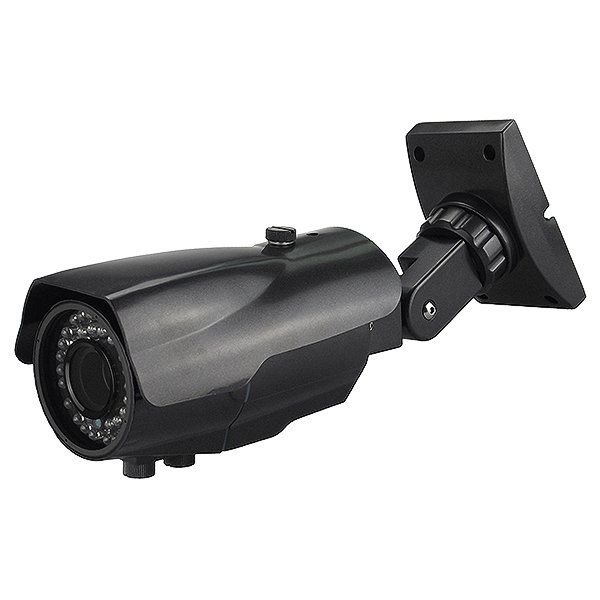

Product Description
|
Model No. |
NST-AHD5764 |
NST-AHD5762 |
NST-AHD57613 |
|
Camera Type |
AHD (Analog High Definition)Camera |
||
| Effective Pixels | 4.0 Mega Pixels | 2.0 Mega Pixels | 1.3 Mega Pixels |
| Image Sensor | 1/3" OV CMOS Sensor,OSD,ICR | 1/2.8" SONY CMOS Sensor,OSD,ICR | 1/3" Aptina CMOS Sensor,UTC,ICR |
| DSP | Nextchip 2475H | Nextchip 2441H | Nextchip 2431H |
| Min. Illumination | Color 0.001Lux@F1.2 | Color 0.01Lux@F1.2 | Color 0.01Lux@F1.2 |
| B/W 0.0001 Lux@F1.2 | B/W 0.001 Lux@F1.2 | B/W 0.01 Lux@F1.2 | |
| On Screen Display | Yes | Yes | Yes |
| OSD Function |
Manual/DC Lens,Shutter/AGC/WB,Pict Adjust,Mirror,Day/Night,DNR,BLC/HLC,Motion Detect,Privacy Zone
|
||
| IR Cut Filter |
IR LED synchronous switching double filter
|
||
| Lens Mount |
Varicoal Lens 2.8-12mm
|
||
| Infrared Luminary |
24pcs Mini Array IR LED /42pieces F5 IR LED
|
||
| Infrared Wavelength |
850 nm
|
||
| Illuminate Distance |
40 M
|
||
| Waterproof Criterion |
IP66
|
||
| I/O Connector |
1*DC Power Connector ,1* BNC Video Connector
|
||
| Supplied Voltage |
DC12V
|
||
| Power Consumption |
IR On: 600mA max., IR Off: Less than 200mA
|
||
| Working Enviroment |
-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
|
||
| Weight |
1.5 kg
|
||
