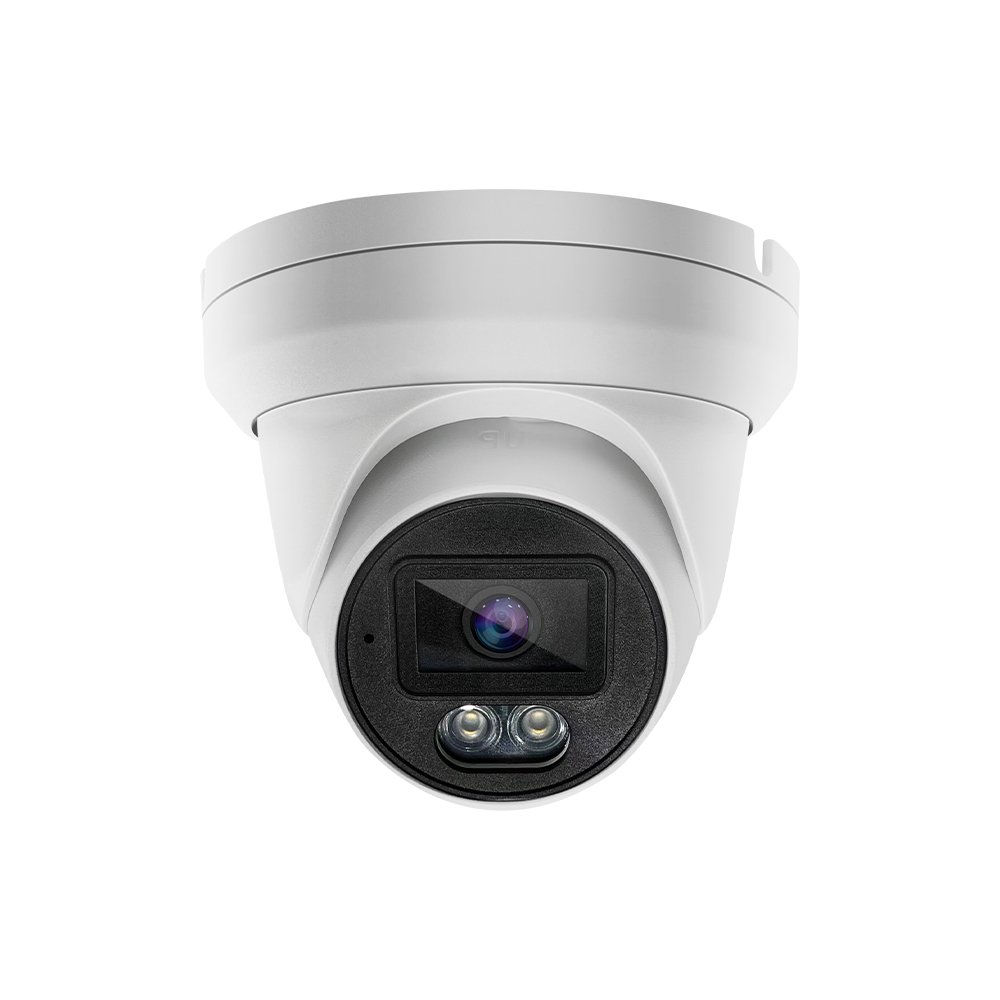

8MP IP POE Camera Turret Smart Color Dual-Light Human/Vehicle Detection Built in mic All-metal H.265 WDR IP Camera

8MP IP POE Camera Turret Smart Color Dual-Light Human/Vehicle Detection Built in mic All-metal H.265 WDR IP Camera

Compatible with Brand NVR
private protocol for connecting to Hikvision、Uniview NVRSupport Multi-frame Synthesis Optical Wide Dynamic Range(120DB)Support two-way voice intercom,2 way Micphone inputSupport IPV4
HTTPSSupport ONVIF standard protocol,ONVIF Profile-S,ONVIF Profile-TSupport Three Streams: main stream
secondary stream
third stream

NST-IPM3158-FC

SEND INQUIRY NOW

Product Description

Model No.		NST-IPM3158-FC	NST-IPM3155-FC
Camera Type		Full Color Night Vision Turret WDR IP Camera
System		Embedded RTOS design
Camera	Image Sensor	1/2.8" Sony IMX415 Cmos Sensor	1/2.7" SC501AI Cmos Sensor
	Soc Chipset	Mstar SSC338Q	Mstar SSC30KQ
	Effective Pixels	8.0 MegaPixels	5.0 Megapixels
	Video Standard	38402160@20 (default), 28801620@30, 28801620@25, 25601440@30,25601440@25, 23041296@25, 23041296@30, 19201080@25 、 1920*1080@30	28801620@25, 25601440@25, 23041296@25, 19201080@25, 1920*1080@30
	Resolution	Mainstream: 38402160 (default), 28801620, 25601440, 23041296, 1080P	Main stream: 28801620 (default), 25601440, 2304*1296, 1080P, 720P
		Secondary stream: 720P, D1 (default), 640*360, 2CIF, CIF	Secondary stream: 720P, D1 (default), 640*360, 2CIF, CIF
		Third stream: D1, 640*360, 2CIF, CIF (default)	Three streams: D1, 640*360, 2CIF, CIF (default)
	Min. Illumination	Color 0.01Lux/F1.2; B/W 0.0001 Lux/F1.2	Color 0.01Lux/F1.2 ; B/W 0.001 Lux/F1.2
Video	Smart Coding	Support basic mode and advanced mode to reduce storage usage
	Compression	H.264, H.265 video coding; Support three streams
	OSD	Support time OSD , custom OSD , etc., up to 8 areas
	Privacy Mask	Support, up to 4 areas
	Area Enhancement	Support, up to 8
	Wide Dynamic	Support multi-frame synthesis optical wide dynamic range
	Noise reduction	Support 2D , 3D noise reduction
	shutter	Support automatic/manual mode; Support low smear mode; Support indoor 50/60Hz shutter mode, suppress power frequency flicker;
	scene mode	Support transparent (default), bright, standard three scene mode selection, adjust image style preference
Audio	Audio Input	Support 2 -way Micphone input
	Audio Output	Support 1-way Lineout audio output
	Audio Output	Maximum support for 64kbps transmission
	Audio processing	Support G.711u, G.711a codec standard; Support noise suppression;
Alarm	Types	With the expansion board, it can realize 1 in 1 out switch control; Can access or control sensors, access control switches and other equipment;
Network	IP acquisition method	PPPoE, Netcom (default enabled), DHCP, static IP address
	Protocol	Support IPv4, IP v6, HTTPS , TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS , NTP, port mapping and other network protocols;
	Compatibility	Support ONVIF standard protocol,ONVIF Profile-S,ONVIF Profile-T,realize the video preview and recording of docking mainstream brand NVR and PC client, etc.
	Network Interface	10/100M
	Client	Support mobile APP video preview (IOS, Android); Support local management of IPC by PC client, realize multi-channel IPC live broadcast, local hard disk storage, etc.;
	POE	Support(optional)
General	IR Cut Filter	Set of double light switch IR-CUT filter
	Lens Mount	Board Lens 3.6mm
	Aux Luminary	2pcs Warm Light LED
	Light Wavelength	580nm
	Illuminate Distance	20m
	Waterproof Criterion	IP 66
	I/O Connector	1DC Connector ,1 RJ45(10/100M Network)
	Supplied Voltage	DC12V/PoE(802.3af/820.3at)
	Working Environment	-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
	Weight	0.6kg
