Product Description

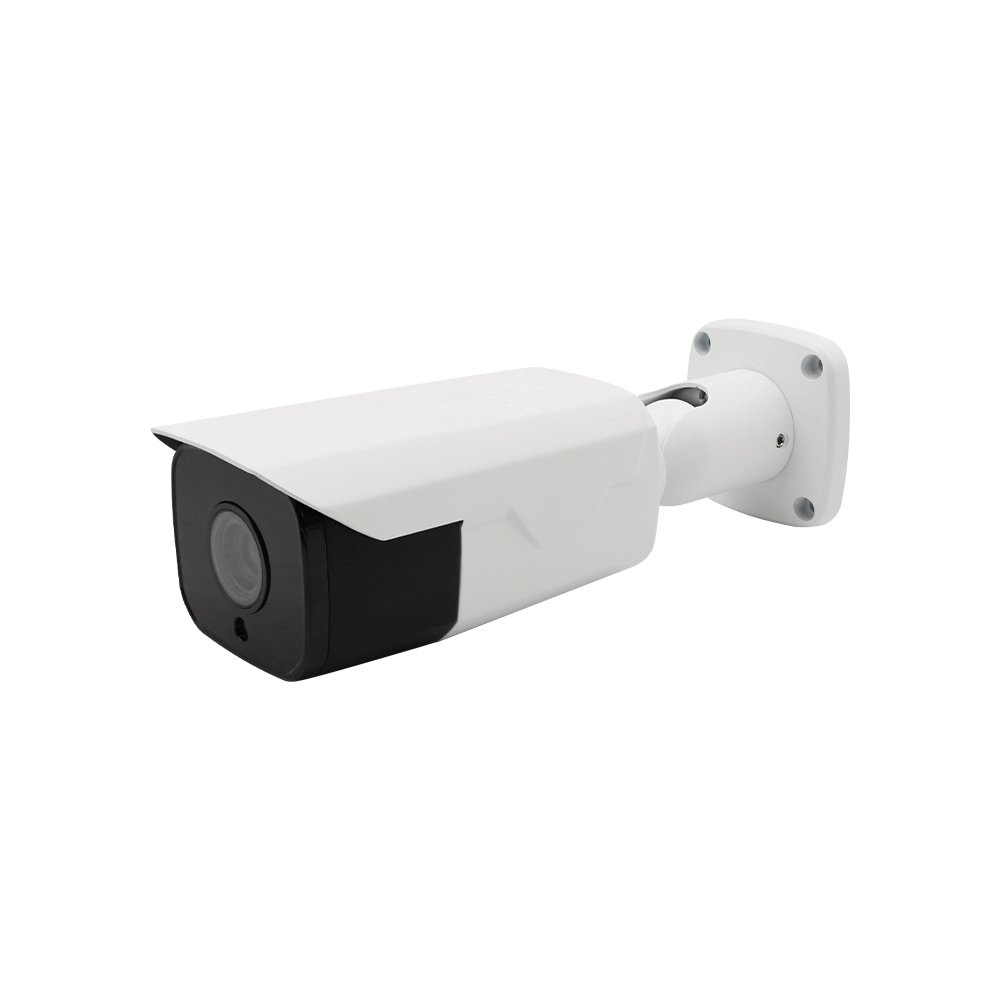

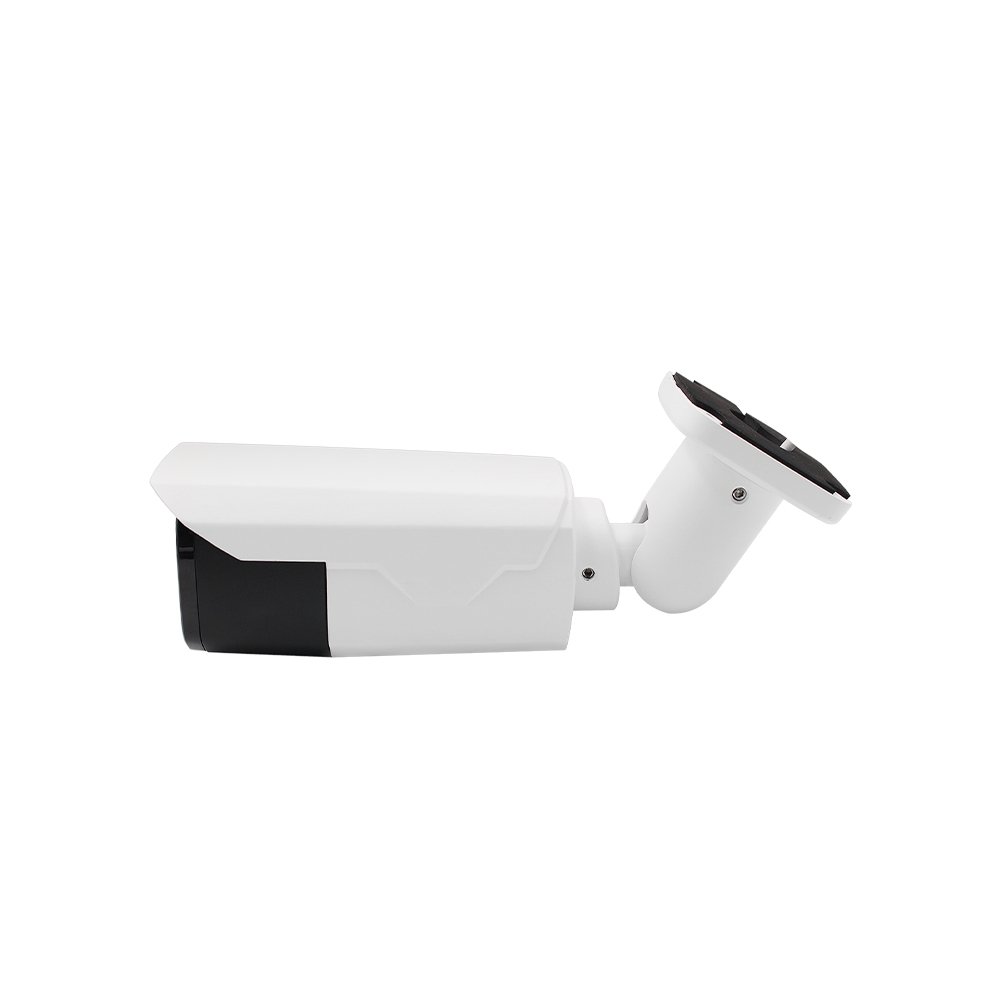

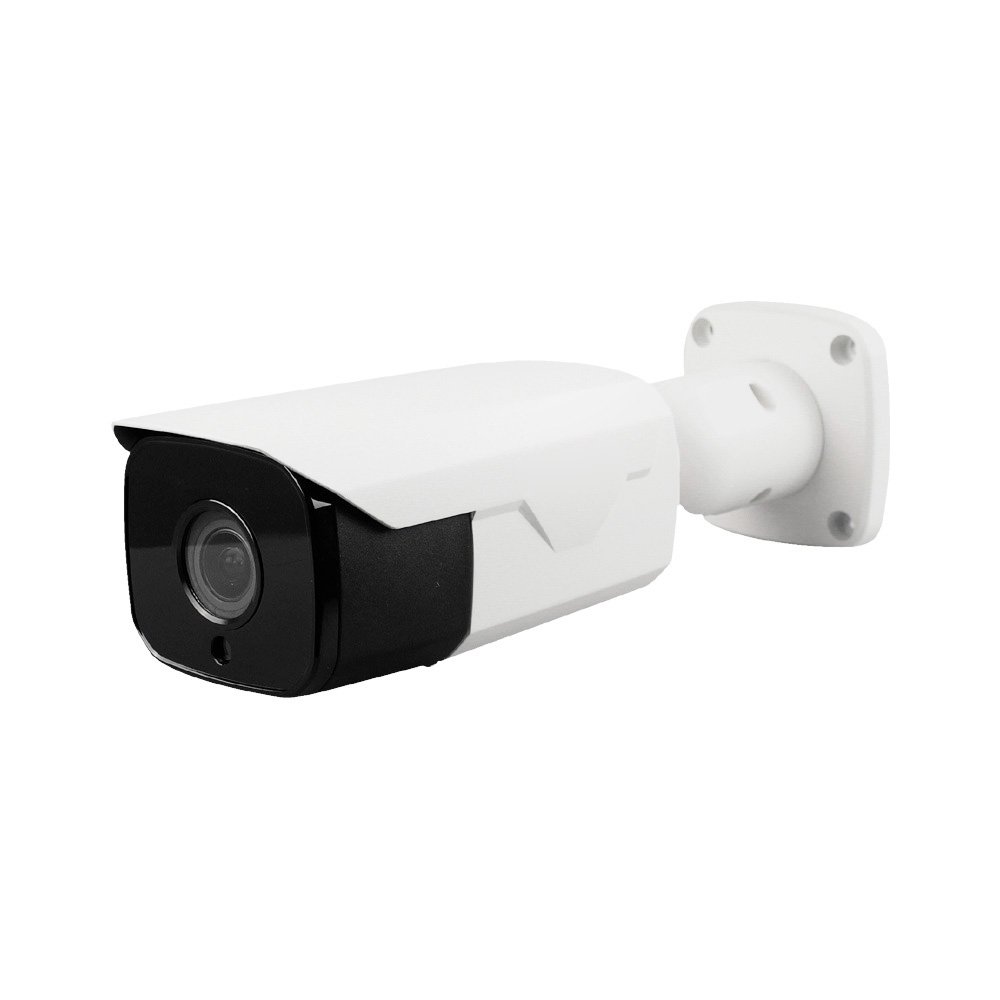

5-50mm Motorized Lens 8MP 4K IP PoE Outdoor Bullet Camera Power Over Ethernet
8MPÂ Ultra HD 4K H.265 High Definition
IP PoE MOTORIZED Auto-Focus Remote Zoom 5-50mm Vari-focal Lens Bullet Security Camera
IEEE802.3af Power Over Ethernet Built-In *****Â
8MP 3840×2160 Ultra High Definition Resolution
8MP @ 20fps / 6MP @ 30 Frames Per Second For High Resolution Smooth Video
IP66 & NEMA 4x Vandal + Weatherproof Rated For Outdoor and Indoor UseÂ
8x IR LEDs Array For 200 Feet Max Range Of Nighttime Protection
MOTORIZED ZOOM Auto-Focus 8MP 4K 5-50mm Remotely Controlled Optical Zoom Vari-focal LensÂ
Control Optical Zoom Via Camera’s Cable Joystick, NVR, Computer & PhoneÂ
View On Phone + Tablet (Apple & Android) + Computer (Windows & Mac) + NVRÂ
Utilizes Newest Video Compression Format: H.265 HVECÂ
8MP 1/2.8″SONY IMX415 CMOS Sensor + MC328Q DSPÂ
Â
Â
Model No. | NST-IPM5908-AF10X | NST-IPM5905-AF10X | NST-IPH5903-AF10X | |

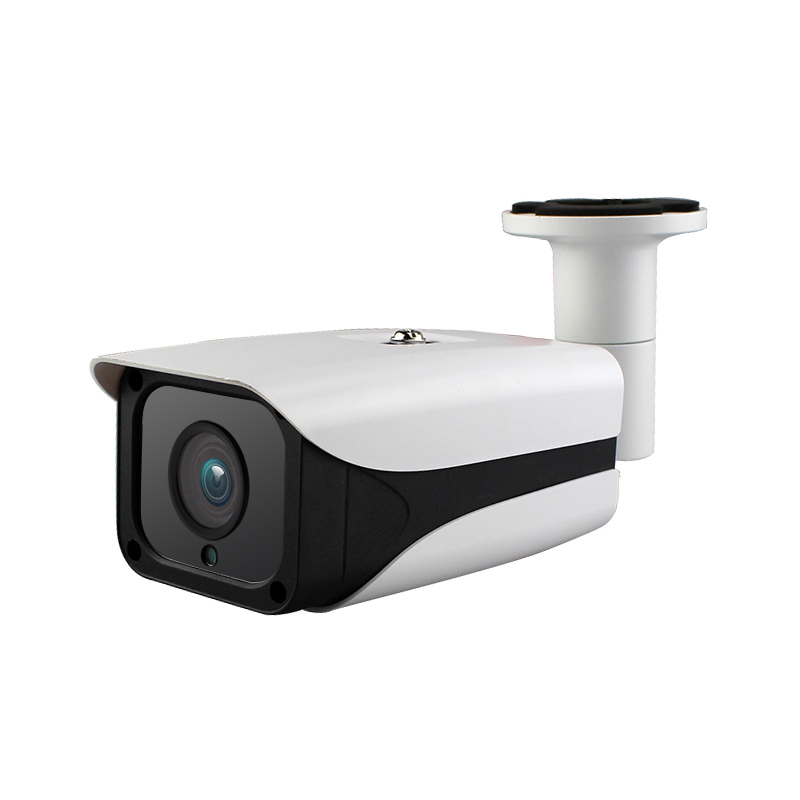

Camera Type | 4X Optical Zoom IP Security Camera AutoFocus 8MP 4K POE Security IP Camera | |||
System | Embedded RTOS design | |||
Camera | Effective Pixels | 8.0 Mega Pixels(4K) | 5.0 Megapixels | 3.0 Mega Pixels |
Main stream:3840*2160; | Main stream:2592*1944; | Main stream:2304*1296; | ||
Sub stream:1280*720,704*576 | Sub stream:704*576 | Sub stream:704*576 | ||
Frames Rates | PAL:20fps(3840*2160) | PAL:20fps(2592*1944) | PAL:25fps(1920*1080) | |
NTSC:20fps(3840*2160) | NTSC:20fps(2592*1944) | NSTC:30fps(1920*1080) | ||
Image Sensor | 1/2.8" SONY IMX415 CMOS Sensor | 1/2.8" SONY IMX335 CMOS Sensor | 1/2.8" SONY IMX307 CMOS Sensor | |
8 megapixel resolution (3864H*2202V) | 6 Megapixel resolution | 3 megapixel resolution | ||
DSP | Dual core 32-bit DSP | Dual core 32-bit DSP | Dual core 32-bit DSP | |
(SigmaStar) | (SigmaStar) | (SigmaStar) | ||
Min. Illumination | Color 0.001Lux@F1.2 | Color 0.001Lux@F1.2 | Color 0.01Lux@F1.2 | |
B/W 0.0001 Lux@F1.2 | B/W 0.001 Lux@F1.2 | B/W 0.01 Lux@F1.2 | ||
Adjust Parameters | DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc. | |||
Video | Compression | H.265/H.264 Main profile | H.265/H.264 Main profile | H.265/H.264 Main profile |
Stream | support dual stream,AVI format | support dual stream,AVI format | support dual stream,AVI format | |
Bit Rate | support 0.1M ~8Mpbs bit rate adjustable | support 0.1M ~8Mpbs bit rate adjustable | support 0.1M ~8Mpbs bit rate adjustable | |
Frame Rates | support 1~30fps adjust | support 1~30fps adjust | support 1~30fps adjust | |
Audio | Input and output | 1ch input( micphone),1ch output( Speaker&micphone) Optional | ||
Compression | AAC/G.711 compression,support two-way audio intercom,support audio and video synchronized output | |||
Alarm | Types | Motion Detection, Video Blind , Video Loss | ||
Network | WEB Browser | Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.) | ||
Smart Phone | mobile remote Monitoring (iPhone,Android,....) | |||
CMS Software | Uniform CMS Software(multiple devices management system) | |||
Cloud P2P | www.enster.com,MYEYE platform and other program,Offer SDK | |||
Network | 1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP | |||
ONVIF | Support (ONVIF 2.6) | |||
POE | Support(optional) | |||
WIFI | N/A | |||
General | Language | 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish | ||
IR Cut Filter | Set of double light switch IR-CUT filter | |||
Lens Mount | 10X Motorized Zoom AutoFocus 5-50MM Lens(10X Digital Zoom) | |||
Aux Luminary | 8PCS IR LED | |||
Infrared Wavelength | 850nm | |||
Illuminate Distance | 60m | |||
Waterproof Criterion | IP 66 | |||
I/O Connector | 1*DC Connector ,1* RJ45(10/100M Network) | |||
Supplied Voltage | DC12V/PoE(802.3af/820.3at) | |||
Power Consumption | IR On: 600mA max., IR Off: Less than 200mA | |||
Working Environment | -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° ) | |||
Weight | 1.5kg | |||
