Product Description
Model No. | NST-IPM5955-A | NST-IPM5954-A | NST-IPM5952-A | |

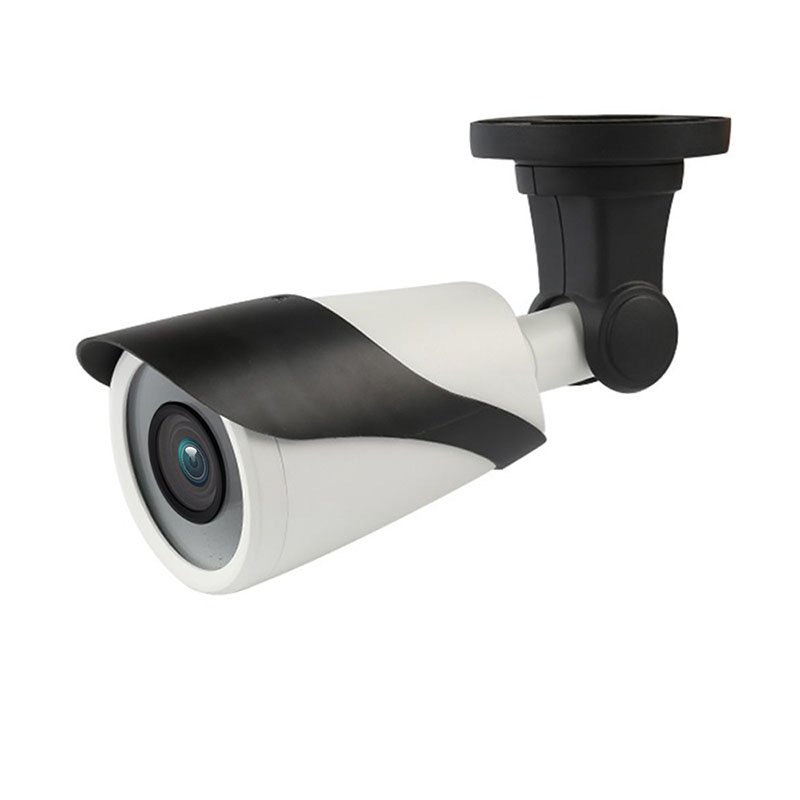

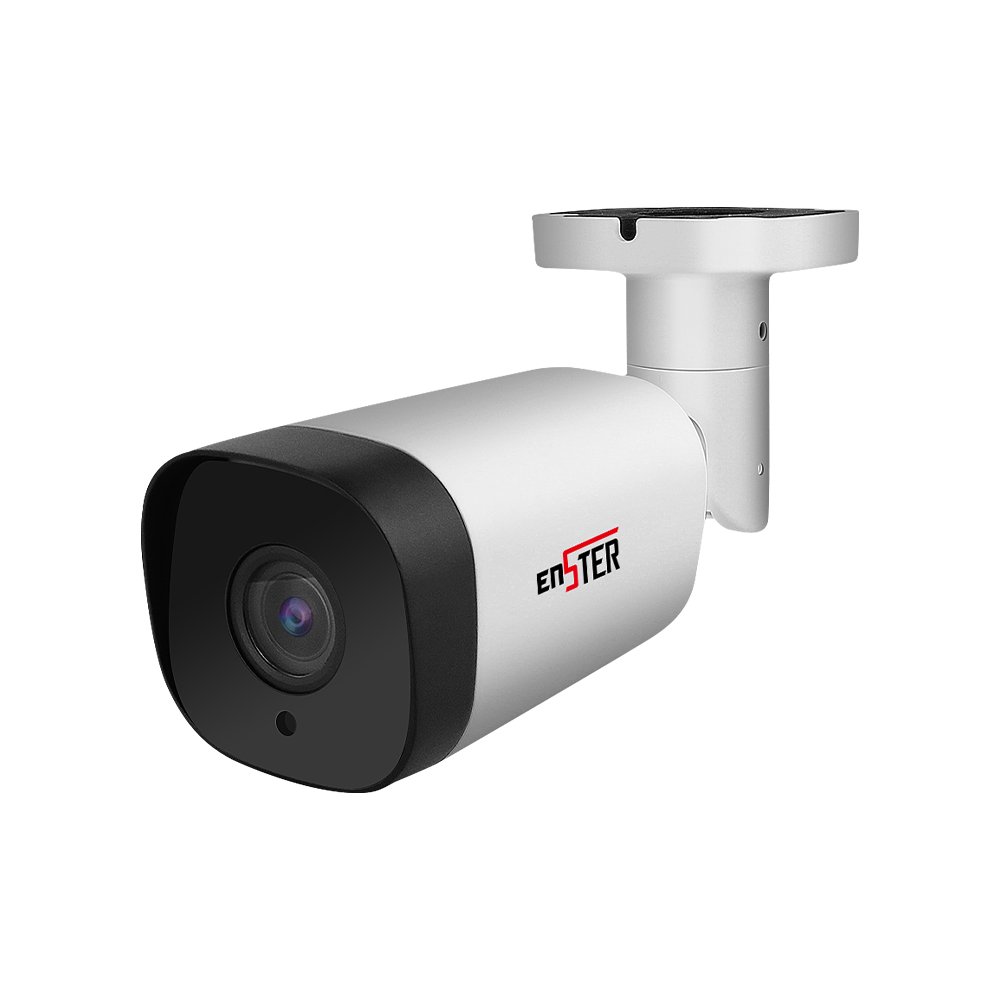

Camera Type | Bullet IP Camera | |||
System | Embedded RTOS design | |||
Camera | Effective Pixels | 5.0 Mega Pixels | 4.0 Megapixels | 2.0 Mega Pixels |
Main stream:2592*1944 | Main Stream: 2592*1520 | Main stream:1920*1080 | ||
Sub stream:704*576 | Sub stream:704*576 | Sub stream:704*576 | ||
Frames Rates | PAL:15fps(2592H*1944V) | PAL:20fps(2592*1520) | PAL:25fps(1920*1080) | |
NTSC:15fps(2592H*1944V) | NTSC:20fps(2592*1520) | NSTC:25fps(1920*1080) | ||
Image Sensor | 1/2.8" SONY CMOS Sensor with ICR | 1/2.6" OV CMOS sensor with ICR | 1/2.8" SONY CMOS Sensor with ICR | |
5.14 Megapixel resolution | 4 Megapixel resolution | 2 megapixel resolution | ||
DSP | Dual core 32-bit DSP | Dual core 32-bit DSP | Dual core 32-bit DSP | |
MStar316DM | MSC316DM | Mstar313E | ||
Min. Illumination | Color 0.001Lux@F1.2 | Color 0.001Lux@F1.2 | Color 0.01Lux@F1.2 | |
B/W 0.0001 Lux@F1.2 | B/W 0.001 Lux@F1.2 | B/W 0.01 Lux@F1.2 | ||
Adjust Parameters | DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc. | |||
Video | Compression | H.265/H.264 Main profile | H.265/H.264 Main profile | H.265/H.264 Main profile |
Stream | support dual stream,AVI format | support dual stream,AVI format | support dual stream,AVI format | |
Bit Rate | support 0.1M ~8Mpbs bit rate adjustable | support 0.1M ~8Mpbs bit rate adjustable | support 0.1M ~8Mpbs bit rate adjustable | |
Frame Rates | support 1~30fps adjust | support 1~30fps adjust | support 1~30fps adjust | |
Audio | Input and output | 1ch input( micphone),1ch output( Speaker&micphone) Optional | ||
Compression | G.711 compression,support two-way audio intercom,support audio and video synchronized output | |||
Alarm | Types | Motion Detection, Video Blind , Video Loss | ||
Network | WEB Browser | Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.) | ||
Smart Phone | mobile remote Monitoring (iPhone,Android,....) | |||
CMS Software | Uniform CMS Software(multiple devices management system) | |||
Cloud P2P | www.enster.com,MYEYE platform and other program,Offer SDK | |||
Network | 1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP | |||
ONVIF | Support (ONVIF 2.4) | |||
POE | Support(optional) | |||
WIFI | N/A | |||
General | Language | 2 languages Such as English,Chinese. | ||
IR Cut Filter | Set of double light switch IR-CUT filter | |||
Lens Mount | 4x Optical Motorized Zoom Autofocus Lens 2.8-12mm | |||
Infrared Luminary | 24pcs SMD IR LED | |||
Infrare Wavelength | 850nm | |||
Illuminate Distance | 40m | |||
Waterproof Criterion | IP 66 | |||
I/O Connector | 1*DC Connector ,1* RJ45(10/100M Network) | |||
Supplied Voltage | DC12V/PoE(802.3af/820.3at) | |||
Powe Consumption | IR On: 600mA max., IR Off: Less than 200mA | |||
Workin Environment | -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° ) | |||
Weight | 1.5kg | |||
