Product Description

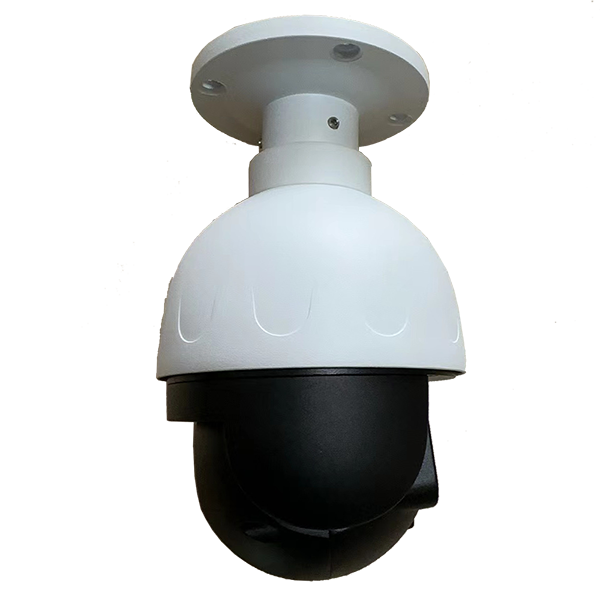

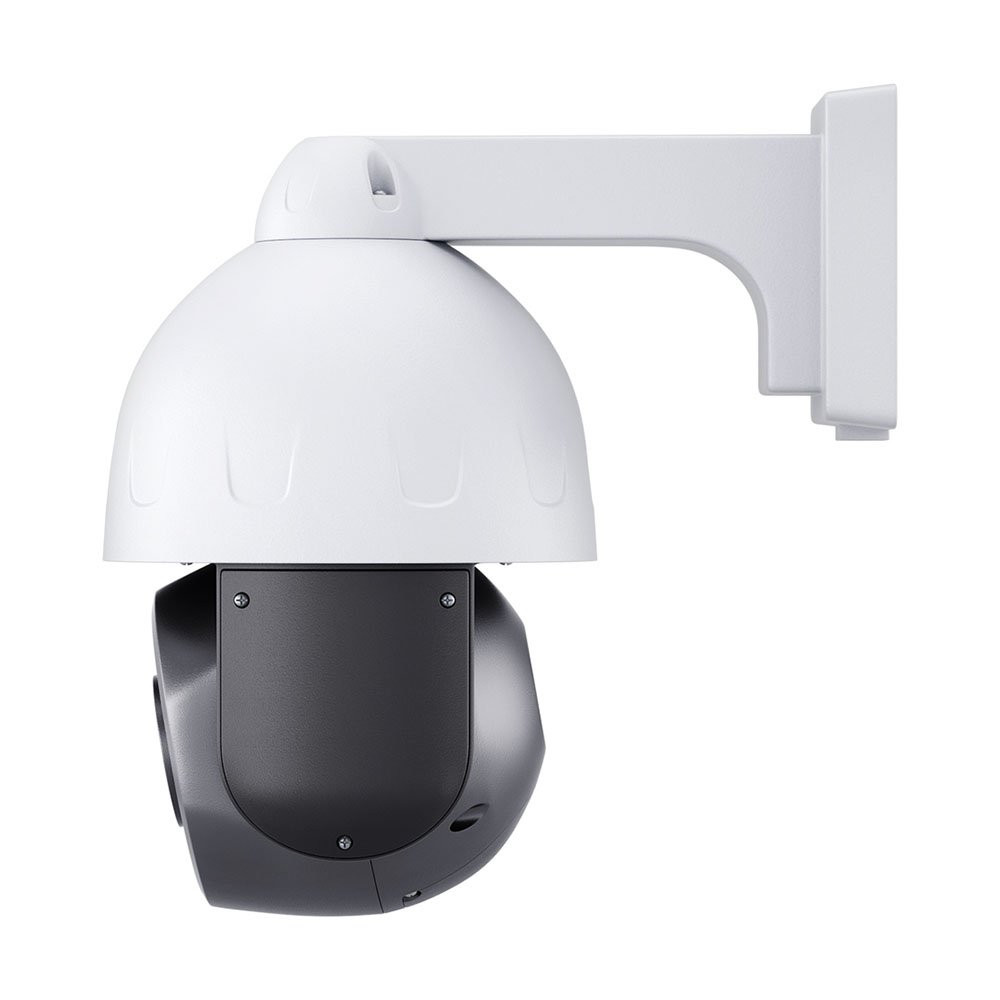

2.7-13.5mm Motorized Lens 12MPÂ IP PoE Outdoor PTZ Camera Power Over Ethernet
12MPÂ Ultra HD 4K H.265 High Definition
IP PoE MOTORIZED Auto-Focus Remote Zoom 2.7-13.5mm Vari-focal Lens PTZ Security Camera
IEEE802.3af Power Over Ethernet Built-In
12MP 4000×3000 Ultra High Definition Resolution
12MP @ 30 Frames Per Second For High Resolution Smooth Video
IP66Â Weatherproof Rated For Outdoor and Indoor UseÂ
8x IR LEDs Array For 200 Feet Max Range Of Nighttime Protection
MOTORIZED ZOOM Auto-Focus 12MP 2.7-13.5mm Remotely Controlled Optical Zoom Vari-focal LensÂ
Control Optical Zoom Via Camera’s Cable Joystick, NVR, Computer & PhoneÂ
View On Phone + Tablet (Apple & Android) + Computer (Windows & Mac) + NVRÂ
Utilizes Newest Video Compression Format: H.265 HVECÂ
12MP 1/2.8″SONY IMX557 CMOS SensorÂ
intelligent ptz camera
Â
Model No. | NST-IPM71012-AF50X | NST-IPM7105-AF50X | NST-IPH7103-AF50X | |
Camera Type | 5X Optical Zoom IP Security Camera AutoFocus 8MP 4K POE Security IP Camera | |||
System | Embedded RTOS design | |||
Camera | Effective Pixels | 12.0 Mega Pixels | 5.0 Megapixels | 3.0 Mega Pixels |
Main stream:4000*3000; | Main stream:2592*1944; | Main stream:2304*1296; | ||
Sub stream:1280*720,704*576 | Sub stream:704*576 | Sub stream:704*576 | ||
Frames Rates | PAL:25fps(4000*3000) | PAL:20fps(2592*1944) | PAL:25fps(1920*1080) | |
NTSC:30fps(4000*3000) | NTSC:20fps(2592*1944) | NSTC:30fps(1920*1080) | ||
Image Sensor | 1/2.3" SONY IMX577 CMOS Sensor | 1/2.8" SONY IMX335 CMOS Sensor | 1/2.8" SONY IMX307 CMOS Sensor | |
12 megapixel resolution (4000H*3000V) | 6 Megapixel resolution | 3 megapixel resolution | ||
DSP | Dual core 32-bit DSP | Dual core 32-bit DSP | Dual core 32-bit DSP | |
(SigmaStar) | (SigmaStar) | (SigmaStar) | ||
Min. Illumination | Color 0.001Lux@F1.2 | Color 0.001Lux@F1.2 | Color 0.01Lux@F1.2 | |
B/W 0.0001 Lux@F1.2 | B/W 0.001 Lux@F1.2 | B/W 0.01 Lux@F1.2 | ||
Adjust Parameters | WDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc. | |||
Video | Compression | H.265/H.264 Main profile | H.265/H.264 Main profile | H.265/H.264 Main profile |
Stream | support dual stream,MP4format | support dual stream,MP4 format | support dual stream,MP4 format | |
Bit Rate | support 0.1M ~8Mpbs bit rate adjustable | support 0.1M ~8Mpbs bit rate adjustable | support 0.1M ~8Mpbs bit rate adjustable | |
Frame Rates | support 1~30fps adjust | support 1~30fps adjust | support 1~30fps adjust | |
Audio | Input and output | 2Way Audio 1ch input micphone,1ch output Speaker | ||
Compression | AAC/G.711 compression,support two-way audio intercom,support audio and video synchronized output | |||
| PTZ | Pan/Tilt Range Pan | 0° to 355° endless      Tilt: 0° to +90°, | ||
| Manual Control Speed | Pan: 2.3°/s–24.5 °/s      Tilt: 2.5°/s–15 °/s | |||
| Preset Speed | Pan: 18 °/s      Tilt: 12°/s | |||
| Preset | 30 | |||
| Cruise | 1 cruises lines,up to 30 presets | |||
| Power off memory | Yes | |||
| Intelligence | IVS (Perimeter Protection) | crossing fence detection; vehicle/human alarm classification | ||
Alarm | Types | Motion Detection, Video Blind , Video Loss | ||
Network | WEB Browser | Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.) | ||
Smart Phone | mobile remote Monitoring (iPhone,Android,....) | |||
CMS Software | Uniform CMS Software(multiple devices management system) | |||
Cloud P2P | www.enster.com,MYEYE platform and other program,Offer SDK | |||
Network | 1 * RJ45,10/100M,Support RTMP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP | |||
Interoperability | CGI; SDK; ONVIF (Profile S&G&T) | |||
POE | Support(optional) | |||
WIFI | N/A | |||
General | Language | 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish | ||
IR Cut Filter | Set of double light switch IR-CUT filter | |||
Lens Mount | Motorized 5X Zoom Autofocus Lens 2.7-13.5mm (10X Digital Zoom) | |||
| Zoom Speed | <3S | |||
| Max. Aperture | F1.4 | |||
| Angel of view | Horizontal filed of view: 110° (w)    | |||
| Focus Control | auto; manual | |||
| Iris Control | Auto; manual | |||
Aux Luminary | 8PCS IR LED/8PCS Whie Light LED | |||
| Illuminator On/Off Control | Manual; Smart IR; Off | |||
Infrared Wavelength | 850nm | |||
Illuminate Distance | 50m | |||
Waterproof Criterion | IP 66 | |||
I/O Connector | 1*DC Connector ,1* RJ45(10/100M Network) | |||
Supplied Voltage | DC12V/PoE(802.3af/820.3at) | |||
Power Consumption | IR On: 600mA max., IR Off: Less than 200mA | |||
Working Environment | -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° ) | |||
Weight | 1.5kg | |||
