Product Description
Model No. | NST-IPM73516 | ||

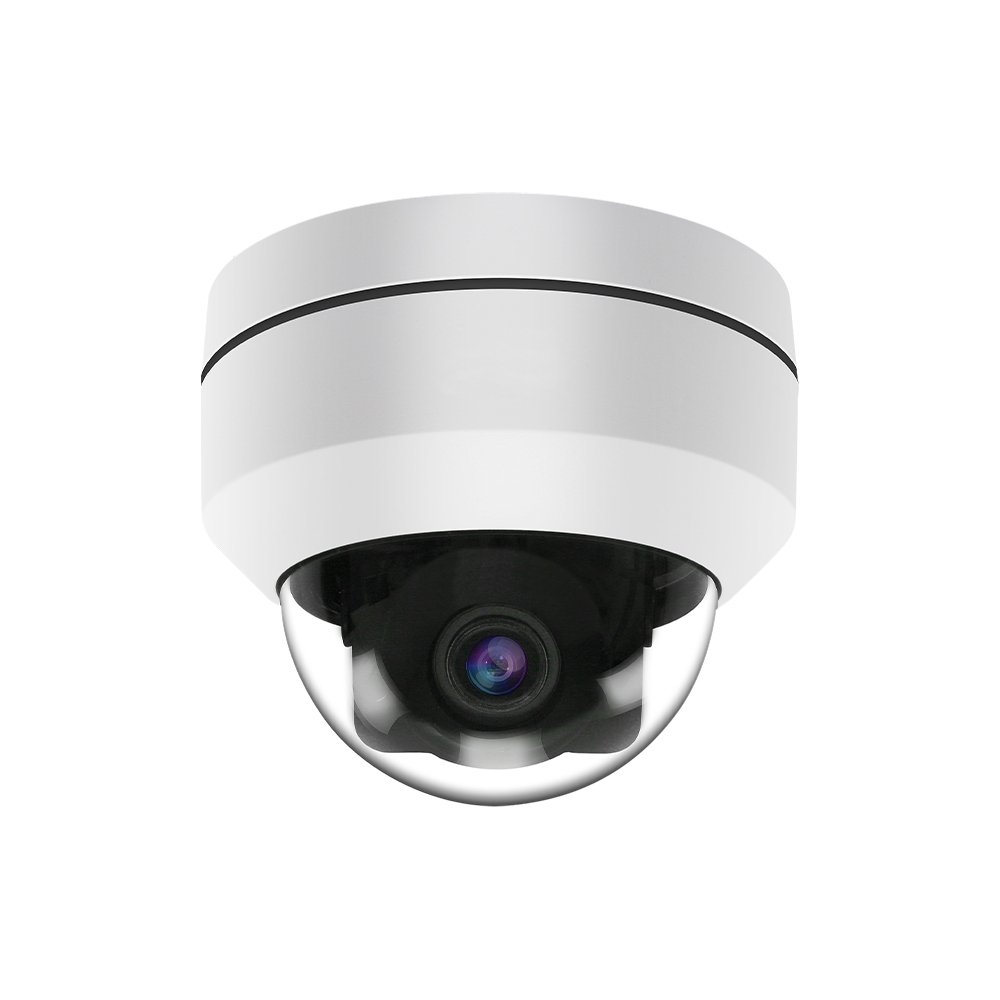

Camera Type | Outdoor Ultra HD Network IR Mini PTZ Dome Camera | ||
System | Embedded RTOS design | ||
Camera | Effective Pixels | 8.0 Mega Pixels | 8.0 Megapixels |
Main stream:3840*2160; | Main stream:3840*2160; | ||
Sub stream:1280*720,704*576 | Sub stream:704*576 | ||
Frames Rates | 20fps(3840*2160) | 20fps(2592*1944) | |
Image Sensor | 1/2.7" Â CMOS Sensor with ICR | 1/2.7" CMOS Sensor with ICR | |
8.0 megapixel resolution | 8.0 megapixel resolution | ||
DSP | Dual core 32-bit DSP | Dual core 32-bit DSP | |
SigmaStar | SigmaStar | ||
Min. Illumination | Color 0.001 Lux@F1.2 | Color 0.01Lux@F1.2 | |
B/W 0.0001 Lux@F1.2 | B/W 0.001 Lux@F1.2 | ||
Adjust Parameters | DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc. | ||
Video | Compression | H.264/H265 Main profile | H.264/265 Main profile |
Stream | support dual stream,AVI format | support dual stream,AVI format | |
Bit Rate | support 0.1M ~8Mpbs bit rate adjustable | support 0.1M ~8Mpbs bit rate adjustable | |
Frame Rates | support 1~30fps adjust | support 1~30fps adjust | |
Audio | Input and output | 1ch input( micphone),1ch output( Speaker&micphone) Optional | |
Compression | G.711 compression,support two-way audio intercom,support audio and video synchronized output | ||
| PTZ | Pan speed range | 0°~355° | |
| Tilt speed range | -5°~90° | ||
| Pan speed | 0.5°~40°/ s | ||
| Tilt speed | 0.5°~40°/ s | ||
Alarm | Types | Motion Detection, Video Blind , Video Loss | |
Network | WEB Browser | Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.) | |
Smart Phone | mobile remote Monitoring (iPhone,Android,....) | ||
CMS Software | Uniform CMS Software(multiple devices management system) | ||
Cloud P2P | www.enster.com,MYEYE platform and other program,Offer SDK | ||
Network | 10/100M,Support RTSP/FTP/DHCP/DDNS/NTP/UPnP/SMTP | ||
ONVIF | Support | ||
General | Language | 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish | |
IR Cut Filter | Set of double light switch IR-CUT filter | ||
Lens Mount | 5X Optical zoom (2.7-13.5mm) | Fixed Lens 3.6mm | |
Infrared Luminary | 8pcs IR/Warm Array LEDs | ||
Infrared Wavelength | 850nm | ||
Illuminate Distance | 40-50m | ||
Waterproof Criterion | IP 66 | ||
I/O Connector | 1*DC Connector ,1* RJ45(10/100M Network) | ||
Supplied Voltage | DC12V/PoE(802.3af/820.3at) | ||
Power Consumption | IR On: 600mA max., IR Off: Less than 200mA | ||
Working Environment | -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° ) | ||
Weight | 1.5kg | ||
