Product Description
Model No. | XVR6308-K | |
System | Main processor | Hi3531D |
Interface | Preview | 1/4/8/9 |
Video | Codec | H.265+/H.265/H.264+/H.264 |
Monitor quality | VGA(1080P at most);HDMI(4K at most) | |
Preview ability | 8*8M@15fps5M@20fps | |
Encode ability | 8*8M@8fps5M@14fps4M@18fps3M@21fps | |
Decode ability | 4*8M@8fps5M@14fps4M@18fps3M@21fps | |
Multi-mode video input | analog : 8*8M;8*5M;Digital to analog conversion : support ( except 8+8 hybrid mode ) hybrid : 8*5M ( analog ) +8*5M ( network )4*5M ( analog ) +4*5M ( network )network : 8*3M ;4*5M | |
Motion detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set(Limited local channel) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record and playback | Record mode | manual>alarm>motion detection>timing |
Local playback | 8ch(analog input mode) | |
| Search mode | Search by time, calendar, event, channel | |
Storage and back up | Video storage | HDD, network |
Backup mode | Network, USB hard disk, USB burner, SATA burner | |

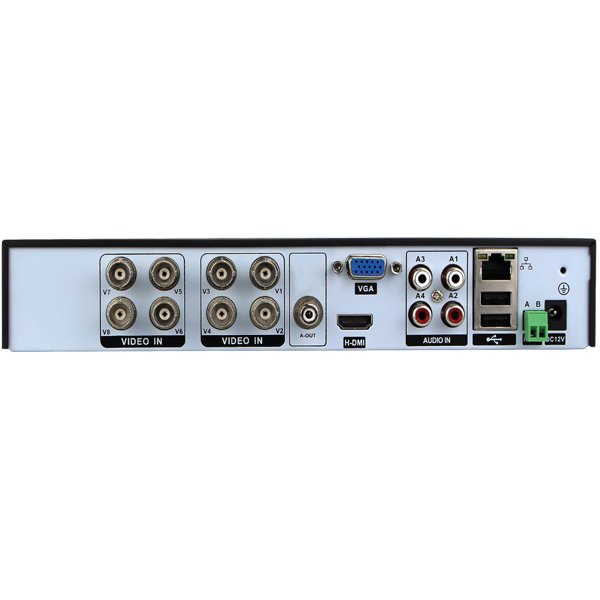

External Interface | Video input | 8ch BNC |
Video output | 1ch VGA, 1ch HDMI | |
Loop Vout | N/A | |
Audio I/O | 4(Can be extended to 8ch)/1 | |
Alarm I/O | 0 ( Can be extended to 4ch ) /0 ( Can be extended to 1ch ) | |
Network interface | RJ45 10M/100M self-adaption | |
PTZ control | 1*RS485, Support kinds of PTZ protocols | |
USB | 2* USB 2.0 ports | |
HDD | 2*SATA ports (Max 8TB/per) | |
Wireless | 3G, WIFI (extend via USB) | |
General | Power supply | 12V/4A |
Power Consumption | <15W (without HDD) | |
Working environment | Temperature:0 ℃— +55 ℃, Humidity:10% — 90% , Atm:86kpa — 106kpa | |
Dimension | 200mm*85mm | |
Weight | 2.4kg | |
