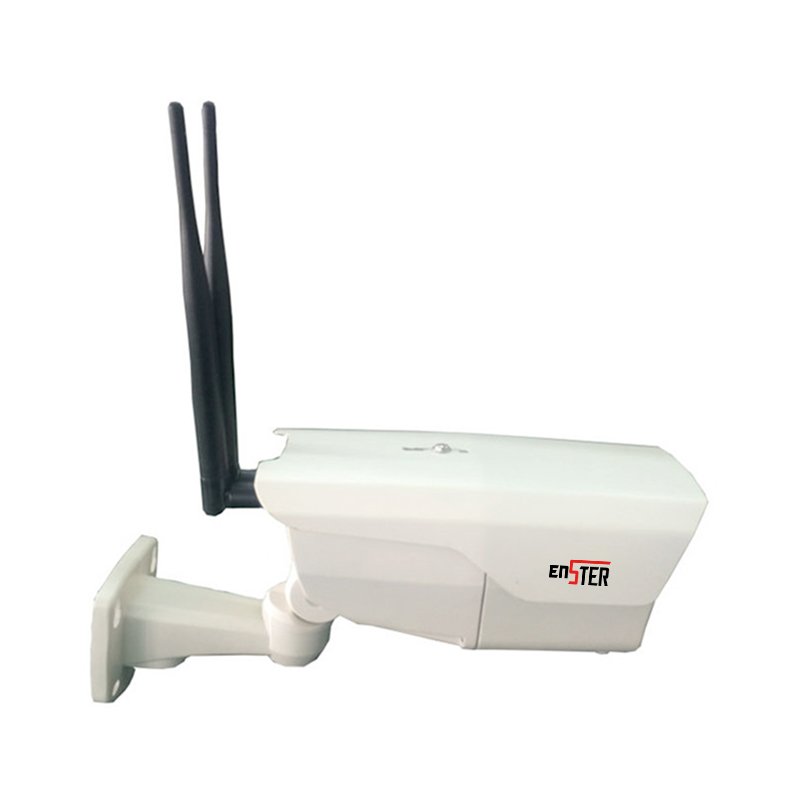

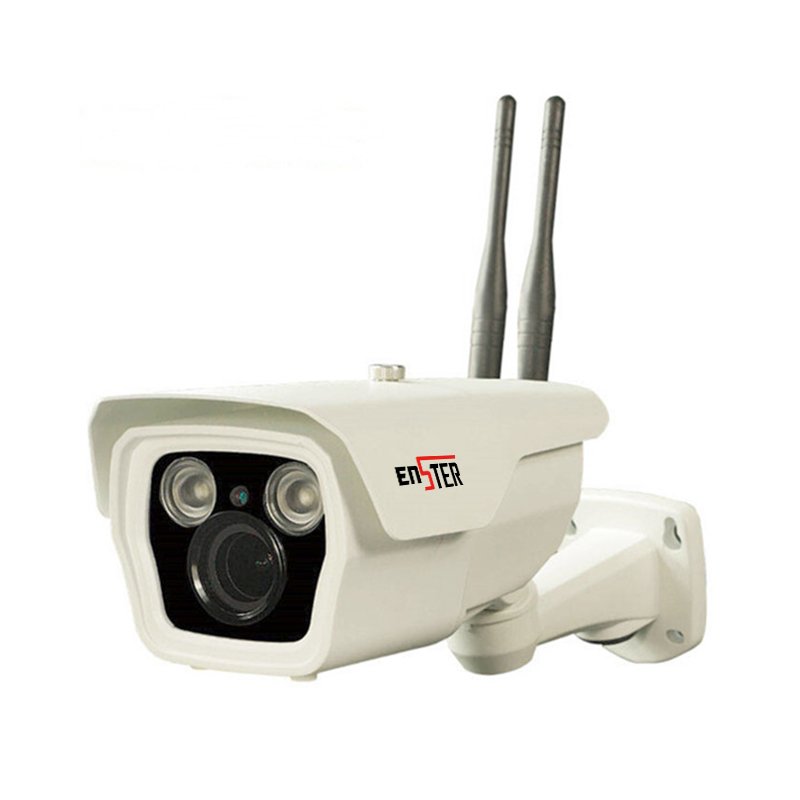

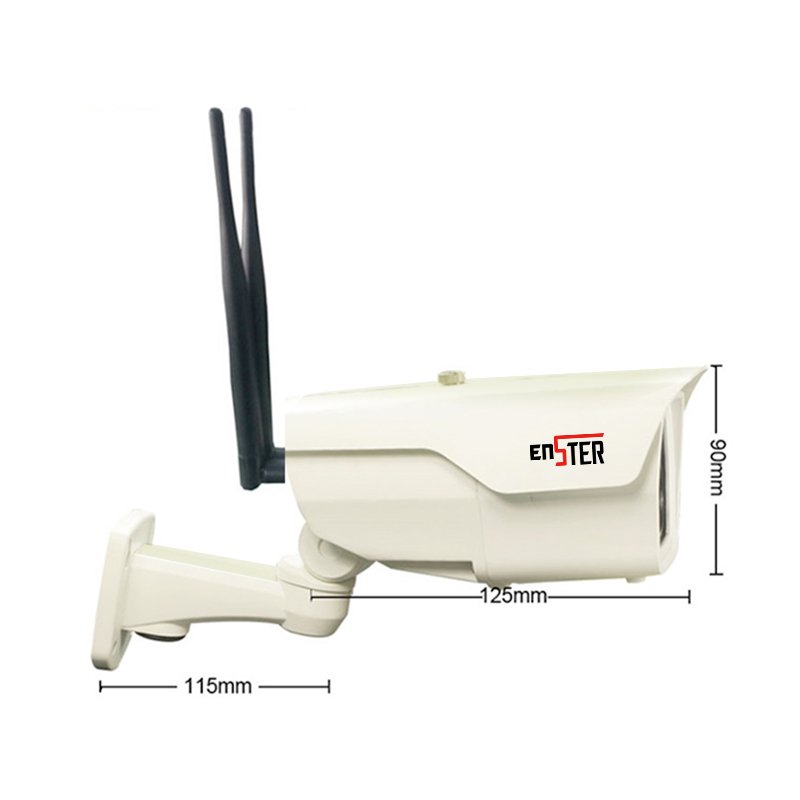

LTE Surveillance IP Security 4G Camera With Sim Card Slot

LTE Surveillance IP Security 4G Camera With Sim Card Slot

(1)4G SIM Card Wireless IP Camera (2)Support 4G 3G Network (3)P2P (4)Supports maximum 32GB internal TF card storage (5)Supports both 3G mobile video phone monitoring (6)Outdoor waterproof IP66

NST-IPH5702-4G

SEND INQUIRY NOW

Product Description

Remark: Can customize 4G band and frequency such as LTE B2, B4 which is suitable for USA.

It’s a real 3G/4G network camera, supports the 4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE.

The Camera resolution Max 4.0MP. 2.0MP/1.3MP option .

It supports maximum 32GB--128GB internal TF card storage. It supports 24-hours video recording,

scheduled video recording,manual video recording, alarm video recording, video record searching, video record preview and video record download. The video record is stored as the standard AVI file.The system supports the 3G/4G hotspot function. The 3G/4G bandwidth can be shared by other WiFi devices when the WiFi AP mode is enabled.

When you can’t run network wire to the IP camera, you can use a 3G/4G wireless camera system.

Such as temporary construction site,farm,vehicle any place have 3G/4G covered is available .

Support Network:

4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE
Support Band:

B1/B3/B7/B20/B38/B39/B40/B41/B26
Support Band of frequencies:

FDD LTE Band7 / Band3/BAND1/BAND8

TD-LTE Band38 (2570-2620MHz) / Band39 (1880-1920MHz) / Band40 (2300-2400MHz) Band41 (2496-2690MHz)

WCDMA/1900/2100/2600MHz

TD-SCDMA Band34 (2010-2025MHz) / Band39 (1880-1920MHz)

EDGE/GPRS/850/900/1800/1900MHz
UMTS Band1 / Band2 / Band5 GSM 900 / 1800 / 1900 MHz
Network Speed

FDD-LTE/TD-LTE(4G):150MBPS/50MBPS
WCDMA(3G):21MBPS/5.76MBPS
TD-SCDMA(3G):2.8MBPS/2.2MBPS

4G SIM CARD IP CAMERA With LAN Port

4g wireless security camera 4g security camera

4g ip camera 4g wifi 4g outdoor security camera

Model No.		NST-IPH5704-4G	NST-IPH5702-4G	NST-IPH57013-4G
Image Sensor		1/3" OV4689 CMOS Sensor	1/2.8" SONY IMX323 CMOS Sensor	1/3" APTINA 0130 CMOS
Pixel		4.0 Mega Pixels	2.0 Megapixels	1.3 Megapixels
Lens		4mm
3G/4G	3G/4G network standard	4G FDD-LTE/TD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE
	Bands	B1/B3/B7/B20/B38/B39/B40/B41/B26
	Transmission Speed	LTE FDD/TDD (Cat. 4) download 150 Mbps . Upload 50 Mbps 3G HSPA+ download 21 Mbps,Upload 5.76 Mbps 3G TD-SCDMA download 2.8 Mbps,Upload 2.2 Mbps
	3G/4G Video Transmission channel	LTE B1/B3/B8/B38/B39/B40/B41 (CA not support) TD-SCDMA B34/B39 WCDMA 2100/900MHz GSM/GPRS/EDGE 900/1800MHz
	Signal Strength Detection	Support
	SMS	Support SMS sending
	SIM card slot	Support. Standard USIM card.
	SIM card lock	Support
Alarm	SMS Alarm	Support
	3G Video Call Alarm	Support
	Motion Detection Alarm	Support. 3 sensitivity levels: low, standard, high
	Alarm Platform	Support iPhone push alarm
	Alarm Video Recording	Support
	Alarm recording	Support. The video will be recorded 5 seconds before the alarm triggered time.
	Alarm Zone	Alarm Zone
	Alarm Level	Alarm Level
Record	Record File Format	AVI file format
	Record Storage	Internal TF Storage. FAT file system. Maximum 32GB
	Recording mechanism	The least recently used file will be deleted when the available storage is less than 10%.
	Manual recording	Support. User can start and stop the recording using the client application
	Record searching	Support. Search by record time and type.
	Record management	Support User can download, batch delete and one-click delete the record.
	24 hours recording or scheduled recording	Support. Scheduled by week day and time. Each record can be 10, 15, 30, 60 minutes long.
	Online Record Watching	Support. User can watch the whole video or preview the key frame of the video.
Auto	Auto Exposure	Support
	Auto White Balance	Support
	Electronic shutter	Auto Exposure
Wi-Fi	Wi-Fi	WiFi 802.11g/n
	WiFi Mode	AP and STA mode. Switching comes into effect in 5 seconds
General	Day and night function	Yes
	Clock	RTC real time clock. Support NTP and remote setting.
	Voltage	12V DC
	Power	Maximum power consumption12W minimum power consumption 5W
	Working Environment	Working Temperature -10℃~+50℃,Working humidity 10%~90%

FAQ

Q:what carrier sim card .att,verizon ,tmobile ?
A: there are 3 different service suppliers in USA, one is AT&T, one is T-Mobile, the other Verizon. if you choose A, we make camera working with AT&T and T-mobile; if you choose V we make camera working with Verizon; if you choose AF,we will make camera working with AT&T Verizon and T-Mobile. if you dont choose, we make camera with A version.factory defualt is A.
