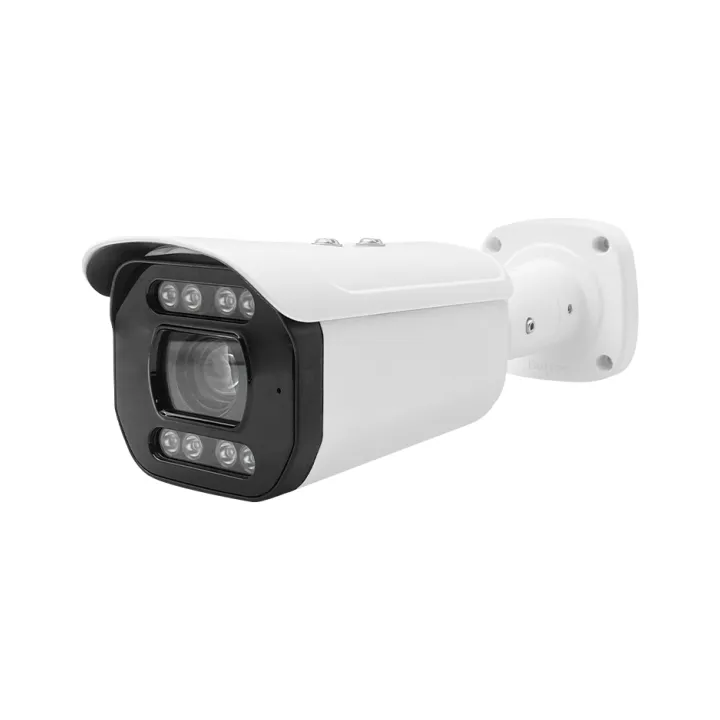

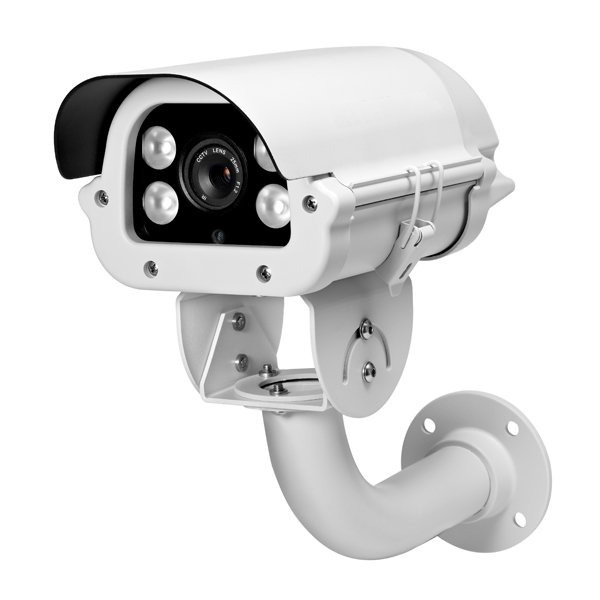

Camera Type

IP Camera

System

Embedded RTOS design

Video

Effective Pixels

2.0 Mega Pixels

Main stream:1920*1080P@50/60FPS

Sub stream:704*576

Frames Rates

50FPS(1920*1080)

NTSC: 60FPS(1920*1080)

Image Sensor

1/2.7" WDR CMOS Sensor

2.48 megapixel resolution (2000H*1241V)

DSP

Dual core 32-bit DSP

Sigmastar

Min. Illumination

Color 0.01Lux@F1.2

B/W 0.001 Lux@F1.2

Adjust Parameters

WDR,HLC,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.

Video

Compression

H.265/H.264 Main profile

Stream

support dual stream,MP4 format

Bit Rate

support 0.1M ~8Mpbs bit rate adjustable

Frame Rates

support 1~60fps adjust

Audio

Input and output

N/A

Compression

G.711 compression,support two-way audio intercom,support audio and video synchronized output

Alarm

Types

Motion Detection, Video Blind , Video Loss

Network

WEB Browser

Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.)

Smart Phone

mobile remote Monitoring (iPhone,Android,Windows Mobile,BlackBerry,Symbian)

CMS Software

Uniform CMS Software(multiple devices management system)

Cloud P2P

www.enster.com,Third party platform and other program,Offer SDK

Network

1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP

ONVIF

Support (ONVIF 2.0)

POE

Support(optional)

WIFI

N/A

General

Language

20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish

IR Cut Filter

Set of double light switch IR-CUT filter

Lens Mount

Varicoal Lens 6-22mm (3MP)

Infrared Luminary

4 pieces Array White light LED

Infrared Wavelength

/

Illuminate Distance

More than 60 M

Waterproof Criterion

IP 66

I/O Connector

1*DC Connector ,1* RJ45(10/100M Network)

Supplied Voltage

DC12V/PoE(802.3af/820.3at)

Power Consumption

IR On: 600mA max., IR Off: Less than 200mA
