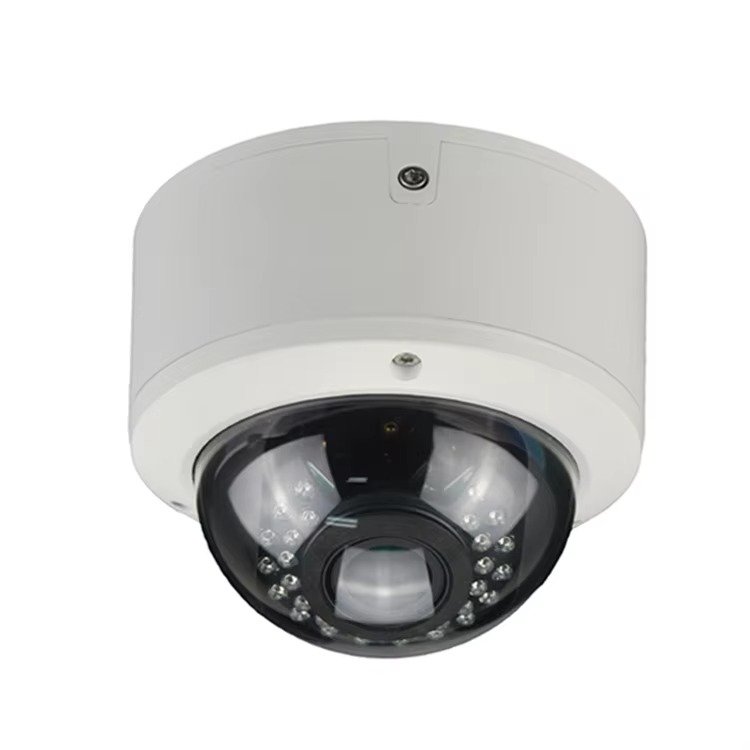

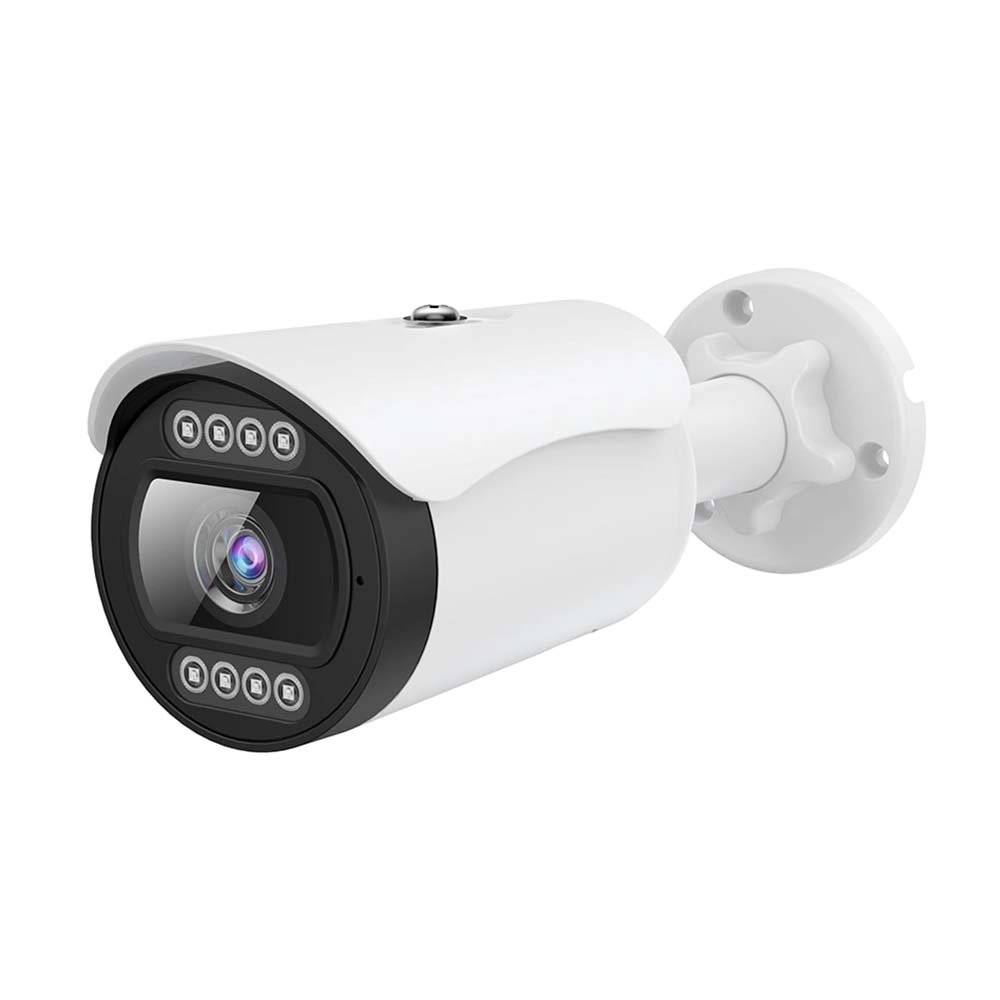

Automatic Multi Face Detection Capture Facial Recognition Smart AI POE IP Camera
| Model | NST-IPN3514-FR |
| Camera | |
| Image Sensor | 1 / 1.8" CMOS |
| Image Size | 2560 × 1440 |
| Electronic Shutter | 1/3 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | Color: 0.0016 lux@F1.6,AGC ON; B&W: 0 lux with IR |
| Lens | 2.8 mm-12mm@F1.6 |
| Focus | Manual |
| Lens Mount | M14 |
| Day & Night | ICR |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| S/N Ratio | ≥ 50dB |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
| Image | |
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.265 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 4MP (2560×1440), 3MP(2304×1296), 1080P ( 1920×1080), 720P (1280×720 ), D1, VGA(640×480), CIF, 480 × 240 |
| Main Stream | 4MP/3MP/1080P/720P ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Sub Stream | 720P/D1/VGA/480×240/CIF( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Third Stream | D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Bit Rate | 64 Kbps ~ 8 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ 45 |
| Audio | 1CH audio input |
| Storage | Built-in micro SD card slot; up to 256GB |
| Reset | Yes |
| Alarm | Yes |
| Intelligent Analytics | |
| Smart Event | Line crossing, region intrusion/entrance/exiting(human/vehicle classification), loitering detection, illegal parking detection, abandoned/ missing object detection |
| Target Counting | Target counting by line, heat map |
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception |
| Face Detection | Face detection and face capture |
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature |
| Functions | |
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP |
| Web Browser | Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPS, P2P, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, SMD, SD card error, SD card full, IP address conflict,Network disconnection, sensor alarm, audio alarm |
| General Function | Watermark, video mask, heartbeat, image distortion correction, corridor pattern, ANR, cloud upgrade |
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP |
| PoE | Yes , IEEE802.3af |
| IR Distance | 25~30 m |
| Ingress Protection | IP 67 |
| Others | |
| Power Supply | DC12V/PoE |
| Power Consumption | < 7.5W |
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |

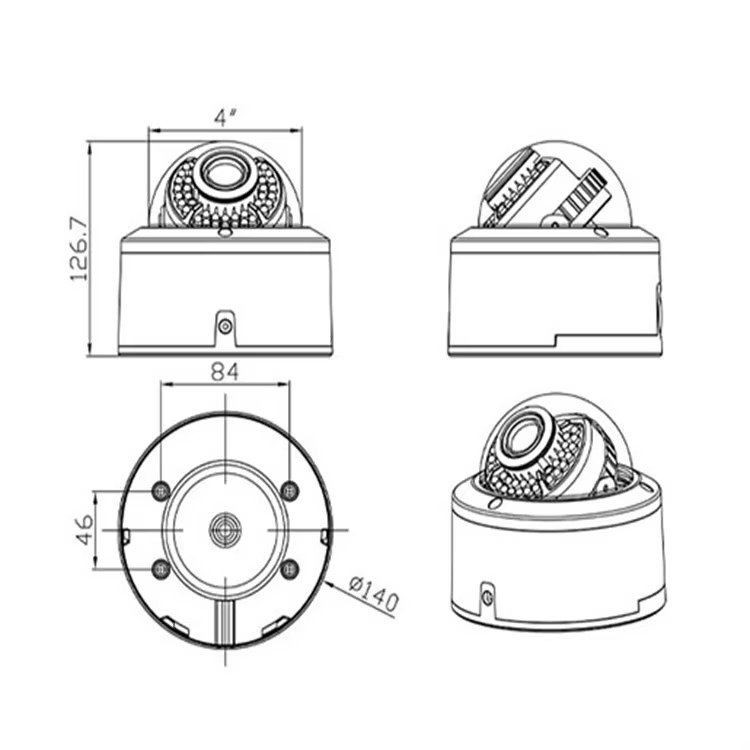

| Dimensions ( mm ) | 217.8 ×80.5 ×80.3 |
| Weight ( net ) | Approx. 0.68KG |
| Installation | Ceiling mounting; Wall mounting |
