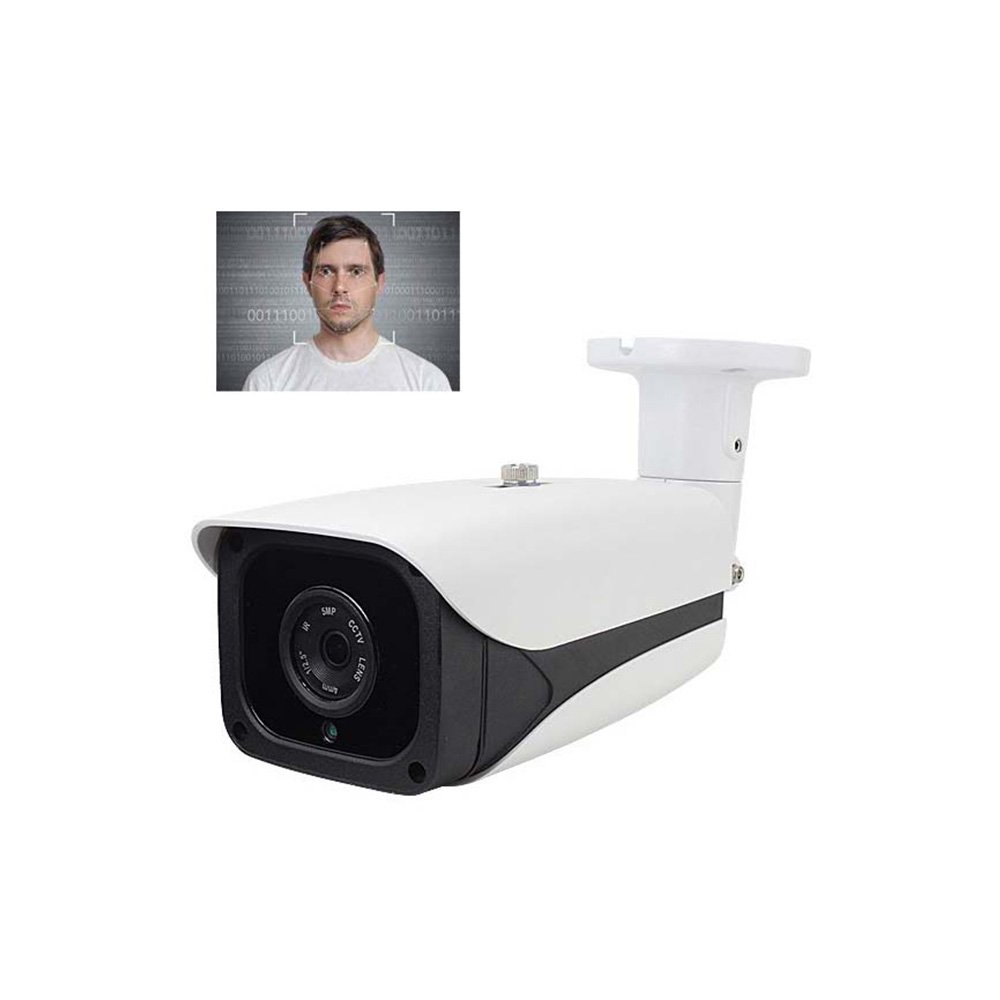

Intelligent AI Dynamic Facial Access Control Face Recognition Security CCTV IP Camera

Face Recognition Camera

NST-IPG6562-FACE

Product Description

Camera Features:
·Built-in face intelligent face algorithm ,supports face detect ,face capture, face recognition ·Face capture and recognition on camera side
.Supports face score,face select, identify face feature values and output the best image face
.Max to detect 32 target per frame,
.Support face exposure , wide dynamic range up to 120dB ·Face picture quality setting range (1-99) adjustable;
.Support face detect image : 30*30-300*300
.Supports uploading face images and original images, face images coding quality can be adjustable;Snap times can be adjustable.
.Support two face databases management, each face database can import 3,200 faces;
.Max 16GB storage for face database, and each face image pixel :150*150-960*960 Support different face database arming at different times;
·Support black list and white list recognition link alarm signal output;

Model	NST-IPG6562-FACE
Resolution	2.0MP(1920*1080P)
Sensor	1/1.8" 2.0MP Sony CMOS
Effect Pixel	1920(H)x1080(V)
scanning method	line-by-line scan
Shutter time	1/25s~1/10000s;
Min Illumination	Color:0.001Lux @F1.2
Min Illumination	white&black:0.0001Lux @F1.2
S/N Ratio	≥50dB(AGC OFF)
Wide Dynamic Range	>120dB
Digital Noise Reduction	3D Digital Noise Reduction
Privacy cover	Up to 4 privacy area
Lens	Autofocus 3.6-11mm
video parameters
Video compression	H.265/H.264/H.265+MJPEG
Video resolution	Main stream 1080P(1920×1080)/720P(1280×720)
Video resolution	Sub stream D1(704×576)/VGA(640*480)/QVGA(320×240)
Video Frame	1-25(30)fps
Video Bit rate	32KB ~16Mbps
Audio parameter
Audio compression format	G.711a/ G.711u/G.726
Audio Mount	Non support
Smart Function
Smart sense	Intelligent occlusion detection and intelligent refocus detection
Smart control	Support intelligent control, alarm opening, alarm closing, fault clearing,intelligent noise reduction
Intelligent function
Intelligent Analysis	Face detection,Tracking and Capture,Face structure Obtain,face Comparison
Network parameters
Network interface	1 RJ45 10M/100M Adaptive Ethernet port
Network Protocol	IPv4, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP,DHCP, DNS, PPPOE, DDNS, FTP
Access standard	ONVIF
Support users	Can support 8 users login at the same time
APP	Android
General Parameters
Housing	White Aluminium
Power supply	DC12V / 2A POE(Optional)
Power consumption	<14W
Operate Conditions	"-30℃~60℃,,Humidity 95% or less than (non-condensing)
Waterproof	IP66
IR Distance	50m
Dimensions	196.5(L)*87(W)89(H)mm
Device Weight	1200g
Install Way	Bracket

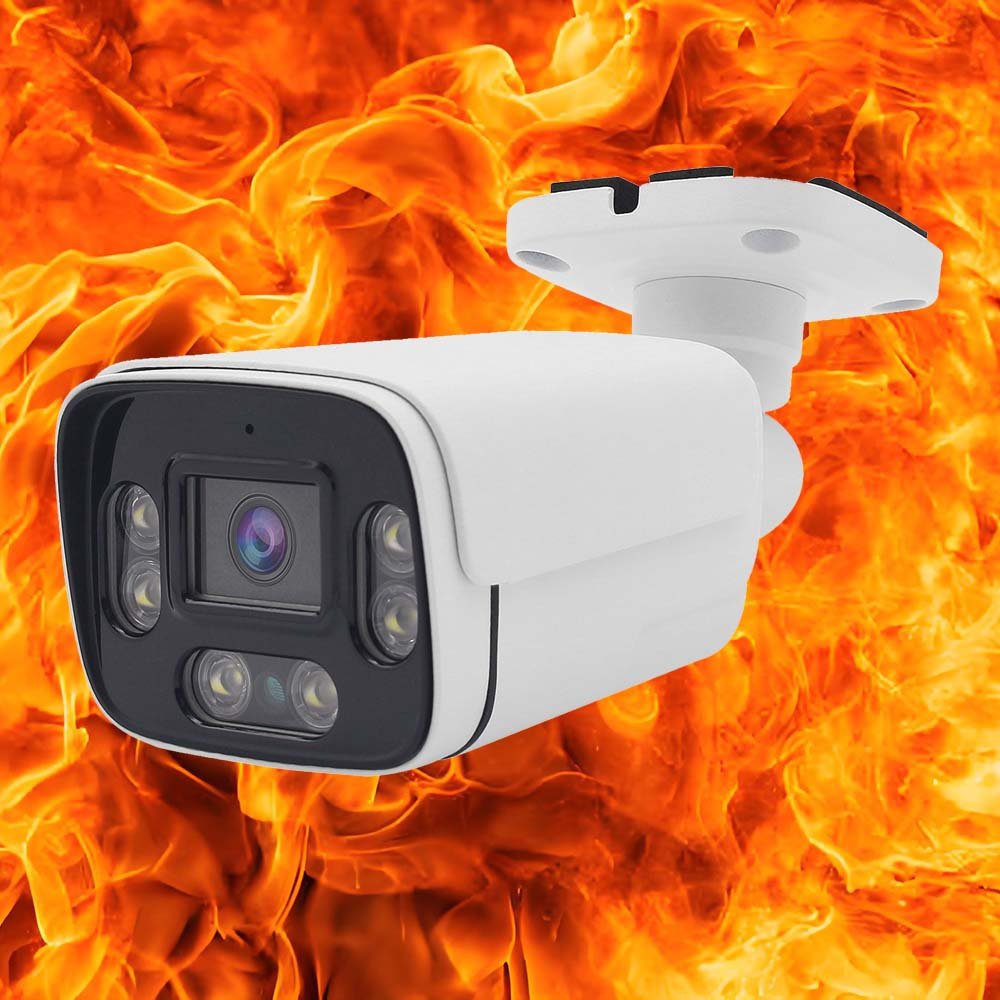

Flame Detection and Smoke Detection AI IP CameraThe fire and smoke detection algorithm supports detecting smoke and flame frames in dynamic video streams; Output smoke and flame alarm signals after multi frame fusion;The output parameters mainly include:1. Smoke and flame detection boxes for each frame2. Alarm information after multi frame fusionTarget recognition rangeMinimum flame: 30* 30@1080P Friendly flame: 60 * 60 and above @ 1080PMinimum smoke: 30* 30@1080P Friendly smoke: 60 * 60 and above @ 1080P

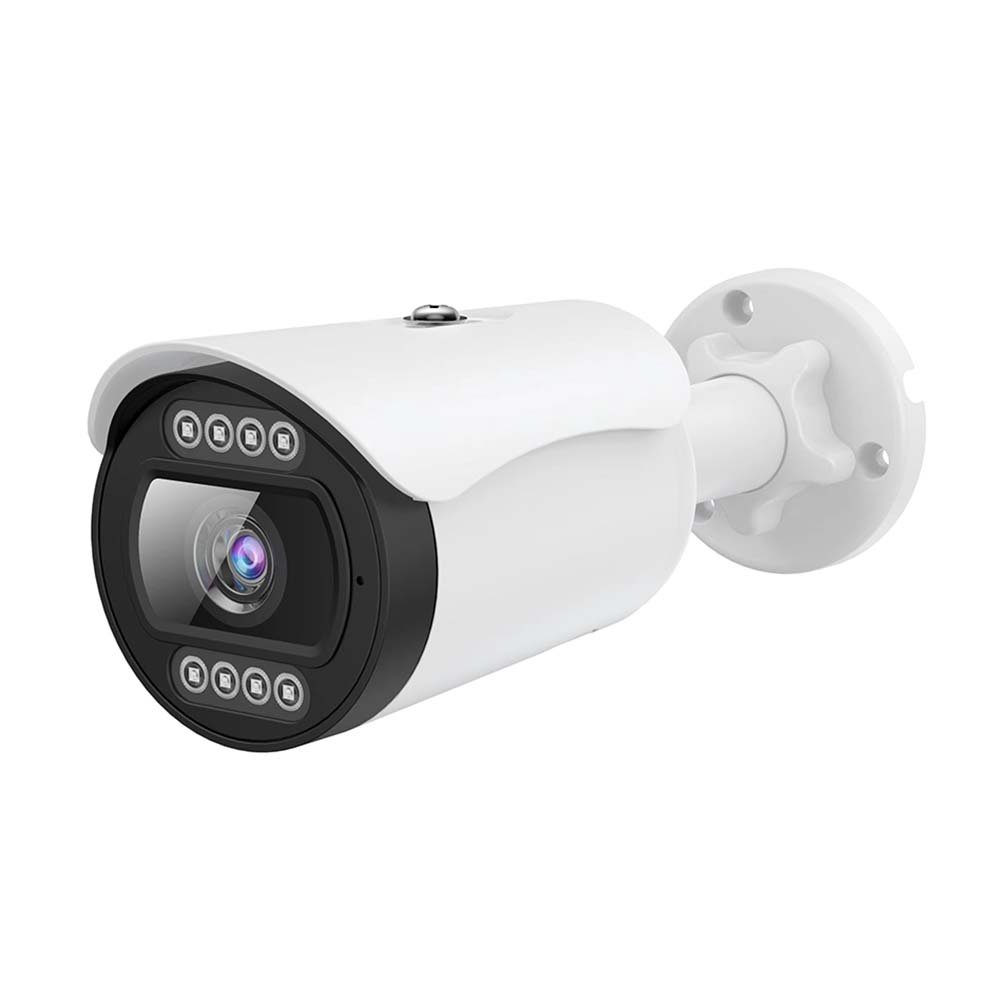

5MP Facial recognition and capture AI Smart IP Camera

Support human shape detectionFacial capture and recognitionSupports facial deduplication,fast capture and quality capturemodes optionalFacial quality adjustable, each frame support 6 face detect&tracking, Minimum pixel 20*20Support WDRLens:Motorized Zoom Autofocus2.7-13.5 or Varifocal Lens 2.7-13.5mm5MP HD

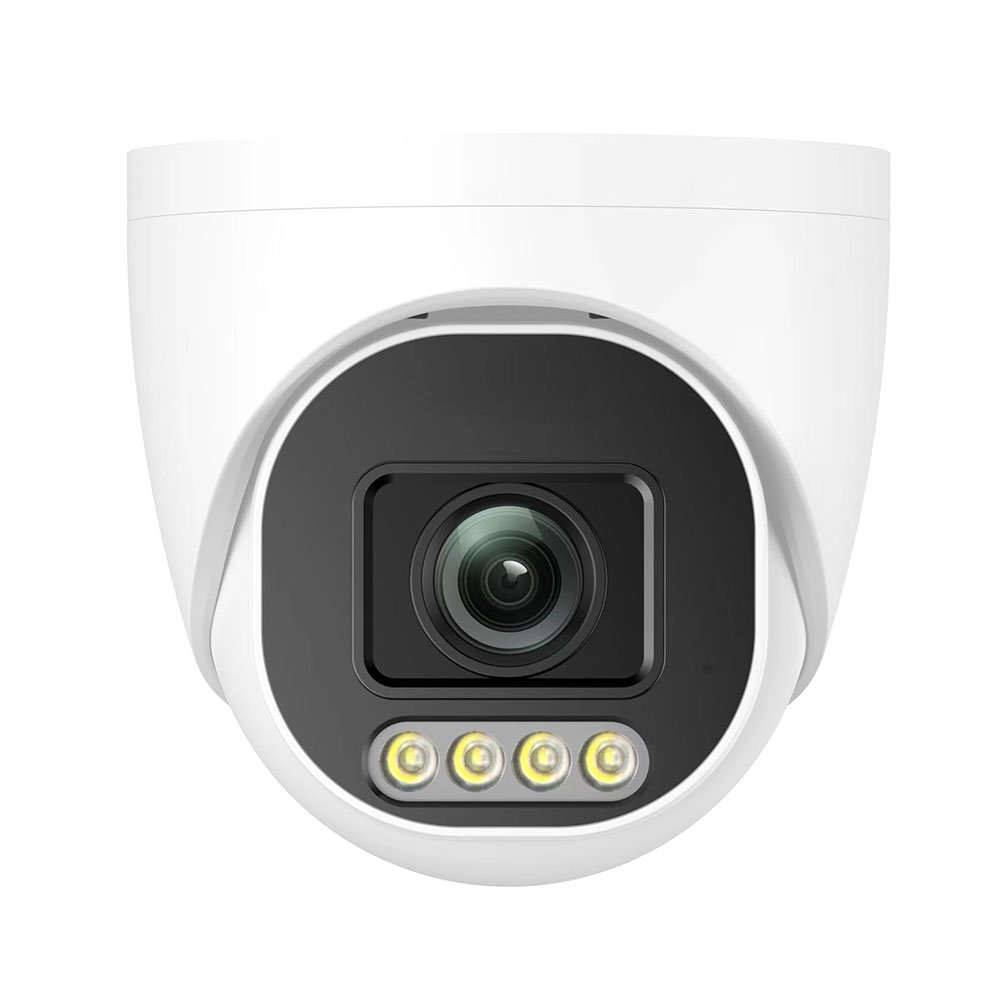

5MP Face recognition and capture AI Smart IP Camera
