Description :

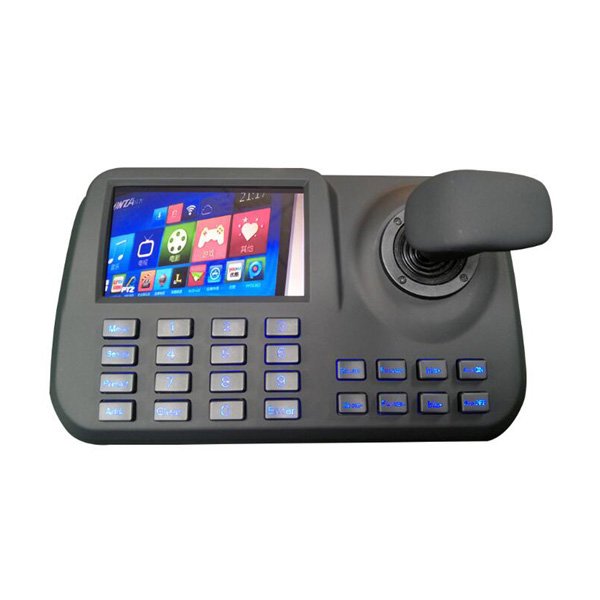

IPKB07 is a network control keyboard with decoding function. It has strong

maneuverability and effectively solves the problem of inaccurate and

inconvenient mouse click control. High-end atmosphere, unique surface

hardening can effectively prevent scratching; 5 inch LCD screen display is

excellent, image decoding experience is better.

Supports the standard Onvif protocol, with good compatibility, strong

scalability, and easy operation. It only takes a few steps to achieve perfect

control of the network dome.

Feature Description:

> Support network control with independent IP address.

> Support ONVIF

> 5 inch industrial LCD screen, resolution 800*480, image decoding, real-time monitoring.

> Support 4D joystick control ptz function

> Support preset patrol pattern and AB scan

> Support IE web setting

> Support custom function buttons, add shortcut function (customized)

> Support Knob for zoom and control speed

> Support POE

SYSTEM:Linux

Max equipment:999

Decoding:h.265, h.264

RESOLUTION:MAX 1080P for 1 channel:1920*1080@30fps

PROTOCOL:Onvif

Joystick:4D

OUTPUT:RS422(Reserved), RS232(Development port), RJ45

Accessories:Knob, Silicone button

Beep:On/off

SCREEN:TFT LCD 800*480

Power consumption:≤5W

POWER:DC12V-2A

Work temperature:-10℃~55℃  /  14°F~131°F

Work humidity:20%~80%frostless

Storage temperature:-10℃~60℃  /  14°F~140°F

Storage humidity:0~90%frostless

Packing size:340*268*140mm

Outer box size and specifications:553*460*350mm / 6 sets

Weight:900 G /set
