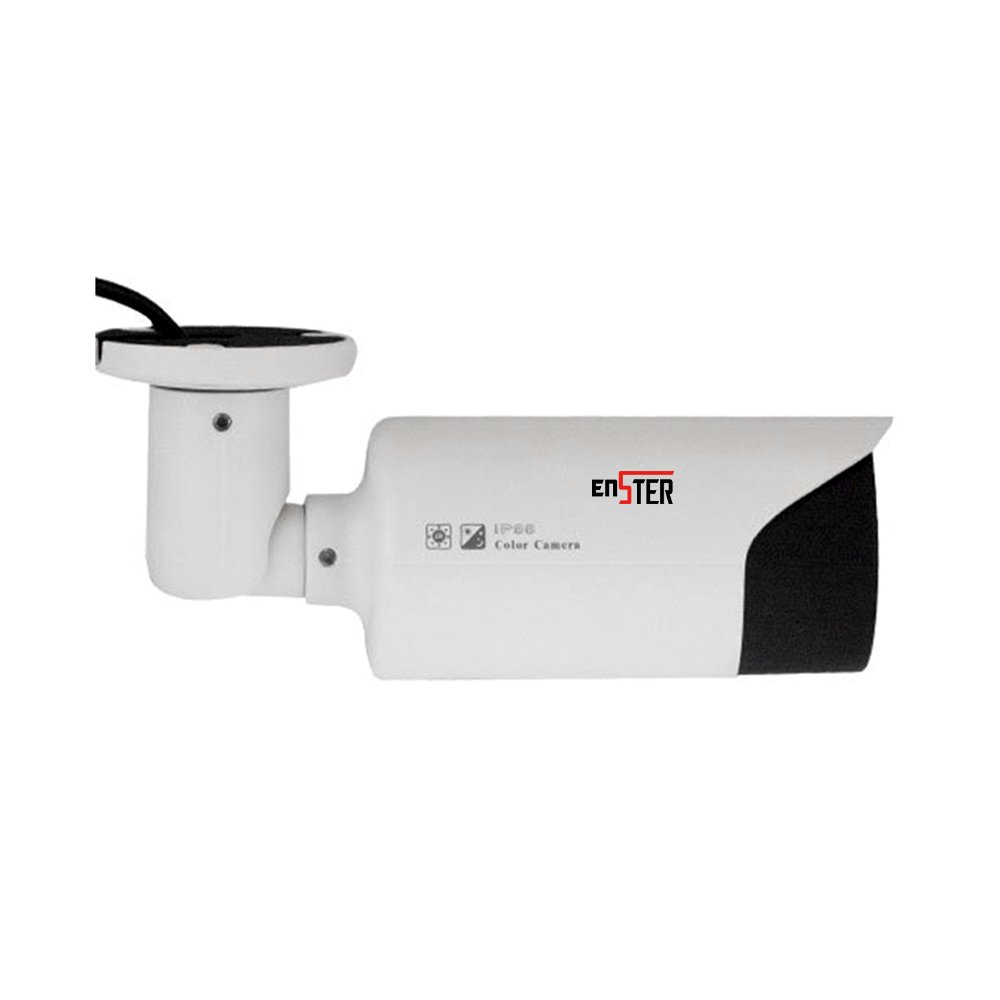

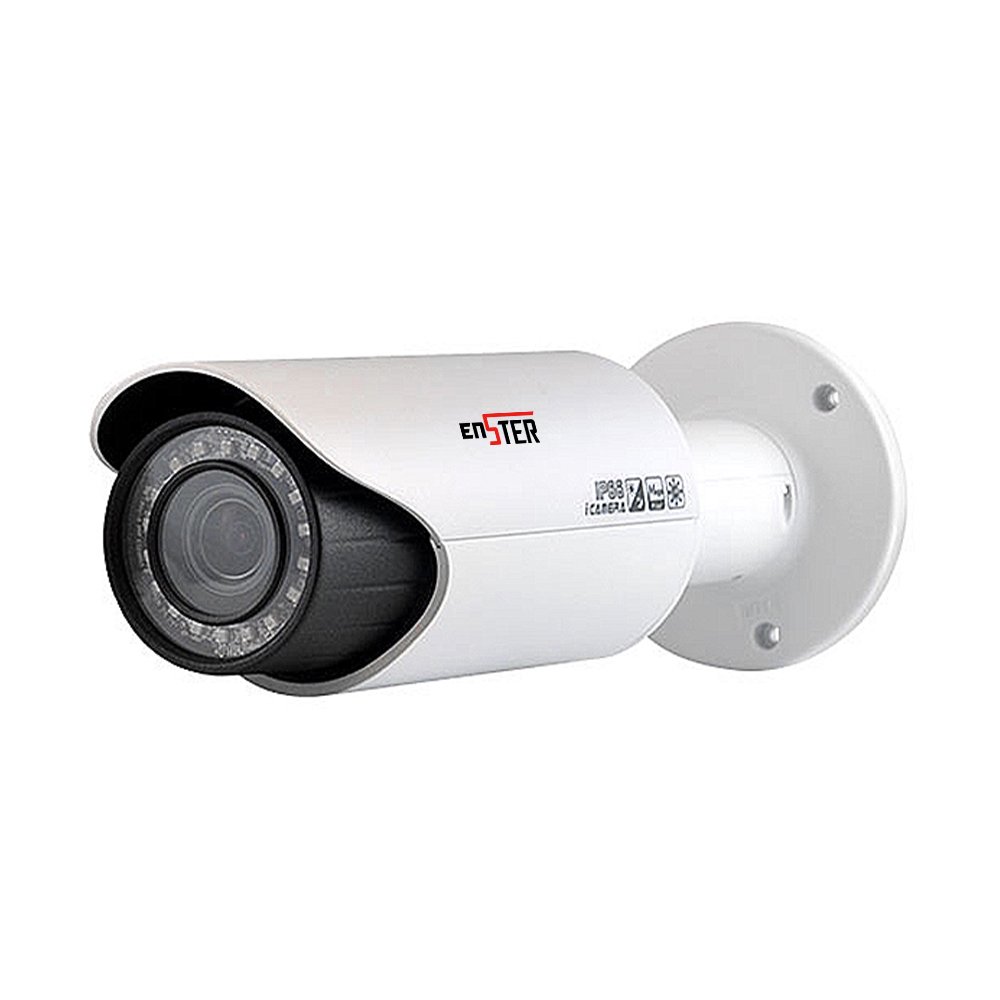

4 IN 1 Output IP66 Waterproof Bullet AHD TVI CVI CVBS 8MP HD CCTV Camera
NST-ATC5788
- Waterproof Bullet Camera
- 3-axis Adjustable Bracket
- Lens: Varifocal 2.8-12mm Adjustable Zoom & Focus
- IR LED: 24pcs Mini Array IR LED / 42pieces F5 IR LED
- IR Range: 40M
- 4 IN 1 Output: AHD / TVI / CVI / CVBS
- 8.0 Megapixels High Definition
Optional Model: NST-ATC5788 (8.0 Megapixels), NST-ATC5785 (5.0 Megapixels), NST-ATC5782 (2.0 Megapixels)
SEND INQUIRY NOWProduct Details
Product Description
| Model No. | NST-ATC5788-VF | NST-ATC5785-VF | NST-ATC5782-VF |
| Camera Type | 4 IN 1 Output IP66 Waterproof Bullet AHD TVI CVI CVBS 8MP HD CCTV Camera | ||
| Effective Pixels | 8.0 Mega Pixels | 5.0 Mega Pixels | 2.0 Mega Pixels |
| Image Sensor | 1/2.8″ SONY IMX415 CMOS Sensor | 1/2.8″ SONY IMX335 CMOS Sensor | 1/2.8″ SONY IMX307 CMOS Sensor |
| DSP | FH8556 | FH8538 | FH8536 |
| Min. Illumination | Color 0.01Lux@F1.2 | ||
| B/W 0.01 Lux@F1.2 | |||
| Signal System | AHD/TVI/CVI/CVBS or PAL/NTSC | ||
| On Screen Display | Yes, Cable Control/UTC | ||
| OSD Function | Manual/DC Lens, Shutter/AGC/WB, Pict Adjust, Mirror, Day/Night, DNR, BLC/HLC, Motion Detect, Privacy Zone | ||
| IR Cut Filter | IR LED synchronous switching double filter | ||
| Lens Mount | Manual Varifocal Lens 2.8-12mm | ||
| Infrared Luminary | 24pcs New Mini Array IR LEDs | ||
| Infrared Wavelength | 850 nm | ||
| Illuminate Distance | 30m | ||
| Waterproof Criterion | IP66 | ||
| I/O Connector | 1*DC Power Connector, 1* BNC Video Connector | ||
| Supplied Voltage | DC12V | ||
| Power Consumption | Less than 200mA | ||
| Working Environment | -10°C~+60°C, 10%~90% (Built in Heater being optional added for environment lower than -20°) | ||
| Weight | 1.0KG | ||
