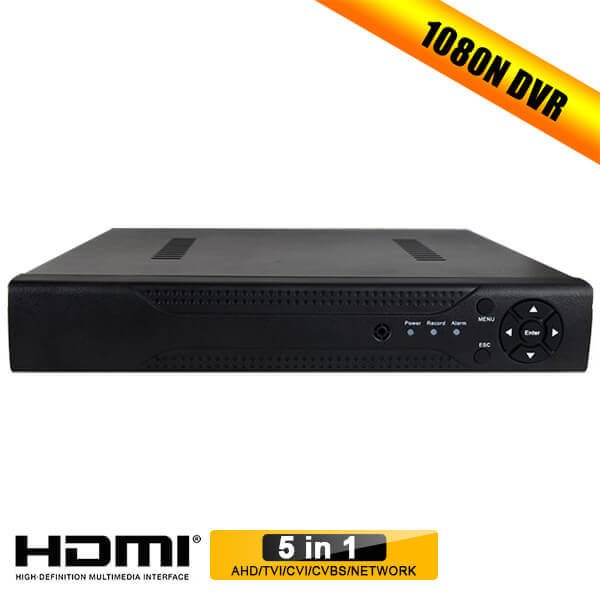

Product Description
|
Model No. |
AHD-6104MH |
AHD-6108MH
|
|
| System | Main processor |
Hi3520D V300 |
Hi3521A
|
| Interface | Preview |
1/4 |
1/4/8/9
|
| Video | Codec |
H.264
|
H.264
|
| Monitor quality |
VGA,HDMI:HD
|
VGA,HDMI:HD
|
|
| Preview ability |
4*1080P
|
8*1080P
|
|
| Encode ability |
4*1080N/4*1080P@15fps
|
8*1080N/8*1080P@12fps
|
|
| Decode ability |
4*1080N/4*1080P@15fps
|
8*1080N/4*1080P@12fps
|
|
| Multi-mode input | analog:4*1080P; hybrid:4*1080N(analog)+4*960P(network); Network only:16*1080P;9*1080P;16*960P;4*5M; |
8*1080N/4*1080P@12fps
|
|
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)
|
|
| Audio | Audio compression |
G.711A
|
G.711A
|
| Intercom |
support
|
support
|
|
| Record & playback | Record mode |
manual>alarm>motion detection>timing
|
manual>alarm>motion detection>timing
|
| Local Playback |
4ch(local input mode)
|
4ch(local input mode)
|
|
| Search mode |
Search by time, calendar, event, channel
|
Search by time, calendar, event, channel
|
|
| Storage & backup | Video storage |
HDD, network
|
HDD, network
|
| Backup mode |
Network, USB hard disk, USB burner, SATA burner
|
Network, USB hard disk, USB burner, SATA burner
|
|

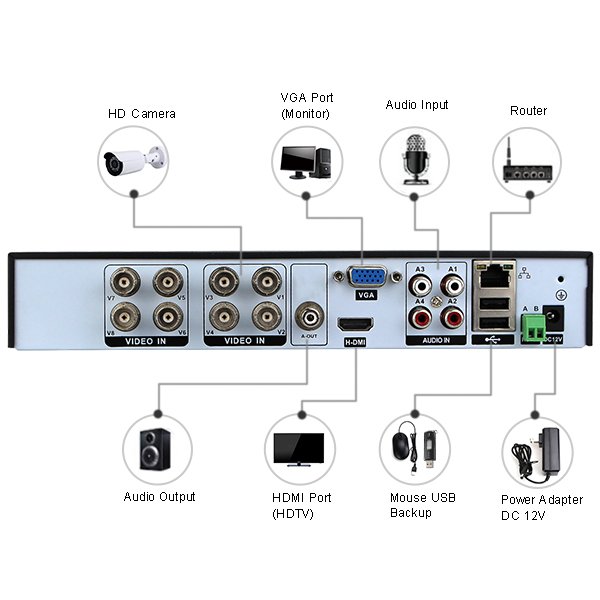

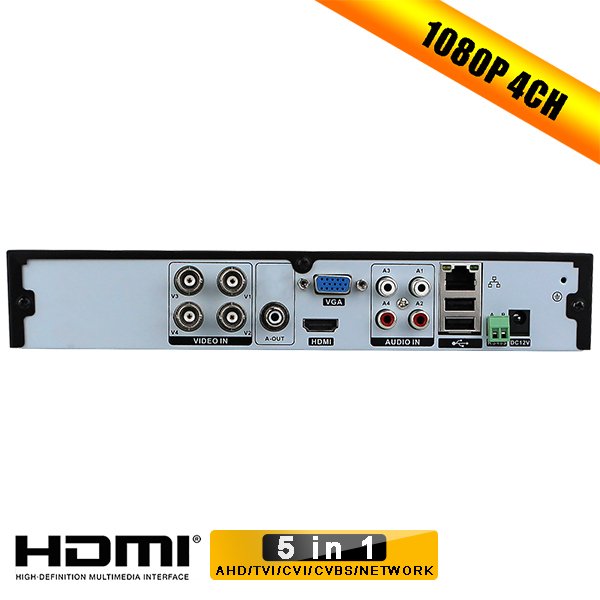

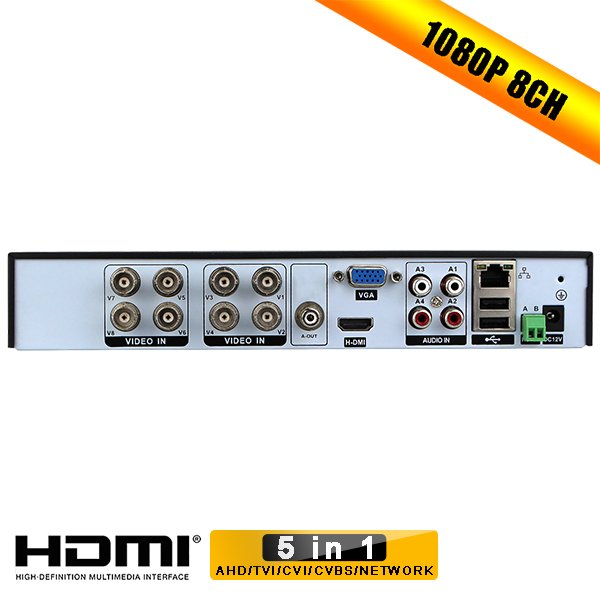

| External Interface | Video input |
4ch BNC
|
8ch BNC
|
| Video output |
1ch VGA, 1ch HDMI
|
1ch VGA, 1ch HDMI
|
|
| Loop Vout |
N/A
|
N/A
|
|
| Audio I/O |
4/1
|
4(Can be extended to 8ch)/1
|
|
| Alarm I/O | 0(Can be extended to 4ch)/0(Can be extended to 1ch) |
0(Can be extended to 4ch)/0(Can be extended to 1ch)
|
|
| Network interface |
RJ45 10M/100M self-adaption
|
RJ45 10M/100M self-adaption
|
|
| PTZ control |
1*RS485, Support kinds of PTZ protocols
|
1*RS485, Support kinds of PTZ protocols
|
|
| USB |
2* USB 2.0 ports
|
2* USB 2.0 ports
|
|
| HDD |
2*SATA ports (Max 8TB/per)
|
2*SATA ports (Max 8TB/per)
|
|
| Wireless |
3G, WIFI (extend via USB)
|
3G, WIFI (extend via USB)
|
|
| General | Power supply |
12V/4A
|
12V/4A
|
| Power Consumption |
<15W (without HDD)
|
<15W (without HDD)
|
|
| Working environment | Temperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—106kpa |
Temperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—106kpa
|
|
| Dimension |
171mm*78mm
|
200mm*78mm
|
|
| Weight |
135g
|
196g
|
|
