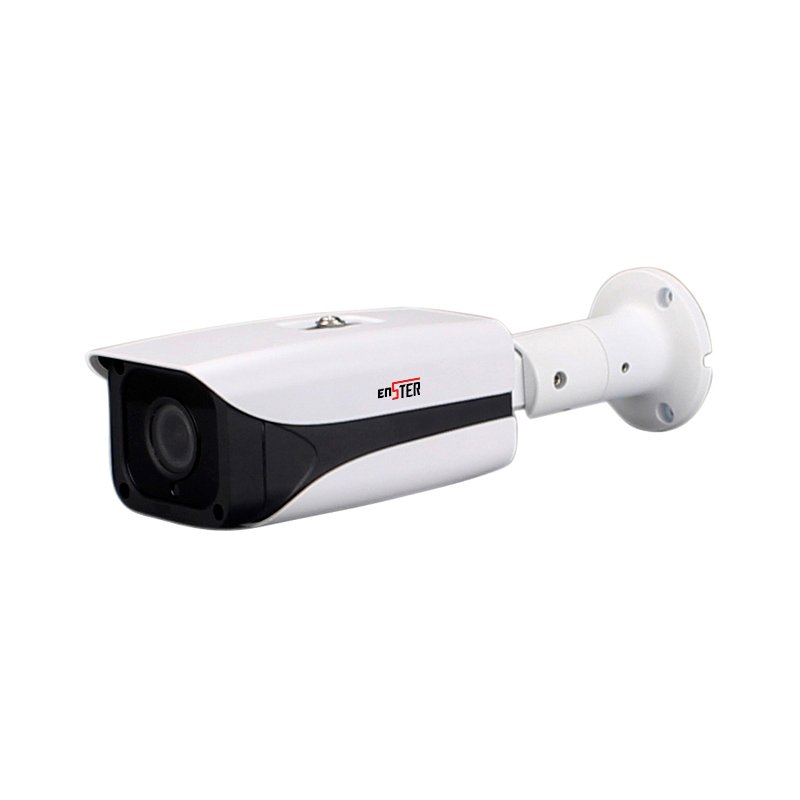

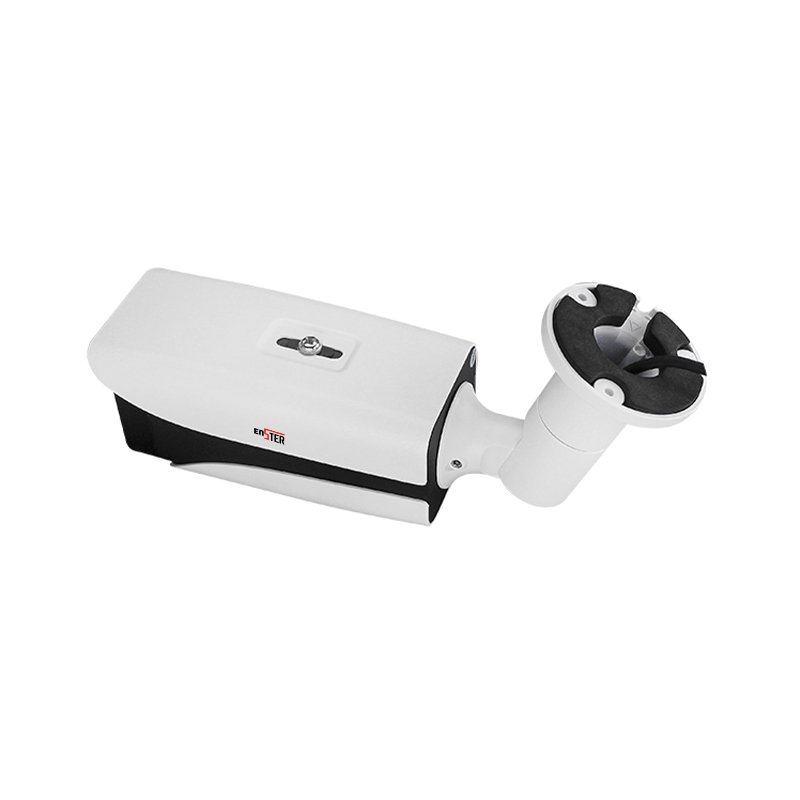

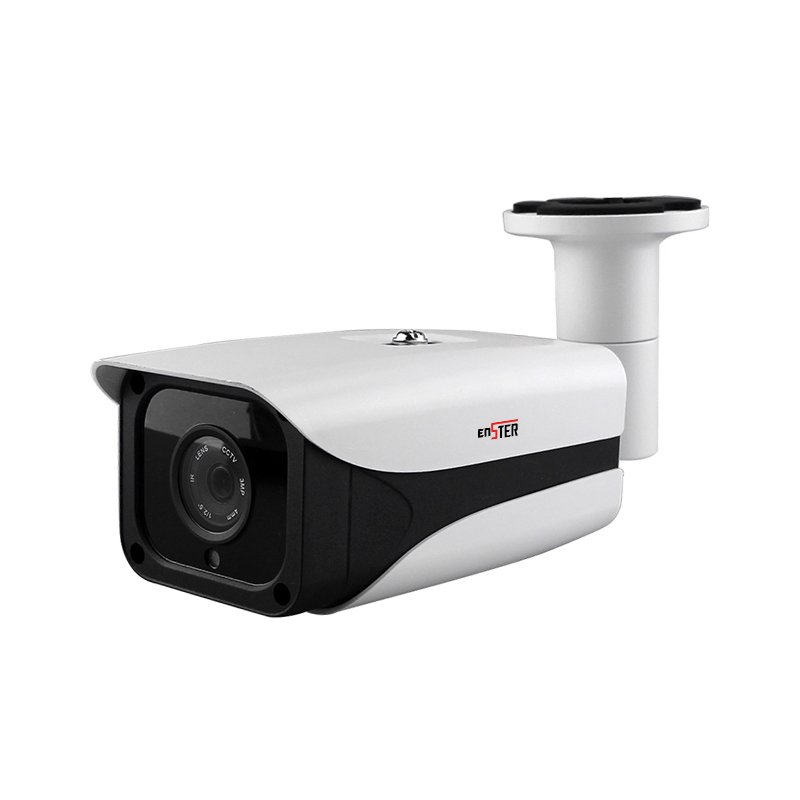

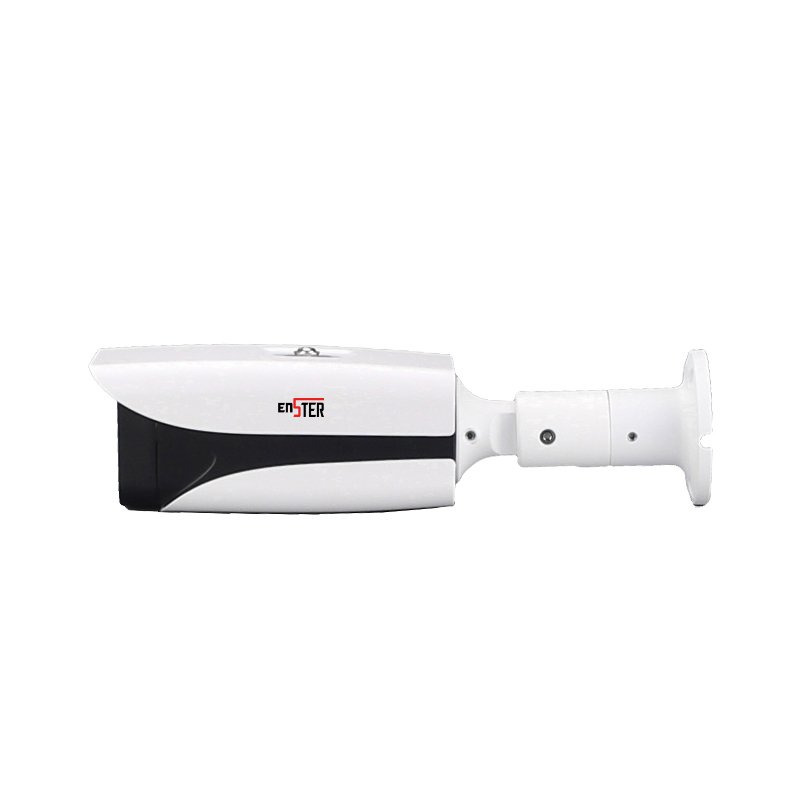

4Megapixel Security IP Camera HD Network IR Bullet 4mm Lens

4Megapixel Security IP Camera HD Network IR Bullet 4mm Lens

1) Embedded Linux System2) H.264 Video Compression,JPEG Capture,Audio G.7113) Resolution: 1920*1080,Real-time image4) 1/2.8" CMOS Sensor, Lens:4mm5) 4 pieces Array LED,Illuminate Distance 40m6) Image Frame Rate:Max
NTSC 30fps (1920*1080),PAL 25fps(1920*1080)7) Max resolution can reach 2.0M(1920×1080), HD 1080P output8) Low illumination,0.1Lux @ (F1.2,AGC ON),0 LUX with IR9) Support IR-CUT filter switch to achieve day and night monitoring Optional ModelNST-IPH6564 4.0MPNST-IPH6562 2.0MP

NST-IPN6564

SEND INQUIRY NOW

Product Description

Model No.		NST-IPM6568	NST-IPH6565	NST-IPN6564
Camera Type		Fixed Lens Bullet IP Camera
System		Embedded RTOS design
Camera	Effective Pixels	8.0 MegaPixels	5.0 Megapixels	4.0 MegaPixels
		Main stream:38402160@20fps 25921944@25fps	Main stream:25921944@20fps 4MP 25601440@25fps	Main stream:4MP 2560*1440@25fps1296@25fps
		Sub stream:1280720@25fps 704576@25fps	Sub stream:704*576@25fps	Sub stream:800*448 @25fps
	Image Sensor	1/2.8" Sony IMX415 Cmos Sensor	1/2.8" Sony IMX335 Cmos Sensor	1/3" SC401AI Cmos Sensor
	Soc Chipset	Mstar SSC328Q	Hisilicon 3516EV300	Novatek NT98562
	Min. Illumination	Color 0.01Lux/F1.2	Color 0.01Lux/F1.2	Color 0.01Lux/F1.2
		B/W 0.0001 Lux/F1.2	B/W 0.001 Lux/F1.2	B/W 0.01 Lux/F1.2
	Adjust Parameters	DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.
Video	Compression	H.265/H.264 Main profile
	Stream	support dual stream,AVI format
	Bit Rate	support 0.1M ~8Mpbs bit rate adjustable
	Frame Rates	support 1~30fps adjustable
Audio	Input and output	1ch input( micphone),1ch output( Speaker) Optional
	Compression	G.711 compression,support two-way audio intercom,support audio and video synchronized output
Alarm	Types	Motion Detection, Video Blind , Video Loss
Network	WEB Browser	Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.)
	Smart Phone	mobile remote Monitoring (iPhone,Android,....)
	CMS Software	Uniform CMS Software(multiple devices management system)
	Cloud P2P	www.enster.com,MYEYE platform and other program,Offer SDK
	Network	10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
	ONVIF	Support (ONVIF 2.4)
	POE	Support(optional)
General	Language	20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish
	IR Cut Filter	Set of double light switch IR-CUT filter
	Lens Mount	Board Lens 3.6mm
	Infrared Luminary	4pcs Array IR LED
	Infrared Wavelength	850nm
	Illuminate Distance	50m
	Waterproof Criterion	IP 67
	I/O Connector	1DC Connector ,1 RJ45(10/100M Network)
	Supplied Voltage	DC12V/PoE(802.3af/820.3at)
	Power Consumption	IR On: 600mA max., IR Off: Less than 200mA
	Working Environment	-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
	Weight	0.6kg
