Product Description

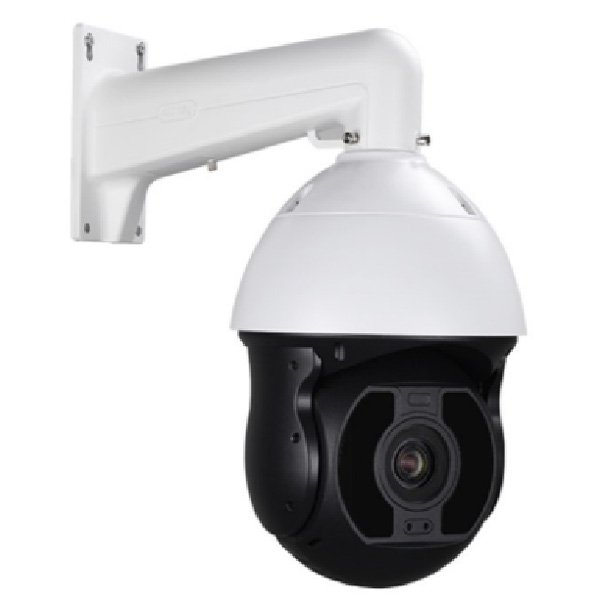

22X Zoom Speed Dome Camera
|
Model No. |
NST-IPH9180-22X |
|
|
Camera Type |
4K UHD PTZ IP Camera |
|
|
System |
Embedded RTOS design |
|
|
Camera |
Sensor |
1/1.8", progressive scan, 8megapixel, CMOS |
| Lens |
6.5~ 143 mm (22x optical zoom) , AF automatic focusing and motorized zoom lens
|
|
| Angle of View (H) |
58.9°~3.4°
|
|
| Angle of View (V) |
35.2°~1.9°
|
|
| Angle of View (O) |
72.5°~4.1°
|
|
| Shutter |
Auto/Manual, shutter time: 1 ~ 1/100000 s
|
|
| Minimum Illumination |
Colour: 0.003 lux (F1.5,AGC ON)
0 lux with IR |
|
| Iris |
Auto/Manual, F1.5 ~ F3.4
|
|
| Day/Night |
IR-cut filter with auto switch (ICR)
|
|
| Digital noise reduction |
2D/3D DNR
|
|
| S/N |
>55 dB
|
|
| IR Range |
UP to 200m (656ft)
|
|
| Defog |
Digital Defog
|
|
| WDR |
120dB
|
|
| Video | Video Compression |
Ultra 265,H.265, H.264, MJPEG
|
| H.264 code profile |
Baseline profile, Main Profile, High Profile
|
|
| Frame Rate |
Main Stream:8MP(3840 × 2160): Max.30fps, 2MP(1920×1080)@30fps;
Sub Stream:2MP(1920×1080) : Max. 25fps; Third Stream: D1 (720×576): Max. 20fps |
|
|
HLC |
Supported |
|
|
BLC |
Supported |
|
|
EIS |
Supported |
|
|
OSD |
Up to 8 OSDs |
|
|
Privacy Mask |
Up to 24 areas |
|
|
ROI |
Up to 8 areas |
|
|
Motion Detection |
Up to 4 areas |
|
| Smart |
General Function |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
Audio Compression |
G.711 |
|
Two-way Audio |
Supported |
|
|
Suppression |
Supported |
|
|
Sampling Rate |
8 KHZ |
|
| Storage |
Edge Storage |
Micro SD, up to 256 GB |
|
Network Storage |
ANR |
|
| Network |
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
|
Compatible Integration |
ONVIF(Profile S, Profile G, Profile T),API |
|
| Pan & Tilt |
Pan Range |
360° |
|
Pan Speed |
0.1°/s ~ 74°/s ,Preset speed: 300°/s |
|
|
Tilt Range |
–15° ~ +90° (auto reverse) |
|
|
Tilt Speed |
0.1° ~74°/s ,Preset speed: 240°/s |
|
| Number of Presets |
1024
|
|
| Patrol |
Preset patrol, route patrol, recorded patrol
|
|
| Home Position |
Supported
|
|
| Interface | Audio I/O |
1 Input: impedance 35 kΩ; amplitude 2 V [p-p] ,1 Output: impedance 600 Ω; amplitude 2 V [p-p]
|
| Network |
1 RJ45 10M/100M Base-TX Ethernet
|
|
| General | Power |
24 V AC±25%, 24 V DC±25%, PoE(PSE Required)
|
| Weight |
5.55 kg (12.24 lb)
|
|
| Working Environment |
–40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95% RH(non-condensing)
|
|
| Ingress Protection |
IP66
|
|
