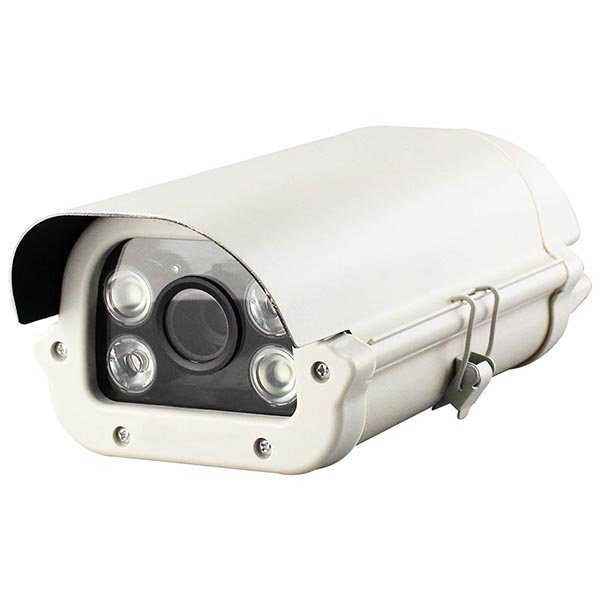

2.0MP 1080P license plate recognition anpr LPR capture ip camera reader system Outdoor IP 66 for Parking

2.0MP 1080P license plate recognition anpr LPR capture ip camera reader system Outdoor IP 66 for Parking

1) Embedded intelligent algorithms for best viewing license plate2) WDR adjust,HLC(highlight compression) function,3) 1-3 lanes surveillance

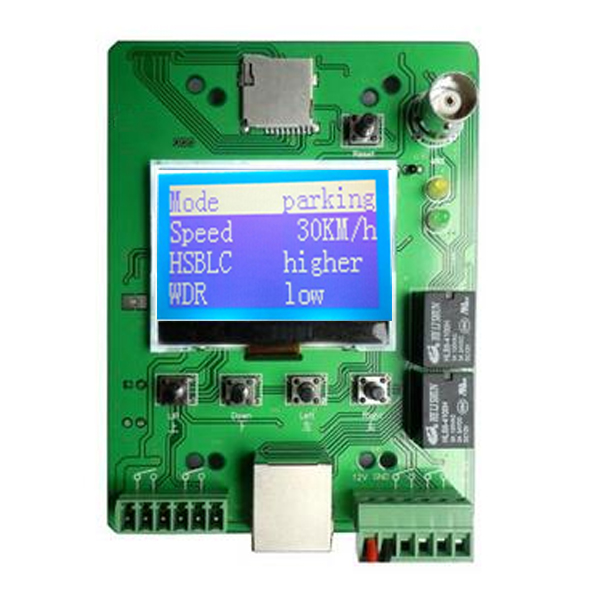

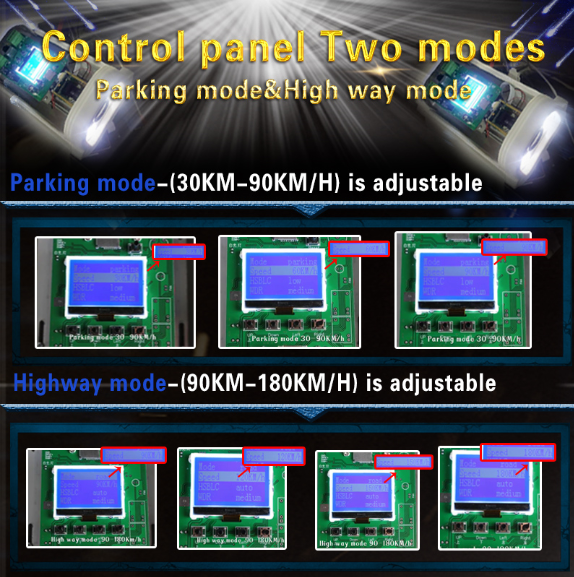

6 traffic modes selectable: 30KM/H-180KM/H4) With 1.8 Inch LCD display menu.5) support auto snapshot number plates JPEG image with 128G TF Card(Micro SD Card)6) ONVIF protocol,GB28181 protocol, compatible with main NVR7) Easy setting: no need professionals, no need client software

NST-IPA6092-NPSD

SEND INQUIRY NOW

Product Description

Model No.		NST-IPA6092-NPSD-VF0622	NST-IPA6092-NPSD-AF0622
Camera Type		2.0 Megapixels LPR IP Camera
System		Embedded RTOS design
Video	Effective Pixels	2.0 Mega Pixels
		Main stream:1920*1080
		Sub stream:704*576
	Frames Rates	25fps(1920*1080)
		NTSC: 30fps(1920*1080)
	Image Sensor	1/2.8" SONY CMOS Sensor
		2.48 megapixel resolution (2000H*1241V)
	DSP	Dual core 32-bit DSP
		(A5S88)
	Min. Illumination	Color 0.01Lux@F1.2
		B/W 0.001 Lux@F1.2
	Adjust Parameters	WDR,HLC,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.
Video	Compression	H.264 Main profile
	Stream	support dual stream,AVI format
	Bit Rate	support 0.1M ~8Mpbs bit rate adjustable
	Frame Rates	support 1~30fps adjust
Audio	Input and output	N/A
	Compression	G.711 compression,support two-way audio intercom,support audio and video synchronized output
Alarm	Types	Motion Detection, Video Blind , Video Loss
Network	WEB Browser	Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.)
	Smart Phone	mobile remote Monitoring (iPhone,Android,Windows Mobile,BlackBerry,Symbian)
	CMS Software	Uniform CMS Software(multiple devices management system)
	Cloud P2P	www.enster.com,MYEYE platform and other program,Offer SDK
	Network	1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
	ONVIF	Support (ONVIF 2.0)
	POE	Support(optional)
	WIFI	N/A
General	Language	20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish
	IR Cut Filter	Set of double light switch IR-CUT filter
	Lens Mount	Manual Varicoal Lens 6-22mm (3MP)	Motorized Zoom AutoFocus Lens 6-22mm (3MP)
	Infrared Luminary	4 pieces Array White light LED
	Infrared Wavelength	/
	Illuminate Distance	More than 40 M
	Waterproof Criterion	IP 66
	I/O Connector	1DC Connector ,1 RJ45(10/100M Network)
	Supplied Voltage	DC12V/PoE(802.3af/820.3at)
	Power Consumption	IR On: 600mA max., IR Off: Less than 200mA
	Working Enviroment	-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
	Dimensions	290100135mm
