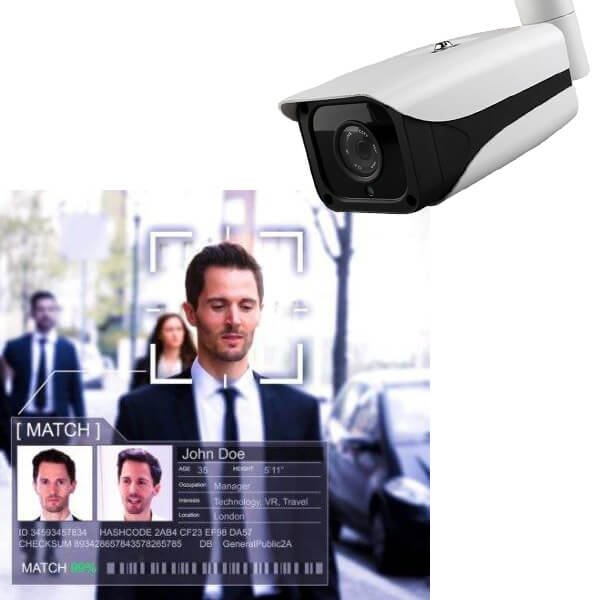

Product Description
|
Model |
NST-IPC6562-Face
|
|
Resolution
|
2.0MP(1920*1080P)
|
|
Sensor
|
1/1.8" 2.0MP Sony CMOS |
|
Effect Pixel |
1920(H)x1080(V) |
|
scanning method |
line-by-line scan |
|
Shutter time |
1/25s~1/10000s; |
|
Min Illumination |
Color:0.001Lux @F1.2 |
| white&black:0.0001Lux @F1.2 | |
|
S/N Ratio |
≥50dB(AGC OFF) |
|
Wide Dynamic Range |
>120dB |
|
Digital Noise Reduction |
3D Digital Noise Reduction |
|
Privacy cover |
Up to 4 privacy area |
|
Lens |
Autofocus 3.6-11mm |
|
video parameters |
|
|
Video compression |
H.265/H.264/H.265+MJPEG |
|
Video resolution |
Main stream 1080P(1920×1080)/720P(1280×720) |
| Sub stream D1(704×576)/VGA(640*480)/QVGA(320×240) | |
|
Video Frame |
1-25(30)fps |
|
Video Bit rate |
32KB ~16Mbps |
|
Audio parameter |
|
|
Audio compression format |
G.711a/ G.711u/G.726 |
|
Audio Mount |
Non support |
|
Smart Function
|
|
| Smart sense | Intelligent occlusion detection and intelligent refocus detection |
| Smart control | Support intelligent control, alarm opening, alarm closing, fault clearing,intelligent noise reduction |
|
Intelligent function |
|
| Intelligent Analysis | Face detection,Tracking and Capture,Face structure Obtain,face Comparison |
|
Network parameters |
|
| Network interface | 1 RJ45 10M/100M Adaptive Ethernet port |
| Network Protocol | IPv4, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP,DHCP, DNS, PPPOE, DDNS, FTP |
| Access standard | ONVIF |
|
Support users |
Can support 8 users login at the same time |
|
APP |
Android |
|
General Parameters |
|
| Housing | White Aluminium |
| Power supply | DC12V / 2A POE(Optional) |
| Power consumption | <14W |
|
Operate Conditions |
"-30℃~60℃,,Humidity 95% or less than (non-condensing) |
|
Waterproof |
IP66 |
| IR Distance | 50m |
| Dimensions | 196.5(L)*87(W)89(H)mm |
| Device Weight |
1200g |
| Install Way | Bracket |
|
Model No. |
NST-IVS2004
|
|
System |
|
|
CPU |
Hi3520DV200 |
|
Operate System |
Build-In Linux Operate System |
|
Video |
|
|
Decode Mode |
H.264 |
|
Video Input |
4CH 1080P/8CH 960P |
|
Playback |
1CH 1080P/1CH 960P |
|
Audio |
|
|
Compression Mode |
G.711A |
|
Intercom |
Not support |
|
Record Management |
|
|
Record Mode |
Manual Record>Alarm Record>Dynamic>Normal Record |
|
Video Query |
Channel Search,Calender Search,Event Search,Time Search |
|
Video Save |
Local HDD Storage |
|
Backup |
USB Backup |
|
Interface
|
|
|
VGA Interface |
1CH |
|
HDMI Interface |
1CH |
|
USB Interface |
2 CH USB2.0 Interface |
|
Hard Disk |
1CH SATA Interface(Single up To 4T Hard Disk) |
|
POE Interface |
No |
| Audio I/O |
No
|
|
Alarm I/O |
No
|
|
RS485 Interface |
No |
|
Network |
|
| Network Interface |
10M/100M Adaptive Ethernet port |
| Network Protocol |
1CH audio input(MIC IN/Line IN);1CH audio output interface |
|
General |
|
| Power Supply |
12V/2A |
|
Power Consumption |
<10W(Without Hard Disk) |
| Work Temperature |
-10°C ~60°C |
|
Work Humidity |
10% ~ 90%RH |
