Product Description

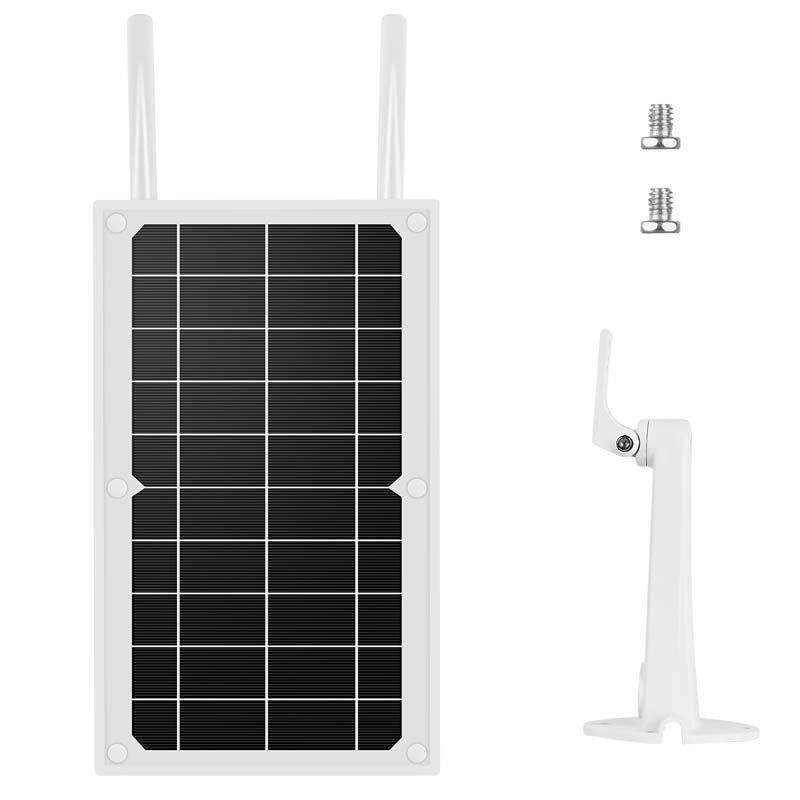

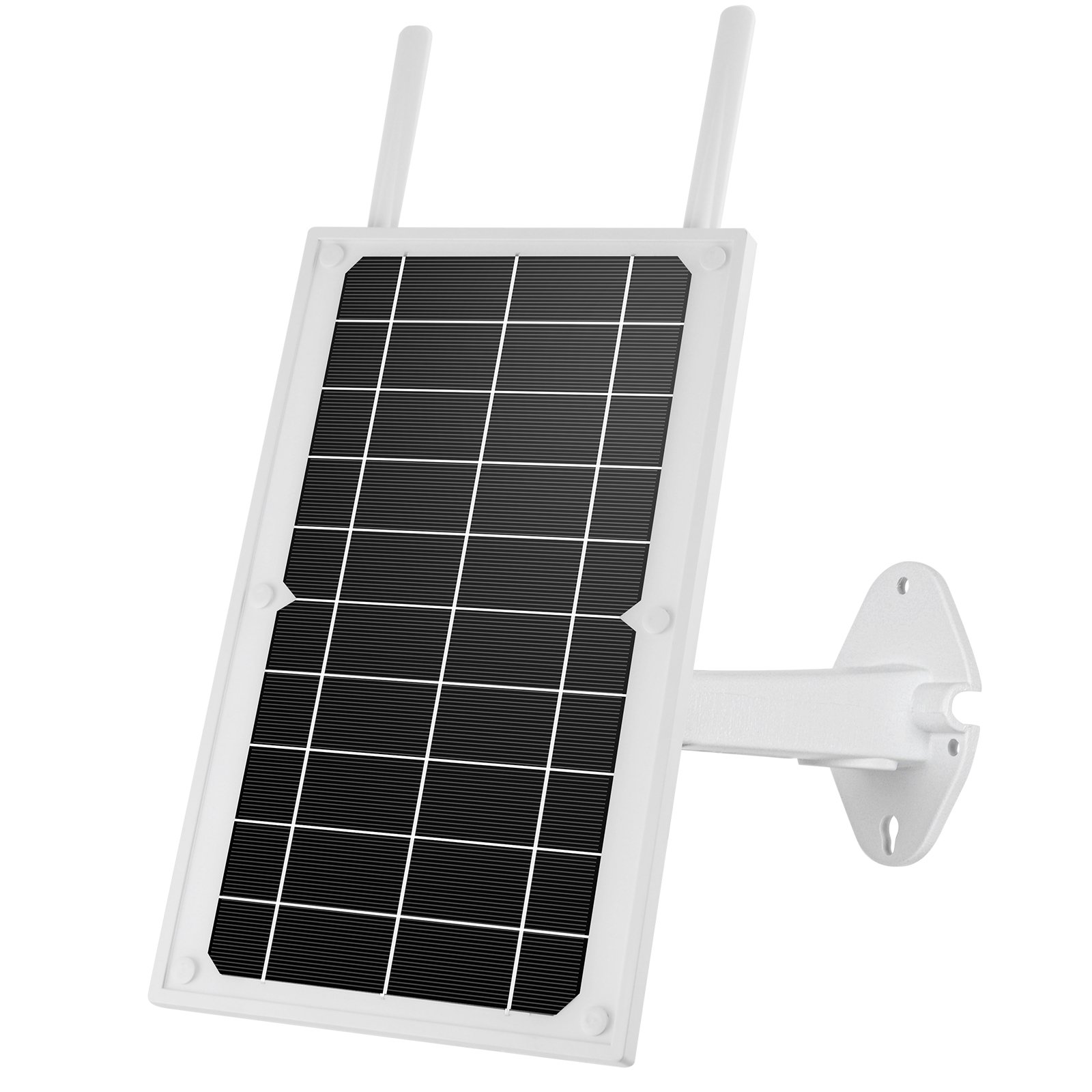

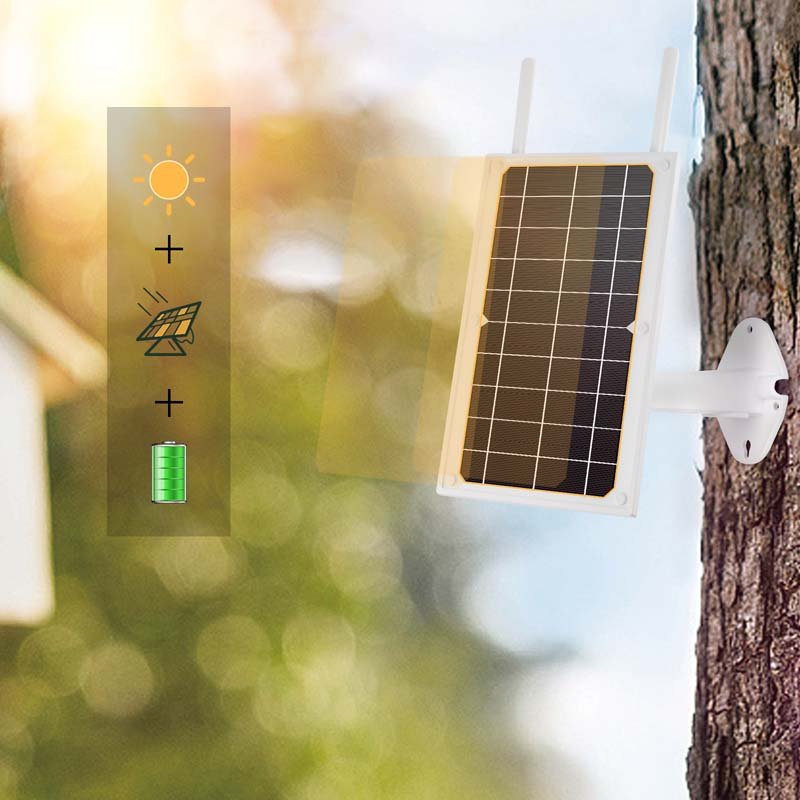

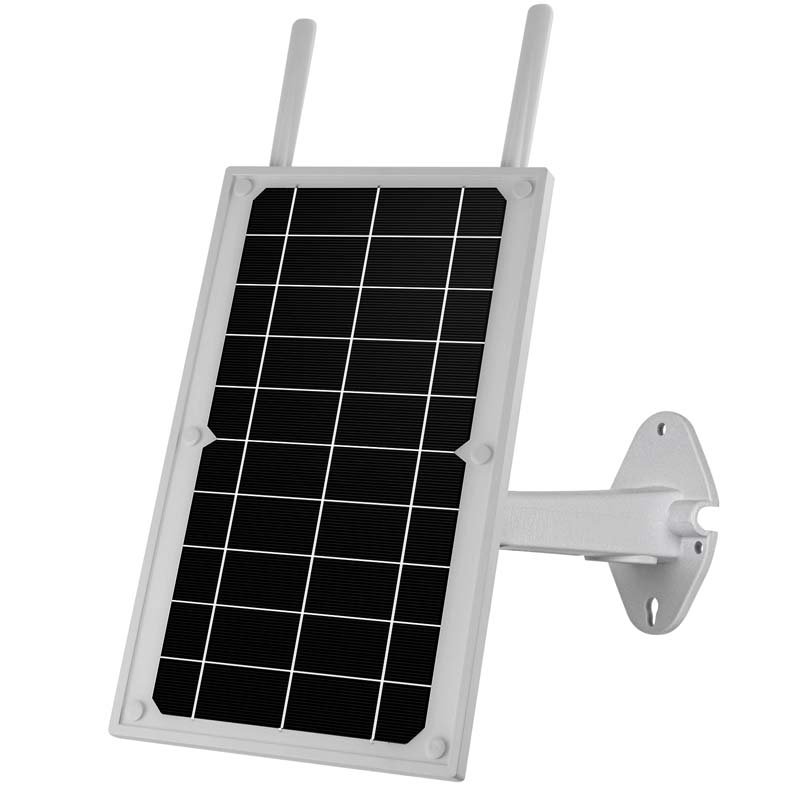

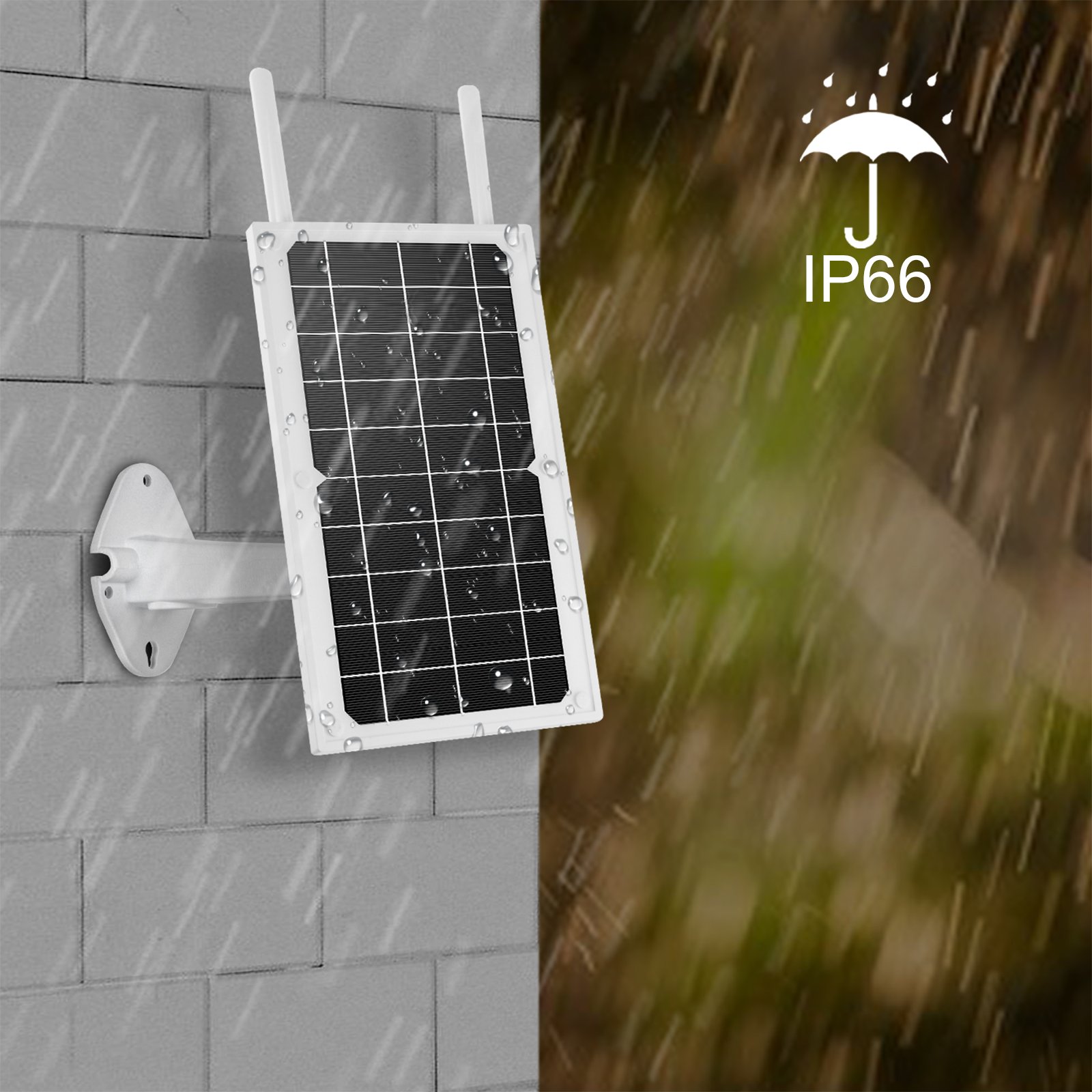

300Mbps 4G Sim Card Wireless Modem Router With Solar Panel Power and Lithium Battery

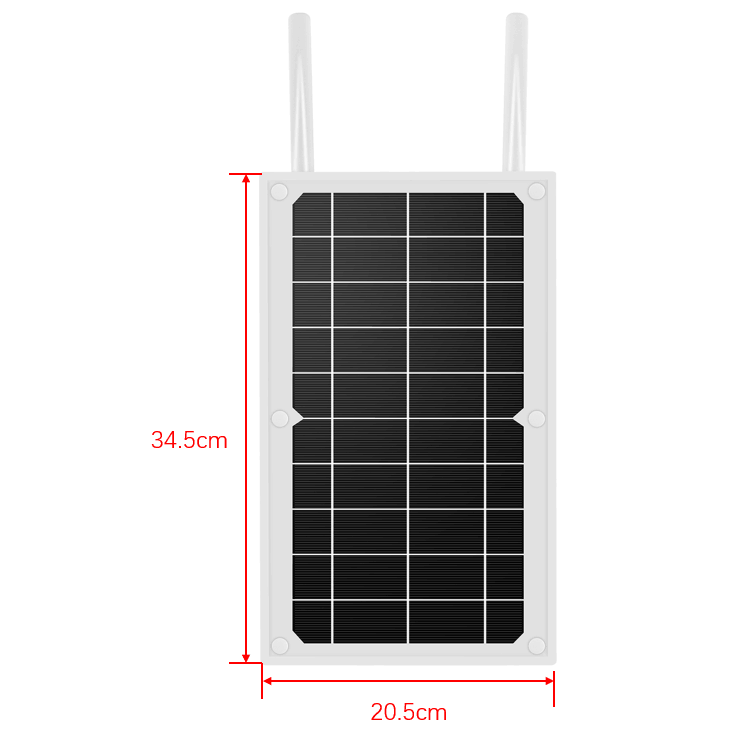

Size:20.5*34.5*4cm,The world's Smallest Solar 4G router
Size:20.5*34.5*4cm,The world's Smallest Solar 4G router
6V 12W Monocrystal Solar Energy Panel*1
4G LTE Sim Card MIFI Router * 1
DC 3.7V /26AH Lithium Battery * 1
MPPT Solar Controller *1
Solid Metal Wall Mount Bracket * 1
Solid Metal Wall Mount Bracket * 1
Applicable to countries and regions with 3G and 4G networks around the world
4G OUTDOOR Router For WiFI IP CAMERA/Moble Phone
Model No. | NST-SL4GR-12W | |
4G | Support Network | 4G FDD-LTE/TDD-LTE/WCDMA/HSPA+/TD-SWCDMA/GSM/GPRS/EDGE |
Support Band | B1/B2/B3/B4/B7/B8/B12/B13/B18/B19/B20/B26/B38/B39/B40/B41/B26 | |
Support Band of frequencies | (EU)FDD LTE Band1/Band3/BAND7/BAND8/BAND20; (US)FDD LTE Band1/Band2/BAND4/BAND12/BAND13; (JP)FDD LTE Band1/Band3/BAND8/BAND18/BAND19/BAND26 | |
TDD-LTE Band38/ Band39 / Band40/ Band41 | ||
WCDMA/1900/2100/2600MHz | ||
TD-SCDMA Band34 (2010-2025MHz) / Band39 (1880-1920MHz) | ||
EDGE/GPRS/850/900/1800/1900MHz | ||
UMTS Band1 / Band2 / Band5 GSM 900 / 1800 / 1900 MHz | ||
Network Speed | FDD-LTE/TD-LTE (4G) :150MBPS/50MBPS | |
WCDMA (3G): 21MBPS/5.76MBPS | ||
TD-SCDMA (3G): 2.8MBPS/2.2MBPS | ||
Weight | Package weight | 2.5Kg |
Accessories | Adaptor,User Manual,Bracket,Screw | |
Solar Panel Specification
Model No. | NST-SPM12W |
Cell Material | High Efficiency Monocrystalline |
| Maximum Power(Pmax) | 12W |
| Maximum Power Voltage(Vmp) | 6V |
| Maximum Power Current(lmp) | 1.73A |
| Open Circuit Voltage(Voc) | 7.2V |
| Short Circuit Current(lsc) | 1.84A |
| Conversion efficiency | 19% |
| Power Tolerance | ±3% |
| Maximum System Voltage | 1000VDC |
| Frame | PC Complex Material |
| Temperature Range | -40℃to +80℃ |
| Dimensions(mm) | 200*400*20mm |
