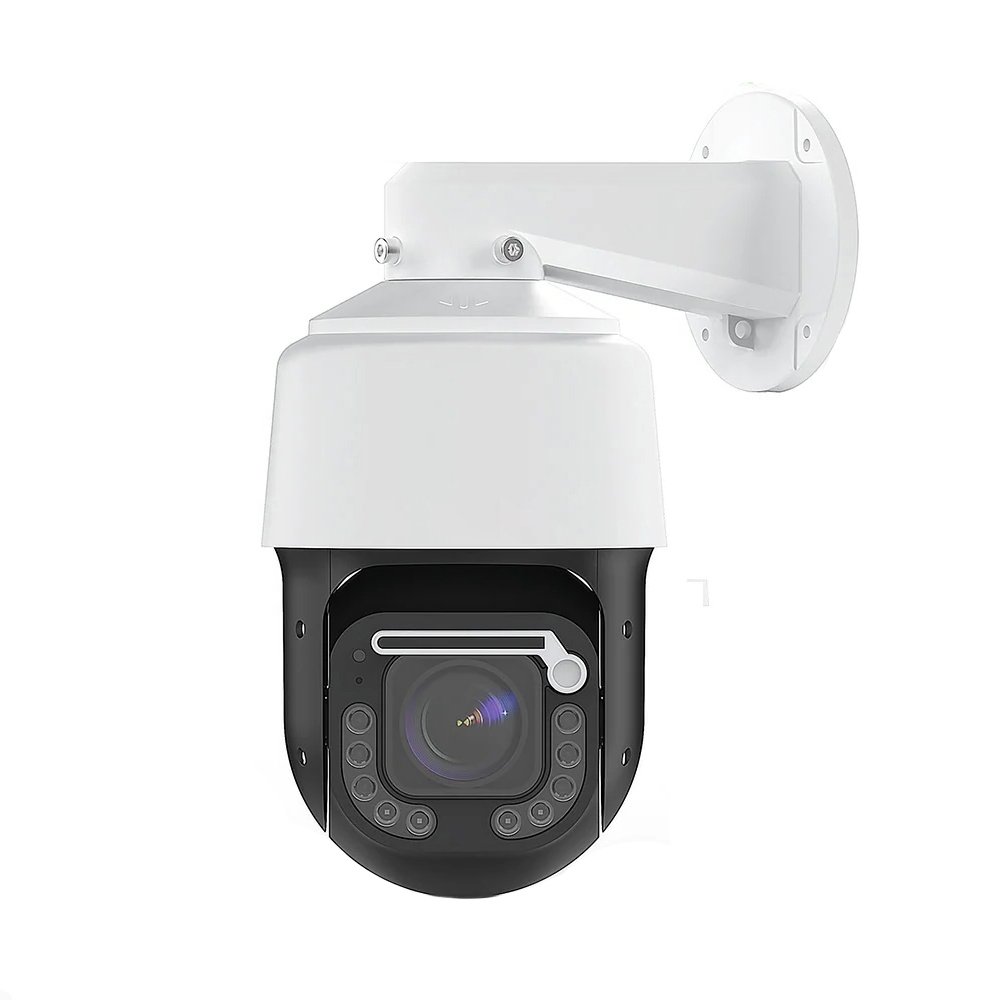

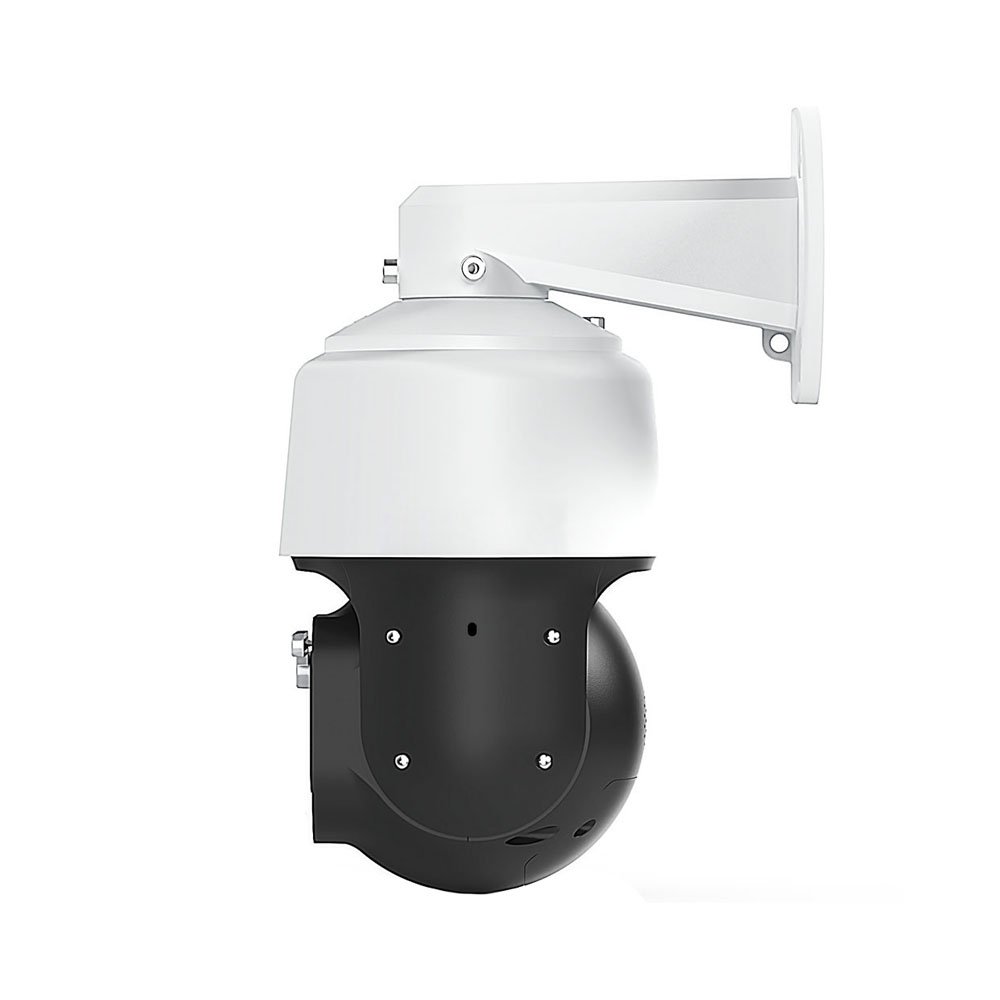

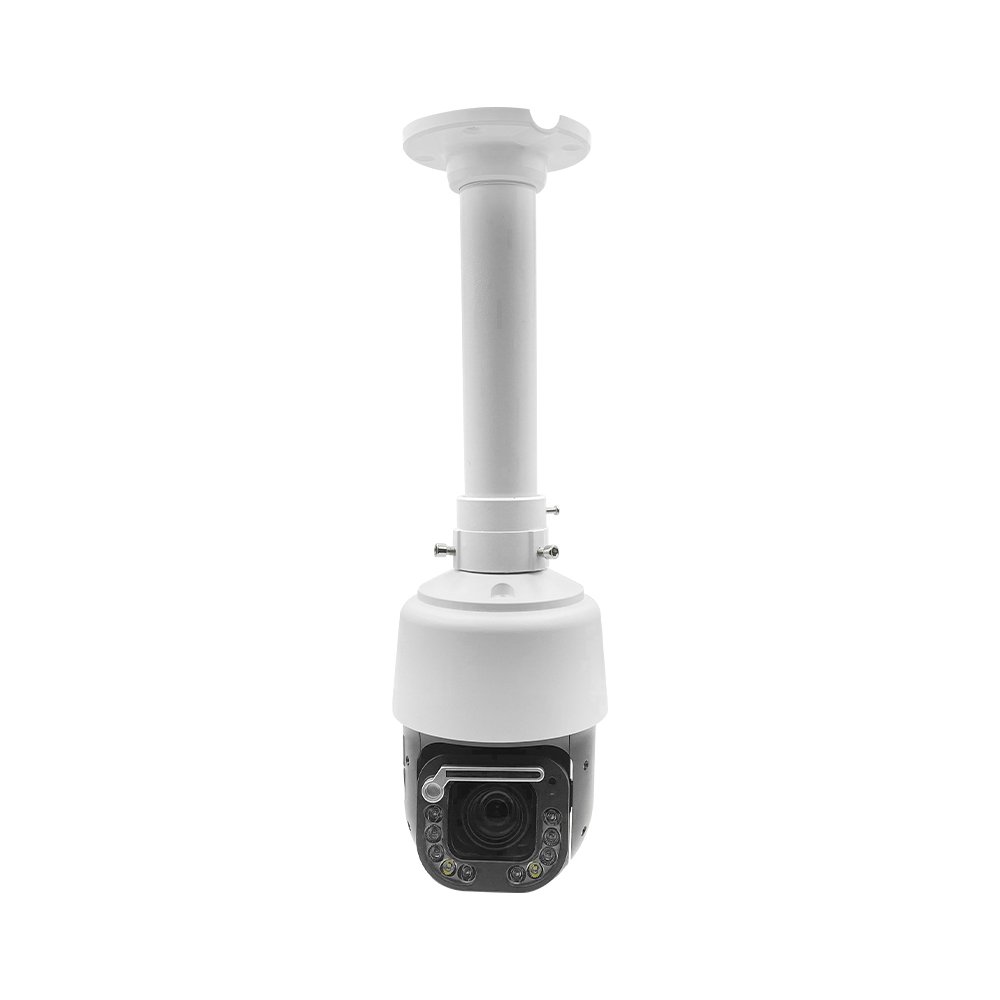

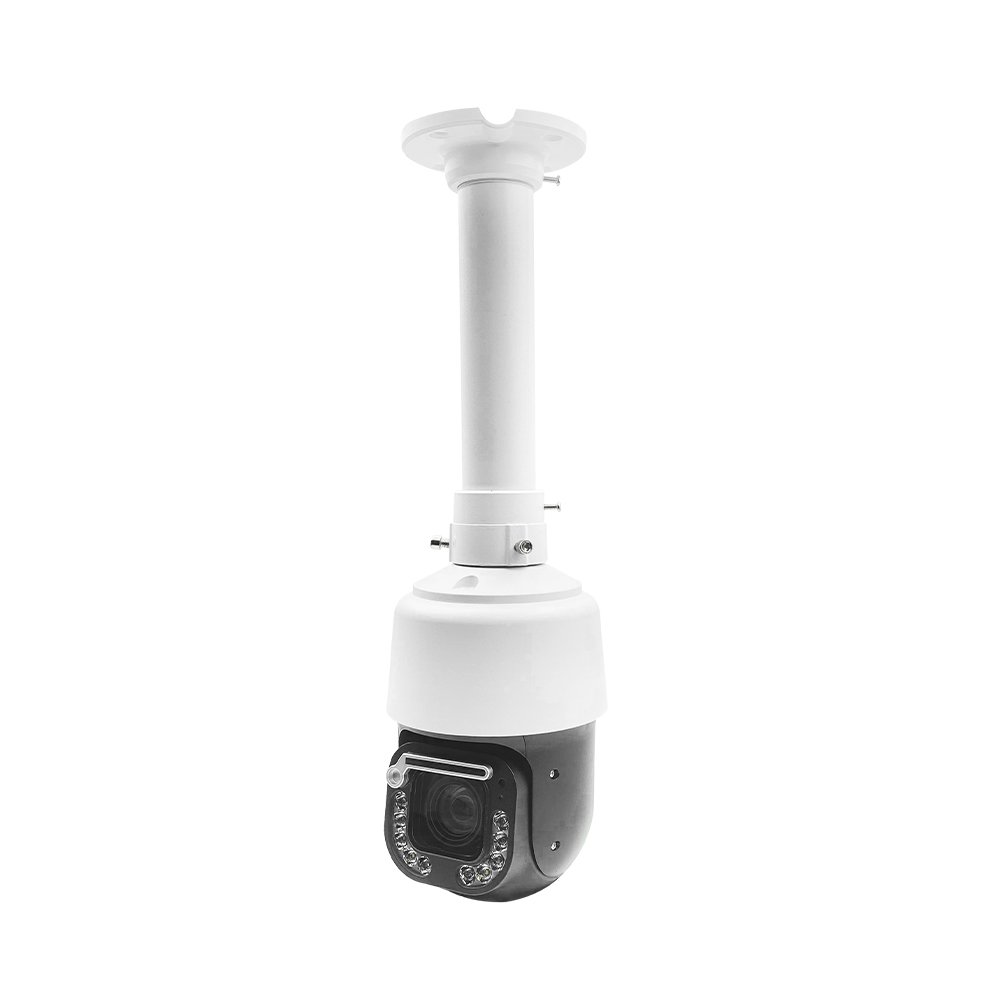

Model |
NST-IPM8918-20X |
||
Camera |
|||
Image Sensor |
1/2. 8 " Sony CMOS |
||
Effective Pixels |
8 megapixels |
||
Electronic Shutter |
AUTO, 1/10s ~ 1/100000s |
||
Min. Illumination |
0.01Lux@F1.2(AGC ON) |
||
Day/Night |
Auto/Color/(B/W)/Timing |
||
WDR |
Digital WDR |
||
White Balance |
Auto /Manual |
||
BLC /HLC |
Support |
||
DNR |
2D /3D DNR |
||
Other |
Image adjust , Flip |
||
Encode |
|||
Video Standard |
H.264 / H.26 5 /Mjpeg |
||
Video Resolution |
MainStream:20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc. |
||
Video Bitrates |
512Kbps - 12Mbps, VBR/CBR |
||
Audio Standard |
G.711-u / G.711- a /AAC |
||

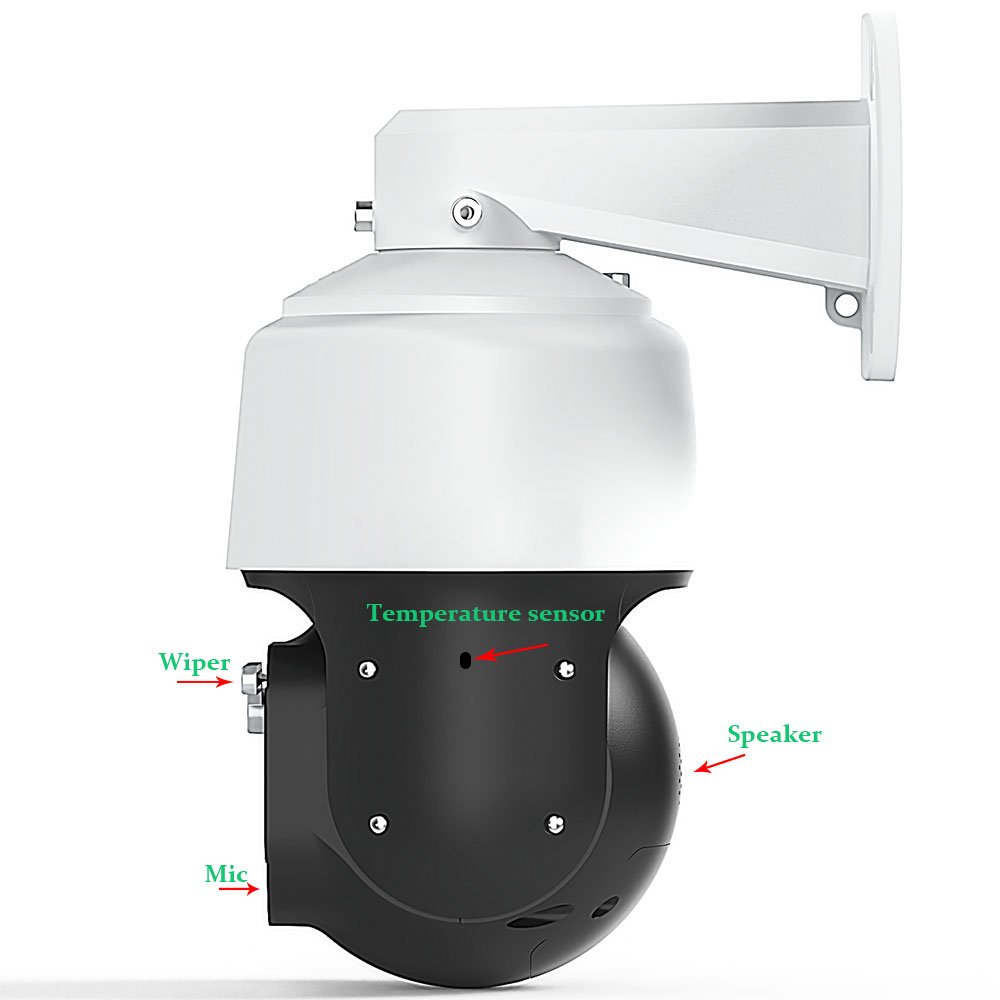

Two-way audio |
Built-in Mic and speaker |
||
Smart Detection |
Smart Human and Vehicle Detection |
||
IR Led |
|||
IR Led |
8pcs array IR Led |
||
White lights |
2 pcs 3000K warm lights |
||
IR Distance |
80-100 M |
||
W hite lights Distance |
40-50M |
||
Lens |
|||
Focal length |
4. 7 ~9 4 mm |
||
IRIS |
F1.6~F2 2 |
||
View angle |
56°(wide) ~ 3.86°(tele) |
||
Zoom |
20x optical zoom |
||
Optional Function |
|||
High power PoE + |
|||
PTZ |
|||
Pan/Tilt Range |
Pan: 0° ~ 360 °; Tilt: -15° ~ 90 ° |
||
Preset Point |
256 |
||
Control Speed |
Pan: 0. 5 ° ~ 100° /s; Tilt: 0. 5 ° ~80° /s |
||
A-B Scanning |
Support |
||
Auto Cruising |
Support 1 groups patrol , Max. 32 presets in group |
||
Power on Action |
reset/Scan/Cruise |
||
Power-off Recovery |
Support |
||
S mart Tracking |
Human Detection Tracking |
||
Network Services |
|||
Protocol |
HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS /RTMP , etc. |
||
P2P |
Yes |
||
Web |
IE, Firefox , Chrome, Edge, Safari |
||
Media |
CMS, Android , IOS |
||
ONVIF |
17.06 compatible |
||
General |
|||
Network Port |
1- RJ45, 100Mbps, PoE 48V in |
||
Power Supply |
12 VDC ± 10% 2A |
||
Power Consumption |
< 2 0 W |
||
Operating Temp. |
- 30 ℃ -(+60) ℃ , 10%-90%RH |
||

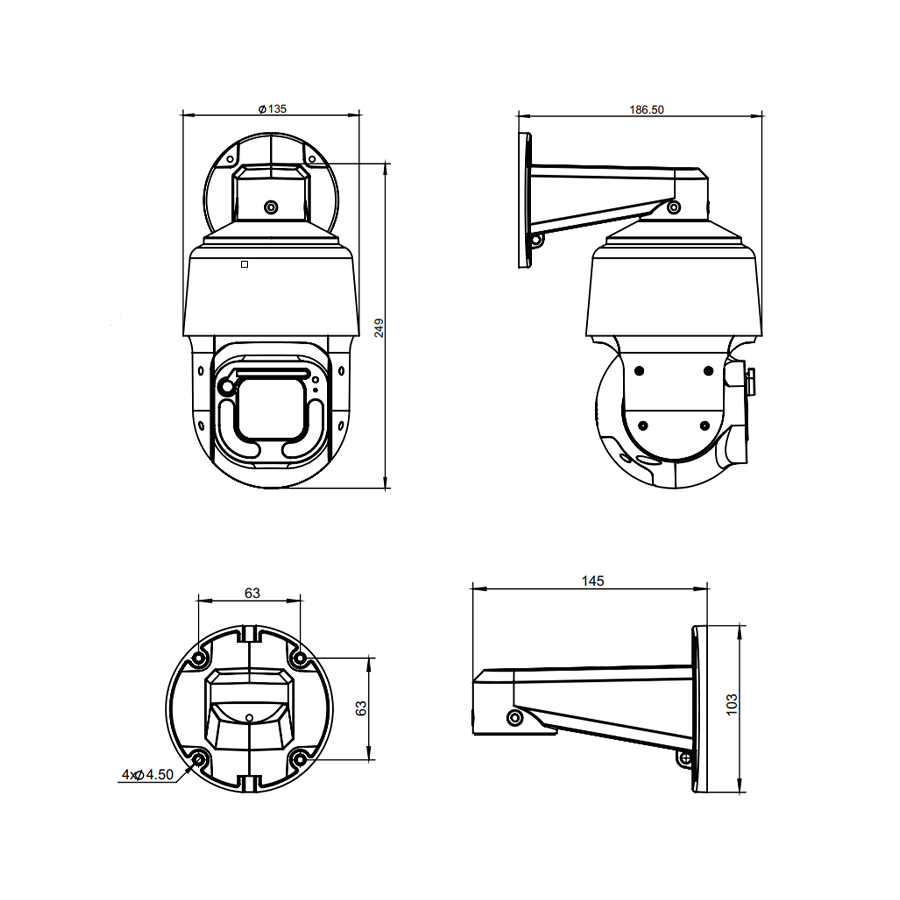

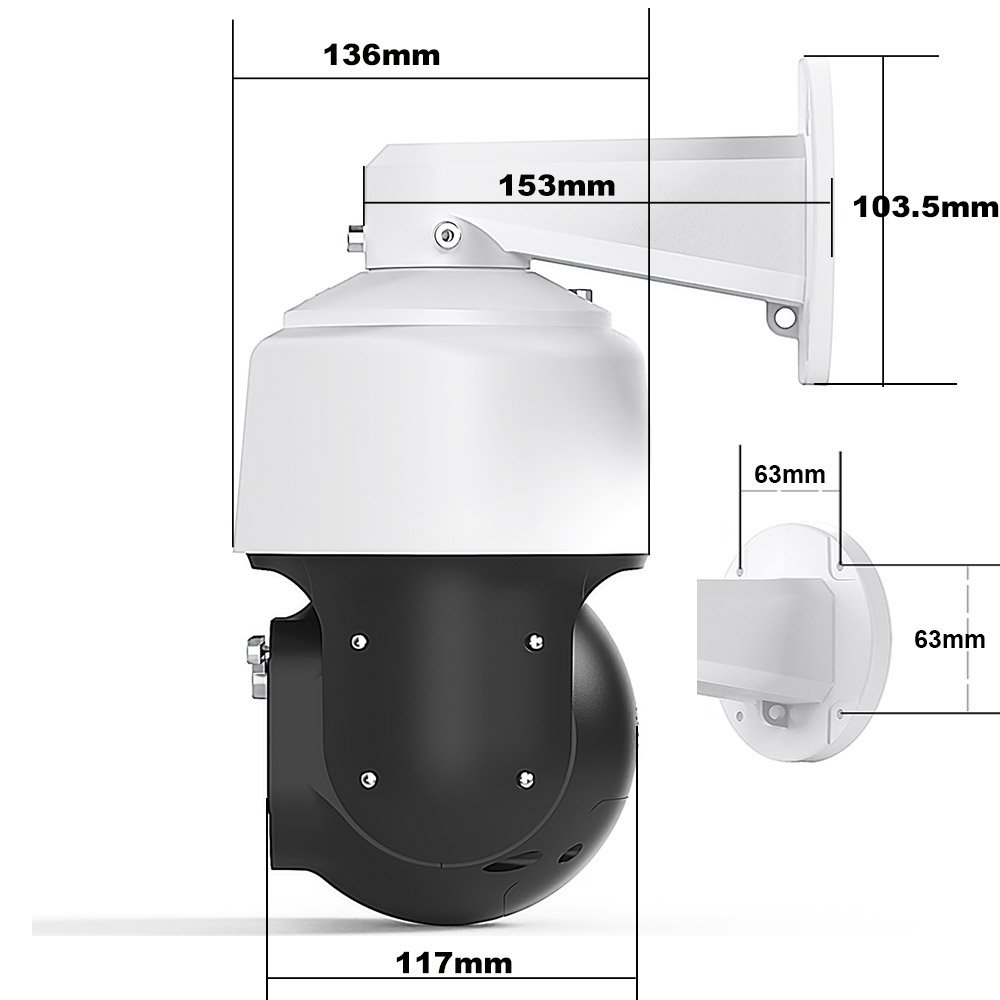

Size |
4 inch, 250*245*160mm |
||
Weight |
2 KG |
||
