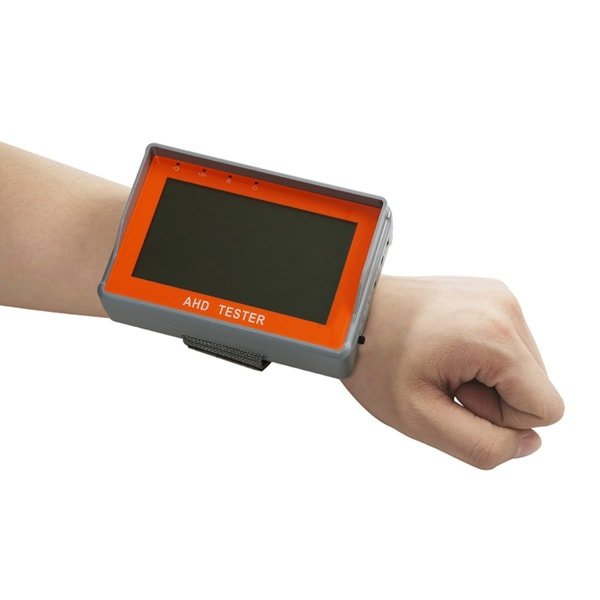

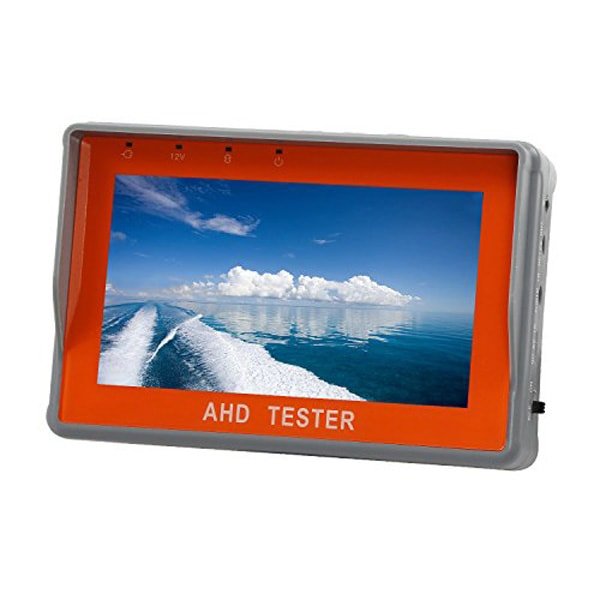

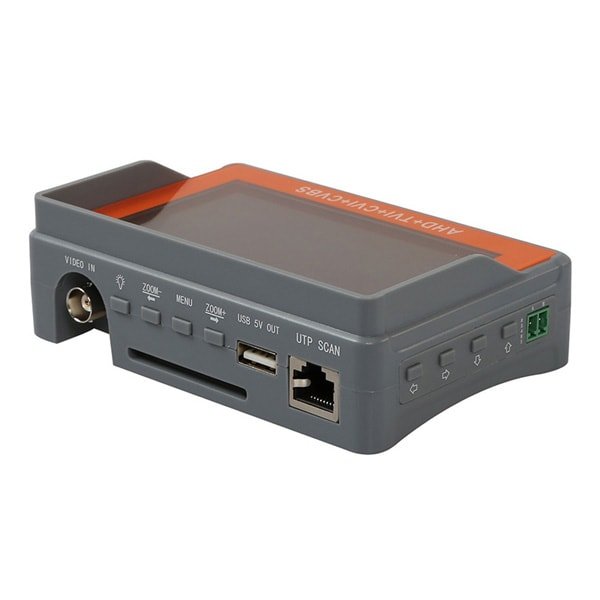

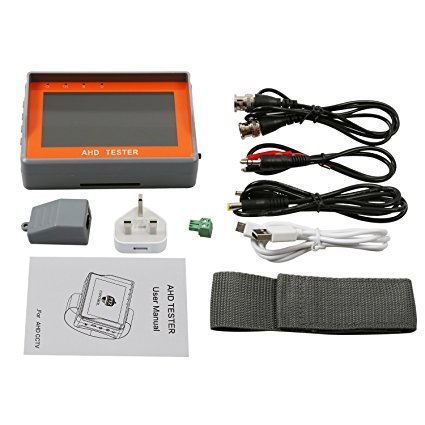

Product Description
| Model | IV7S | |
| Video test | Video System | NTSC/PAL Automatically recognize |
| Video level | 1VPP | |
| Display screen | 4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color | |
| Screen adjustment | Video display brightness, contrast, color saturation adjustable, LCD backlight brightness adjustable | |
| Video input / output | 1 channel BNC Video IN | |
| HD AHD ,TVI Test | SD signal Format | NTSC ,PAL |
| HD video signal | HD AHD,TVI,CVI | |
| Resolution | D1,720P,960p,1080P | |
| Signal Level | 1Vpp | |
| 12V power output | Power output | Temporary power output 12V 1A DC |
| USBX1 5V1A output | ||
Audio test | Input audio signal, and played on the internal speaker | |
| Power supply | External power | DC 5V(2A) |
| Battery-powered | Bulit-in 3.7v li-ploymer battery ,capacity 2600mAh | |
Charge | Charge time 3-4 hours Battery power time 8 hours | |
| Power saving features | Low power consumption, automatic power off, Real-time display of battery level | |
| System settings | Language settings | Chinese, English user selectable |
Auto power off | Disable / 5-60 minutes | |
| Cable test | cable test | Test any two or more wire cable Display connect sequence and remote number |
| LED Light | 1*35lm LED light | |
| Working environment and Specifications | 30%-90% Rh | |
| -20℃---+70℃ |
