Product Description

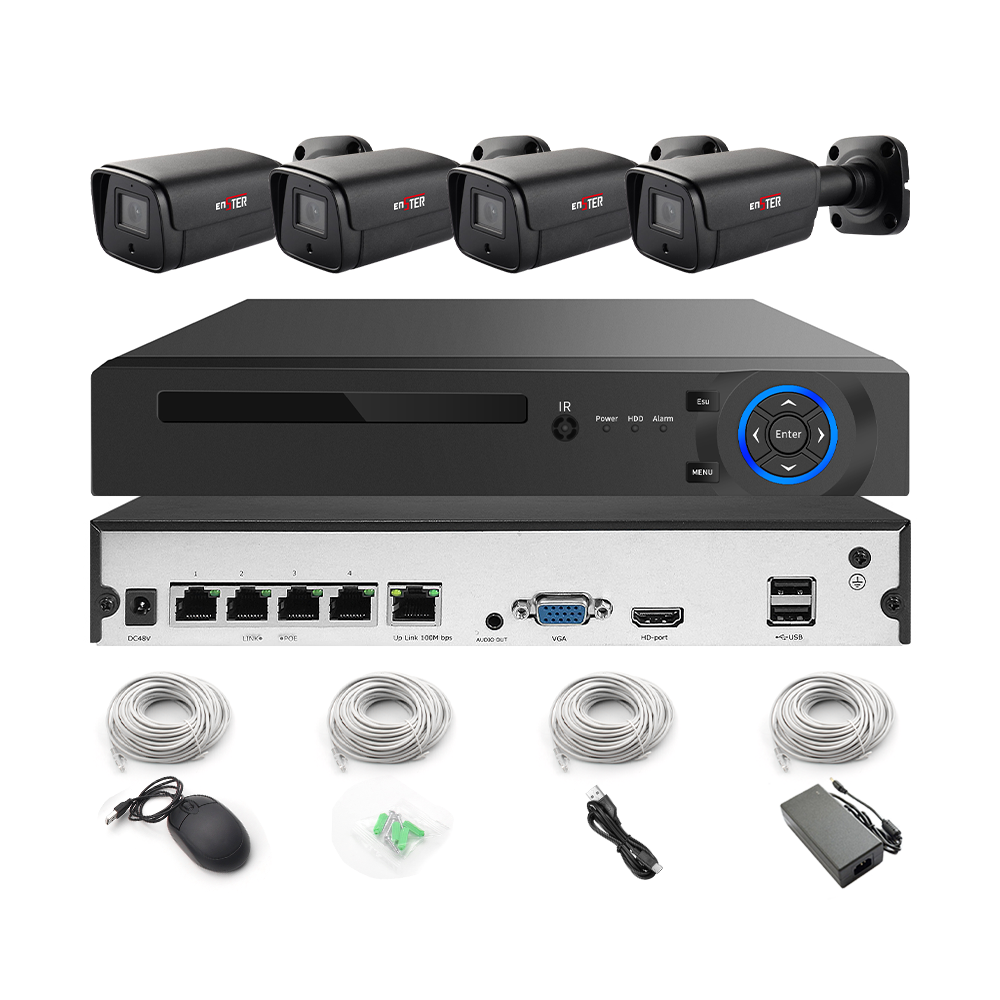

NVR Specifications:
| Model No. | NST-NVR7504P-4K | |
System | Main processor | Hi3798M |
| Operating system | Embedded Linux | |
| System resource | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operation interface | 16-bit true color graphic menu operation interface, support mouse operation |
Preview | 1/4/8 | |
Video | Video input (IP) | 4*4K/4*5M/4*4M /8*1080P |
Video standards | PAL(625TVL,50f/s) ; NTSC(525TVL,60f/s) | |
Forwarding bandwidth | H.265/H.264 | |
| Display quality | Max:4K | |
| Playback quality | 4K/5M/4M/1080P | |
| Decode | 1*4K/2*5M/4*4M/4*1080P | |
| Motion detection | Depend on camera | |
Audio | Audio compression | G.711A |
| intercom | Unsupport | |
Record and playback | Record mode | Manual>Alarm>Video Detection>Continuous |
| Local playback | 1*4K/2*5M/4*4M/4*1080P | |
| Search mode | Search by Time/Calendar/Event/Channel | |
Storage and back up | Record Storage | HDD 、 network |
| Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |

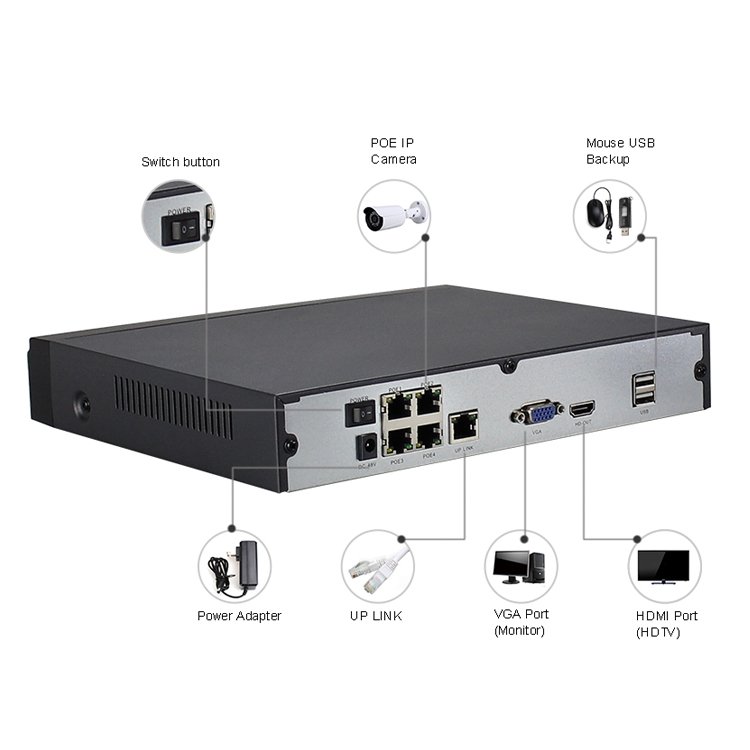

Interface | Video output | 1ch HDMI HD output(can be extended to support VGA) |
| Audio I/O | 0/0 | |
| Alarm I/O | 0/0 | |
| Network interface | 1* 10M/100M Adaptive Ethernet port,4 POE ports | |
| USB interface | 2*USB2.0 ports | |
| Hard disk | 1*SATA(extensible 2 SATA interface) (Up to 8TB for each disk) | |
other | ONVIF | Support |
PTZ control | Control PTZ device by network | |
| Power supply | 48V/1.5A | |
| Power Consumption | <10W(Without HDD) | |
| Work environment | Temperature:0℃- + 55℃ , Humidity:10% - 90%RH , Atm:86kpa - 106kp | |
| Dimension | L350*W275*H80MM | |
| Weight | 1.6KG | |

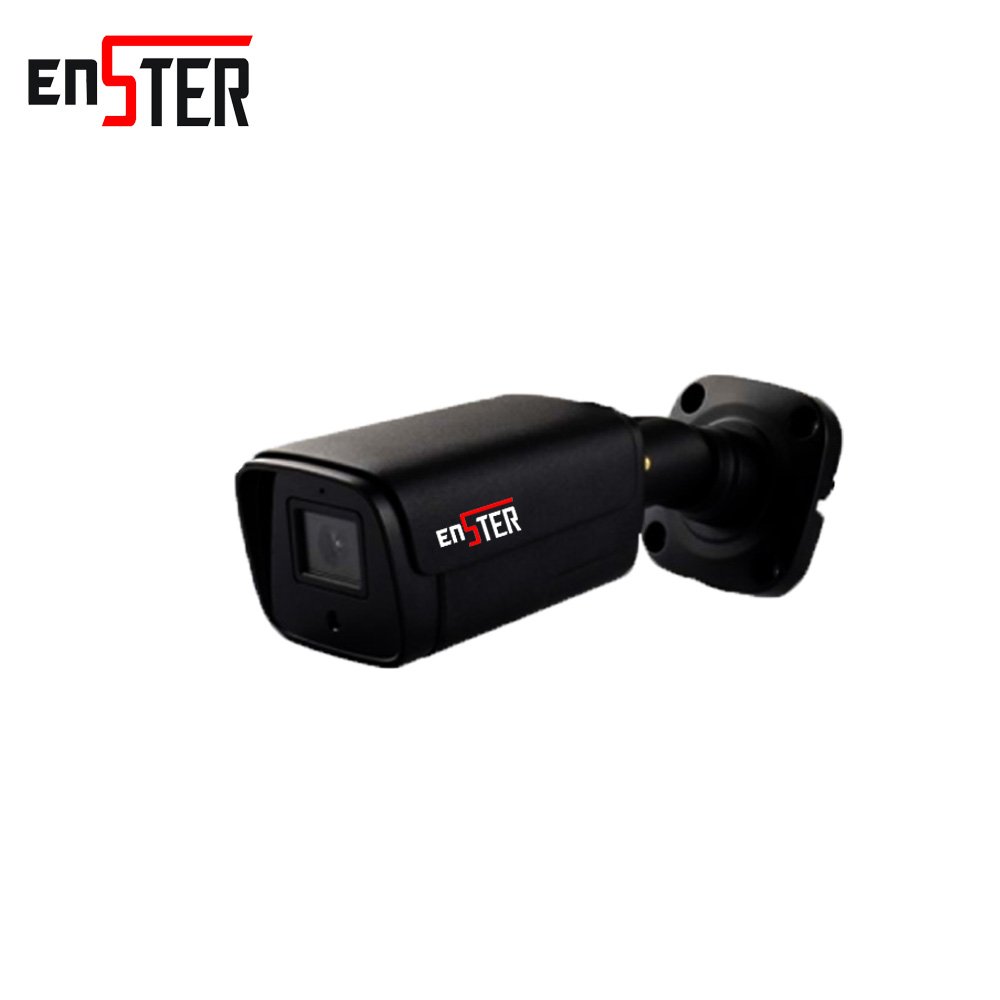

Camera Specifications:
Model No. | NST-IPM6858 | NST-IPH6855 | NST-IPX6853 | |
Camera Type | Fixed Lens Bullet IP Camera | |||
System | Embedded RTOS design | |||
Camera | Effective Pixels | 8.0 MegaPixels | 5.0 Megapixels | 3.0 MegaPixels |
Main stream:3840*2160@20fps | Main stream:2592*1944@20fps | Main stream:2304*1296@20fps1080@25fps | ||
Sub stream:1280*720@25fps | Sub stream:704*576@25fps | Sub stream:800*448@25fps | ||
Image Sensor | 1/2.8" Sony IMX415 Cmos Sensor | 1/2.8" Sony IMX335 Cmos Sensor | 1/2.8" SC3335 CMOS Sensor | |
| Soc Chipset | Mstar SSC328Q | Hisilicon 3516EV300 | XM535AI | |
Min. Illumination | Color 0.01Lux/F1.2 | Color 0.01Lux/F1.2 | Color 0.0001Lux/F1.2 | |
B/W 0.0001 Lux/F1.2 | B/W 0.001 Lux/F1.2 | B/W 0.0001 Lux/F1.2 | ||
Adjust Parameters | DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc. | |||
Video | Compression | H.265/H.264 Main profile | ||
Stream | support dual stream,AVI format | |||
Bit Rate | support 0.1M ~8Mpbs bit rate adjustable | |||
Frame Rates | support 1~30fps adjustable | |||
Audio | Input and output | 1ch input( micphone),1ch output( Speaker) Optional | ||
Compression | G.711 compression,support two-way audio intercom,support audio and video synchronized output | |||
Alarm | Types | Motion Detection, Video Blind , Video Loss | ||
Network | WEB Browser | Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.) | ||
Smart Phone | mobile remote Monitoring (iPhone,Android,....) | |||
CMS Software | Uniform CMS Software(multiple devices management system) | |||
Cloud P2P | www.enster.com,MYEYE platform and other program,Offer SDK | |||
Network | 10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP | |||
ONVIF | Support (ONVIF 2.4) | |||
POE | Support(optional) | |||
General | Language | 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish | ||
IR Cut Filter | Set of double light switch IR-CUT filter | |||
Lens Mount | Board Lens 3.6mm | |||
Infrared Luminary | 2pcs Array IR LED | |||
Infrared Wavelength | 850nm | |||
Illuminate Distance | 30m | |||
Waterproof Criterion | IP 67 | |||
I/O Connector | 1*DC Connector ,1* RJ45(10/100M Network) | |||
Supplied Voltage | DC12V/PoE(802.3af/820.3at) | |||
Power Consumption | IR On: 600mA max., IR Off: Less than 200mA | |||
Working Environment | -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° ) | |||
Weight | 0.6kg | |||
