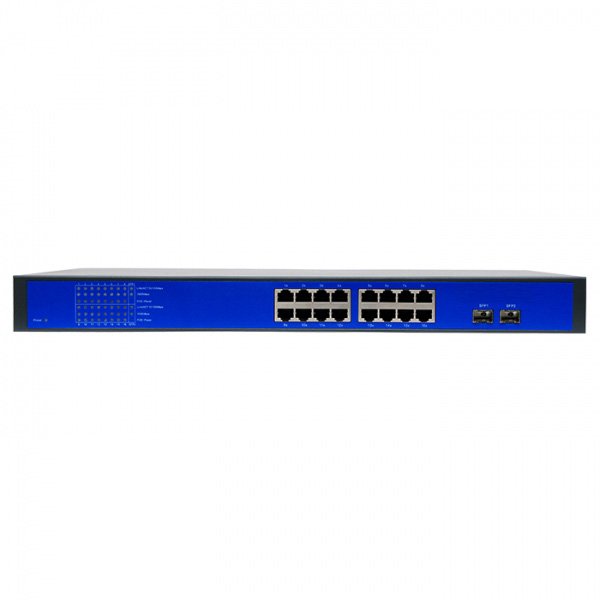

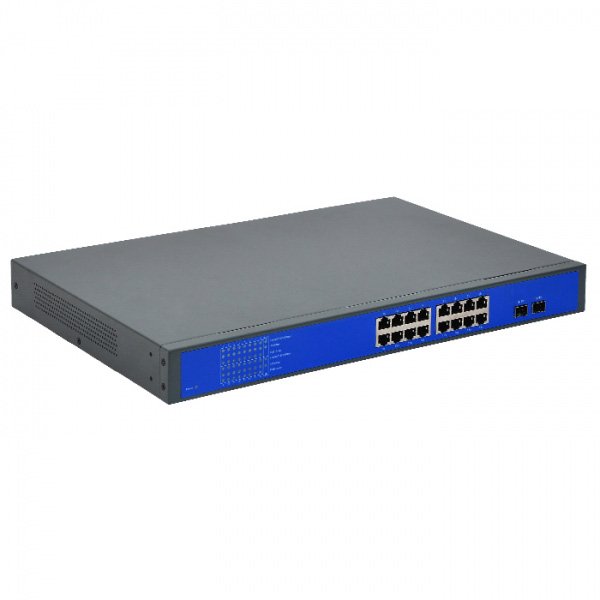

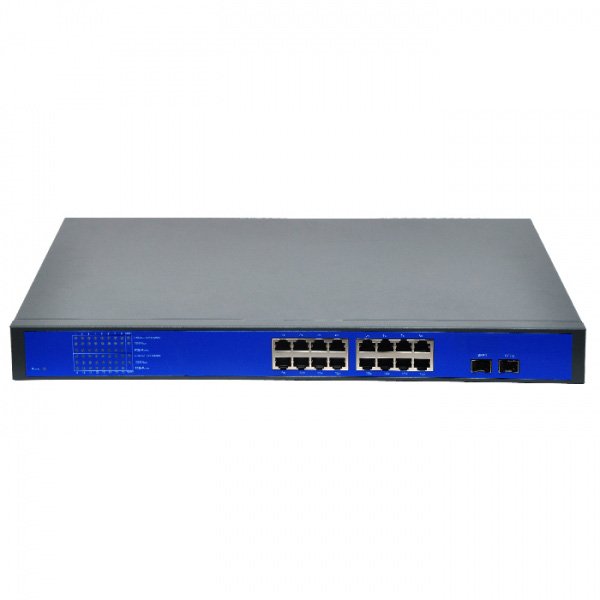

Product Description
| Model No. |
NST-POE1602GS
|
| Type |
16+2 port 250W POE switch(Built-in)
|
| POE Port |
1 to 16 port support IEEE802.3af/at
|
| SFP port |
17th-18th port support 1000Mbps
|
| Output Power |
15.4W/30W IEEE802.3af/at
|
| Power Pin |
Both 1/2+、3/6- and 4/5+7/8-
|
| Whole Power |
≤250W(52V 4.8A)
|
| POE Protocol |
IEEE 802.3af/IEEE 802.3at
|
| POE Type |
End-span
|
| Power Distance |
≤150m
|
| Network Standard |
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
|
| Network Medium |
100/1000BASE-TX: 5 class and above non shielded twisted pair
|
| Data Distance |
≤150m
|
| Switch Capability |
12.8Gbps
|
| Forwarding Mode |
Store and forward
|
| Forwarding Rate |
10BASE-T:14880PPS/port 100BASE-tx:14800pps/port 1001000BASE-T: 1488095pps/port
|
| MAC Address |
16K MAC address table
|
| Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
|
| LED Indicator |
LINK/ACT. 100Mbps;POE Status indicator; POWER indicator
|
| Working Environment |
Working Temperature: -10°-- 55°C
|
| Input power |
AC100-240V 50/60HZ
|
| Weight |
4kg
|
| Size |
440mm*285mm*44mm(L*W*H)
|
