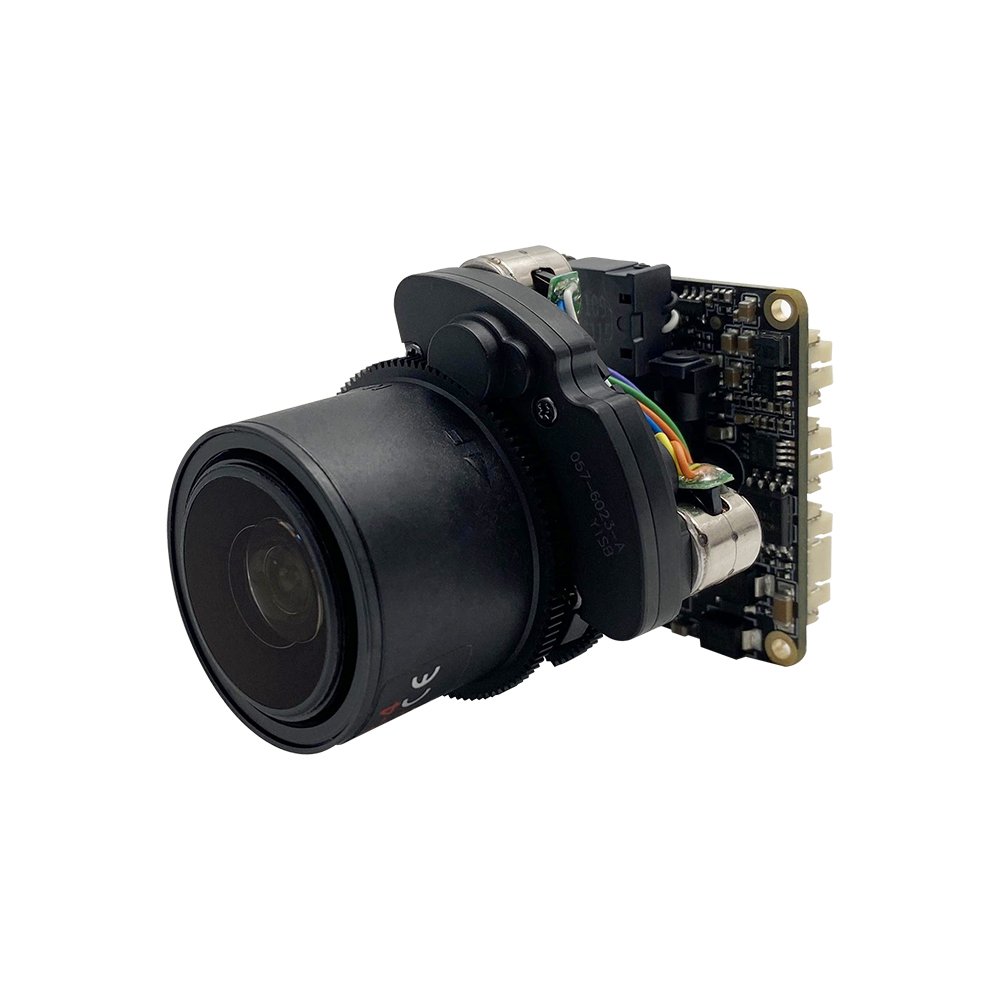

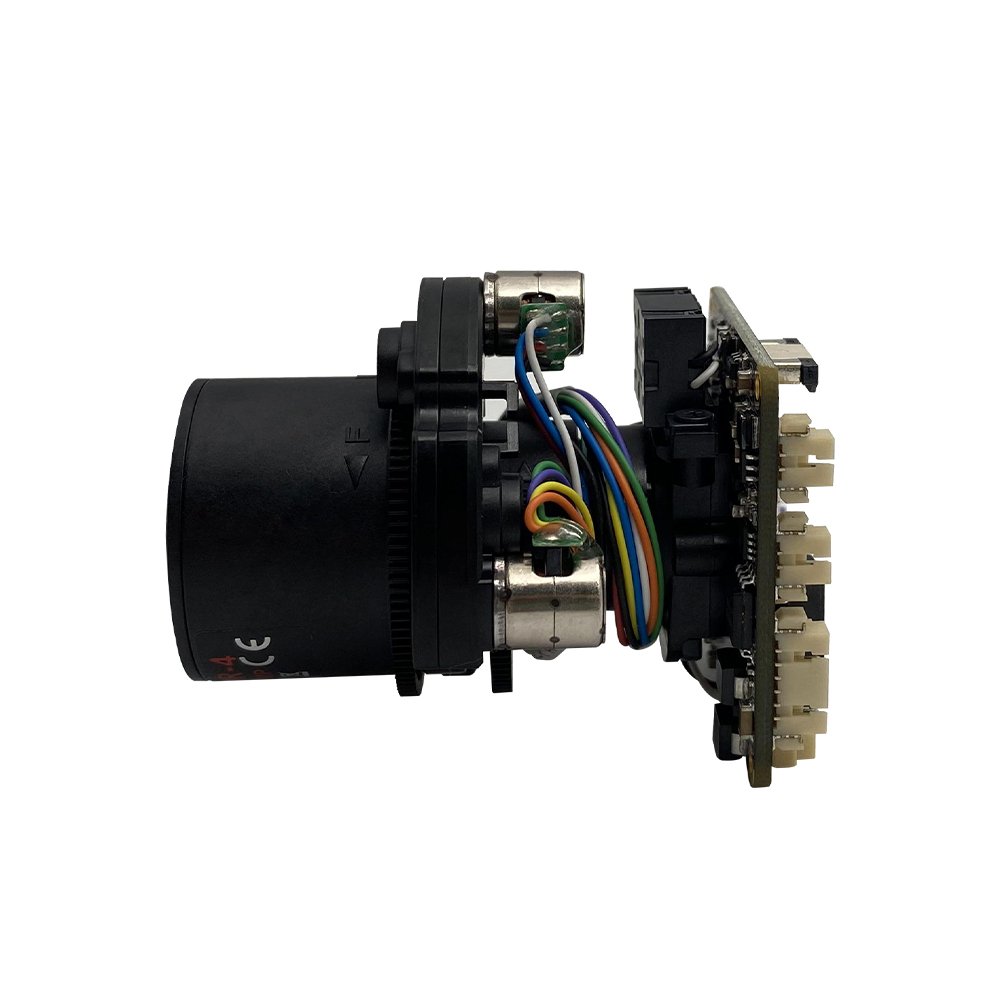

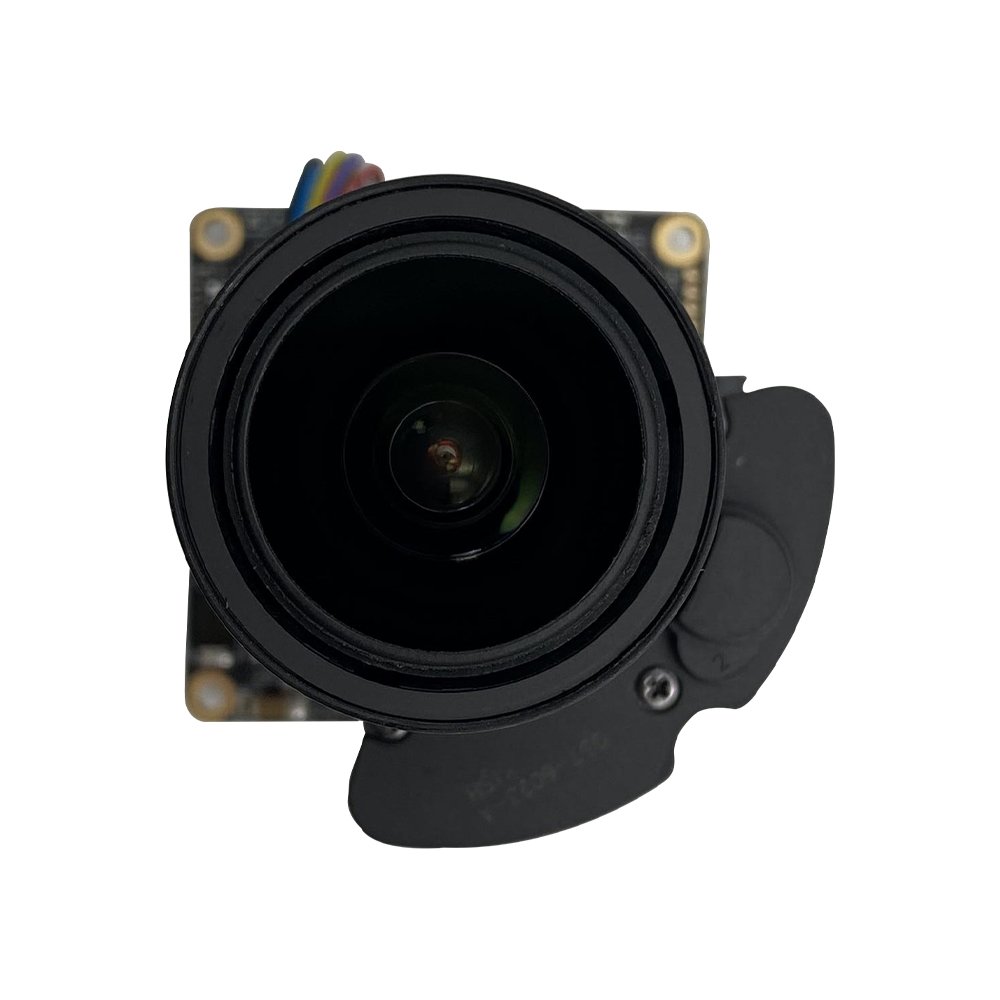

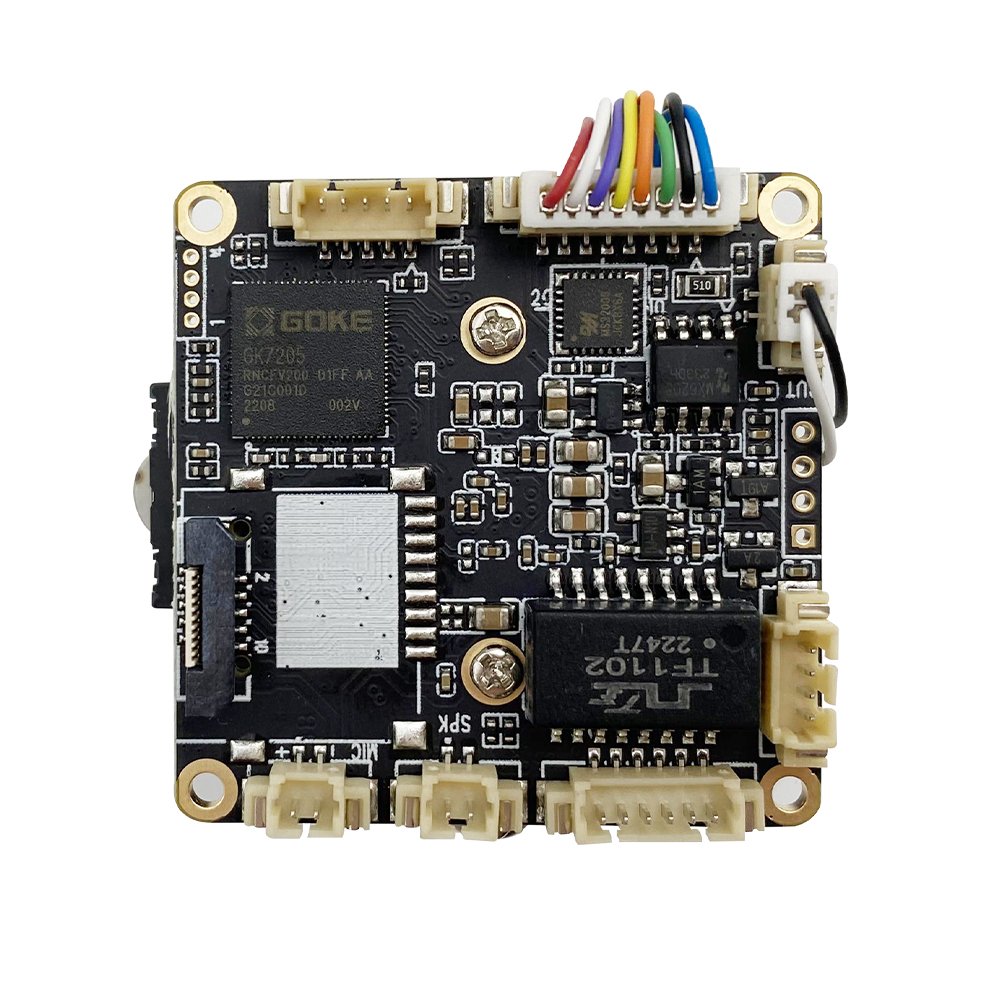

2MP 5X optical Zoom Wireless Wifi IP Camera Board

1/2.8" SONY IMX307 Sensor 2 MP HD Wireless WIFI Camera ModuleHigh-sensitivity, high-signal-to-noise CMOS image sensorUsing GK7205V200 processing chip
The highest pixel can reach 200W, and the highest resolution can reach (1920x1080)H265 compression algorithm, effectively reduce network bandwidth, support dual stream, support mobile phone monitoringSupport multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, DHCP, DNS, NTP, UPNP, RTSP, etc.Support ONVIF protocolSupport alarm pictures to send E-MailSupport alarm picture and alarm video upload to FTP serverSupport timing capture pictures to FTP serverSupport static IP, also supports dynamic IP (DHCP)Support P2P plug and playSupport IE, Google, Firefox browserA maximum of 6 users can be browsed at the same time (each code stream supports 3 users)Provide motion detection (region, sensitivity can be set) alarm functionSupport Humanoid DetectionSupport Micro SD card function, maximum support 128G Micro SD cardSupport mobile phone download and playback SD card video

NST-IPG2-5X-W



Model No.

NST-IPG2-5X-W
Sensor
1/2.8” IMX307 CMOS sensor
Main chip
GK7205
Pixel
2MP
Lens
Standard M12, 4mm HD lens
Day/Night function
Auto IR-CUT
Video compression format
H.265
Dual stream
Support
Image Resolution
2MP(1920x1080), 720P
Video bitrate
32Kbps-6Mbps
Video frame rate
Support 25fps
Network protocol
TCP/IP, UDP/IP, HTTP, ICMP, FTP, EMAIL, TELNET
Motion Detection
Can set 0-100 sensitivity and detect 4 areas
ONVFI protocol
Support ONVIF2.4
IE application
Embedded Web Server, users can browse and control with the browser directly
Phone monitoring
Support iPhone, Android
DDNS
Support LAN and Internet
WIFI
Support 7601 WiFi module
Audio port
1CH Audio Input, 1CH Audio Output
TF card storage
Support 128G TF card (need additional connection board)
Other function
Support 485 interface, support connect battery to save the clock, support humanoid recognition
User Management
Allow multiple users to access the device at the same time
Network Interface
1 RJ45, 10/100M Ethernet interface
Module power consumption
DC 12V 2A, 2.2W
Working temperature, humidity
0 - 55℃, 10-95%
Size
38*38*25mm
